IS420ESWBH3AE

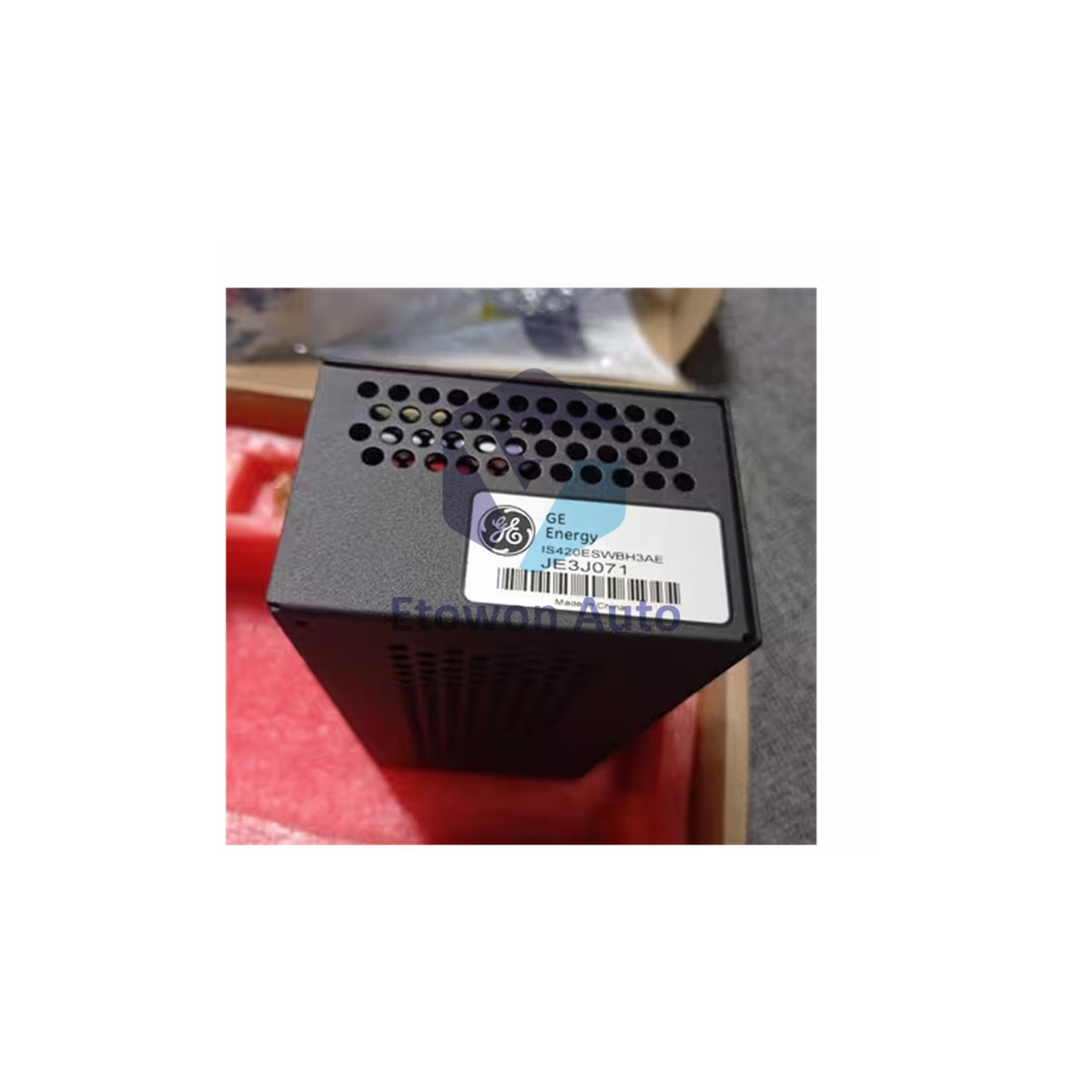

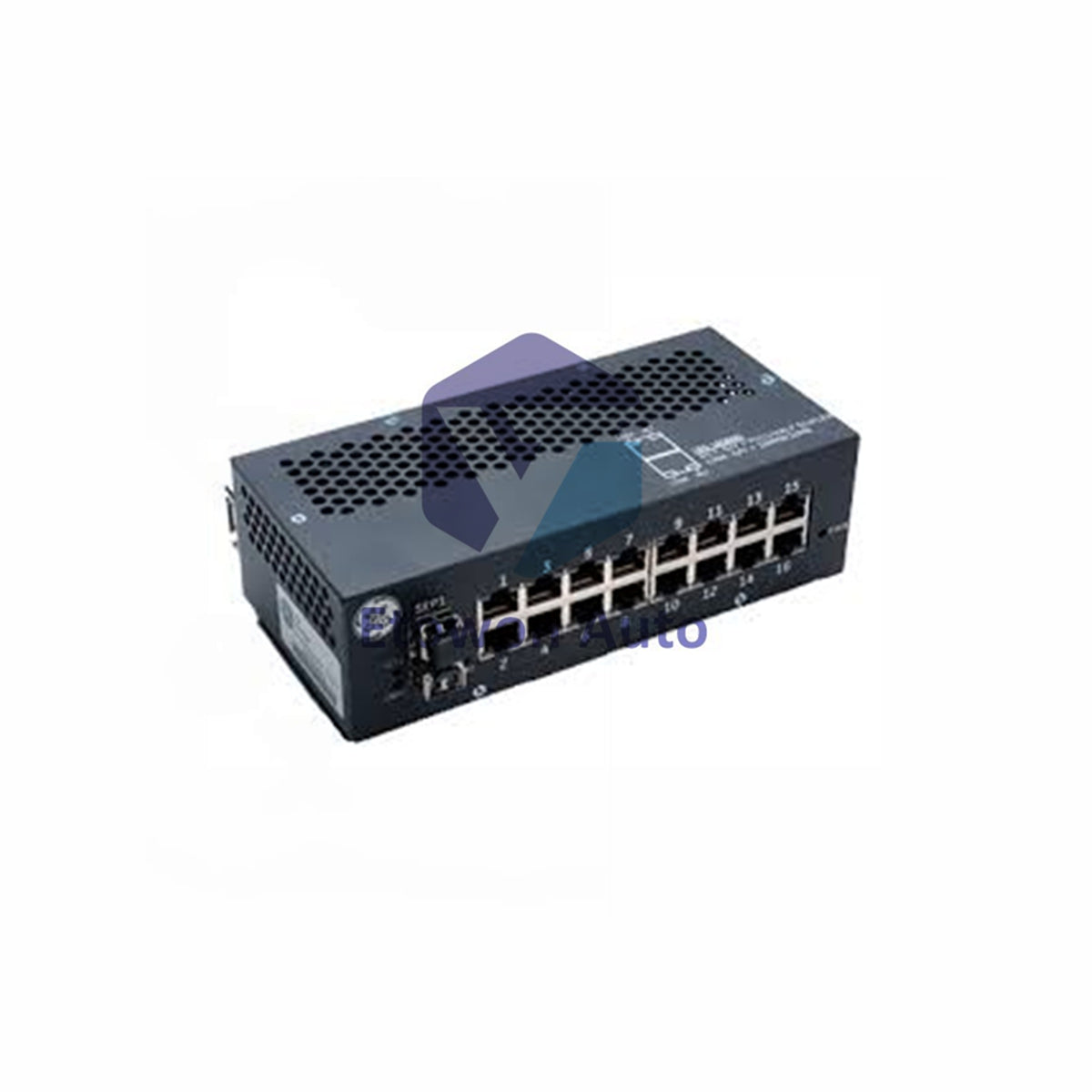

IS420ESWBH3AE General Electric 16 Port 10 100Base TX Switch

A kan haja (23 guda), a shirye don aikawa

  • Manufacturer: General Electric

  • Product No.: IS420ESWBH3AE

  • Product Type: Ethernet Switch

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 770g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The General Electric IS420ESWBH3AE is a ruggedized industrial Ethernet switch designed for high-availability networking within the Mark VIe control system ecosystem. This ESWB (Ethernet Switch Board) provides 16 dedicated copper ports (10/100Base-TX) to facilitate reliable data exchange between controllers, I/O packs, and workstations.

Technical Configuration

Optimized for high-demand industrial control networks:

  • Port Density: 16 RJ45 Copper Ports (10/100Base-TX)
  • Power Redundancy: Dual DC inputs (24/28 V DC) for uninterrupted operation
  • Safety Integrity: Classified as "Non-Interfering" for seamless control integration
  • Cooling Architecture: Passive convection cooling (no moving parts)
  • Mounting Options: Compatible with DIN-rail or Panel mounting
  • Signal Indicators: Comprehensive LED array for link, speed, and duplex status

Technical Specifications

Technical Parameter Rating Value
Manufacturer General Electric (GE Energy)
Operating Temperature -40°C to 70°C
Input Voltage 24/28 V DC (1 A Max)
Physical Dimensions 18.8 cm x 8.6 cm x 5.6 cm
Unit Weight 0.77 kg
Cable Type Cat 5e UTP with RJ45

Engineering Advantages

The General Electric IS420ESWBH3AE is engineered for maximum uptime with its dual-redundant power inputs, which allow the switch to continue operating seamlessly if one power source is lost. Its intelligent LED Diagnostics provide clear visibility: the Link LED indicates connection speed (Yellow for 10 Mbps, Green for 100 Mbps), while the Activity LED confirms duplex modes. Built to withstand extreme temperatures (-40°C to 70°C), this switch is suitable for unconditioned field cabinets where standard commercial hardware would fail.

Technical FAQs

Q1: What are the requirements for DIN-rail mounting?
A1: For standard DIN-rail installation, this module requires specific mounting clips (part numbers 259B2451BVP1 and 259B2451BVP4).

Q2: How does the switch handle network collisions?
A2: The Activity LED flashes green during Full Duplex communication and yellow during Half Duplex, allowing technicians to verify that the network is operating in its most efficient, collision-free mode.

Q3: Does the IS420ESWBH3AE require manual speed configuration?
A3: No, the 16 copper ports are auto-sensing 10/100Base-TX, meaning the switch will automatically negotiate the best speed and duplex settings for each connected device.
