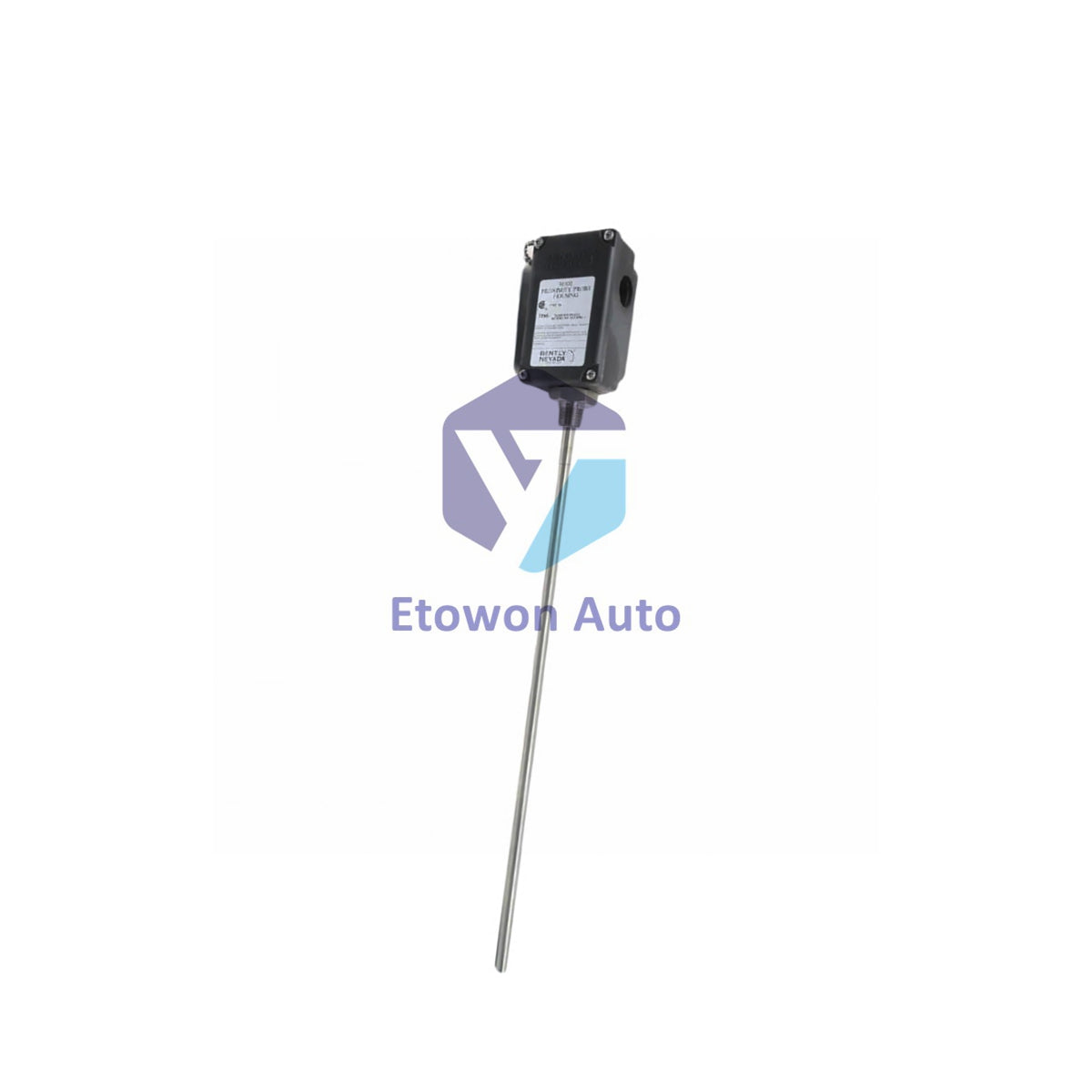

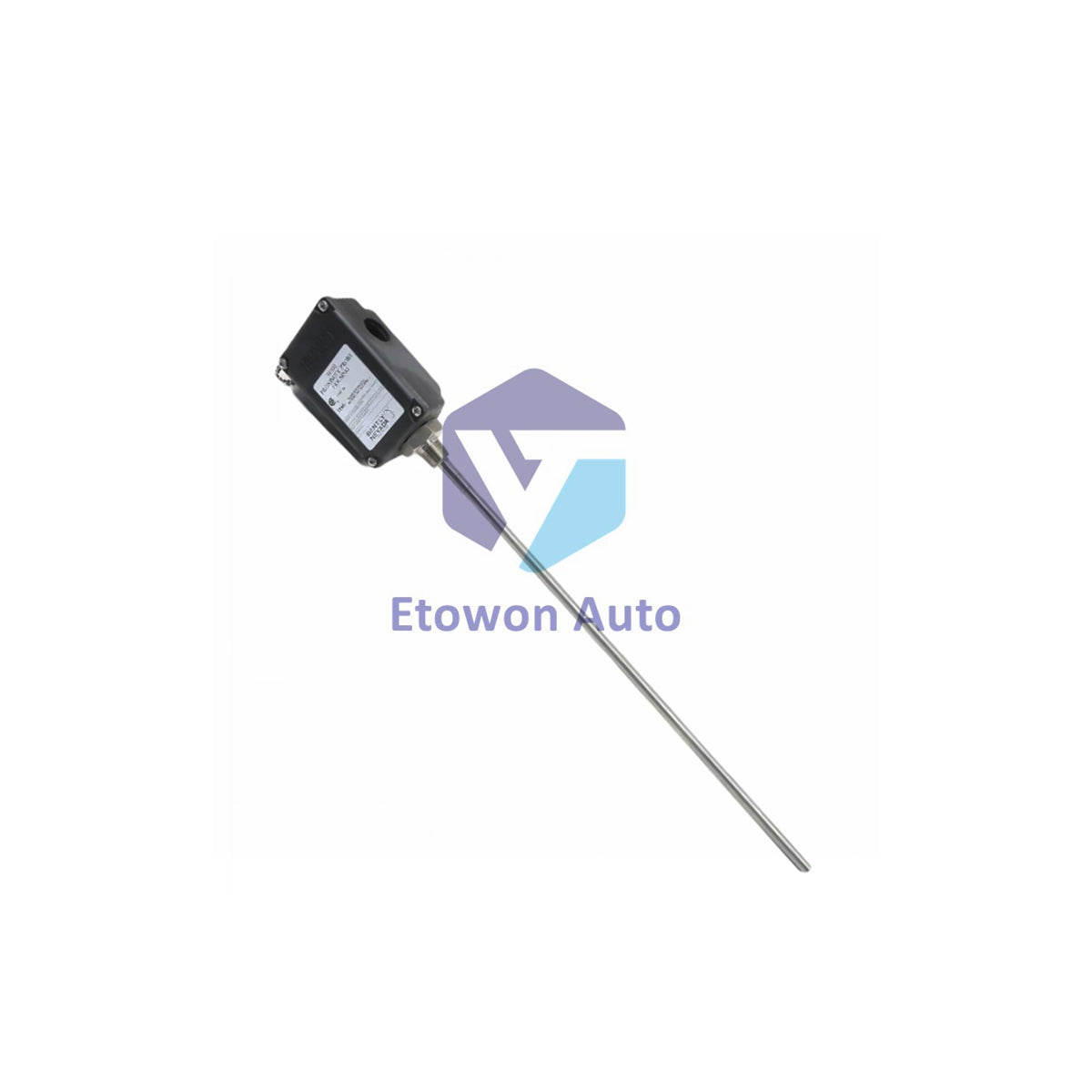

Housing Assembly Bently Nevada 31000-16-10-00-154-00-02

Product Overview

The 31000-16-10-00-154-00-02 is a specialized, extended-reach proximity probe housing from Bently Nevada, specifically designed for deep installation applications. Featuring an impressive 15.4-inch (391mm) penetration depth, this housing is engineered to protect 3300 XL 8mm proximity probes in complex machinery architectures. The body is constructed from 35% glass-fiber reinforced conductive PPS thermoplastic, providing excellent electrostatic dissipation and corrosion resistance. With its IP66 and Type 4X certifications, this 1.2kg assembly ensures critical vibration monitoring data remains uninterrupted even in the harshest industrial environments.

Technical Specifications

Engineering Advantages

• Extended Reach Configuration: The 15.4-inch penetration depth allows for precise probe positioning in large-scale turbines and compressors where standard housings cannot reach.
• Enhanced Material Durability: The glass-reinforced PPS composite provides structural rigidity and chemical resistance superior to standard plastics.
• Hazardous Area Compliance: Meets EN50014 standards for electrostatic dissipation, making it safe for use in explosive atmospheres.
• High Environmental Sealing: Equipped with dual Neoprene® O-rings to maintain a vacuum-tight seal against moisture and industrial contaminants.

Installation & Maintenance

When installing the 31000-16-10-00-154-00-02, it is critical to verify that the internal machine clearance accommodates the full 15.4-inch penetration depth. The 3/4-14 NPT mounting thread should be properly torqued to ensure a leak-proof fit. This specific "00" fittings option requires the installer to provide their own conduit connections. Periodically inspect the PPS housing for physical impacts; the unit is BASEEFA certified for impact resistance, but extreme mechanical stress should be monitored to ensure IP66 integrity.

Technical FAQs

Q1: Does this housing include the 3300 XL probe?
A1: Yes, the "16-10" designation indicates that a 3300 XL 8mm probe with a 1.0-meter cable is included as part of this assembly.

Q2: Can I use this in corrosive coastal environments?
A2: Absolutely. The combination of 304/303 stainless steel and PPS thermoplastic is highly resistant to salt spray and corrosion, as confirmed by its CSA Type 4X rating.

Q3: What is the significance of the 15.4-inch penetration?
A3: This length is chosen for applications where the sensor target (the shaft) is located deep within the machine casing, requiring a long protective sleeve to reach the measurement point.
