GE IC755CSS15CDA | 15 Inch Multi-Touch HMI Display

Ragowar raka'a 9 kaɗai

  • Manufacturer: General Electric

  • Product No.: IC755CSS15CDA

  • Product Type: Operator Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 4540g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

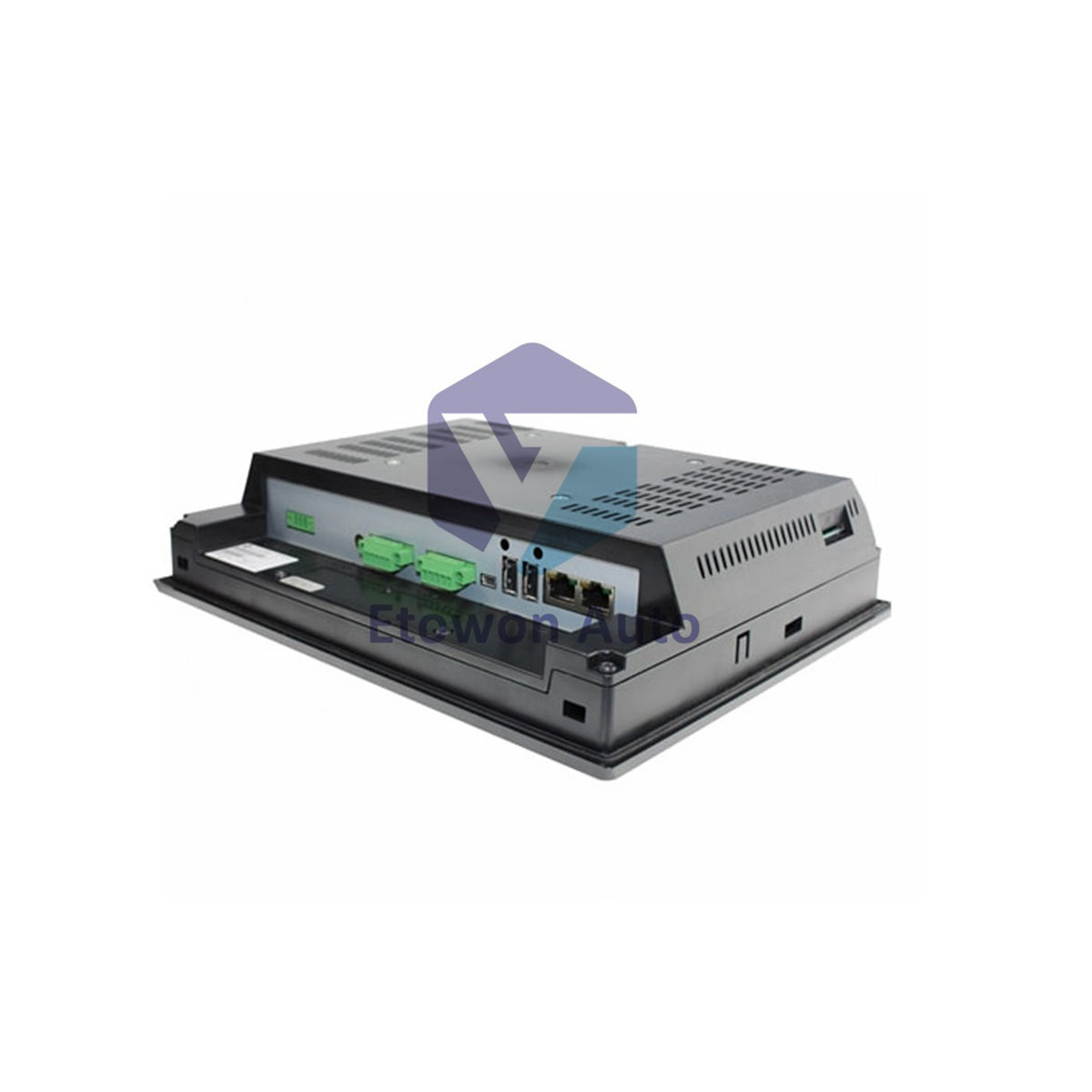

The Emerson Automation IC755CSS15CDA (formerly produced under GE Fanuc) is an all-in-one QuickPanel+ Operator Interface (OI) terminal engineered for demanding industrial environments. Combining HMI, PLC control, data historian, and gateway functions into a single compact unit, this 15-inch multi-touch display terminal operates on Microsoft Windows Embedded Compact 7. Powered by a high-performance Freescale i.MX535 1GHz ARM Cortex-A8 processor with dedicated 2D/3D graphics and NEON SIMD media acceleration, the IC755CSS15CDA delivers rapid screen updates and smooth multi-touch control. Housed in a conformally-coated enclosure featuring an OEM monogram bezel, the unit supports versatile mounting via standard gasket kits and operates on a 12 / 24 VDC power supply (30W max consumption) with silent, fanless convection cooling across an operating range of 0°C to +55°C.

Technical Specifications

Parameter Specification
Product Part Number IC755CSS15CDA
Manufacturer / Product Line Emerson Automation (formerly GE Fanuc) / QuickPanel+
Display Size & Type 15-inch Projected Capacitive (PCAP) Multi-Touch Screen
Display Resolution 1024 x 768 pixels (SVGA)
Processor Architecture Freescale i.MX535 1GHz (ARM Cortex-A8) with 2D/3D GPU
Operating System Microsoft Windows Embedded Compact 7 (CE 7)
Onboard System Memory 1 GB DDR3 SDRAM; 512 MB SLC NAND Flash; 512 KB Battery-Backed SRAM
Network Communication Ports 2x Ethernet 10/100 Mbps RJ-45 ports
Serial Interfaces 2x Serial Ports (1x RS-232 5-pin, 1x RS-485 port)
USB Interfaces & Audio 2x USB 2.0 Type-A, 1x USB 2.0 Mini Type-B, 1x Audio Out Port
Power Supply & Consumption 12 / 24 VDC Input; 30 Watts Maximum Consumption
Product Net Weight 10.00 lbs (4.54 kg)
Compliance & Environmental Standards UL 60950, CE, FCC Part 15 Class A, IP65F, NEMA 4X, ATEX Zone 2, RoHS

Key Hardware & Operational Features

  • Multi-Functional Automation Hub: Unifies traditional HMI operator display, IEC IEC 61131-3 PLC execution (LD, FBD, ST, IL, SFC), process control, and edge-data historian capabilities in one hardware footprint.
  • Projected Capacitive Multi-Touch Display: Provides intuitive gesture control, pinch-to-zoom, and high-visibility 1024 x 768 resolution on a scratch-resistant 15" screen.
  • Dual Ethernet & Flexible Serial Ports: Dual 10/100 Ethernet interfaces allow isolated network segmentation between plant networks and field devices, supported by standalone RS-232 and RS-485 serial options.
  • Industrial Protection & Status Monitoring: Built to IP65F and NEMA 4X front bezel standards with conformal-coated internal circuitry, complete with a tri-color LED status indicator (Amber/Green/Red) and an onboard diagnostic buzzer.

Installation & Field Guidelines

1. Panel Mounting: Cut out panel opening according to QuickPanel+ 15" templates. Ensure the supplied watertight mounting gasket is properly aligned to achieve NEMA 4X / IP65F sealing before tightening clamp fasteners.

2. Wiring & Power Connections: Connect a regulated 12 / 24 VDC power supply to the terminal's screw-block connector. Ensure the system earth ground wire is securely bonded to prevent electrical noise interference on communication lines.

3. Peripheral Expansion: Utilize the two USB 2.0 Type-A ports for mouse/keyboard inputs, barcode scanners, or USB storage drives, and insert SD memory cards for extended data logging space.

Frequently Asked Questions (FAQs)

Q1: What operating system is pre-installed on the IC755CSS15CDA?
A1: It runs a licensed instance of Microsoft Windows Embedded Compact 7 (CE 7).

Q2: What programming languages are supported for PLC control functions?
A2: It supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC).

Q3: What environmental and safety certifications does this QuickPanel+ hold?
A3: Certifications include UL 60950, CE, FCC Part 15 Class A, IP65F, NEMA 4X, ATEX Zone 2, CUL Zone 2, and RoHS compliance.
