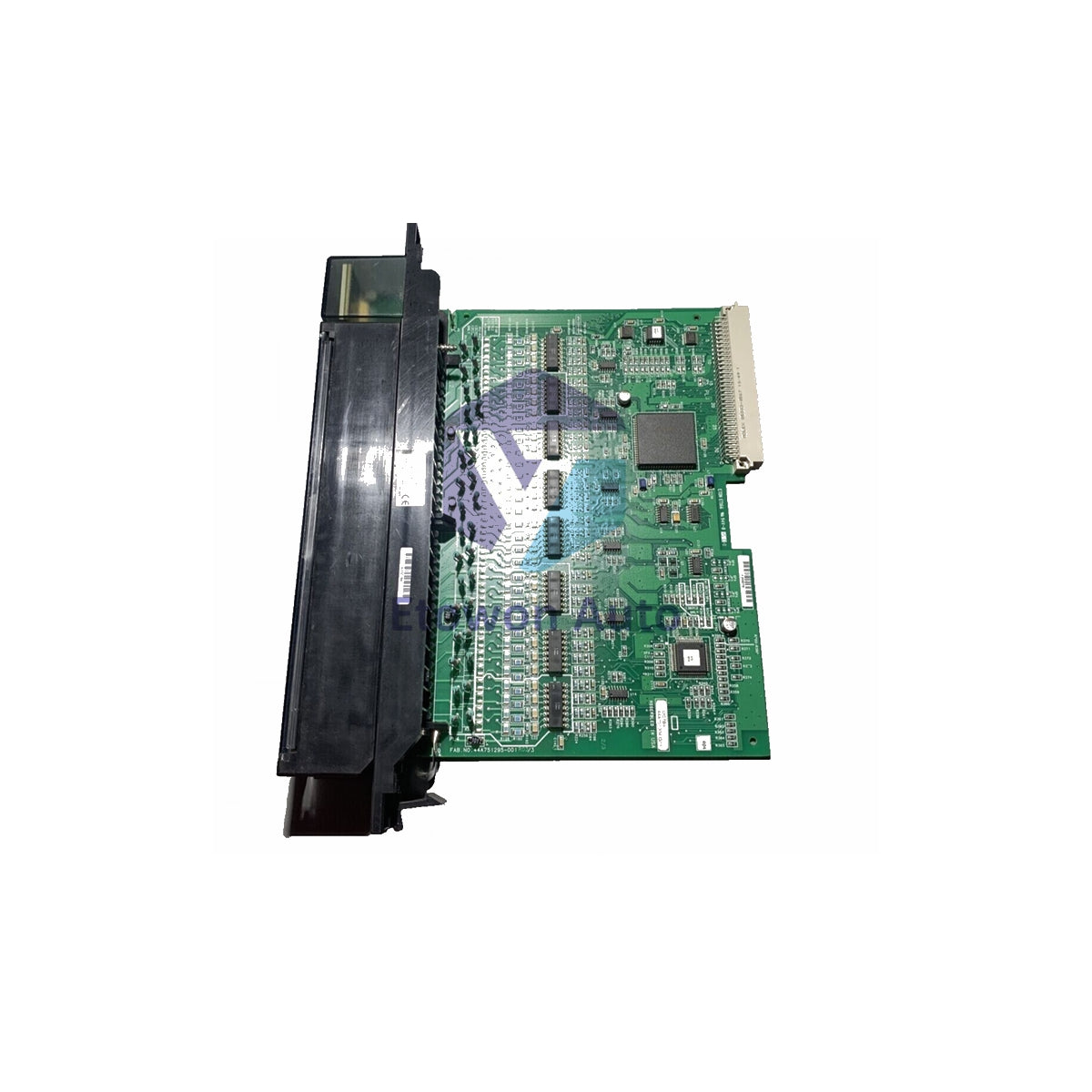

GE IC697MDL652 32-Channel 12VDC Input Unit

Product Overview

The GE Fanuc IC697MDL652 is a high-performance 32-point discrete input module engineered for the Series 90-70 Programmable Logic Controller system. This module provides a flexible interface for 12VDC field devices, uniquely supporting both positive and negative logic (sourcing or sinking) configurations. Designed for precision and reliability, the IC697MDL652 features individual LED status indicators for each channel and user-selectable input filtering, making it an ideal solution for high-density sensing in complex industrial automation environments.

Technical Specifications

Core Technical Advantages

Flexible Logic Configuration

The IC697MDL652 is designed for maximum versatility, allowing engineers to wire inputs in either a sourcing or sinking manner. This positive/negative logic capability ensures compatibility with a wide variety of 12VDC proximity sensors, switches, and electronic field devices without requiring additional signal conditioning.

High-Speed Data Acquisition

With a rapid transition time of just 8µs and a scanning rate of up to 2kHz, this module is optimized for high-speed industrial processes. Furthermore, selectable input filters (1ms or 10ms) provide the necessary debounce protection to eliminate signal noise in electrically turbulent environments.

Advanced Electrical Protection

To ensure system longevity, the module includes ±8kV ESD contact discharge protection and robust 1500V backplane isolation. This prevents external electrical transients from impacting the PLC CPU, while the 500V group-to-group isolation allows for diverse field power sourcing within a single module.

Installation & Maintenance

• Backplane Current: The module draws 0.3 Amps from the 12VDC bus. Ensure your rack power supply is properly sized to handle the cumulative load of all Series 90-70 modules.
• Filtering Setup: Configure the input filter jumpers to match your field signal characteristics—1ms for high-speed sensing or 10ms for mechanical switches that require debouncing.
• Group Loading: Despite its compact 130-gram frame, ensure field wiring is secured to the terminal block to maintain consistent contact for all 32 channels across the four isolated groups.

Engineering Advantages

The IC697MDL652 offers an exceptional MTBF of 120,000 hours, making it a cornerstone for long-term industrial reliability. Its low power dissipation (3.6W) and wide operating temperature range (-20°C to 65°C) make it suitable for control cabinets in diverse climates. Whether for new installations or as a replacement in existing Series 90-70 racks, this module provides the precision sensing required for modern automated control logic.

Technical FAQs

Q1: Can I use both positive and negative logic on the same module?
A1: Yes, logic is determined per group. Because the module is split into four isolated groups of eight, you can potentially configure different groups for different logic types if your field power supplies are isolated.

Q2: What happens if the input voltage exceeds 15 VDC?
A2: The rated range is -2.5 to 15 VDC. Exceeding the 15 VDC upper limit for extended periods can cause excessive heat in the 1.12 kΩ impedance circuit and may lead to premature component failure.

Q3: Does the module include internal fuses for the inputs?
A3: Discrete input modules typically rely on external current-limiting sensors or field-side fusing. The IC697MDL652 is primarily protected by its internal isolation barriers and high-impedance input design.
