IC693DSM324

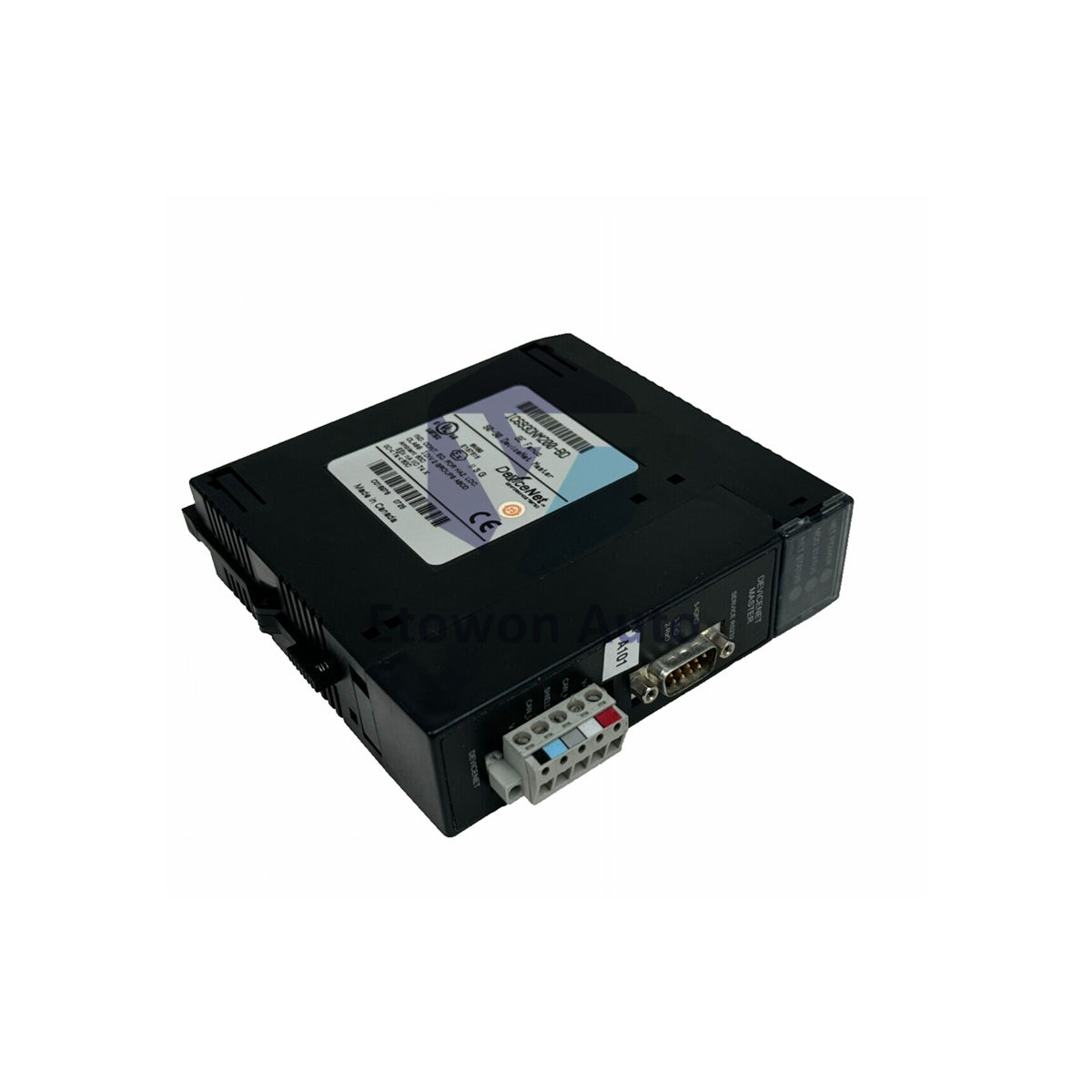

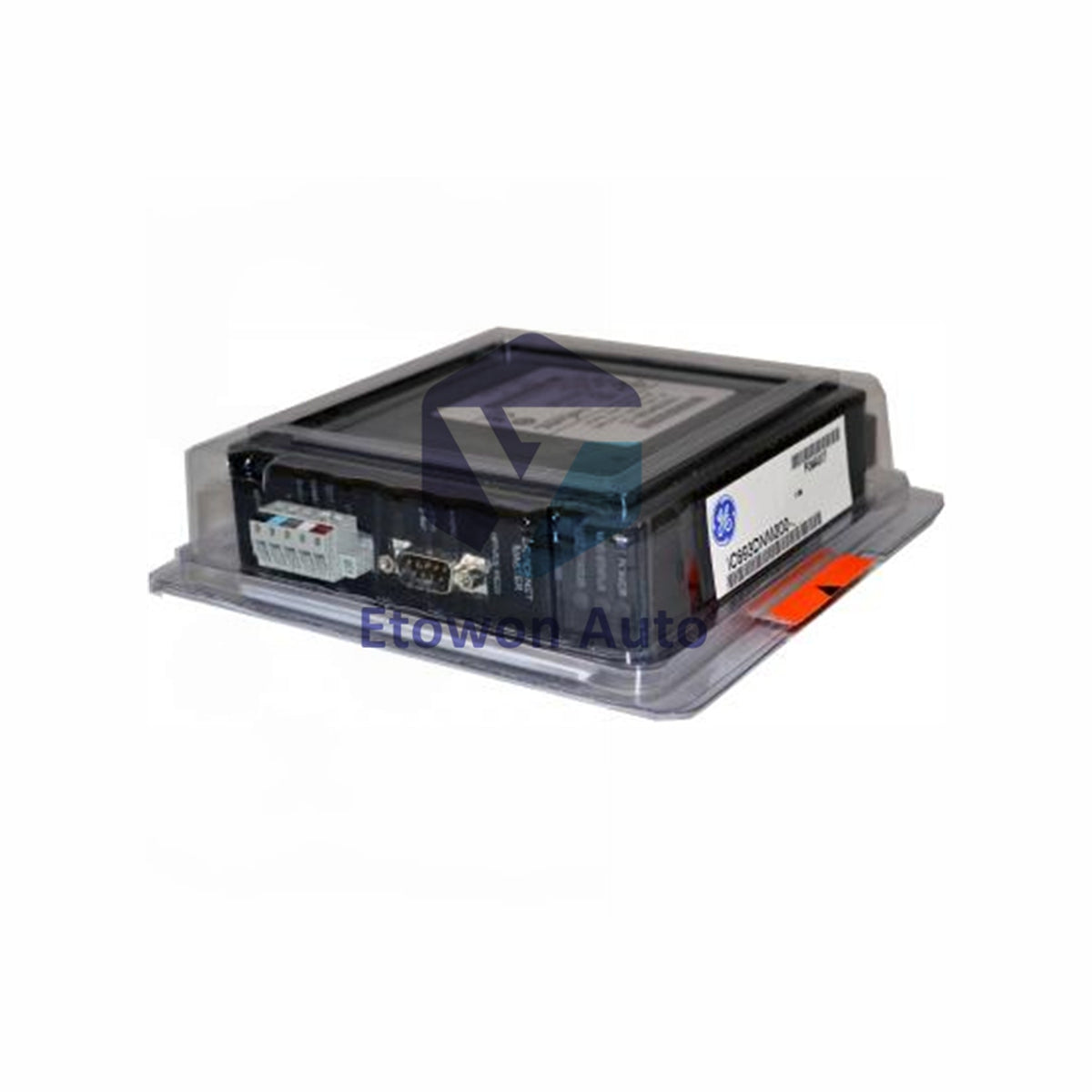

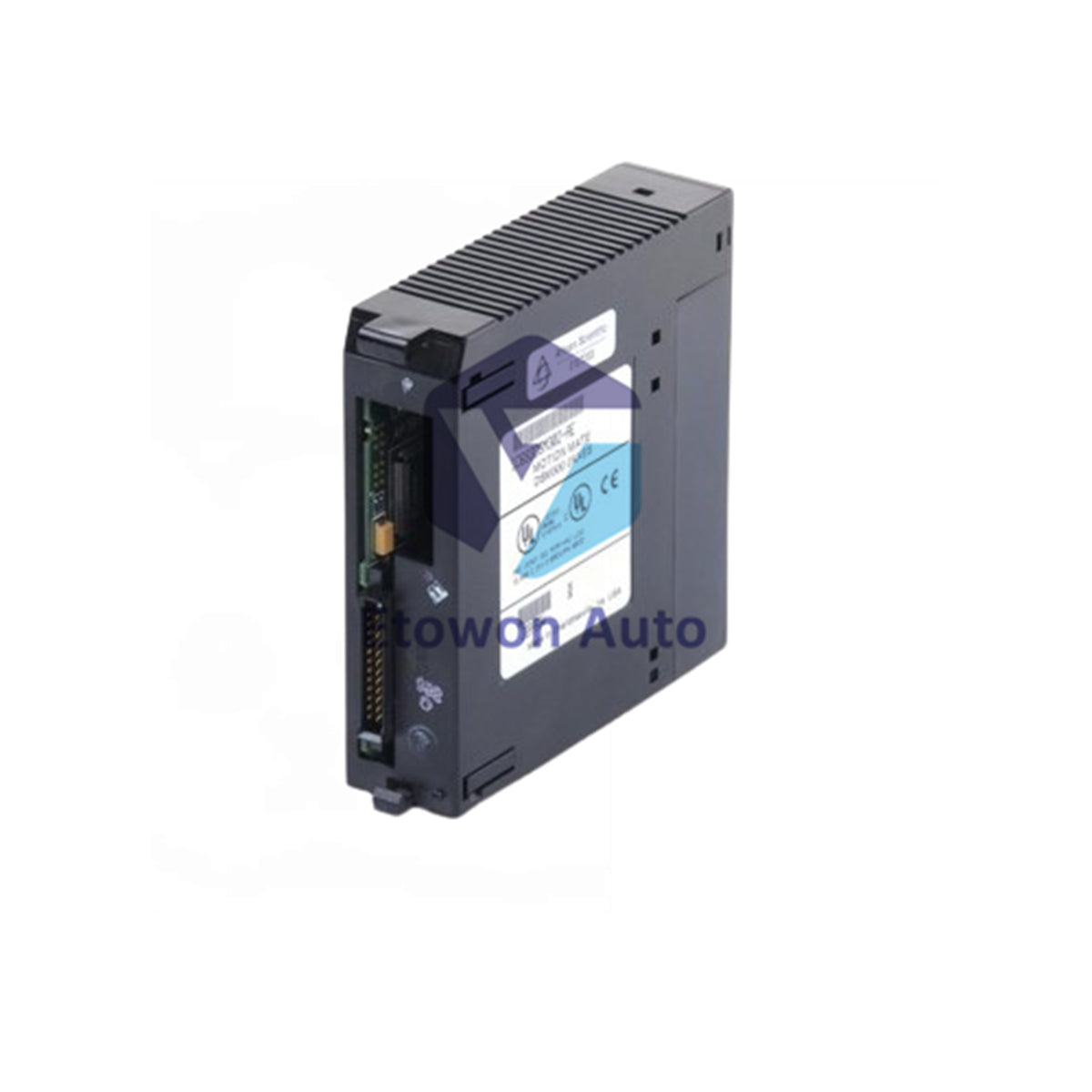

GE Fanuc Series 90-30 IC693DSM324 Motion Controller Module

A kan haja (30 guda), a shirye don aikawa

  • Manufacturer: General Electric

  • Product No.: IC693DSM324

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

GE Fanuc IC693DSM324 Motion Controller Module

The GE Fanuc IC693DSM324 is an advanced, high-performance motion controller module (DSM324) designed for Series 90-30 PLCs and integrated PACSystems RX3i control architectures. Featuring multi-axis capabilities capable of driving up to four (4) independent or synchronized motion axes, this single-slot module enables real-time trajectory generation, precise positioning, and complex motion profiling. Weighing 0.5 kg (1.1 lbs), it provides heavy-duty mechanical mounting stability across automated manufacturing lines, robotics cells, and material handling systems.

Key Performance Advantages

Engineered for demanding motion applications, the IC693DSM324 provides an integrated 500 mA encoder supply current to directly power feedback devices, streamlining field cabling. Operating on a 5 VDC power bus with an efficient backplane current draw of 860 mA (excluding external encoder loads), the module delivers high output while keeping cabinet thermal accumulation low. It offers extreme scalability, supporting up to 20 modules per Series 90-30 system or up to 32 DSM324i modules in a single PACSystems RX3i control system.

Technical Specifications

Manufacturer & Series GE Fanuc / Series 90-30 & PACSystems RX3i
Part Number / Model IC693DSM324 (Motion Mate DSM324)
Axis Capability & Form Factor 4 Motion Axes / Single-slot width
Operating Voltage 5 VDC Logic Voltage
Backplane Power Draw 860 mA @ 5 VDC (without encoder load)
Encoder Power Output 500 mA maximum supply current
System Capacity Limits Up to 20 modules (Series 90-30) / Up to 32 modules (RX3i)
Physical Weight 0.5 kg (1.1 lbs)

Installation & Operation Guidelines

  • Rack Placement: Seat the single-slot module firmly into any available I/O slot on the baseplate after powering down the main rack. Secure the module retaining clips tightly to resist operational vibration.
  • Encoder Wiring: Interface feedback encoders directly using the designated terminals, verifying total current draw stays within the 500 mA onboard supply rating.
  • Power Supply Check: Ensure the 5 VDC backplane power supply capacity accounts for the 860 mA base draw plus any active field encoder loads before system commissioning.

Frequently Asked Questions

Q1: How many motion axes can a single IC693DSM324 controller handle?
A1: The module directly manages up to four (4) motion axes for multi-axis positioning and profiling tasks.

Q2: Is the IC693DSM324 compatible with PACSystems RX3i hardware?
A2: Yes, it is fully optimized for PACSystems RX3i frameworks as well as legacy Series 90-30 systems, allowing up to 32 modules in RX3i architectures.

Q3: Does the module supply power to external encoders?
A3: Yes, the module provides a built-in 500 mA current supply dedicated to powering external quadrature or digital encoders.

🏷️ Tags: Controller Module
