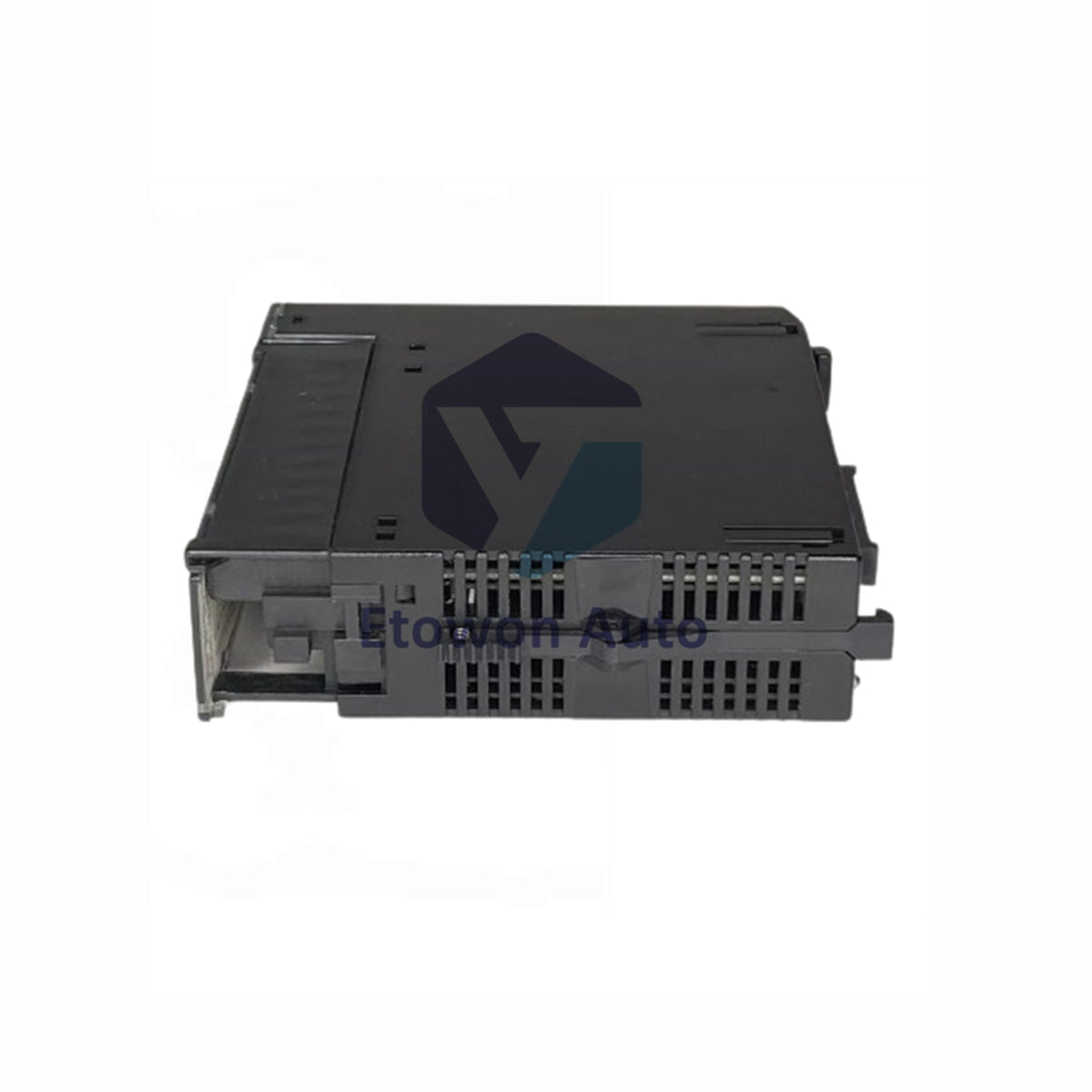

IC693MDL350

GE Fanuc IC693MDL350 | Fitar da aka keɓe mai inrush current 20A

A kan haja (12 guda), a shirye don aikawa

  • Manufacturer: General Electric

  • Product No.: IC693MDL350

  • Product Type: Keɓaɓɓen Sashin Fitarwa

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 250g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Bayanin Samfuri (Product Overview)

IC693MDL350 module ne na Isolated Output na GE Fanuc daga iyalin Series 90-30. Wannan AC output module yana aiki a 120 zuwa 240 VAC, 50-60 Hz. Yana samar da fitattun da aka ware don sarrafa solenoids, contactors, da hasken alama (pilot lights).

Ƙayyadaddun Fasaha (Technical Specifications)

Alamar kasuwa (Brand) GE Fanuc
Samfuri (Model) IC693MDL350
Jerin 90-30
Nau'in Samfuri Isolated Output Module
Ƙimar Wuta (Voltage Rating) 120 zuwa 240 VAC
Mita (Frequency) 50 zuwa 60 Hz
Fitattun (Outputs) Makudan 8 da aka ware (isolated points)
Inrush Current 20 A a kowane juyi (cycle)
Mafi ƙarancin Kaya 10 mA a kowane bango (point)
Lokacin Amsa Fitarwa <10 ms
Zafin Muhalli -20°C zuwa 60°C (-4°F zuwa 140°F)
Zafin Ajiyewa -40°C zuwa 85°C (-40°F zuwa 185°F)
Danshi 5% zuwa 95% RH ba tare da ruwa ya tara ba (non-condensing)
MTBF Sa'o'i 100,000
Girma 105 × 100 × 35 mm
Nauyi 0.25 kg (0.55 lbs)
Rayuwar a rumbun ajiya (Shelf Life) Shekara 1

Jagorar Shigarwa

Sanya module ɗin a kowace rami ta Series 90-30 rack. Haɗa kaya na AC tsakanin tashar fitarwa da layin neutral. Tabbatar cewa kowane kaya yana ja aƙalla 10 mA don samun sauyawa mai inganci. Module ɗin yana iya ɗaukar inrush current na 20 A a kowace juyi (cycle) don kaya masu amfani da ƙarfi na ɗan lokaci kamar contactors da solenoids. Tabbatar da isasshen iska don aiki daga -20°C zuwa 60°C.

Fa'idodin Injiniya

IC693MDL350 na ba da fitattun AC da aka ware (isolated), yana hana “ground loop” tsakanin tashoshi. Lokacin amsa fitarwa ƙasa da 10 ms yana samar da saurin sarrafa na'urorin AC. MTBF na sa'o'i 100,000 yana tabbatar da dogon lokacin aiki cikin aminci a ci gaba da amfani. Module ɗin yana aiki da wutar AC ta duniya daga 120 zuwa 240 VAC, 50-60 Hz.

Tambayoyin da ake yawan yi (FAQs)

Q1: Shin wannan module ɗin na iya sauya kaya na DC?
A1: A'a. IC693MDL350 an ƙera shi ne don kaya na AC kaɗai. Yi amfani da DC output module don aikace-aikacen DC.

Q2: Menene ke faruwa idan ba a kai mafi ƙarancin kaya na 10 mA ba?
A2: Fitarwar na iya kasa sauyawa yadda ya kamata ko ta fara kunna ba da gangan ba. Ƙara resistor na sauke caji (bleed resistor) a fadin kaya don ƙara yawan ƙarfi (current).

Q3: Nawa ne adadin fitattun da za su iya aiki a lokaci guda?
A3: Duka fitattun 8 za su iya aiki a lokaci guda cikin iyakar zafin jikin da aka ƙayyade wa module. Ba a buƙatar rage kaya (derating) ko da a cikakken nauyi.
