FC-RO-1024 Katin Fitarwa na Honeywell Safety Manager

Bayyanar Samfur

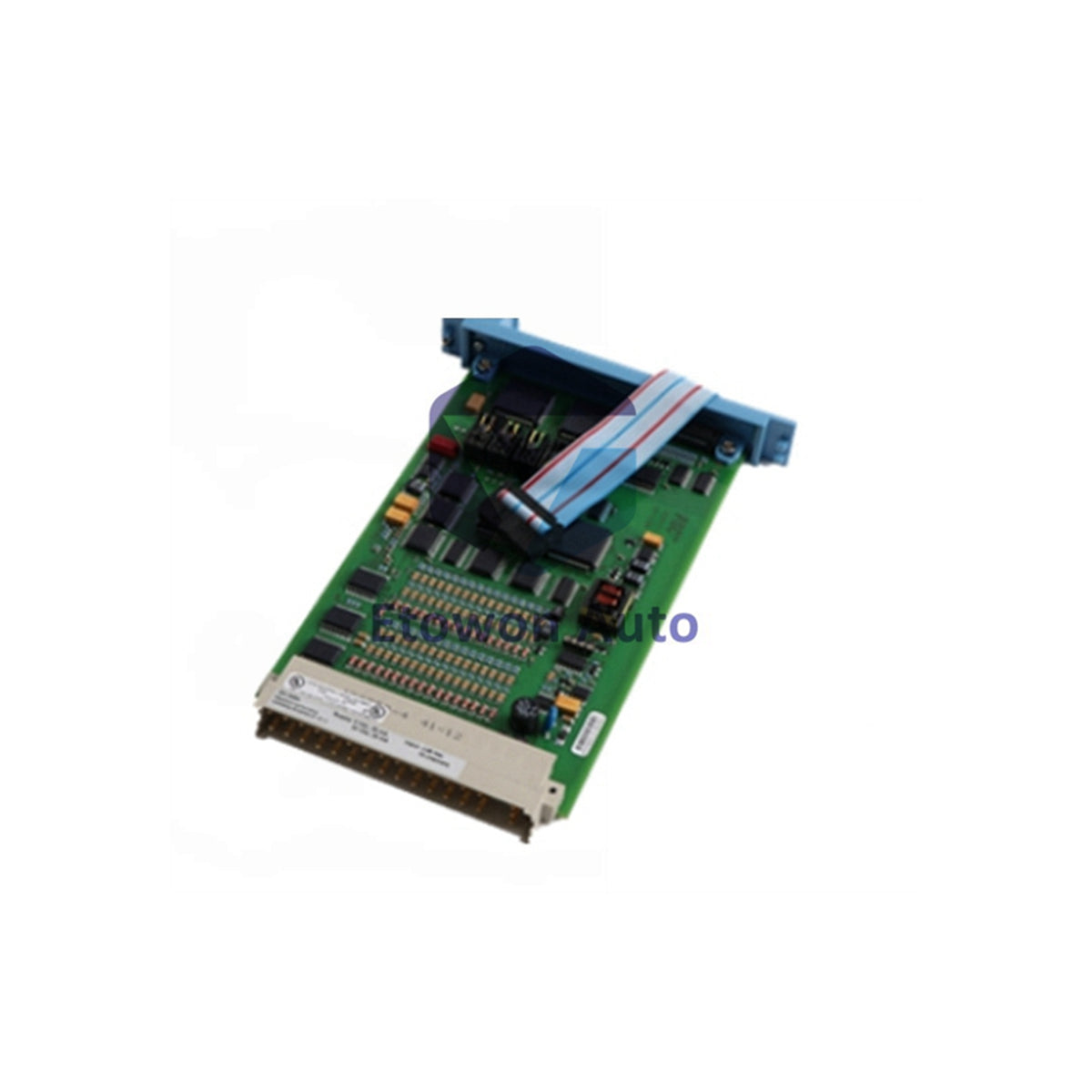

Na'urar FC-RO-1024 ta Honeywell module ne na fitar relay mai yalwar tashoshi da aka ƙera don gine-ginen kulawa na Honeywell Safety Manager da FSC. Tana da tashoshi goma na lambobin relay masu zaman kansu, marasa ƙarfin wuta, waɗanda aka tsara don ɗaukar nauyin kaya na filin da ba su da mahimmancin tsaro har zuwa 70 W. Wannan module mai sassauci yana sauya kayan aiki masu nauyin resistive da inductive a cikin muhallan masana'antu. Ta hanyar ɗaukar nauyin siginar taimako da ayyukan sauyawa marasa haɗari daga manyan zagayen tsaro, tana taimakawa wajen inganta amfani da albarkatun tsarin ba tare da rasa ikon sa ido na tsakiya ba. Don cikakkiyar hangen gaban kariya mai gagara kasawa, an haɗa duk fitowar goma kai tsaye da tsakiyar kulawar watchdog na tsarin, wanda ke tabbatar da kashewa nan take da kuma bisa ƙa'ida duk lokacin da aka samu rufewar mai sarrafawa ta atomatik.

Manyan Fa'idodin Fasaha

Lambobin Tuntuɓa Marasa Ƙarfin Wuta

Module ɗin yana ba da lambobin relay goma cikakku, marasa ruwa (dry contacts). Wannan tsarin marasa ƙarfin wuta (potential-free) yana ba injiniyoyi damar yin wayoyi na filin cikin sauƙi, yana ba tsarin ikon sauya tushen wutar lantarki na waje masu zaman kansu ba tare da haɗarin tsangwamar lantarki tsakanin tashoshi ba.

Kayan Lambobi Masu Ƙima

Kowane relay na ciki an ƙera shi da lambobin tuntuɓa na ingantaccen gami na azurfa da aka rufe da zinariya mai kauri. Wannan fasahar shafa ƙarfe mai ci gaba tana ba da kyakkyawan aiki mai ƙarancin juriya kuma tana hana tsatsa, tana tabbatar da daidaiton sigina na dogon lokaci har ma a aikace-aikacen sauyawa da ke da ƙananan ƙarfi.

Kariya ta Watchdog Mai Gagara Kasawa

Duk tashoshin relay an haɗa su kai tsaye da babban kewayar hardware watchdog. Idan tsarin kulawa ya gano dakatar da mai sarrafawa, gazawar bincike, ko katsewar wuta, watchdog ɗin yana tilasta duk relay goma su buɗe nan take domin kiyaye tsarin ka cikin aminci.

Ƙayyadaddun Fasaha

Shigarwa da Kula da Na'ura

Matsayin Rami & Daidaiton Injin

Zura FC-RO-1024 a hankali cikin ramin da aka tanada ta hanyar jagororin katin da ke cikin daidaitaccen chassis na Safety Manager 3U. Tura shi da ƙarfi domin haɗa manyan masu haɗa baya da backplane sosai, sannan ka matse sukurorin riƙon gaban don kafa haɗin ƙasa.

Buƙatun Na’urar Kariya ta Waje

Lokacin da kake sarrafa kayan ɗaukar hankali kamar solenoids, manyan relay, ko coils na contactor, dole ne ka ɗora diod ɗin kariya na waje a faɗin lodin. Wannan sashin na waje yana sha tasoshin ƙarfin wuta, yana kare lambobin relay na ciki daga lalacewa da wuri.

Kula da Rayuwar Lambobin Sadarwa

Bi diddigin aiki don ƙara tsawon ainihin rayuwar relay. A ƙarƙashin iyakokin lodi masu juriya na yau da kullum, lambobin suna kai kusan zagaye 1,000,000, suna sauka zuwa kusan zagaye 100,000 idan ana lodin AC masu ɗaukar hankali sosai. Ku tsara jadawalin duba su na yau da kullum bisa waɗannan zagayen.

Fa’idodin Injiniya

Siffar 4 HP Mai Ƙarfin Cunkoso

Ana buƙatar sarari na HP 4 na kwance (4 HP) ne kaɗai a cikin rack, wannan na’urar tana bayar da hanya guda goma na relay masu zaman kansu a cikin sifar bakin ciki ƙwarai. Tana taimaka wa masu haɗa tsarin su inganta amfani da sarari a cikin kwandunan marshalling masu yalwar na’urori.

Karfin Sauya Hanya na Ƙaramin Ƙarfin Wuta

Tana aiki cikin aminci har zuwa 30 V AC ko 36 V DC, an daidaita na’urar don kewaye masu sarrafa ƙaramin ƙarfin wuta cikin aminci. Tana ba da aminci wajen ware wutar sauya hanya yayin da take kasancewa a cikin iyakokin ƙaramin ƙarfin wuta masu aminci.

Haɗuwa Cikin Sauƙi da Safety Manager

Na’urar ta dace kai tsaye da dukkan layin kayan aikin Safety Manager na Honeywell. Tana raba daidaitattun binciken wutar tsarin, tsarin haɗa wayoyi, da ƙa’idojin daidaitawa, wanda ke rage nauyin aikin injiniya da lokutan gwajin sassa.

Tambayoyin Fasaha (FAQs)

Q1: Menene bambancin injiniya tsakanin samfuran FC-RO-1024 da FS-RO-1024?

A1: Sigar FC-RO-1024 tana zuwa da shafaffen rufi na masana’antu a kan kwamitocin da’irar buga (PCB) don kare su daga ƙura, danshi, da lalacewar iska. Samfuran FS-RO-1024 kuma suna da kwamiti mara rufi da aka gina don ɗakunan sarrafawa masu tsabta.

Q2: Me ya sa dole in shigar da diod ɗin kariya na waje don lodin filin da ke ɗaukar hankali?

A2: Lodi masu ɗaukar hankali (inductive loads) suna saki ƙwanƙwasa ƙarfin wuta mai yawa lokacin da aka kashe su. Saboda wannan na’ura ba ta da na’urar hana tsalle-tsalle a cikinta, ana buƙatar diod ɗin kariya ko snubber na waje don kulle ƙarfin wutar da hana tsallewar wuta da zai iya lalata lambobin sadarwa masu ruwan zinariya.

Q3: Za a iya haɗa wannan na’urar "Non-Safe" a cikin akwati na tsarin tsaro na SIL?

A3: Eh, an amince da shi ƙwarai don a shigar da shi a cikin racks na tsaro. "Non-Safe" yana nufin waɗannan tashoshin relay an tsara su ne don siginar taimako ko kwafin bayanai maimakon aiwatar da matakan kashe gaggawa masu matuƙar inganci.
