VFD9A0MS43ANSAA

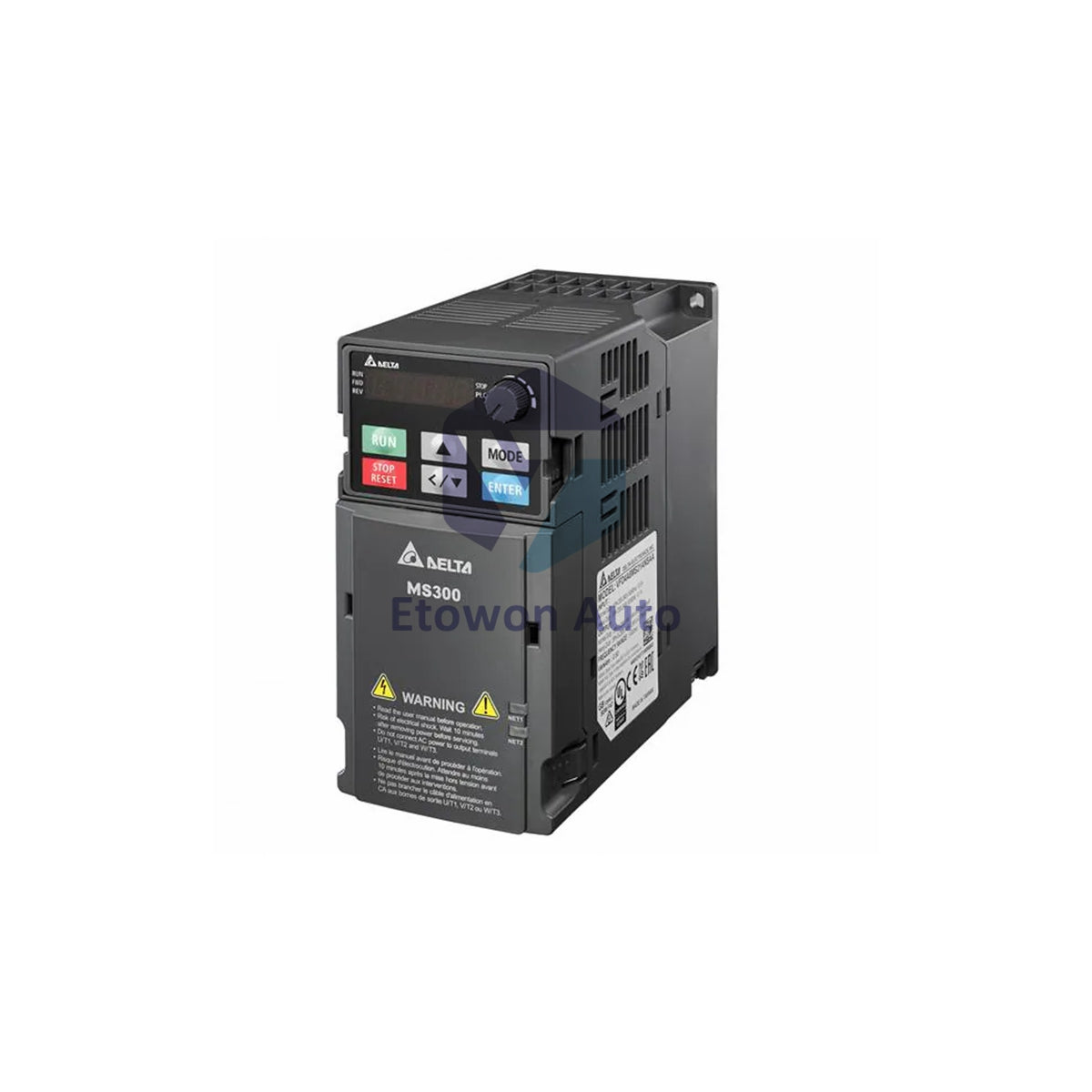

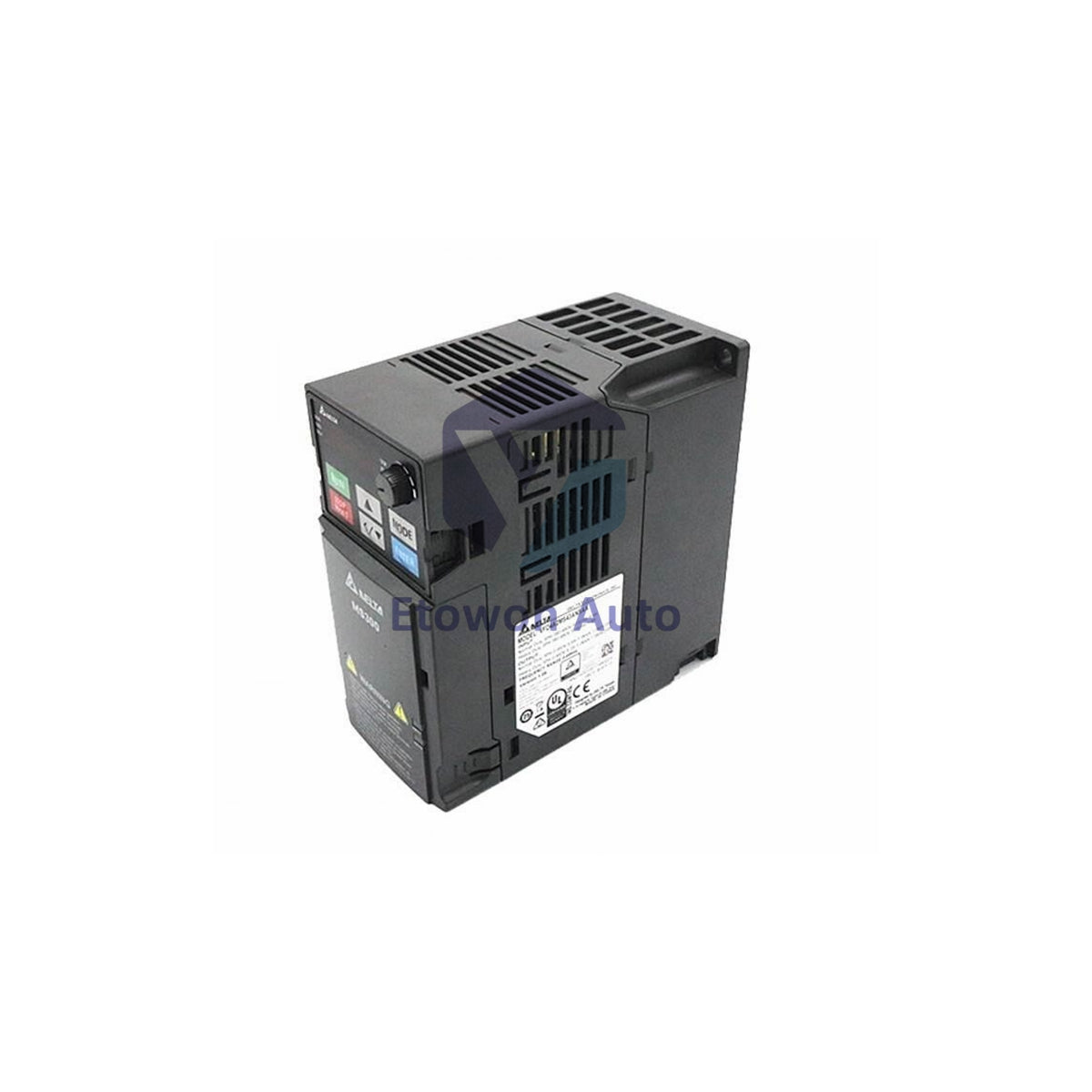

Delta MS300 VFD9A0MS43ANSAA | 5HP Motor Controller

A kan haja (12 guda), a shirye don aikawa

  • Manufacturer: Delta

  • Product No.: VFD9A0MS43ANSAA

  • Product Type: AC Drive

  • Product Origin: CN

  • Payment:T/T, Western Union

  • Weight: 1270g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Delta VFD9A0MS43ANSAA 5HP Frequency Drive

The Delta VFD9A0MS43ANSAA delivers robust 5HP motor control in the MS300 series. This efficient drive provides precise speed regulation for medium-power industrial applications. It offers advanced features in a compact C1 frame design.

Electrical Specifications

  • Manufacturer: Delta Electronics
  • Product Code: VFD9A0MS43ANSAA
  • Input Power: 460V AC Three Phase, 50/60Hz ±10%
  • Output Power: 5 Horsepower (4 Kilowatts)
  • Current Ratings: 10.5A Normal Duty, 9.0A Heavy Duty
  • Frequency Range: 0.1 to 599 Hz programmable output
  • Efficiency Class: >97.5% energy conversion efficiency

Physical Characteristics

  • Unit Weight: 2.8 Pounds (1.27 kilograms)
  • Dimensions: 3.43" W × 6.18" H × 5.98" D (87×157×152mm)
  • Frame Design: Compact C1 frame for space-saving installation
  • Cooling Method: Natural convection with thermal management

Control Performance

  • Control Methods: V/F Control, Sensorless Vector Control
  • Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
  • Speed Regulation: ±0.2% speed control accuracy
  • Braking Performance: 20% DC injection braking standard
  • Control Terminals: 7 digital inputs, 2 analog inputs, 2 relay outputs

Environmental Ratings

  • Operating Temperature: -10°C to +50°C (14°F to 122°F)
  • Humidity Range: 5% to 95% non-condensing
  • Altitude Rating: 1000 meters without power reduction
  • Vibration Resistance: 1.5G (10-60Hz) industrial standard
  • Protection Class: IP20 for electrical cabinet use

Application Solutions

  • What applications suit this 5HP drive? Pumps, compressors, fans, conveyor systems
  • What communication protocols supported? Standard RS-485 MODBUS interface
  • Is external braking resistor needed? Optional for higher braking requirements
