  • 330930-065-03-00-2
1 3

330930-065-03-00

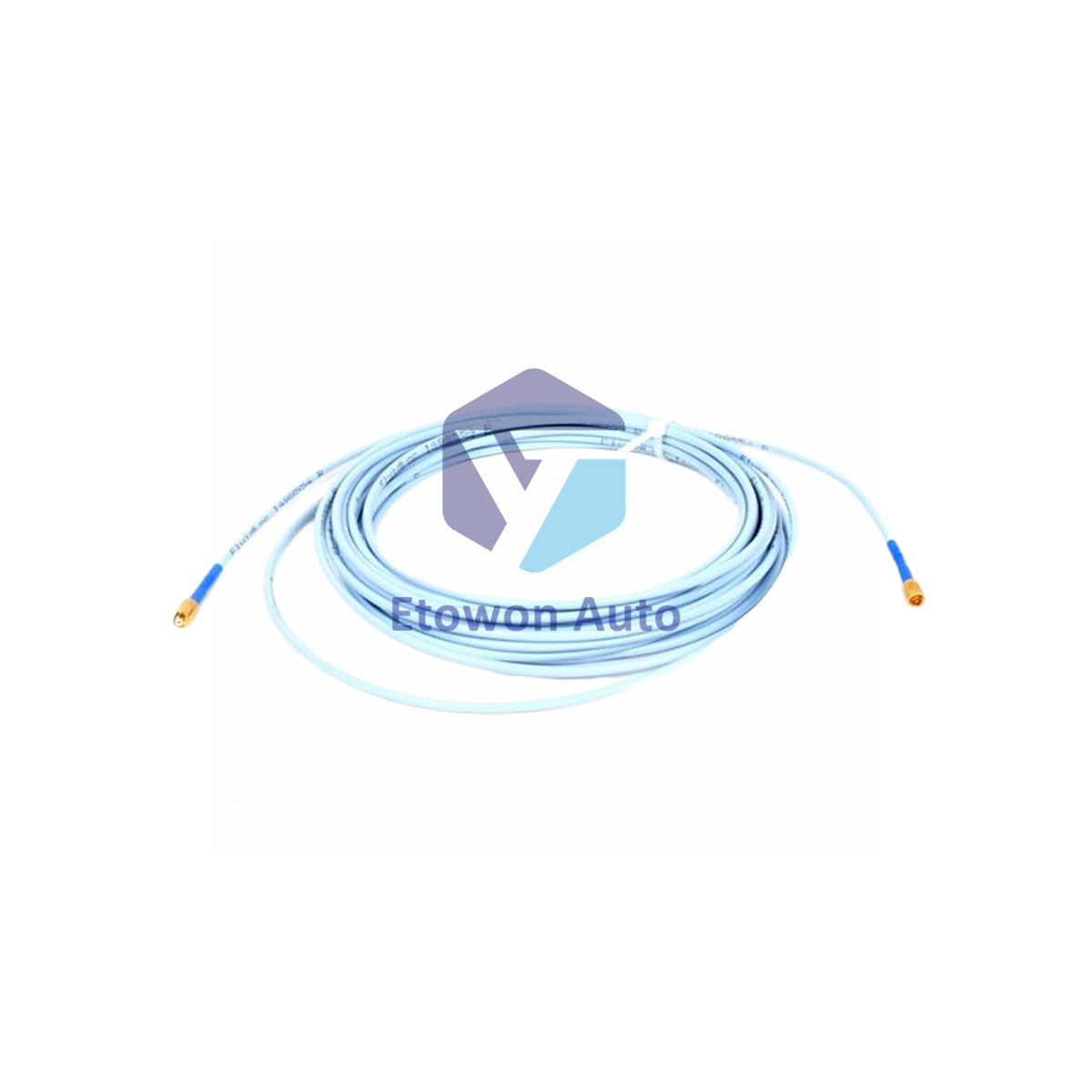

Cable Bently Nevada 330930-065-03-00 Connector Protector

A kan haja (16 guda), a shirye don aikawa

  • Manufacturer: Bently Nevada

  • Product No.: 330930-065-03-00

  • Product Type: Extension Cable

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1500g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The Bently Nevada 330930-065-03-00 is a specialized 3300 NSv extension cable designed for "Narrow System" proximity probe applications. This 6.5-meter (21.3 feet) cable provides critical signal connectivity between NSv proximity probes and Proximitor sensors in machinery protection systems.

Proudly Made in the U.S.A., this cable features a high-durability FEP insulation and a built-in connector protector, ensuring clean vibration and position signals even in oil-rich or high-temperature environments.

Technical Configuration

  • Model: 330930 (3300 NSv Extension Cable)
  • Cable Length Option (-065): 6.5 meters (21.3 feet)
  • Connector & Cable Option (-03): Without stainless steel armor, includes connector protector
  • Agency Approval Option (-00): Not required
  • Core Material: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated

Technical Specifications

Parameter Details
DC Resistance (Center) 0.220 Ω/m (0.067 Ω/ft)
DC Resistance (Shield) 0.066 Ω/m (0.020 Ω/ft)
Capacitance 69.9 pF/m (21.3 pF/ft) typical
Operating Temp -51°C to +177°C (-60°F to +351°F)
Connector Material Gold-plated brass
Tensile Strength 220 N (50 lb) maximum rated

System Integration Rule

Essential Compatibility: Ensure that the combined length of your extension cable (6.5m) and the proximity probe length matches the total system length required by your Proximitor Sensor (e.g., a 7.0m system typically uses a 0.5m probe with a 6.5m extension cable).

Engineering Advantages

The 3300 NSv system is specifically optimized for small target areas and restricted mounting spaces. The 330930-065-03-00 cable utilizes FEP insulation for superior chemical resistance against common industrial fluids. The -03 connector protector adds a layer of environmental sealing to the ClickLoc connection, ensuring long-term signal stability without the bulk of heavy armor.

Technical FAQs

Q1: What is the purpose of the connector protector?

A1: It protects the miniature coaxial connection from moisture, oil ingress, and mechanical vibration, which are common causes of signal "noise" in TSI systems.

Q2: Why choose the non-armored version (-03)?

A2: Non-armored cables are more flexible and easier to pull through tight conduits or cable trays where physical crushing is not a primary risk.

Q3: Is this cable compatible with standard 3300 XL Proximitors?

A3: No, this cable must be used with 3300 NSv series components to maintain the accurate 200 mV/mil scale factor required for narrow-system monitoring.

Shipping Weight: 1.5 Kg (approx.)
