BMEP581020

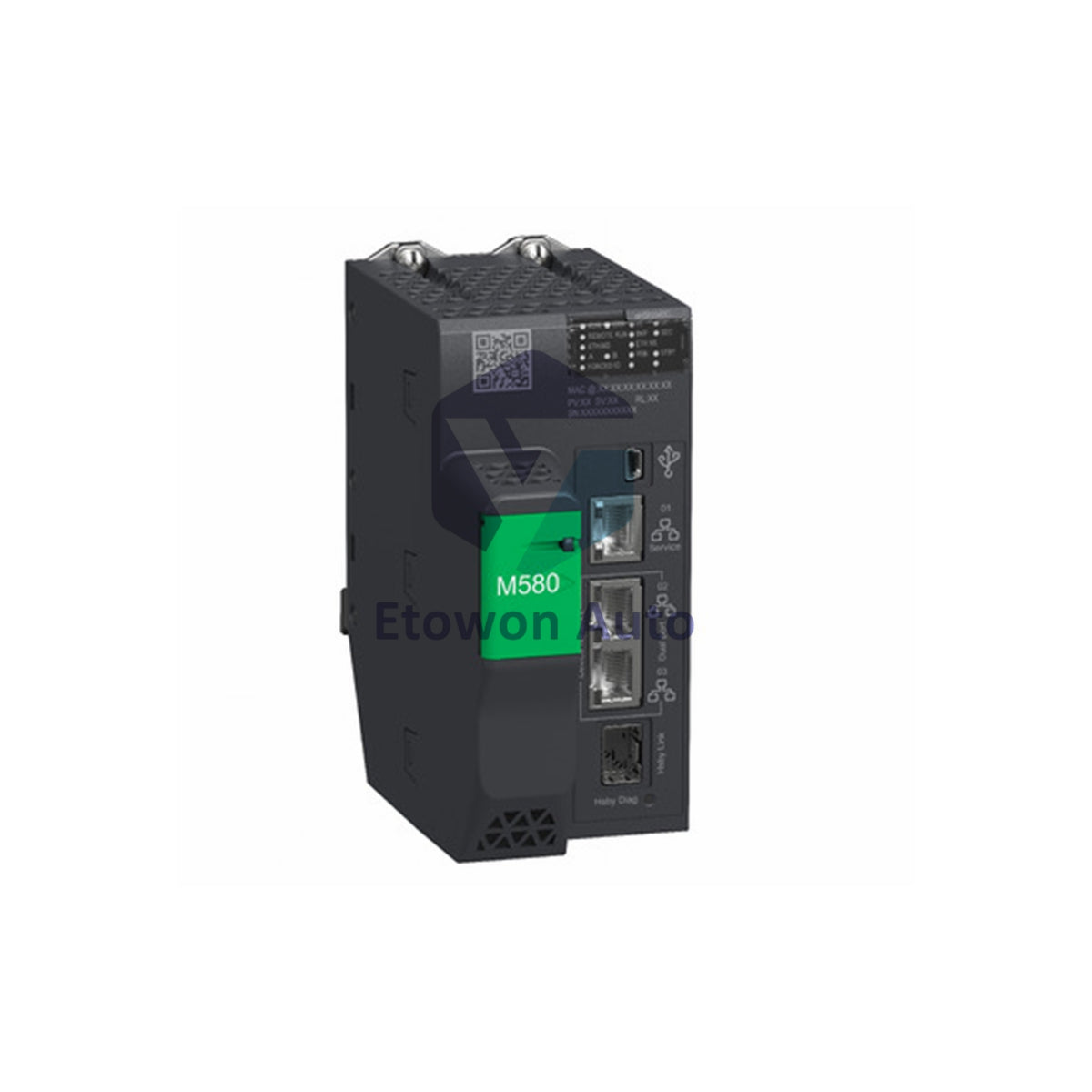

BMEP581020 Schneider Modicon M580 Processor 4MB Ethernet

A kan haja (26 guda), a shirye don aikawa

  • Manufacturer: Schneider

  • Product No.: BMEP581020

  • Product Type: Processor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 849g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Schneider Electric BMEP581020 Modicon M580 Processor

Product Overview

The Schneider Electric BMEP581020 is a standalone processor for the Modicon M580 automation platform. It features 4 MB program memory, supports 61 Ethernet devices, and manages 4 local I/O racks with 1024 digital and 256 analog I/O capacity. The processor delivers 30 Kinst/ms (65% Boolean + 35% fixed arithmetic) and includes Achilles-certified cybersecurity. Weight is 0.849 kg (1.872 lbs).

Specifications

Parameter Value
Brand Schneider Electric
Model BMEP581020
Product Line Modicon M580
Product Type Processor Module
Number of Racks 4
Discrete I/O Capacity 1024 I/O
Analog I/O Capacity 256 I/O
Application Specific Channels 36 (Local Rack)
Application Specific I/O Time Stamping, Motion Control, Counter, HART, SSI Encoder, Serial Link
Integrated Connections 1 x Ethernet TCP/IP Service, 2 x Ethernet TCP/IP Device Network, USB Mini B
Distributed Equipment 64
Communication Module Capacity 2 Ethernet, 2 AS-Interface
Program Memory 4 MB Integrated RAM
Data Memory 384 kB Integrated RAM
Expandable Flash 4 GB Data Storage
System Memory 10 kB Integrated RAM
Application Structure 1 Periodic Fast Task, 2 Auxiliary, 1 Cyclic/Periodic Master, 64 Event Tasks
Instructions per ms 30 Kinst/ms (65% Boolean + 35% fixed), 40 Kinst/ms (100% Boolean)
Current Consumption 270 mA @ 24 VDC
MTBF Reliability 775,000 Hours
Protection Rating IP20
Operating Temperature 0 to 60 °C
Storage Temperature -40 to 85 °C
Relative Humidity 5-95% at 55 °C (Non-Condensing)
Operating Altitude 0-2000 m (2000-5000 m with Derating)
Vibration Resistance 3 gn
Shock Resistance 30 gn
Weight 0.849 kg (1.872 lbs)
GTIN 3595864174303
Country of Origin France (FR)

Cybersecurity Features

  • Achilles Certified
  • DoS Prevention
  • IPSec
  • SNMP Logging
  • Syslog Protocol Support
  • Transport Layer Security
  • Audit Trail
  • Embedded Firewall
  • Firmware Signature
  • Password Protection
  • Port Hardening
  • Secure Communication (HTTPS)
  • Security Log

Certifications

  • CE, UL, CSA, RCM, EAC
  • Merchant Navy
  • IEC 61131-2, IEC 61010-2-201
  • UL 61010-2-201, CSA C22.2 No 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5 Interface Type 1 and 2
  • EN/IEC 61850-3 Location G
  • Hazardous Location Class I Division 2

Key Features

  • 4 MB program memory with 384 kB data RAM
  • Supports 61 Ethernet devices and 64 distributed equipment
  • 4 local I/O racks with 1024 digital and 256 analog capacity
  • 36 application-specific channels for motion, counting, HART, and SSI
  • High performance: 30 Kinst/ms with mixed instructions
  • Achilles-certified cybersecurity with embedded firewall and IPSec
  • Triple Ethernet ports for service and device networks
  • 775,000 hours MTBF reliability rating
  • Status LEDs for RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS
  • Class I Division 2 hazardous location approved
  • Marine certified for merchant navy applications

Installation Notes

Install the processor in a Modicon M580 rack with internal power supply. Connect Ethernet devices using the service port and two device network ports. The USB Mini B port supports local programming. Configure cybersecurity features including firewall, IPSec, and HTTPS communication for secure operation. The processor supports 4 local I/O racks with expansion capacity for 36 application-specific channels. Observe IP20 protection requirements with installation in a clean enclosure. For altitudes above 2000 meters, apply derating factors.

FAQs

Q1: What is the program memory capacity of the BMEP581020?

A1: 4 MB integrated RAM for program, 384 kB for data, and 4 GB expandable flash for data storage.

Q2: How many Ethernet devices does this processor support?

A2: Up to 61 Ethernet devices and 64 distributed equipment units.

Q3: What cybersecurity certifications does this processor hold?

A3: Achilles certification with DoS prevention, IPSec, embedded firewall, and secure HTTPS communication.
