330101-00-63-20-12-00

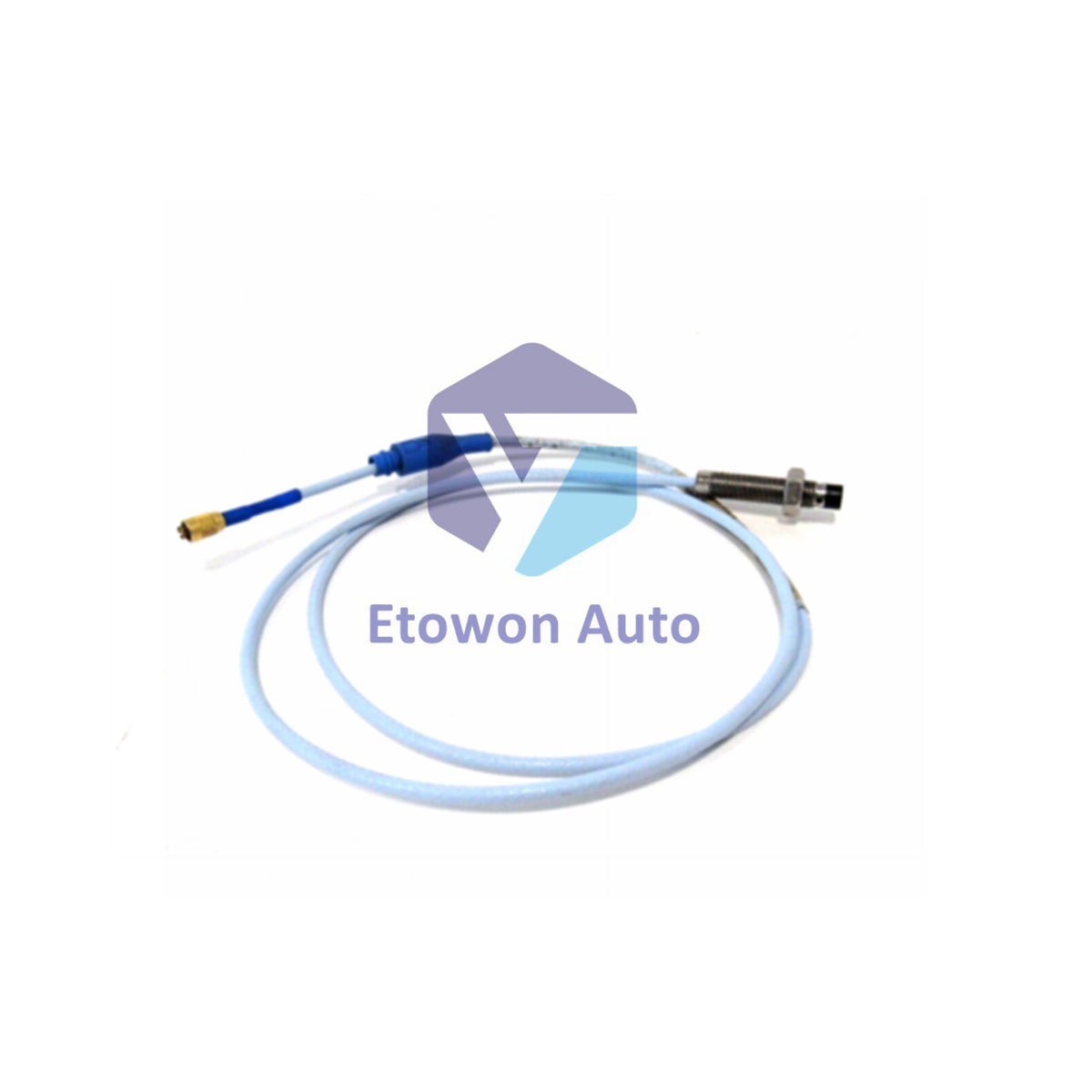

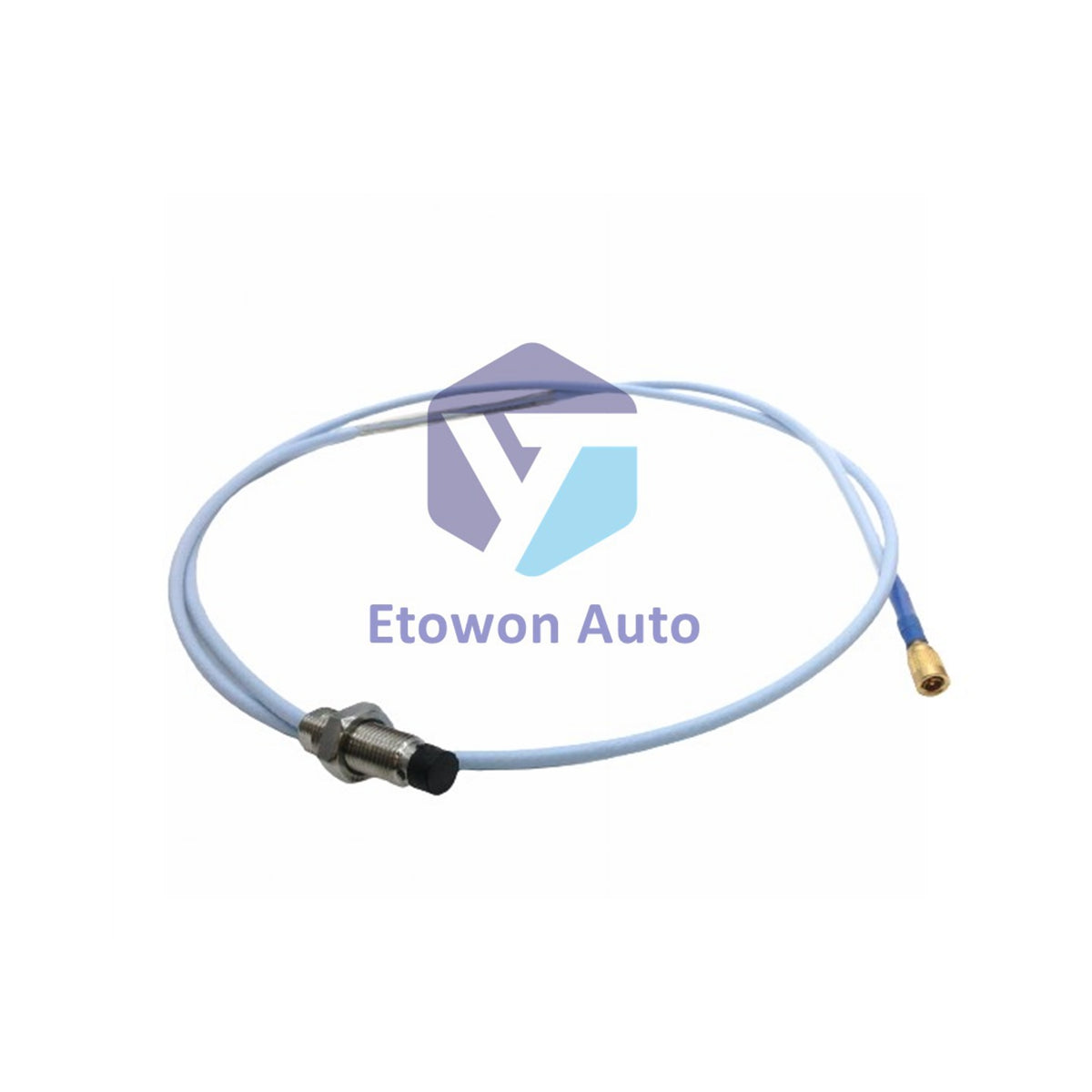

Bently Nevada 8mm Probe 330101-00-63-20-12-00 FluidLoc 2.0m

A kan haja (12 guda), a shirye don aikawa

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-63-20-12-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Bently Nevada 330101-00-63-20-12-00 3300 XL 8mm Proximity Probe

Product Overview

Bently Nevada 330101-00-63-20-12-00 is a 3300 XL 8mm proximity probe with 3/8-24 UNF thread without armor. Features TipLoc and CableLoc designs. 6.3 inch case length with 2.0 meter total length. Miniature coaxial ClickLoc connector with FluidLoc cable option to prevent oil and liquid leakage. Made in U.S.A.

Model Number Decoder

Position Code Meaning
1 3 330101 3300 XL 8mm Probe, 3/8-24 UNF, without armor
4 00 Unthreaded Length 0.0 inch
5 6 63 Overall Case Length 6.3 inches
7 8 20 Total Length 2.0 meters
9 10 12 ClickLoc connector, FluidLoc cable

Technical Specifications

Parameter Value
Brand Bently Nevada
Model 330101-00-63-20-12-00
Type 3300 XL 8mm Proximity Probe
Thread 3/8-24 UNF
Tip Material Polyphenylene sulfide (PPS)
Case Material AISI 303/304 SST
Unthreaded Length 0.0 inch
Case Length 6.3 inches
Total Length 2.0 meters
Connector Miniature coaxial ClickLoc
Cable Type FluidLoc (prevents fluid ingress)
TipLoc Pull Strength 330 N (75 lbf)
Linear Range 2 mm (80 mils)
Sensitivity 7.87 V/mm (200 mV/mil) ±5%
DC Resistance 7.88 Ω ±0.50
Capacitance 69.9 pF/m
Operating Temp Standard 52°C to +177°C
Relative Humidity ≤3% change at 93% RH
Field Wiring Max Length 305 m (1,000 ft)
Field Wiring Gauge 16 24 AWG
Weight 323 g/m (11.4 oz)

Installation

Mount probe with 3/8-24 UNF threaded case. Recommended gap for radial vibration is 9 VDC (1.27mm / 50 mils). Use 3 conductor shielded triad cable for field wiring. Maximum field wiring length 305 meters between Proximitor and monitor. Wire size 0.2 to 1.5 mm² (16 to 24 AWG).

Features

FluidLoc cable prevents oil and liquid leakage through cable interior. TipLoc molding provides 330N pull strength. CableLoc design secures cable to probe body. PPS tip with thicker coil encapsulation. AISI 303/304 stainless steel case. Viton O ring pressure seal. 2.0 meter cable length for longer reach.

FAQ

Q1: What is the FluidLoc cable option?
A1: FluidLoc prevents oil and other liquids from leaking out of the machine through the cable interior. Recommended for oil filled or liquid exposed installations.

Q2: What is the recommended gap setting for radial vibration?
A2: 9 VDC equals approximately 1.27mm (50 mils) for optimal linear range in radial vibration monitoring.

Q3: What is the DC resistance for 2.0m probe?
A3: 7.88 Ω ±0.50. This is measured from center conductor to outer conductor.
