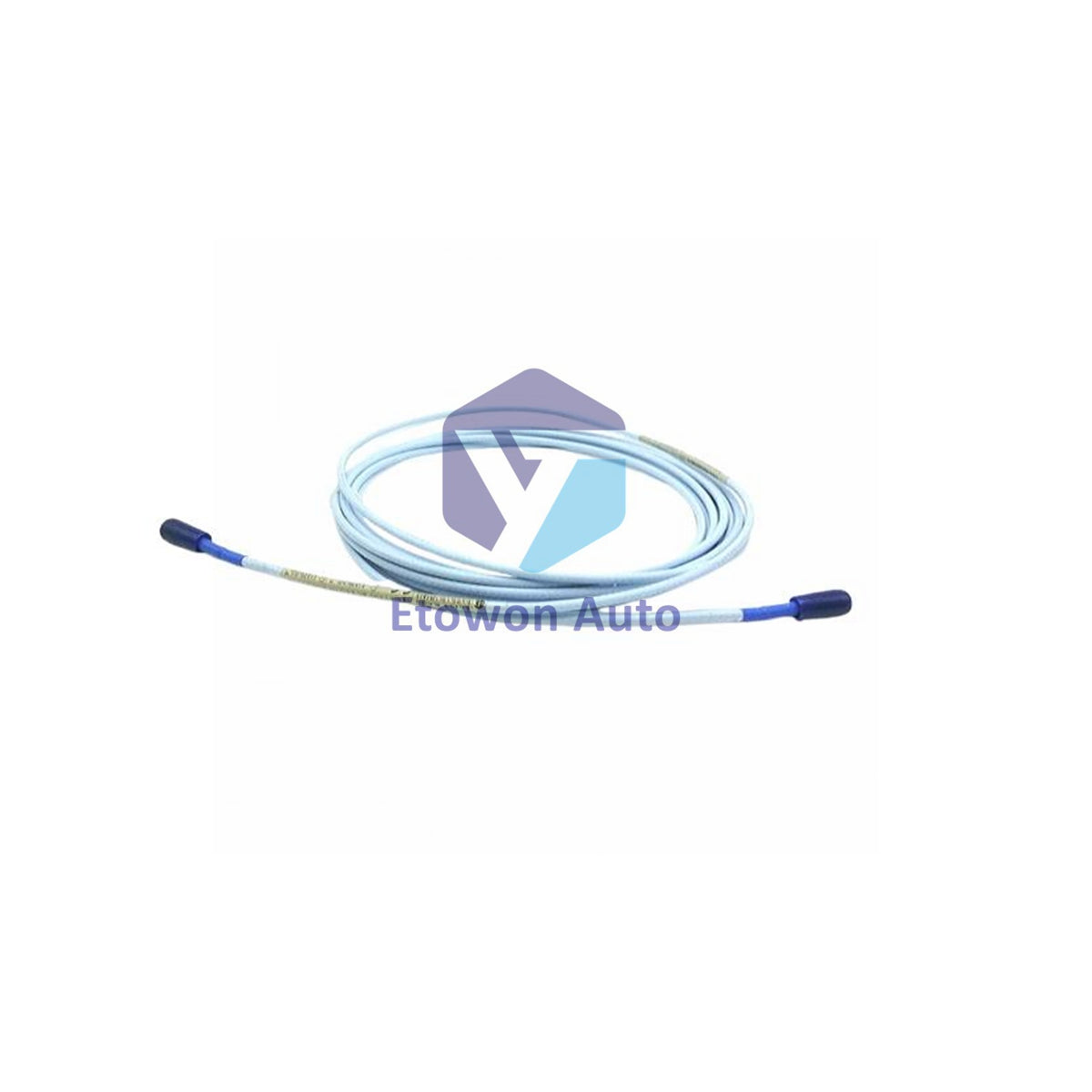

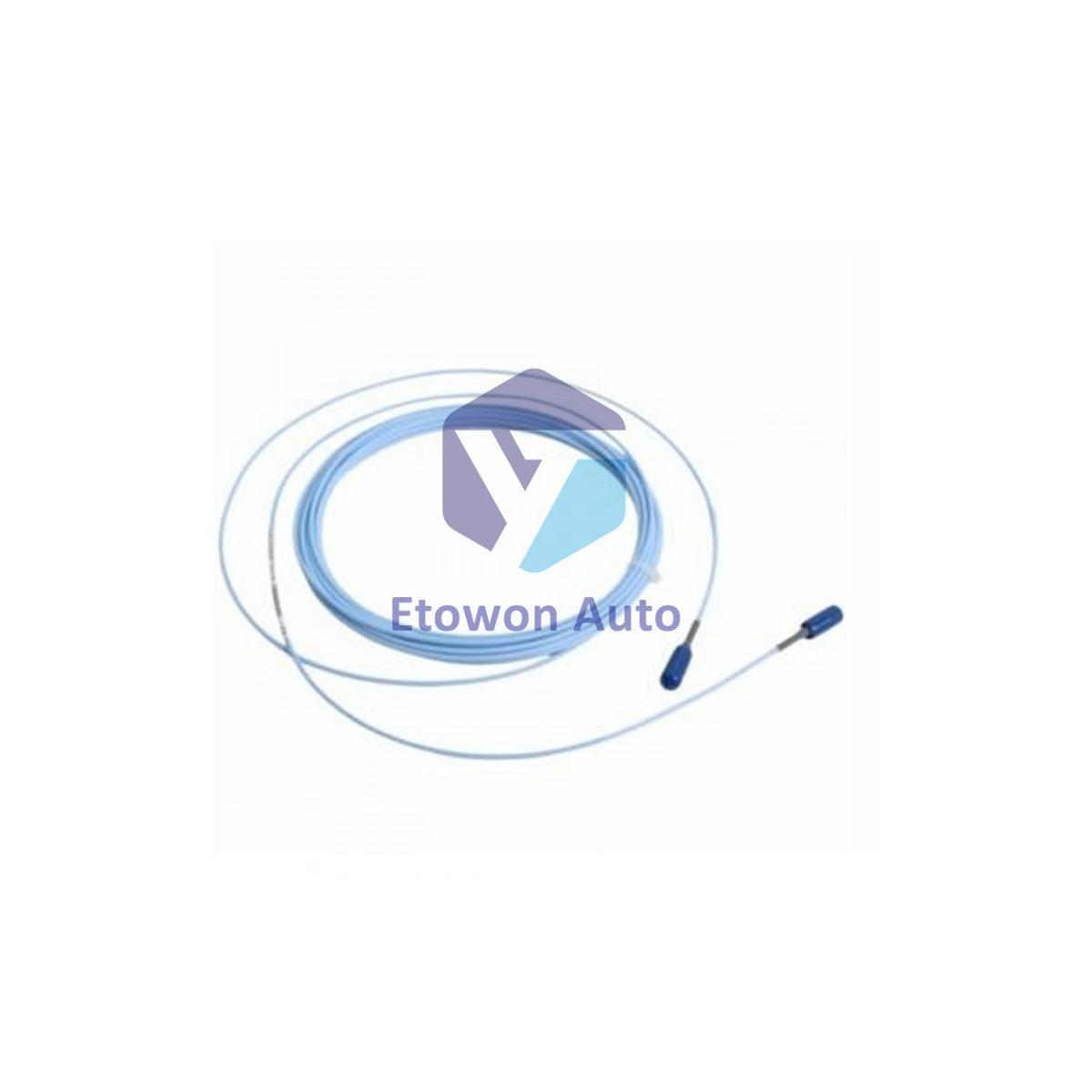

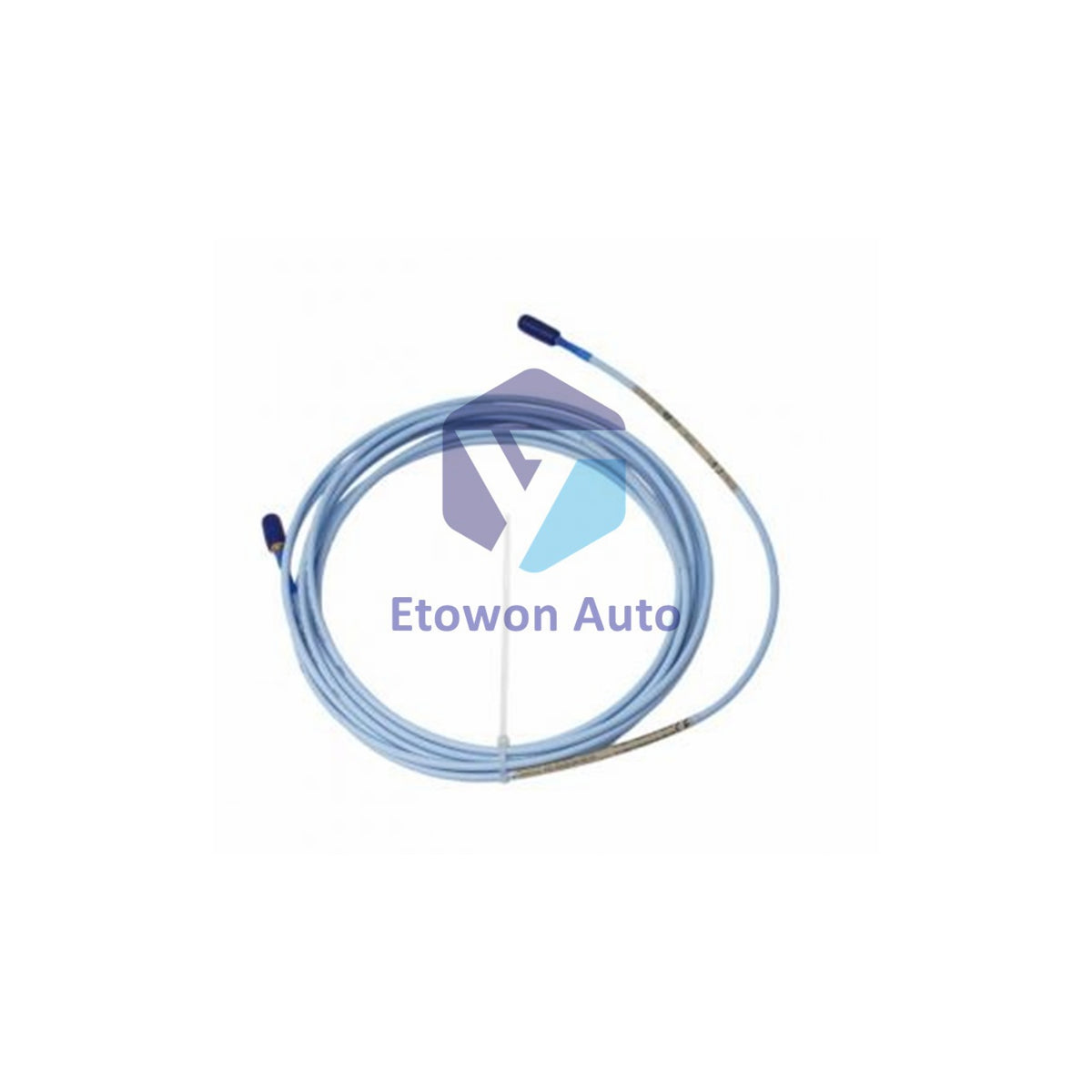

Bently Nevada 330130-085-10-05 3300 XL 8.5m Extension Cable

Product Overview

The Bently Nevada 330130-085-10-05 is a premium 3300 XL series extension cable, a vital component for ensuring precise communication within proximity transducer systems. This 8.5-meter cable is specifically manufactured to withstand the rigors of industrial environments, offering high resistance to mechanical stress and chemical exposure. Featuring the innovative FluidLoc cable option, it provides an essential layer of protection against fluid migration, ensuring that your monitoring system remains dry and functional even in oil-saturated conditions. Fully compliant with global safety standards including ATEX and IECEx, it is the trusted choice for hazardous area applications.

Core Technical Advantages

FluidLoc™ Moisture Protection

The FluidLoc technology (Option 10) integrated into the 330130-085-10-05 prevents liquids from traveling through the cable’s interior. This is a critical feature for machinery where oil or cooling fluids are present, as it stops contaminants from reaching the Proximitor® sensor terminals, preventing signal degradation and premature equipment failure.

Certified for Global Safety

With Option 05 approvals, this cable meets stringent CSA, ATEX, and IECEx requirements. This allows for seamless deployment in potentially explosive atmospheres, common in oil and gas, power generation, and chemical processing facilities, providing peace of mind and regulatory compliance.

Optimized Signal Integrity

Engineered to be part of the 3300 XL 8mm Transducer System, this cable ensures minimal signal loss and maximum linearity. The high-quality shielding and connectors are designed to provide a stable electrical path, ensuring that your vibration and position measurements are accurate to the sub-micron level.

Technical Specifications

Installation & Handling

• Bend Radius: Avoid sharp kinks or tight bends. Maintain the recommended minimum bend radius to prevent internal wire fatigue and shielding damage.
• Connector Security: Ensure that connectors are properly torqued and locked. For high-vibration areas, consider using additional connector protectors or heat-shrink tubing for added stability.
• Routing: Route the cable away from high-voltage power lines or AC motors to minimize electromagnetic interference (EMI) that could affect vibration data accuracy.

Technical FAQs

Q1: Can I use this 8.5m cable with a 5m system?

A1: No. Extension cables must match the system length requirements (5m or 9m total system length). Using an 8.5m extension cable usually implies a 9-meter total system (0.5m probe + 8.5m cable). Mixing lengths will result in incorrect calibration and measurement errors.

Q2: What is the primary benefit of the FluidLoc option?

A2: FluidLoc prevents "wicking," where pressure or capillary action pulls oil or moisture through the cable's air gaps. This protects the Proximitor sensor from internal contamination and short-circuiting.

Q3: Is this cable compatible with non-XL 3300 systems?

A3: While 3300 XL components are generally backward compatible with standard 3300 components, it is highly recommended to use a complete XL system for optimal performance and to maintain the full 3.94 V/mm (100 mV/mil) scale factor.
