330104-06-14-10-02-05

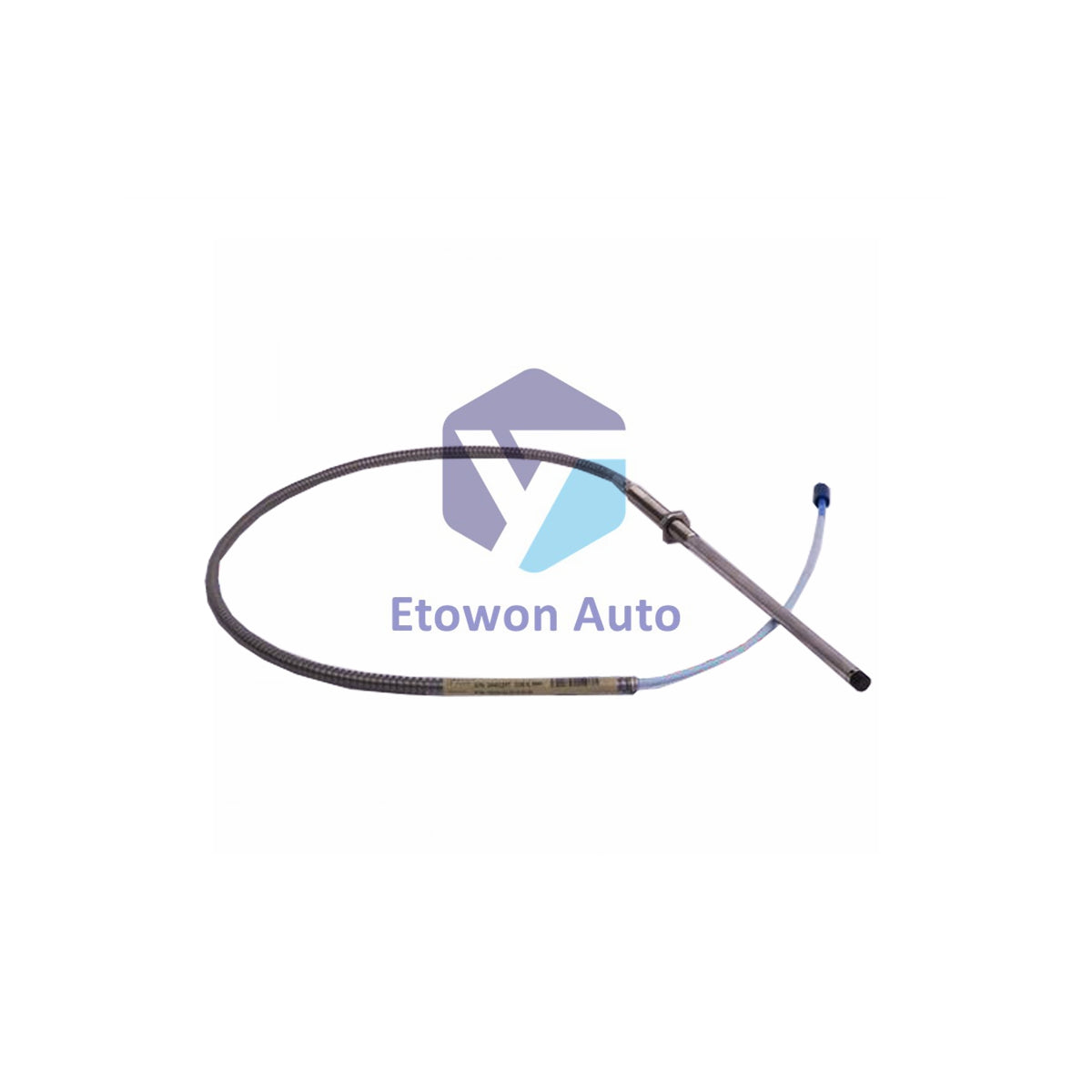

Bently Nevada 330104-06-14-10-02-05 | 3300 XL 8mm Probe

A kan haja (14 guda), a shirye don aikawa

  • Manufacturer: Bently Nevada

  • Product No.: 330104-06-14-10-02-05

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 120g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The Bently Nevada 330104-06-14-10-02-05 is a 3300 XL 8mm Proximity Probe with M10×1 armored thread and 1.0m cable. It features a 60mm unthreaded length, 140mm case, PPS tip, and AISI 303/304 stainless steel body. CSA, ATEX, and IECEx approvals enable use in hazardous locations.

Ordering Configuration

Option Code Description
Base Model 330104 8mm Probe, M10×1 thread, armored
Unthreaded Length 06 60 mm
Case Length 14 140 mm
Cable Length 10 1.0 m (3.3 ft)
Connector / Cable 02 ClickLoc connector, standard cable
Agency Approval 05 CSA, ATEX, IECEx approvals

Technical Specifications

Parameter Value
Part Number 330104-06-14-10-02-05
Sensing Diameter 8 mm
Thread Size M10 x 1 (armored)
Unthreaded / Case Length 60 mm / 140 mm
Cable Length 1.0 m (3.3 ft)
Probe DC Resistance 7.59Ω ± 0.50Ω
Connector Type ClickLoc Miniature Coaxial
Probe Tip Material Polyphenylene Sulfide (PPS)
Case Material AISI 303/304 Stainless Steel
Sealing Viton® O-ring
Supply Voltage -17.5 to -26 Vdc (12mA max)
Supply Sensitivity < 2mV per volt change
Output Resistance 50Ω
Calibration Gap 1.27 mm (50 mils)
Load Impedance 10 kΩ
Certification CSA, ATEX, IECEx
Weight Approx. 0.12 kg (0.26 lbs)
Country of Origin USA

Installation Guide

Thread the probe into the mounting hole using M10×1 thread. Gap the probe at 1.27 mm (50 mils) to an AISI 4140 steel target. Connect the ClickLoc connector with finger-tight torque. Ensure the armored cable maintains minimum bend radius. Verify probe DC resistance of 7.59Ω ± 0.50Ω before start-up. Install per hazardous location requirements for CSA, ATEX, and IECEx.

Engineering Advantages

This probe carries CSA, ATEX, and IECEx approvals for hazardous area installation. The 140mm case and 60mm unthreaded length suit deep mounting configurations. The armored M10×1 thread protects the cable in harsh environments. Viton O-ring seals differential pressure. At just 0.12 kg, it minimizes mechanical loading.

Technical FAQs

Q1: Suffix code meanings?
A1: 06=60mm unthreaded, 14=140mm case, 10=1.0m cable, 02=ClickLoc standard cable, 05=CSA/ATEX/IECEx approvals.

Q2: Electrical specifications?
A2: 7.59Ω ±0.50Ω probe resistance. -17.5 to -26 Vdc supply. Output resistance 50Ω. Supply sensitivity <2mV/V.

Q3: Target material and gap?
A3: Calibrated to AISI 4140 steel target. Gap at 1.27 mm (50 mils) with 10kΩ load impedance.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 8 mm Proximity Probe
