25B-D1P4N104

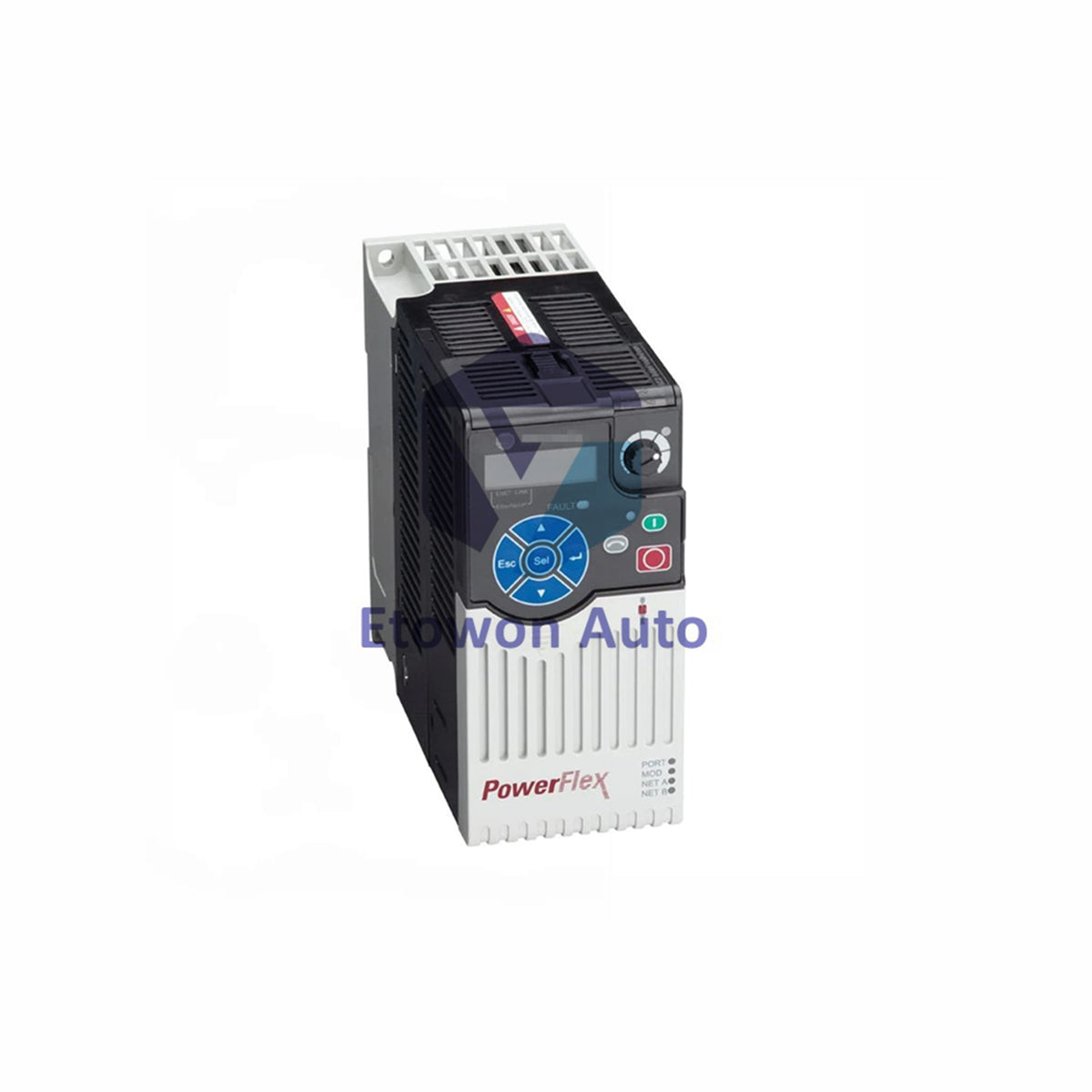

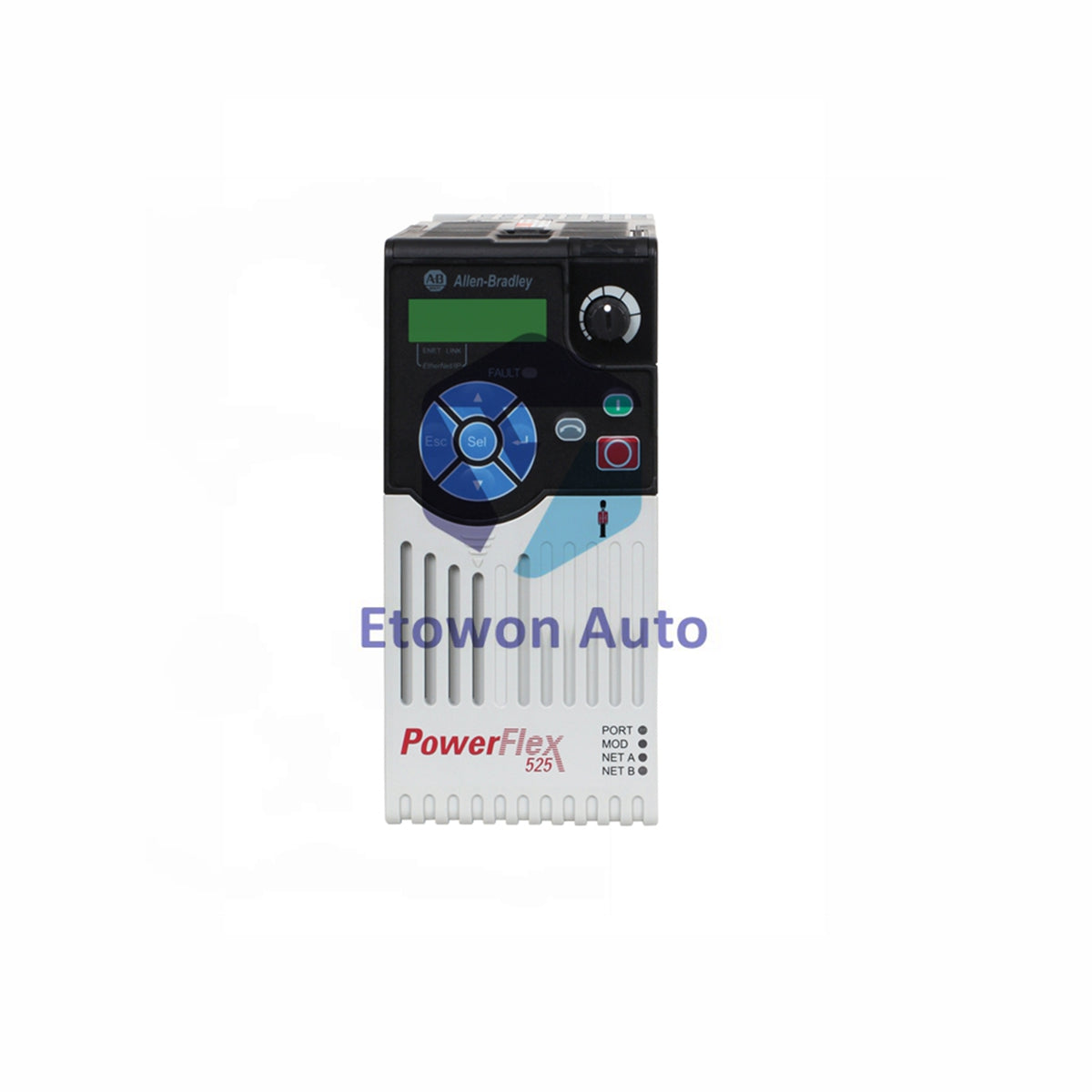

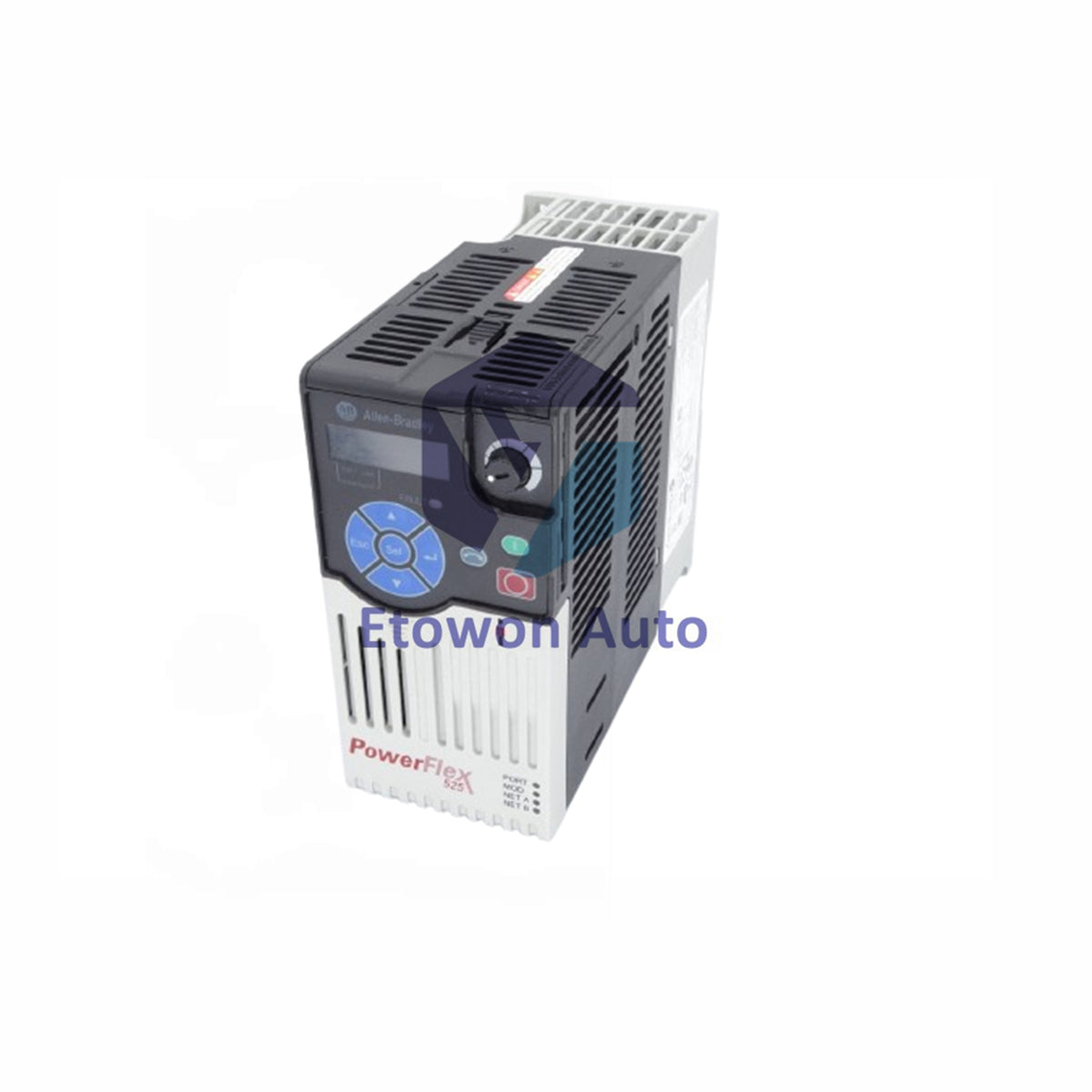

Allen-Bradley 25B-D1P4N104 PowerFlex 525 AC Drive 0.5HP

A kan haja (30 guda), a shirye don aikawa

  • Manufacturer: Allen-Bradley

  • Product No.: 25B-D1P4N104

  • Product Type: AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Allen-Bradley 25B-D1P4N104 Technical Overview

The Allen-Bradley 25B-D1P4N104 is a compact variable frequency drive from the PowerFlex 525 series manufactured by Rockwell Automation. Designed for precise speed control of 3-phase induction motors, this Frame A drive operates on a 3-phase input voltage range of 323–528 VAC and delivers an output power of 0.4 kW (0.5 HP) with a 1.4 A output current rating. Weighing approximately 1.10 kg (2.42 lbs), it features an IP20 / NEMA Open enclosure, an embedded EtherNet/IP port, an integral backlit LCD keypad, and comprehensive digital/analog I/O, generating a total power loss of just 27.0 W across operating ambient temperatures from -20 °C to +50 °C.

Part Number Breakdown

  • 25B: Allen-Bradley PowerFlex 525 Series AC Drive Architecture
  • -D: 480 VAC Input Voltage Class (3-Phase)
  • 1P4: 1.4 Amperes Continuous Output Current Rating
  • N: IP20 / NEMA UL Type Open Enclosure Format
  • 1: Standard Integral LCD Keypad Interface
  • 04: Frame A Hardware Size Designation

Technical Specifications Table

Parameter Specification
Manufacturer / Brand Rockwell Automation / Allen-Bradley
Full Part Number 25B-D1P4N104
Product Line & Model PowerFlex 525 Series / Variable Frequency AC Drive
Input Voltage & Current 323 to 528 VAC (3-Phase) / 1.9 Amps Input Current
Output Rating & Current 0.4 kW (0.5 HP) / 1.4 Amps Output Current (0–460 VAC)
Frame Size & Enclosure Frame A / IP20 / NEMA UL Type Open
I/O Count & Communication 7 Digital In, 2 Analog In, 1 Analog Out, 2 Relay Out / Embedded EtherNet/IP
Power Loss & Heat Dissipation 27.0 Watts Total Power Loss
Physical Net Weight Approx. 1.10 kg (2.42 lbs) Net Weight
Operating Temperature Range -20 °C to +50 °C (-4 °F to +122 °F)

Key Features & Hardware Configurations

Features 0.4 kW output, 1.4A current, IP20 Frame A enclosure, 1.10 kg weight, embedded EtherNet/IP, 27W dissipation, and integral LCD keypad.

Frequently Asked Questions (FAQs)

Q1: What are the main physical and performance specs of Allen-Bradley 25B-D1P4N104?
A1: 480V 3-phase, 0.4 kW (0.5 HP), 1.4A output, 1.10 kg weight, embedded EtherNet/IP, IP20 Frame A.

Q2: What embedded communication options are supported on this PowerFlex 525 drive?
A2: It includes an embedded EtherNet/IP port and supports optional Dual EtherNet/IP, DeviceNet, or PROFIBUS DP.

Q3: What input voltage range and electrical current does this drive require?
A3: Operates on a 3-phase input voltage range from 323 to 528 VAC with a 1.9 Amps input current rating.
