Allen-Bradley 18-Pulse PowerFlex 7000 Allo 80190-560-01-R

Takaitaccen Bayanin Samfuri

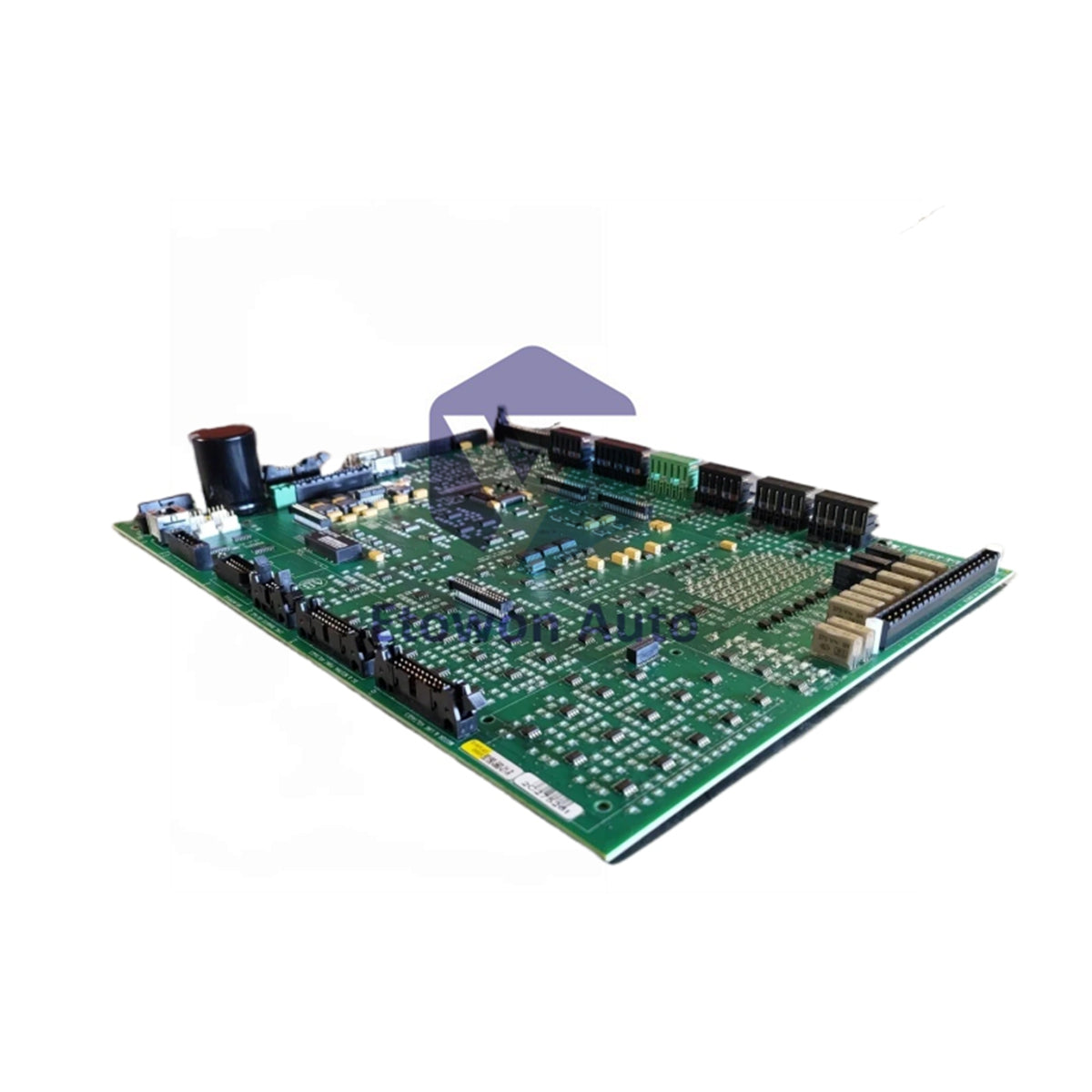

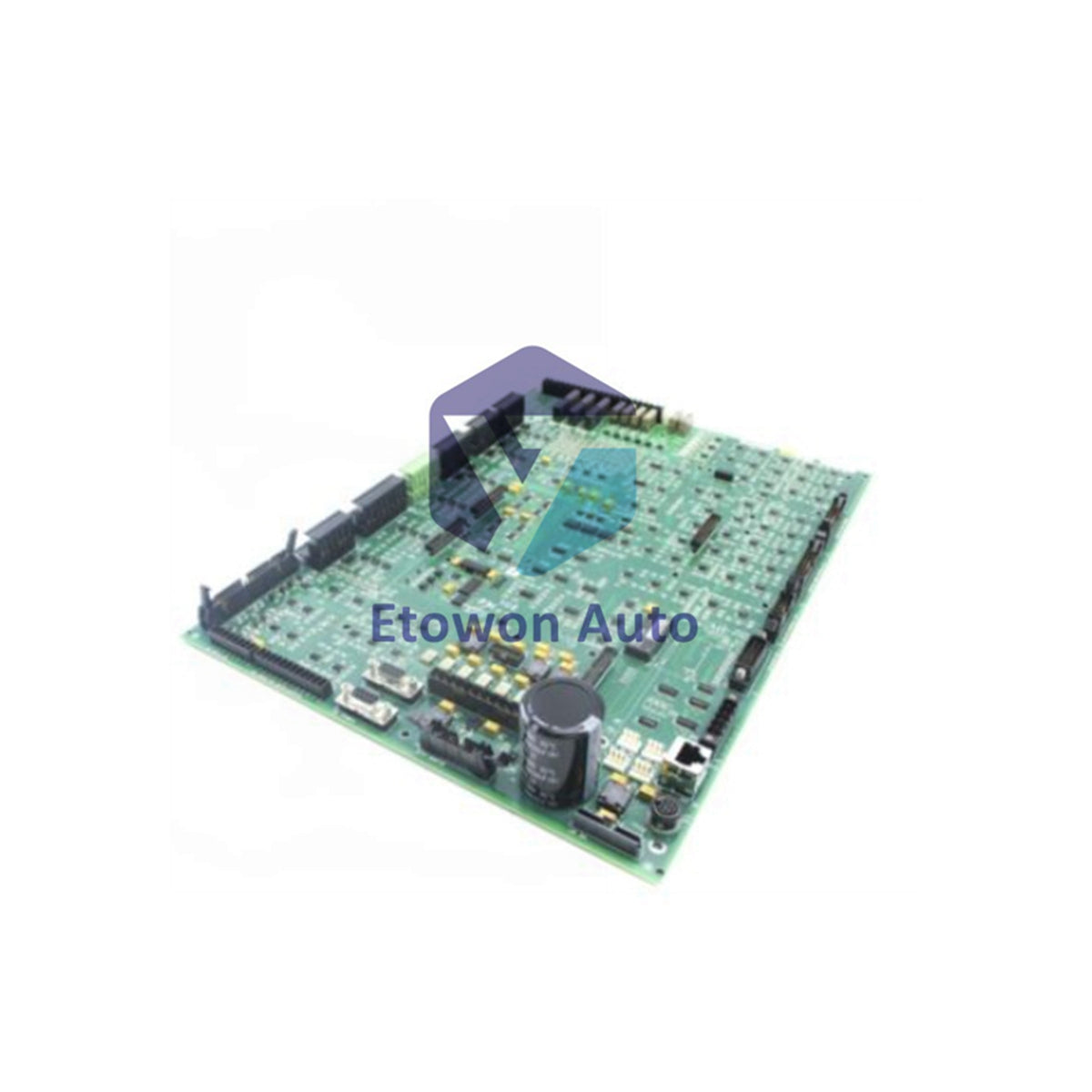

Allen-Bradley 80190-560-01-R allon kula da Analog mai daidaito sosai (Analog Control Board, ACB) ne da aka ƙera musamman don tsarin PowerFlex 7000 18-Pulse Drive. Wannan muhimmin sashi ne da ke sarrafa dabarun kulawar ƙarfin lantarki da na halin yanzu (voltage da current) masu rikitarwa da ake buƙata don daidaitaccen sarrafa motar da ke da ƙwarewa mai girma. Tare da nauyin na’ura na 0.86 kg (1.90 lbs), an ƙera wannan allo ne don samar da kwanciyar hankali, sarrafa siginar analog a ainihin lokaci a cikin aikace-aikacen tuki na masana’antu masu matsakaicin ƙarfin lantarki.

Daidaitacciyar Kula da Motar

Haɗin Analog na Ci gaba

80190-560-01-R yana aiki a matsayin babbar hanyar shiga da fita don sigogin kula da motar na analog. Yana juyar da dabarun sarrafawa zuwa fitowar ƙarfin lantarki da halin yanzu da za a iya aiwatarwa, yana tabbatar da daidaitacciyar hanzarta, rage gudu, da sarrafa juyi (torque). An tsara shi don gine-ginen 18-pulse drive, yana taimakawa wajen kiyaye ingancin wutar lantarki mai girma da rage karkacewar harmonic a cikin tsarin tuki.

Juriya ga Yanayi Mai Tsanani

An gina allon ACB don yin aiki a cikin muhallin masana’antu masu wahala, kuma yana da ƙimar zafin aiki har zuwa 60°C (140°F). An ƙera babban kayan PCB dinsa don jure danshi na dangi daga 5% zuwa 95% ba tare da ta’azzarar ƙura ba, don tabbatar da dogon lokacin amincewa a muhallan da ake fama da sauyin zafi da danshi, kamar masana’antun man fetur da gas ko injinan tace ruwa.

Ƙayyadaddun Fasaha

Shigarwa & Haɗawa

Don tabbatar da mafi kyawun aiki na 80190-560-01-R, dole ne a girka shi tare da bin ka’idojin kariyar fitar lantarki na jiki (Electrostatic Discharge, ESD) yadda ya kamata. A matsayin muhimmin ɓangare na tsarin kula da PowerFlex 7000, yana buƙatar ƙarfin wutar shigar al’ada 24V DC don tuƙa matakan fitowar analog ɗinsa. Dacewa kai tsaye da 18-pulse drives yana tabbatar da cewa wannan allon yana haɗuwa daidai da kayan aikin da ake da su, yana ba da damar sauyawa a filin cikin sauri da rage lokacin da tsarin zai tsaya.

Kyakykyawan Aiki

Analog Control Board muhimmin sashi ne wajen aiwatar da dabarun kulawar motar masu inganci. Ta hanyar samar da fitowar siginar analog mai inganci sosai, tana ba da damar cikakken iko kan matakan masana’antu, tana ƙara ingancin samarwa kuma tana kare lafiyar motoci. Ƙimar zafin ajiya har zuwa 85°C (185°F) tana tabbatar da cewa allon yana ci gaba da kasancewa cikin kariya ko da lokacin katsewar ayyukan masana’anta ko ajiya na dogon lokaci.

Tambayoyin Fasaha (FAQs)

Q1: Za a iya amfani da wannan allon ACB a cikin 6-pulse ko 12-pulse PowerFlex 7000 drives?
A1: An inganta wannan allo ne musamman don tsarin tuki na 18-pulse. Amfani da shi a wasu nau’ikan drive na iya jawo matsalar daidaita iko; don Allah a tabbatar da bayanan da ke kan farantin sunan drive ɗinku kafin yin oda.

Q2: Menene manyan alamomin da ke nuna cewa allon ACB ya kamata a maye gurbinsa?
A2: Alamomi da ake yawan gani sun haɗa da gudun motar da ba ya daidaita, amsa juyi (torque) da ke rikicewa, ko kuskuren siginar analog da Drive Processor Module (DPM) ya ruwaito.

Q3: Shin nauyin 0.86 kg ya haɗa da maƙalar shigarwa (mounting bracket)?
A3: Wannan nauyin yana nufin taron PCB ɗin kaɗai. Ya kamata a ci gaba da amfani da kayan aikin ɗaure na al’ada da ke cikin kabad ɗin drive ɗin don shigarwa.
