1771-CFM

Allen-Bradley 1771-CFM | PLC-5 Configurable Flowmeter Module

A kan haja (16 guda), a shirye don aikawa

  • Manufacturer: Allen-Bradley

  • Product No.: 1771-CFM

  • Product Type: Flowmeter Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 950g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The 1771-CFM is a specialized Configurable Flowmeter Module engineered by Allen-Bradley (Rockwell Automation) for the legacy PLC-5 Platform. Designed to install directly into any standard 1771 I/O Chassis, this high-performance module provides real-time pulse processing and precise fluid flow measurement across industrial process control systems. Equipped with 4 Digital Inputs and 4 Digital Outputs, the 1771-CFM processes high-speed pulse trains from turbine meters, positive displacement meters, and vortex flow sensors. Constructed with a rugged, industrial-grade chassis frame weighing approximately 0.95 kg (2.1 lbs), it delivers continuous flow totalization, rate calculation, and fast-response output control directly on the 1771 I/O backplane.

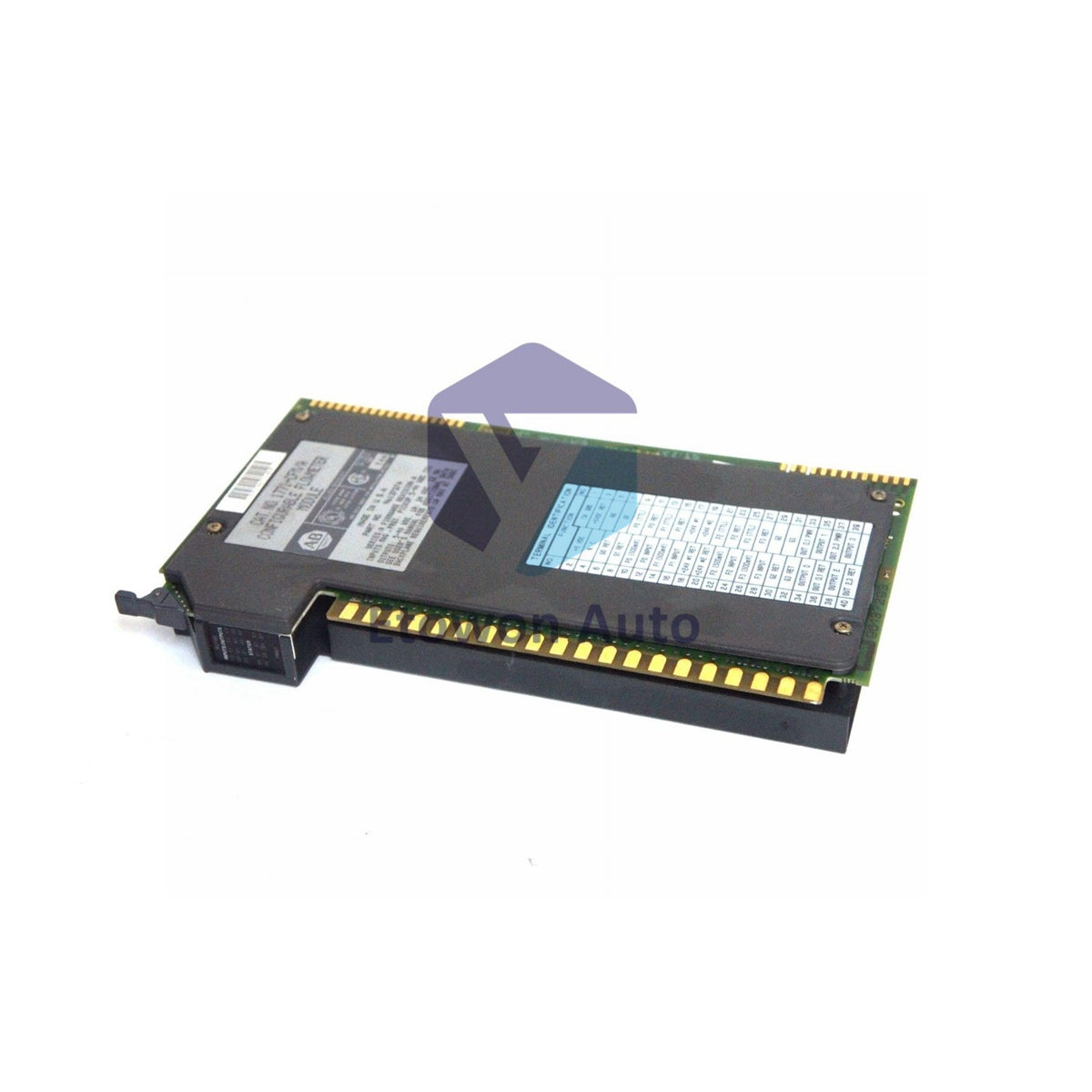

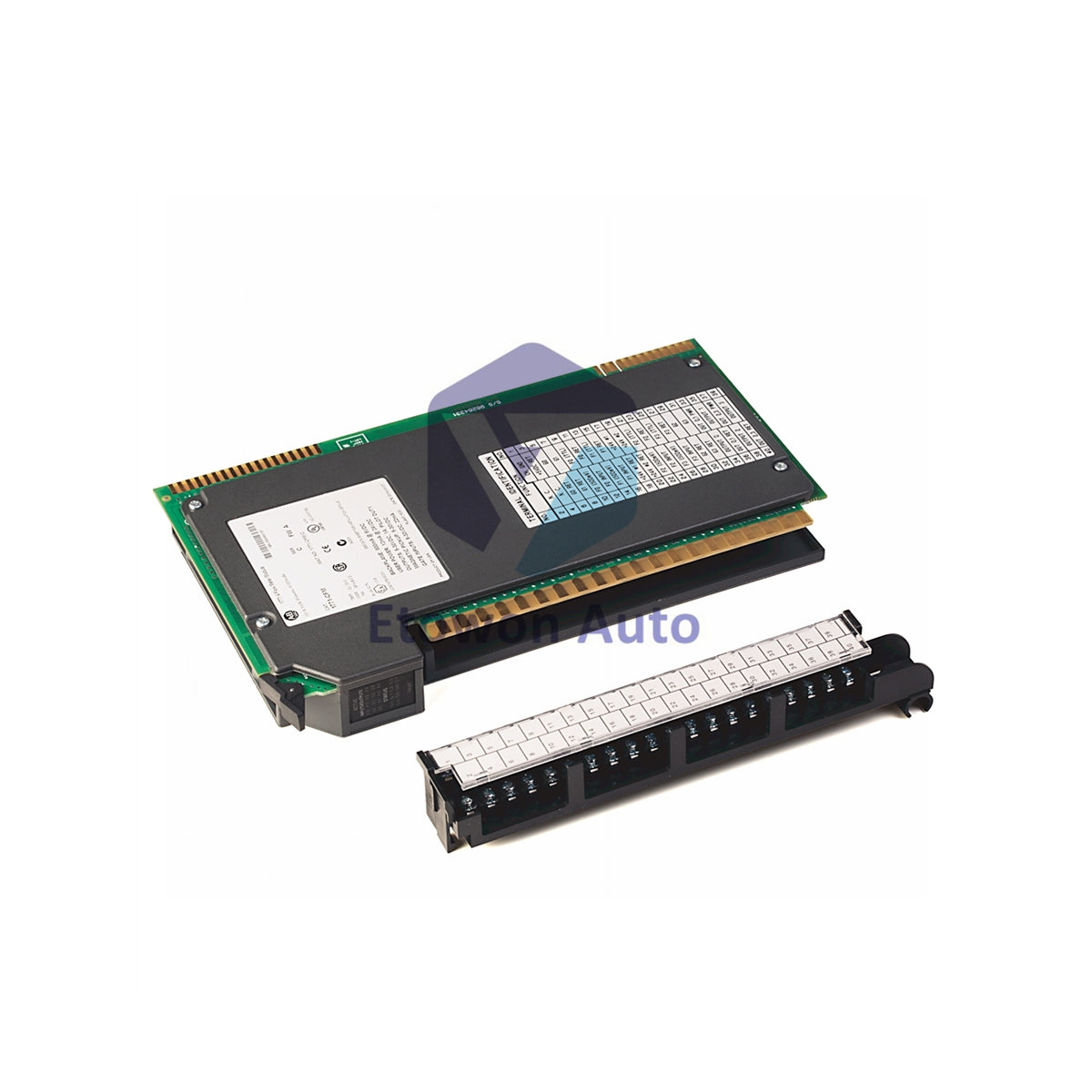

As depicted in the product visual, the unit features a single-slot rack-mountable form factor with front-panel diagnostic LEDs and a removable terminal block wiring assembly.

Core Technical Advantages

  • High-Speed Flow Totalization: Processes multi-channel pulse inputs simultaneously for precise flow rate computing and volumetric totalization.
  • Direct 1771 Rack Integration: Fits seamlessly into 1771 I/O backplane chassis slots without requiring external communication gateways.
  • Flexible Digital I/O Configuration: Features 4 digital inputs for pulse counting and 4 digital outputs for batch control or alarm signaling.
  • Industrial-Grade Reliability: Built with robust noise immunity and status indicators for reliable performance in harsh manufacturing environments.

Technical Specifications

Parameter Attribute Factory Specification Data
Brand / Manufacturer Allen-Bradley / Rockwell Automation
Part / Catalog Number 1771-CFM
Product Family Series PLC-5 System (1771 I/O Architecture)
Module Functional Type Configurable Flowmeter Module
Digital Input Channels 4 Channels (Pulse / Flowmeter Inputs)
Digital Output Channels 4 Channels (Control / Alarm Outputs)
Mounting Format Rack-Mountable (1771 I/O Chassis Slot)
Backplane Current Load 1.0 A at 5 VDC (Typical)
Operating Temperature Range 0°C to +60°C (32°F to 140°F)
Storage Temperature Range -40°C to +85°C (-40°F to 185°F)
Condition / Warranty New & Original in Factory Box | 12-Month Factory Warranty

Installation & Field Maintenance Guidelines

Insert the module securely into any available 1771 I/O chassis slot with system power off. Connect field pulse wiring to the removable terminal wiring arm. Configure channel parameters via PLC-5 programming software.

Technical FAQs

Q: System compatibility?
A: Installs into Allen-Bradley 1771 I/O racks controlled by PLC-5 processors.

Q: Channel capacity?
A: Features 4 digital pulse inputs and 4 digital control outputs.

Q: Mounting method?
A: Rack-mountable directly into 1771 I/O backplane chassis slots.
