330101-00-30-50-02-00

330101-00-30-50-02-00 | Bently Nevada 5m Cable Probe

A kan haja (12 guda), a shirye don aikawa

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-30-50-02-00

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

Product Overview

The 330101-00-30-50-02-00 is an authentic 3300 XL 8mm Proximity Probe manufactured by Bently Nevada in the U.S.A. Designed for continuous machinery protection and vibration monitoring, this non-armored eddy current sensor features a 3/8-24 UNF threaded stainless steel body with a 3.0-inch overall case length and 0.0-inch unthreaded length. The probe incorporates patented TipLoc molding for a robust bond between the PPS plastic tip and metal case, alongside a CableLoc design delivering 330 N (75 lbf) pull strength. Built with a physical net weight specification of approximately 323 g/m (11.4 oz/m), it is equipped with an extended 5.0-meter (16.4 feet) standard cable terminated with a miniature coaxial ClickLoc connector to offer high structural integrity and linear displacement measurement across rotating machinery installations.

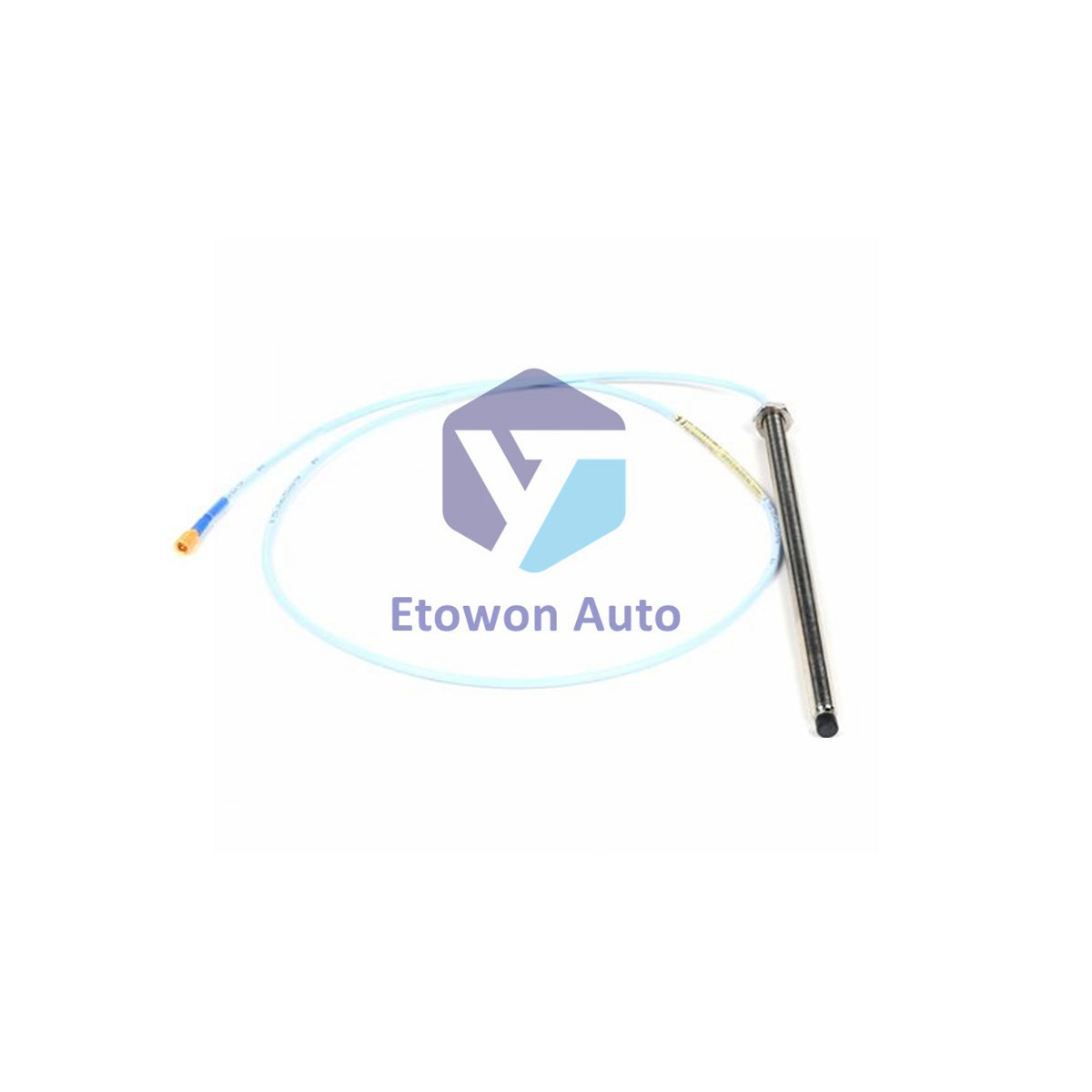

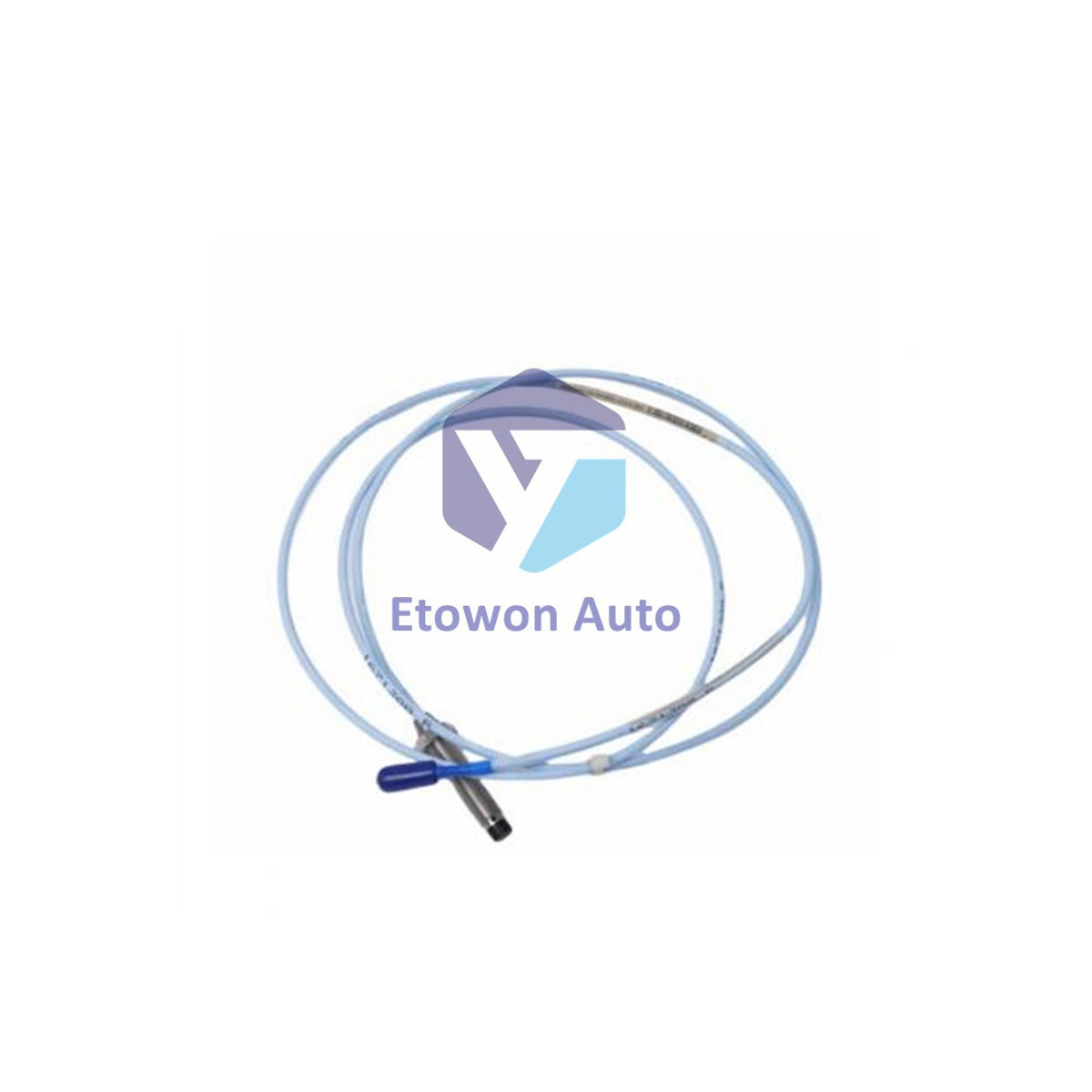

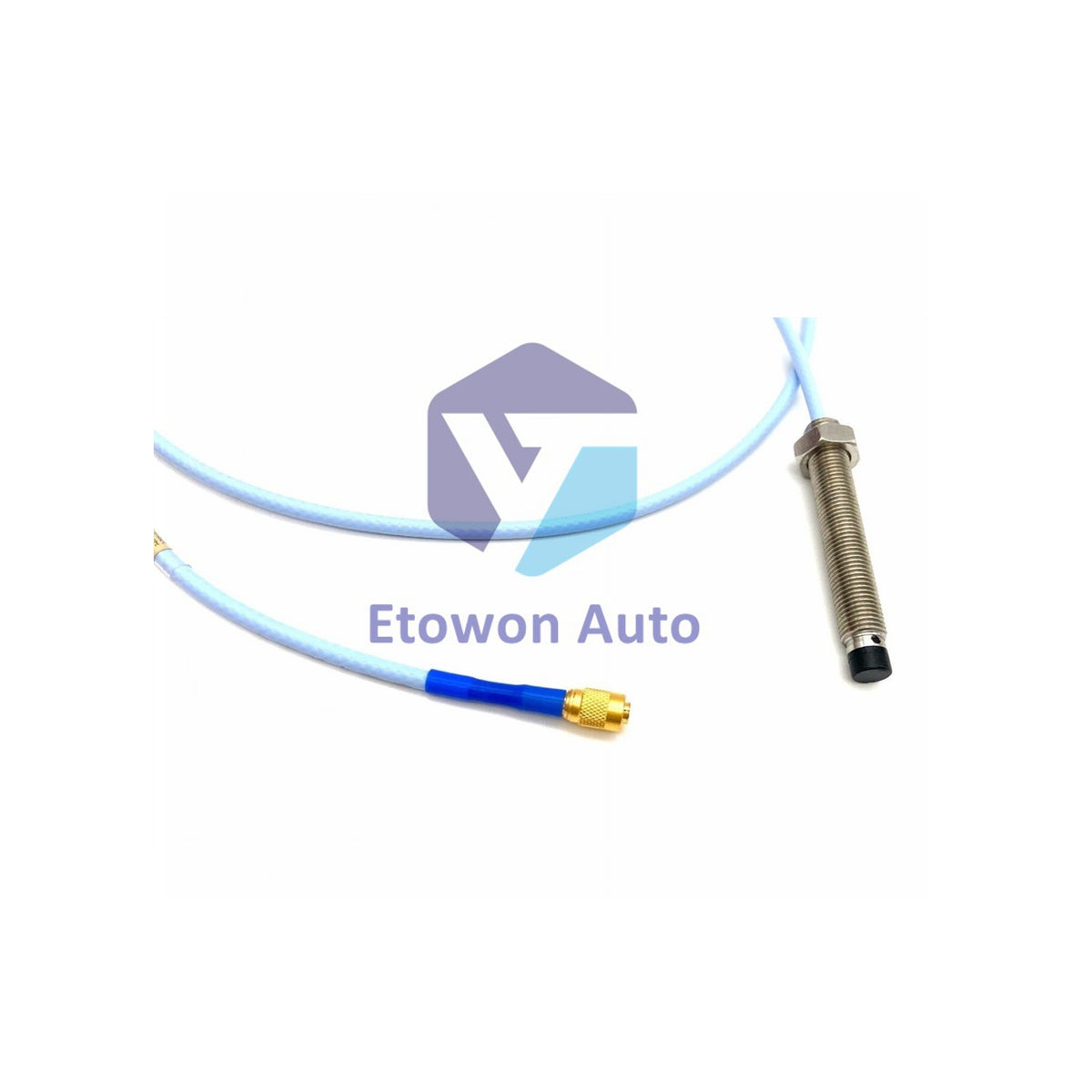

As illustrated in the product image, the probe consists of a fully threaded 303/304 stainless steel casing, blue flexible coaxial cable, and a protective ClickLoc connector boot ready for field connection.

Core Technical Advantages

  • Extended 5.0-Meter Cable Length: Integrated 5.0m (16.4 ft) cable enables direct routing to distant Proximitor sensors without requiring intermediate extension cables.
  • Patented Cable & Tip Retention: Features TipLoc molding and CableLoc construction offering 330 N (75 lbf) pull strength to withstand physical stress and vibration.
  • 3.0-Inch Fully Threaded Case: Compact 3.0-inch case length without unthreaded body length provides versatile mounting depth control in standard bearing housings.
  • High-Precision Sensing: Encapsulated PPS plastic tip delivers a 2 mm (80 mils) linear range with standard 7.87 V/mm (200 mV/mil) scale factor for accurate vibration monitoring.

Technical Specifications

Parameter Attribute Factory Specification Data
Brand / Manufacturer Bently Nevada (Made in U.S.A.)
Part / Catalog Number 330101-00-30-50-02-00
Product Series / System 3300 XL 8mm Transducer System (3/8-24 UNF, Unarmored)
Unthreaded Length Option (00) 0.0 Inches (Fully Threaded Case)
Overall Case Length Option (30) 3.0 Inches
Total Cable Length Option (50) 5.0 Meters (16.4 Feet)
Connector & Cable Option (02) Miniature Coaxial ClickLoc Connector, Standard Cable
Agency Approval Option (00) Not Required
Physical Net Weight 323 g/m (11.4 oz/m)
Linear Measuring Range 2 mm (80 mils) [0.25 to 2.3 mm (10 to 90 mils)]
Incremental Scale Factor (ISF) 7.87 V/mm (200 mV/mil) ± 5% (Standard 5m System)
Nominal DC Resistance 8.73 ± 0.50 Ω (Center to Outer Conductor, 5.0m)
Materials (Case / Tip) AISI 303/304 Stainless Steel Case | PPS Tip with Viton O-Ring Seal
Operating Temperature Range -52°C to +177°C (-62°F to +350°F) Standard Probe
Condition / Documentation New & Original in Factory Box | Certificate Of Origin (COO) Available | 12-Month Warranty

Model Number Breakdown

The code 330101-00-30-50-02-00 specifies the precise hardware build for this 3300 XL 8mm proximity probe:

  • 330101: 3300 XL 8mm Proximity Probe (3/8-24 UNF thread, unarmored).
  • 00: Unthreaded length of 0.0 inches.
  • 30: Overall case length of 3.0 inches.
  • 50: Total system cable length of 5.0 meters (16.4 feet).
  • 02: Miniature coaxial ClickLoc connector with standard cable type.
  • 00: Agency approval code: Not required.

Installation & Field Maintenance Guidelines

Mount probe into a 3/8-24 UNF port and lock in place with a jam nut. Set target gap to -9 Vdc (approx. 1.27 mm / 50 mils) for radial vibration setups. Mate ClickLoc connector securely to the system wiring.

Technical FAQs

Q: Cable length?
A: Integrated 5.0-meter (16.4 ft) standard cable with ClickLoc connector.

Q: Case dimensions?
A: 3.0-inch overall case length with 0.0-inch unthreaded length.

Q: COO available?
A: Yes, official Certificate Of Origin (COO) is available upon request.
