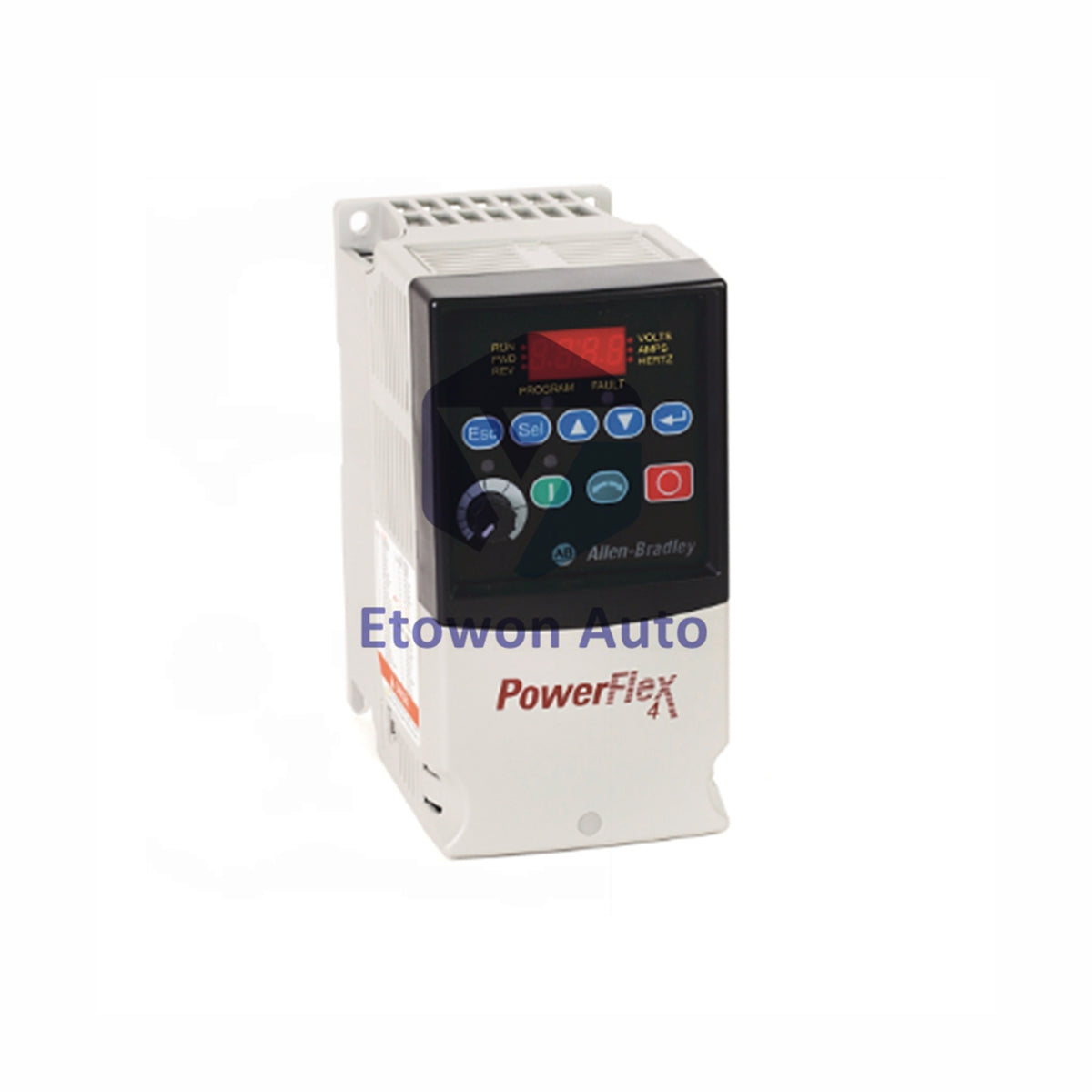

22A-A2P3N104 Allen-Bradley PowerFlex 4 na’urar tuki ta AC 240V 2.3A

Taƙaitaccen Bayanin Samfur

Allen-Bradley 22A-A2P3N104 muhimmin bangare ne na jerin PowerFlex 4, wanda aka ƙera musamman don samar da 0.5 HP (0.4 kW) na daidaitaccen sarrafa motar lantarki. Yana aiki da madaidaicin wutar shigar 200-240V AC nau’in layi guda (single-phase), wanda ya sa wannan direban ya zama abin so a aikace-aikacen injuna inda sarari yake ƙarami. Tare da sauƙaƙƙen nauyin kusan kilo 1.41 (fam 3.1), na’urar tana da sauƙin ɗauka da sakawa yayin shigarwa, duk da haka tana ba da ƙwarin ƙarfin lantarki. Tana da maɓallin LED mai sauƙin gani don sa ido a wurin aiki da kuma haɗaɗɗen direban birki don sarrafa makamashin dawowa yayin zagayen tsayar da mota.

Manyan Fasahohin Da Ke Amfanarwa

Wannan module Allen-Bradley 22A-A2P3N104 an gina shi ne don sassauci, yana ba da damar shigarwa a kan panel ko a kan DIN rail. Yana bayar da ƙimar fitar wuta ta yanzu 2.3A, kuma yana sanye da fitilu guda huɗu na dijital (discrete outputs) da za a iya shirya su gaba ɗaya, tare da shigar analog guda biyu (0-10V ko 4-20mA), wanda ke ba da damar haɓaka tsarin sarrafa kansa ba tare da buƙatar manyan masu sarrafawa na waje ba. Tsarin kilo 1.41 na na’urar na ɗauke da ci-gaba a tsarin sarrafa zafi, yana ba da damar aiki a yanayin zafi har zuwa 40°C, wanda ya dace da mafi yawan kwamitocin sarrafa masana’antu.

Ƙayyadaddun Fasaha

Shigarwa & Kariyar Muhalli

Shigar da Allen-Bradley 22A-A2P3N104 yana da sauƙi saboda ƙaramin nauyin ƙugiyarta na kilo 1.41 da kuma ƙarancin girma. Rufin IP20 (Open Type) an ƙera shi ne don amfani a cikin ɗaki, a cikin kabad da ke kare na’ura. Idan za a shigar a tsayin sama da mita 1000, a tabbatar an yi derating yadda ya dace gwargwadon ka’idojin Rockwell Automation. An ware direban don jure danshi har zuwa 95% ba tare da ƙanƙancewa (non-condensing) ba, kuma zai iya jure zafin ajiya daga -40°C har zuwa 85°C, don tabbatar da cewa sassan lantarki na ciki suna cikin kariya yayin jigilar kaya da ajiya na dogon lokaci.

Fa’idodin Injiniya

Injiniyoyi suna zaɓar Allen-Bradley 22A-A2P3N104 saboda ingantacciyar amincinsa a ƙananan injinan jigilar kaya da injinan marufi. Haɗaɗɗen direban birki yana ba da daidaitaccen matsayi da saurin tsayawa, wanda yake da mahimmanci ga tsaro da ƙara yawan aiki. Bugu da ƙari, ikon amfani da wutar layi ɗaya (single-phase) yana sa wannan direban 2.3A ya zama zaɓi mai kyau ga ƙananan bita na masana’antu ko wuraren kasuwanci inda wutar layi uku (three-phase) ba ta da sauƙin samu. Ƙaramin nauyin kilo 1.41 na sa ba ya ƙara nauyi sosai ga panel ɗin da ake iya juyawa ko DIN rail mai nauyin aiki ƙanƙani.

Tambayoyi na Fasaha (FAQs)

Q1: Menene nauyin Allen-Bradley 22A-A2P3N104?
A1: Module ɗin na da jimillar nauyi kusan kilo 1.41 (fam 3.1), wanda ke sa ya kasance ɗaya daga cikin mafi sauƙin ɗauka da shigarwa a cikin jerin PowerFlex.

Q2: Zan iya amfani da wannan direban da wutar shigar layi uku (3-phase)?
A2: Wannan takamaiman samfurin an daidaita shi ne don shigar wutar AC 200-240V layi ɗaya (1-phase). Don buƙatun layi uku, ya kamata a zaɓi wani samfurin daban a cikin jerin PowerFlex 4.

Q3: Shin wannan samfurin ya haɗa da dynamic braking resistor?
A3: Yana ɗauke da direban birki da aka haɗa a ciki (IGBT), amma galibi ana buƙatar waje dynamic braking resistor don warware zafin da ake haifuwa yayin zagayen birki masu nauyi.
