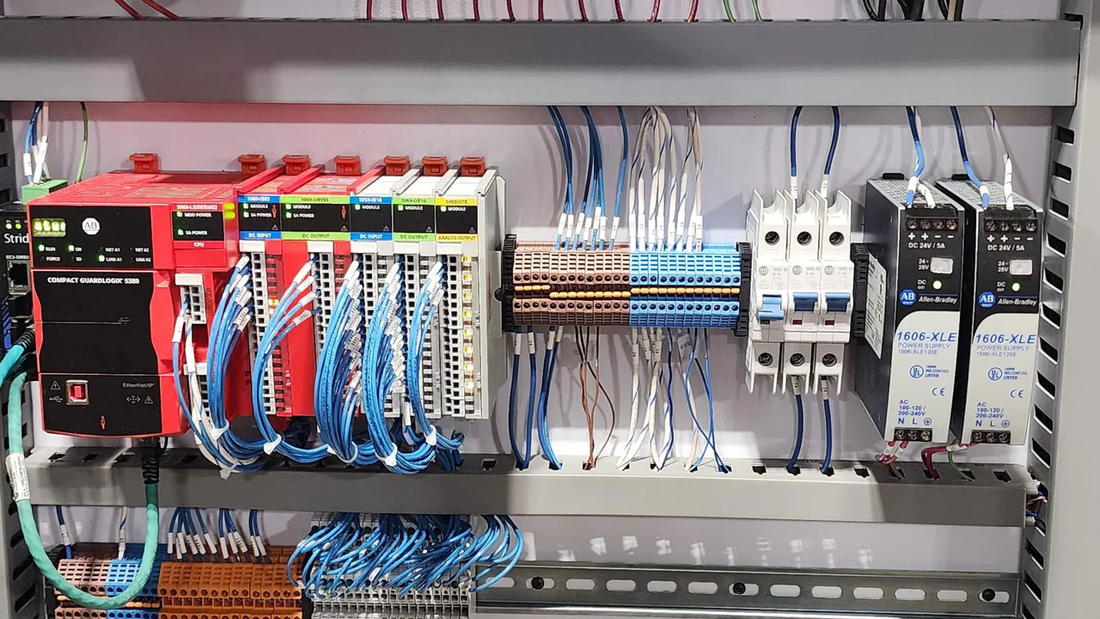

How to Cut PLC Wiring Costs Using Allen-Bradley Remote I/O

The Fundamental Problem: Centralized I/O Wiring in Large-Scale Facilities

In traditional PLC-based control systems, every field device requires a dedicated copper wire running back to the main controller cabinet. For a facility spanning 100,000 square feet or more, this creates an enormous wiring harness. Consider a typical automotive powertrain assembly line with 800 discrete sensors and 400 actuators. A conventional architecture demands 1,200 individual home-run cables. At an average length of 150 feet per cable, total wiring exceeds 180,000 feet. Material costs for multi-conductor cable, conduit, and terminal blocks often exceed $200,000. Labor for pulling, labeling, and terminating these cables adds another $80,000 to $120,000. Long cable runs also introduce voltage drop and electromagnetic interference, forcing engineers to oversize power supplies and install signal isolators.

Remote I/O Architecture: A Technical Overview

Allen-Bradley remote I/O modules decentralize the input/output interface. Each module contains a communication adapter, power regulation circuitry, and interchangeable I/O banks. The adapter handles network protocol stack processing—EtherNet/IP, DeviceNet, or ControlNet. I/O banks accept digital or analog cartridges with channel densities from 4 to 32 points per module. The adapter polls field devices at configurable rates called Requested Packet Intervals (RPI), typically ranging from 2 ms to 100 ms. Data is encapsulated into CIP (Common Industrial Protocol) messages and transmitted to the PLC over standard Ethernet frames. This design eliminates home-run cables while maintaining deterministic scan times below 10 ms for most discrete applications.

Technical Deep Dive: EtherNet/IP Communication Mechanics

Allen-Bradley remote I/O modules use producer-consumer communication models. Unlike traditional master-slave polling, producer-consumer allows modules to multicast data to multiple consumers simultaneously. The PLC schedules implicit (real-time I/O) connections using Class 1 connections. Each connection defines RPI, data size, and transport type (exclusive owner, input only, or listen only). For example, a 1734-AENTR adapter can support up to 32 direct connections with a total bandwidth of 1,000 packets per second. The adapter's embedded switch enables daisy-chain topology, reducing switch port requirements. Engineers must calculate network load using the formula: Bandwidth = (Total I/O bytes × 8 × 1,000) / RPI (ms). For a system with 500 bytes of I/O data at 10 ms RPI, bandwidth consumption is 400 kbps, well within 100 Mbps Ethernet limits.

Signal Integrity Engineering: Managing Noise in Distributed Systems

Long home-run cables act as antennas, picking up common-mode noise from variable frequency drives, welding equipment, and radio transmitters. Remote I/O architecture dramatically reduces cable length per signal, lowering noise susceptibility. However, engineers must still follow best practices. Use Belden 8760 or equivalent shielded twisted pair for analog signals. Connect shield drains only at the remote I/O module end to prevent ground loops. For digital inputs, Allen-Bradley modules offer configurable input filters ranging from 0.5 ms to 32 ms. Set filters to at least twice the expected noise pulse width. For encoder inputs, use differential signaling (RS-422) rather than single-ended. The 1734-VHSC5 module provides 5 V and 24 V differential inputs with 1 MHz counting speed.

Power Budgeting and Heat Dissipation for Remote I/O Enclosures

Each remote I/O node consumes backplane power and external load power. The 1794 Flex I/O system, for instance, has a backplane current limit of 1.6 A at 5 V DC for the adapter and up to 10 attached modules. Calculate total backplane load by summing each module's 5 V DC draw from the technical data sheet. A 1794-IB16 digital input module draws 85 mA, while a 1794-OB16 output module draws 200 mA. For external loads, add current for each active output. A node with 16 outputs driving 100 mA solenoids draws 1.6 A total. Use Allen-Bradley 1606-XL series power supplies with 20% derating for ambient temperatures above 40°C. Enclosure heat dissipation is calculated as: Watts = (Voltage × Current) × (1 - Efficiency). A typical 24 V DC, 5 A supply operating at 85% efficiency dissipates 18 W of heat. Use this value to size enclosure cooling fans or heat exchangers.

Step-by-Step Technical Installation Procedure

Step 1: Perform Network Load Analysis

Calculate total I/O data volume and required RPI for each device. Fast digital signals (photoeyes, limit switches) can use 20-50 ms RPI. Analog process variables (pressure, temperature) typically require 50-100 ms. Servo or motion I/O needs 2-5 ms. Sum the bandwidth requirements using the formula: Bandwidth (kbps) = (Total bytes × 8 × 1000) / RPI (ms). Ensure total bandwidth across all nodes does not exceed 70% of network capacity (70 Mbps for 100 Mbps Ethernet).

Step 2: Select Adapter and Module Combinations

Match adapter type to application needs. 1734-AENTR supports 16 direct connections and -20°C to 70°C operating range. 1794-AENTR supports 32 connections and -25°C to 70°C. For outdoor or washdown areas, select conformal-coated modules (1734-IB8K, 1734-OB8K) with -40°C to 70°C ratings. For hazardous locations (Class I Division 2), use 1797 series with intrinsic safety barriers integrated.

Step 3: Install and Terminate Field Wiring

Strip insulation to 6 mm for 1734 spring-clamp terminals. Insert a screwdriver into the release opening, push the wire fully, then remove the screwdriver. For 1794 cage-clamp terminals, strip to 8 mm and torque to 0.5-0.6 Nm. Use ferrule terminals for stranded wire to prevent strand breakage. Maintain separation: route AC power cables at least 12 inches away from DC I/O and communication cables. Cross power cables at 90-degree angles only.

Step 4: Configure IP Addressing and Network Topology

Assign static IP addresses using the adapter's rotary switches (1734-AENTR uses three switches for 001-254 range) or via BOOTP/DHCP server. Use a structured addressing scheme: 192.168.1.xxx for main PLC, 192.168.2.xxx for remote I/O zone 1, 192.168.3.xxx for zone 2. For star topology, connect each adapter to a managed switch with IGMP snooping enabled to prevent multicast flooding. For daisy-chain topology, use adapters with integrated two-port switches (1734-AENTR, 1794-AENTR). Maximum chain length is 50 nodes or 1,000 meters of cable.

Step 5: Program PLC Logic for Remote I/O

In Studio 5000, add each remote adapter as a module under the Ethernet bridge. Set the RPI value based on speed requirements. For discrete I/O, use 20 ms. For analog monitoring, use 50 ms. Create aliased tags for each I/O point using descriptive names like "Conveyor_Photoeye_01" rather than "Local:1:I.Data.0". This improves code readability. Use module-defined data types to access status bits like "ConnectionFaulted" and "RunMode". Program a heartbeat timer to verify communication: toggle a free output bit every second and monitor its state in the PLC.

Step 6: Validate System Timing and Determinism

Use Wireshark with EtherNet/IP dissector to capture network traffic. Measure actual RPI by calculating the time delta between consecutive CIP packets. Acceptable jitter is within ±20% of configured RPI. For motion applications, enable IEEE 1588 Precision Time Protocol on supported switches to synchronize clocks across all nodes to within 1 microsecond. Use the Module Properties > Connection tab in Studio 5000 to view actual packet loss statistics. Packet loss above 1% requires network redesign.

Step 7: Implement Diagnostics and Predictive Maintenance

Enable module fault reporting in the PLC program. Monitor the "CIPConnectionFaulted" bit for each adapter. Log fault occurrences with timestamps to identify intermittent issues. For analog modules (1756-IF8, 1734-IE8C), monitor the "Underrange" and "Overrange" status bits to detect sensor degradation before failure. Set up email alerts for critical I/O faults using the PLC's message instruction and SMTP client.

Advanced Technical Case Study: Automotive Welding Line Retrofit

A 120,000-square-foot automotive body shop in Michigan operated 248 welding robots and 1,400 sensors. The original ControlLogix system used 62,000 feet of multi-conductor cable. Signal noise from 400 kW spot welders caused 12-18 intermittent faults per shift. Engineers replaced home-run wiring with 24 Allen-Bradley 1794-AENTR Flex I/O nodes. Each node was placed within 30 feet of its associated robots. Local wiring length dropped to 28,000 feet. Signal faults reduced to zero after implementing differential encoder inputs and shielded twisted pair for analog signals. The PLC program was modified to use produced/consumed tags for high-speed interlocking between nodes, reducing I/O update time from 25 ms to 8 ms. Total project cost: $210,000. Annual savings from reduced downtime and maintenance: $205,000, achieving payback in 12.3 months.

Technical Case Study: Chemical Reactor Temperature Control

A Texas chemical plant had 48 temperature transmitters (4-20 mA) and 24 heater control valves spread across 300 feet of pipe rack. Traditional wiring required 18,000 feet of shielded twisted pair, costing $87,000 in cable alone. Voltage drop calculations showed 3.2 V loss at the farthest transmitter, exceeding the 2.5 V allowable for 24 V DC loops. Engineers deployed 1794-IE8 analog input modules and 1794-OE8 analog output modules with 1794-AENTR adapters. The remote I/O nodes were placed at 50-foot intervals. Loop power was supplied locally at each node using 24 V DC power supplies with remote sense terminals. Voltage drop was reduced to 0.3 V. The plant also implemented channel-to-channel isolation on analog inputs, eliminating ground loop errors that previously caused 5% measurement drift. The system achieved 0.1% accuracy across all 48 loops. Material savings: $72,000. Labor savings: $30,000. The modular design allowed adding 20 new sensors during expansion without any rewiring.

Technical Case Study: High-Speed Packaging Line with Motion Control

An Illinois beverage plant operated a filler-capper line running 1,200 bottles per minute. Twenty servo axes required 5 ms position update rates. Traditional wiring used 22,000 feet of encoder cable and 6,000 feet of I/O cable. Long cable lengths introduced 15 µs of propagation delay, causing following error on the servo axes. Engineers installed 1734-AENTR adapters with 1734-VHSC5 high-speed counter modules for encoder feedback. The adapters were placed within 10 feet of each servo drive. Encoder cable length dropped to 1,200 feet. Propagation delay was reduced to 0.8 µs. The PLC used produced/consumed tags over EtherNet/IP with 2 ms RPI, synchronized using IEEE 1588. Following error decreased from 0.5 mm to 0.05 mm. Reject rate fell from 1.2% to 0.3%, saving $340,000 annually in product loss.

Engineering Guidelines for System Sizing and Selection

Digital I/O Selection Criteria

For 24 V DC inputs, select 1734-IB8 (sinking) or 1734-IB8S (safety rated). Input impedance is 3.6 kΩ, requiring 6.7 mA minimum current from the sensor. Use 1734-IB8K for -40°C ambient environments. For 120 V AC inputs, use 1734-IA4 with 15 kΩ impedance. Output types: 1734-OB8 (source, 0.5 A per point), 1734-OW8 (relay, 2 A), or 1734-OX8 (triac, 1 A AC). For high inrush loads (solenoids, incandescent lamps), derate relay outputs by 50% or use interposing relays.

Analog I/O Selection and Calibration

Select 1734-IE8C for 4-20 mA inputs with 16-bit resolution (0.0015% of full scale). Input impedance is 100 Ω. For thermocouple inputs, use 1734-IT2I with cold junction compensation and 0.1°C accuracy. Calibrate analog inputs using the module's internal calibration routine in Studio 5000. For critical loops, enable "Fault Mode" to set outputs to a predefined safe state (0 mA, 4 mA, or hold last value) upon communication loss. Use the "Rolling Timestamp" feature to synchronize analog data acquisition across multiple nodes for process analysis.

Network Infrastructure Components

Use Stratix 5700 managed switches with IGMP snooping and port mirroring. Set IGMP querier on the switch closest to the PLC. For fiber runs exceeding 100 meters, use Stratix 5700 with SFP fiber modules (1783-SFP100LX for 2 km, 1783-SFP100EX for 40 km). Calculate cable length including patch cords: total distance = (main switch to node 1) + (node 1 to node 2) + ... . For daisy chains, sum all segment lengths must not exceed 1,000 meters for copper. Install ferrite cores (Fair-Rite 0431174181) on Ethernet cables near VFDs and welders to attenuate common-mode noise above 10 MHz.

Troubleshooting Guide for Common Remote I/O Issues

Intermittent Communication Faults

Check the adapter's "Port Status" LEDs. Flashing green indicates normal traffic. Solid amber indicates port disabled. Red indicates link loss. Use the "Ping" command from a laptop to test round-trip latency. Latency above 2 ms suggests network congestion. Capture traffic with Wireshark filtered for "cipsafety" or "cipio". Look for excessive ARP requests or broadcast storms. Enable "Port Security" on managed switches to limit unknown MAC addresses. For DeviceNet networks, check for unterminated ends (missing 121 Ω resistors) and verify baud rate matches all nodes.

Analog Signal Drift or Noise

Verify shield drain wire connects only at the remote I/O module end. Disconnect the sensor and install a 4-20 mA calibrator. Sweep the signal from 4 mA to 20 mA and record the PLC reading. If drift exceeds 0.1% of span, perform the module's internal calibration. Check for ground loops by measuring current between the module's analog common and earth ground. Current above 1 mA indicates a ground loop. Install a signal isolator (Allen-Bradley 931C) between the sensor and module. For thermocouple inputs, verify cold junction compensation is enabled and the module is not mounted near heat sources above 60°C.

Outputs Not Energizing

Measure voltage between the output terminal and common. For sourcing outputs (1734-OB8), voltage should be within 2 V of the supply voltage when active. If voltage is present but the load does not operate, check load resistance. Minimum load for 1734-OB8 is 300 Ω (80 mA at 24 V). For smaller loads, add a 1 kΩ bleeder resistor in parallel. Check the module's "Output Enable" jumper (present on some models) is installed. Verify the PLC program's output tag is not inhibited or forced to zero. Use the "Module Properties > Outputs" tab to manually energize the point for testing.

Industry Application Matrix

Engineering Best Practices Summary

Design remote I/O networks with a 30% spare capacity in both I/O channels and network bandwidth. This allows future expansion without re-engineering. Always use managed switches with diagnostic capabilities. Monitor switch port error counters weekly. Set up SNMP traps for critical events like port flaps or CRC errors. For new installations, specify 22 AWG shielded cable for all analog and high-speed digital signals. Create a master I/O database that includes module part numbers, firmware revisions, and commissioning dates. Perform an annual network audit using Studio 5000's "Module Health" report to identify nodes with high packet loss or connection retries. Following these practices will achieve 99.99% remote I/O availability over a 10-year lifespan.

Frequently Asked Questions from Field Engineers

How do I calculate the exact RPI for a mixed I/O network?

Use the formula: RPI = (Total I/O data in bytes × 8 × 2) / (Available Bandwidth × 0.7). For example, with 500 bytes of I/O data and 100 Mbps Ethernet (100,000 kbps available, 70,000 kbps usable), the minimum RPI is (500 × 8 × 2) / 70,000 = 0.114 ms. However, PLC scan time and adapter processing limits apply. The practical minimum RPI for 1734-AENTR is 2 ms. For 1794-AENTR, the minimum is 5 ms. Start with 10 ms and reduce only if needed.

What is the maximum number of remote I/O nodes on a single EtherNet/IP network?

The theoretical limit is 255 nodes per IP subnet. Practically, performance degrades beyond 100 nodes due to multicast traffic and switch buffer sizes. Allen-Bradley recommends no more than 75 nodes on a single PLC Ethernet port. For larger systems, use multiple PLC network interfaces or Layer 3 routing to segment traffic. Each ControlLogix 1756-EN2TR supports up to 128 direct connections. A 1756-L83E CPU with dual EN2TR modules supports up to 256 remote nodes.

How do I safely replace a failed remote I/O module without stopping production?

Allen-Bradley remote I/O modules support "plug-and-play" replacement for identical modules. First, obtain a replacement module with the exact same catalog number and revision level. Remove power from the specific I/O bank (not the entire node). Extract the failed module. Insert the new module. Restore power. The adapter will automatically detect the new module and restore configuration within 2 seconds. The PLC will log a "Module Inserted" event but will not fault. For analog modules, perform a field calibration after replacement using a 4-20 mA calibrator. This procedure works for 1734, 1794, and 1756 families. Always verify the replacement module's firmware matches using ControlFlash software.

What is the difference between exclusive owner and listen-only connections?

An exclusive owner connection gives the PLC write access to output modules. Only one PLC can own an output module. Listen-only connections allow additional PLCs or HMIs to read input data and monitor output states without writing. Use listen-only connections for redundant PLC systems or remote HMI panels. To configure a listen-only connection, uncheck "Exclusive Owner" in the Module Properties > Connection tab. Listen-only connections consume less network bandwidth because they do not require output data transmission.

Return on Investment Calculation Template

Use this formula to estimate savings for your facility: Total Wiring Savings = (HomeRunFeet × $3.50) + (LaborHours × $65). HomeRunFeet = (Number of I/O points × Average distance to PLC in feet × 2). LaborHours = (HomeRunFeet / 150 feet per hour). For a 1,000 I/O point system with 150 foot average distance: HomeRunFeet = 1,000 × 150 × 2 = 300,000 feet. Material savings = 300,000 × $3.50 = $1,050,000. Labor hours = 300,000 / 150 = 2,000 hours. Labor savings = 2,000 × $65 = $130,000. Total wiring savings = $1,180,000. Remote I/O hardware cost for 30 nodes = $45,000. Engineering and programming = $80,000. Net savings = $1,055,000. Payback period = 1.4 months. This calculation assumes a greenfield installation. For retrofits, subtract salvage value of existing wiring and add removal labor.
