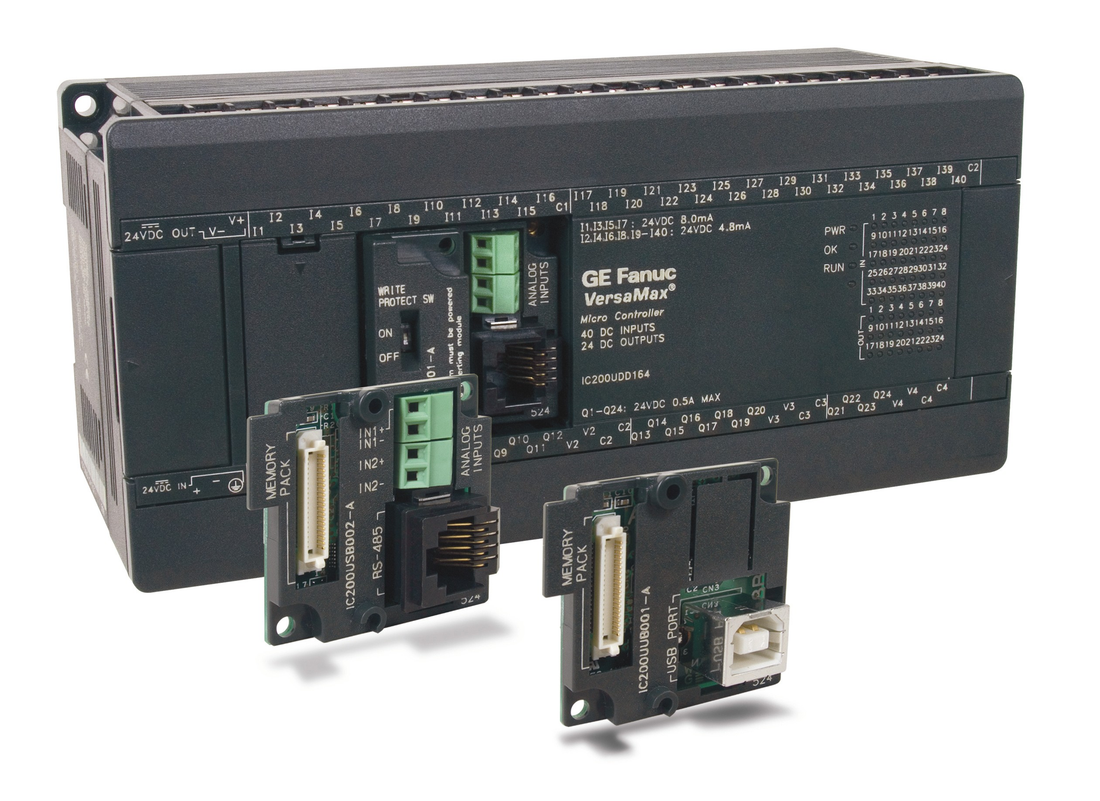

How VersaMax Analog Expansion Units Enhance Precision in Mixed‑Signal Control
In modern industrial automation, the ability to accurately acquire and condition analog signals—whether from temperature sensors, pressure transmitters, or flow meters—directly impacts product quality and energy efficiency. GE Fanuc’s VersaMax Analog Expansion Units provide a modular, high‑resolution pathway to expand PLC and PAC I/O without replacing existing hardware. This article explores their technical specifications, real‑world performance data, and integration best practices drawn from field experience.
Modular Architecture and Signal Flexibility
The VersaMax family includes analog input, output, and combination modules that snap onto a common backplane. Each unit supports 8 to 16 channels, configurable per channel for voltage (±10 V, 0–5 V), current (0–20 mA, 4–20 mA), or direct thermocouple/RTD inputs. Resolution ranges from 12 to 16 bits, depending on the module type, ensuring that small process variations—such as a 0.1 °C temperature drift—are captured reliably. The modules automatically linearize cold‑junction compensated thermocouple signals, offloading this task from the CPU.
One key advantage is the ability to mix signal types within the same rack. For example, a single VersaMax station can handle 4 mA loop‑powered pressure transmitters, 0–10 V speed references, and Type‑K thermocouples simultaneously. This eliminates the need for separate signal conditioners and reduces cabinet wiring by an estimated 25% compared to discrete I/O.
Rugged Design for Harsh Environments
Certified to CE and UL 508, VersaMax analog modules operate reliably from -20 °C to 60 °C with 5 g vibration resistance. Their isolated channel architecture prevents ground loops—a common issue in large plants where sensors are grounded at multiple points. In a Midwestern chemical blending facility, twelve VersaMax analog input modules have monitored reactor temperatures and pressures for over seven years with zero channel failures, despite ambient temperatures frequently reaching 50 °C near the reactors. The plant credits the modules’ conformal‑coated circuit boards and robust terminal blocks for this longevity.
Performance Metrics That Drive Efficiency
Field data from a Texas oil refinery demonstrates the impact of high‑resolution analog I/O. After replacing ageing 10‑bit multiplexers with VersaMax 16‑bit input modules on a crude distillation unit, the control system detected fractionator tray temperature variations of just 0.3 °C. This allowed operators to trim reflux rates more precisely, resulting in a 1.8% increase in valuable distillate yield—worth approximately $1.2 million annually. The modules’ update rate of 10 ms per channel also enabled tighter cascade control on the overhead condenser.
In another case, a German automotive parts manufacturer used VersaMax analog output modules (IC200ALG330) to command servo‑pneumatic positioning cylinders on an assembly line. The 16‑bit resolution (0–10 V) provided positioning repeatability within ±0.05 mm, crucial for press‑fit operations. The plant reduced scrap rates by 22% and eliminated a dedicated motion controller, simplifying programming and sparing.
Application Spotlight: Water Treatment pH Control
A municipal water treatment plant in the southeastern US upgraded its lime dosing system using VersaMax analog expansion. Previously, pH control fluctuated between 6.8 and 7.4 due to slow‑responding sensors and analog cards with only 8‑bit resolution. After installing a 16‑channel analog input module (IC200ALG326) for pH probes and a 4‑channel analog output module (IC200ALG331) for dosing pump speed references, the plant achieved pH stability within ±0.1 units. Chemical consumption dropped by 18%, saving $45,000 per year, while effluent compliance improved to 100%.
Operators particularly value the modules’ built‑in diagnostic LEDs, which indicate open‑circuit or out‑of‑range conditions immediately. This reduces troubleshooting time from hours to minutes.
Installation and Configuration Best Practices
To maximize the reliability of VersaMax analog units, follow these steps during deployment:
- Power budgeting: Calculate the 5 VDC backplane current draw for each module (typically 150–300 mA). Ensure the power supply (e.g., IC200PWR102) has at least 20% headroom.
- Field wiring: Use shielded twisted‑pair for all analog signals. Terminate the shield at the module end only. For 4–20 mA loops, keep loop resistance below 500 Ω to maintain compliance voltage.
- Configuration software: In Proficy Machine Edition, assign each channel a meaningful name (e.g., “Reactor_Temp_Zone3”) and set input filtering (e.g., 10 Hz for slow process signals, 100 Hz for fast transients). Enable open‑wire detection for critical loops.
- Grounding: Connect the rack’s ground lug directly to the panel ground bus using 6 AWG wire. Avoid sharing ground paths with high‑power drives.
- Module replacement: VersaMax supports hot‑swapping in many configurations. Always verify that the replacement module’s firmware version matches the original to avoid communication mismatches.
Author’s Technical Perspective: Why VersaMax Remains Relevant
Having overseen numerous PLC upgrade projects across food, chemical, and automotive sectors, I view VersaMax analog expansion as a pragmatic choice for plants that already use GE Fanuc controllers. The key strength is not raw performance—though 16‑bit resolution is sufficient for 95% of applications—but the ecosystem’s stability and backward compatibility. I have successfully integrated 20‑year‑old VersaMax analog modules with a new RX3i PAC using the same backplane; no other major brand offers this level of investment protection.
One often‑underutilised feature is the ability to perform math functions directly on the analog module (e.g., scaling, square‑root extraction for flow) using the module’s embedded firmware. Offloading these tasks frees up CPU scan time and simplifies ladder logic. For new installations, I recommend the IC200ALG326 (16‑channel analog input) and IC200ALG331 (4‑channel analog output) as the sweet spot between channel density and cost. Looking ahead, I expect GE Vernova to introduce modules with embedded IIoT edge capabilities, such as real‑time FFT analysis directly on vibration inputs.
Real‑World Solution: Packaging Line Tension Control
A corrugated cardboard producer in Italy faced inconsistent glue application due to poor tension control on the web. They added two IC200ALG230 analog input modules to an existing VersaMax PLC, connected to four tension‑load cells and two ultrasonic edge sensors. The 16‑bit resolution allowed the PLC to detect tension variations of 0.5 N/m and adjust the dancer position via a 4–20 mA output to a servo valve. Within three months, glue waste fell by 14% and line speed increased by 8%, paying back the investment in under six months. The plant now plans to standardize on VersaMax analog for all future upgrades.
Frequently Asked Questions (FAQ)
- Can VersaMax analog modules be used with a third‑party PLC? Yes, through the VersaMax Remote I/O interface (IC200ERM002) which communicates via Modbus TCP or PROFINET, allowing connection to Rockwell, Siemens, or other controllers.
