BMEH584040C

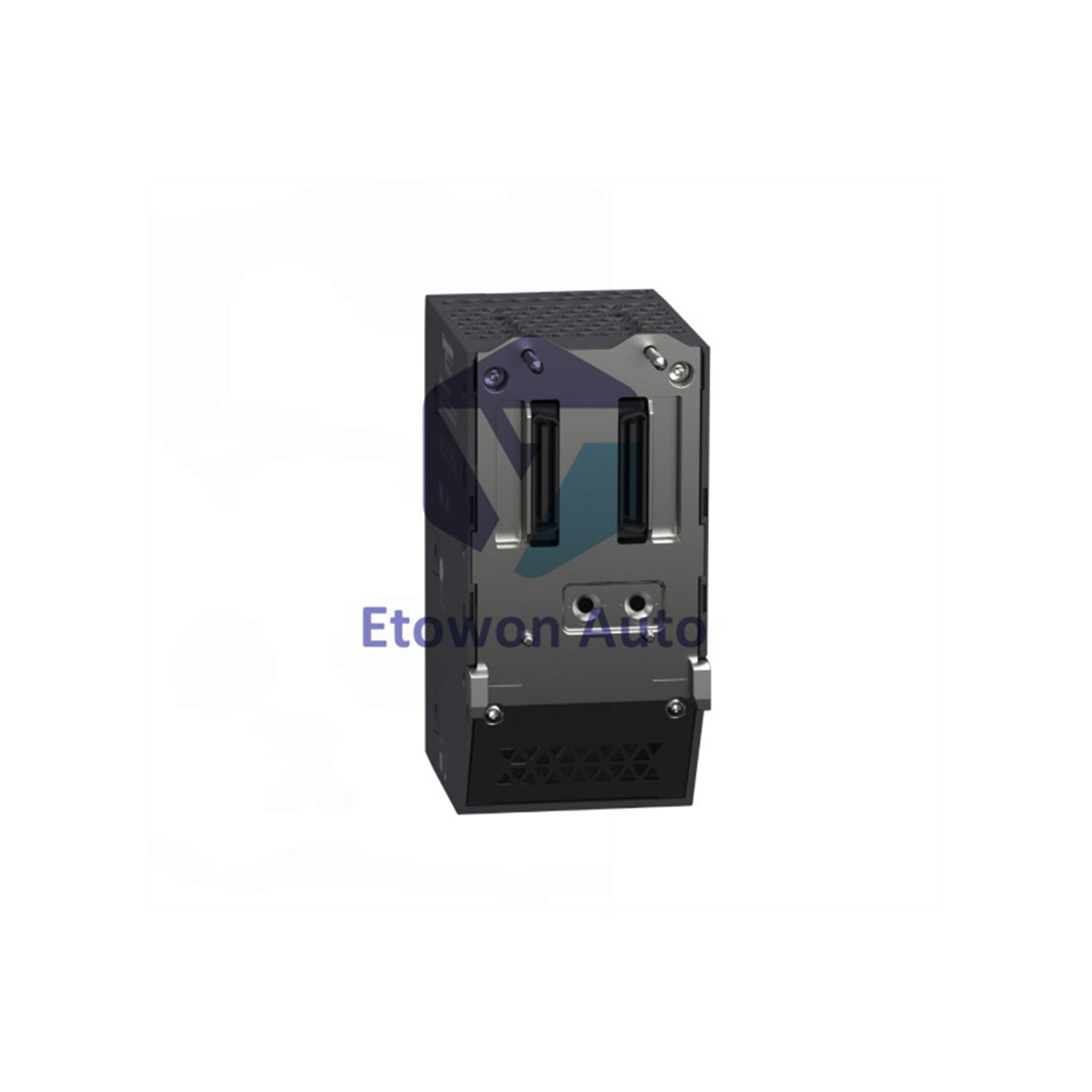

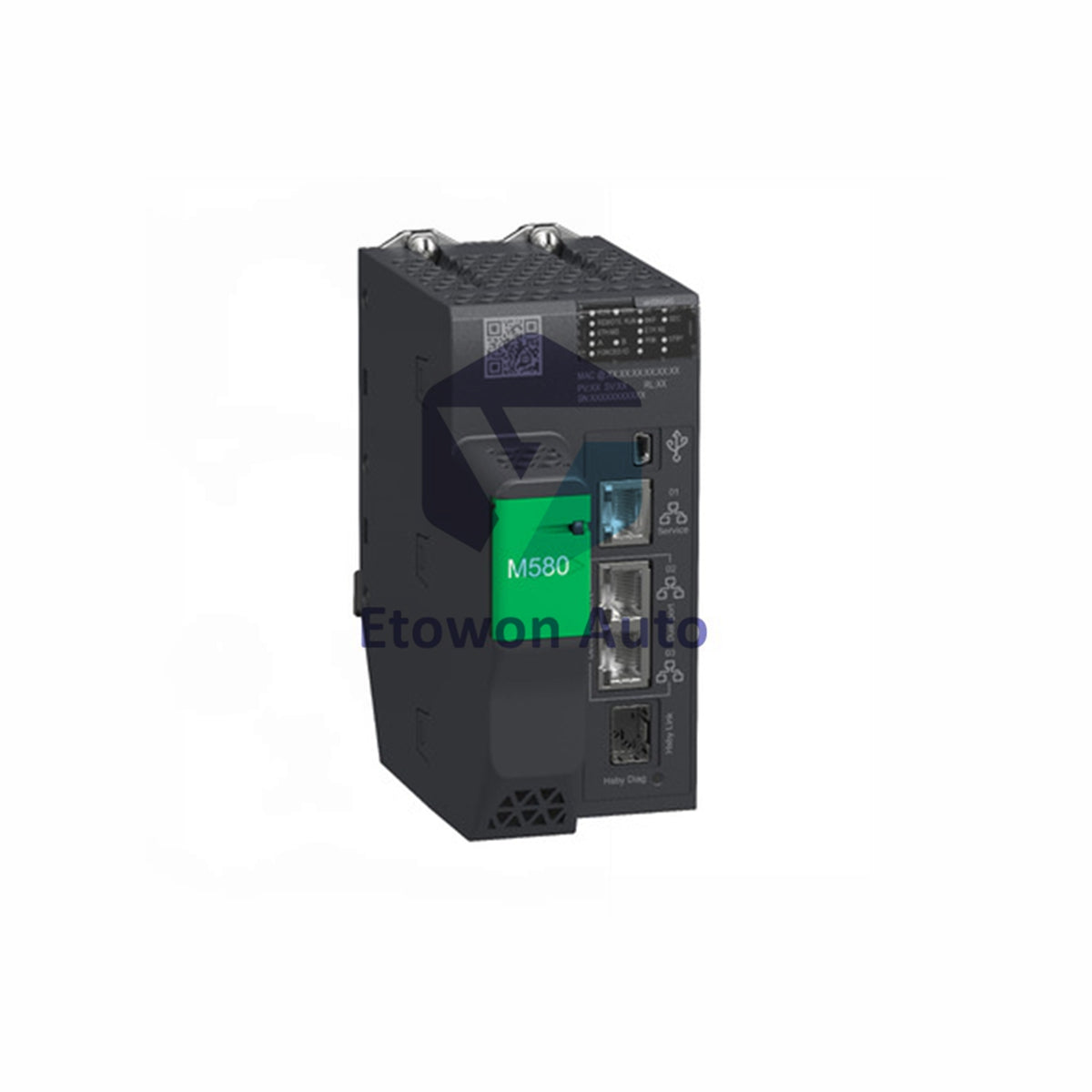

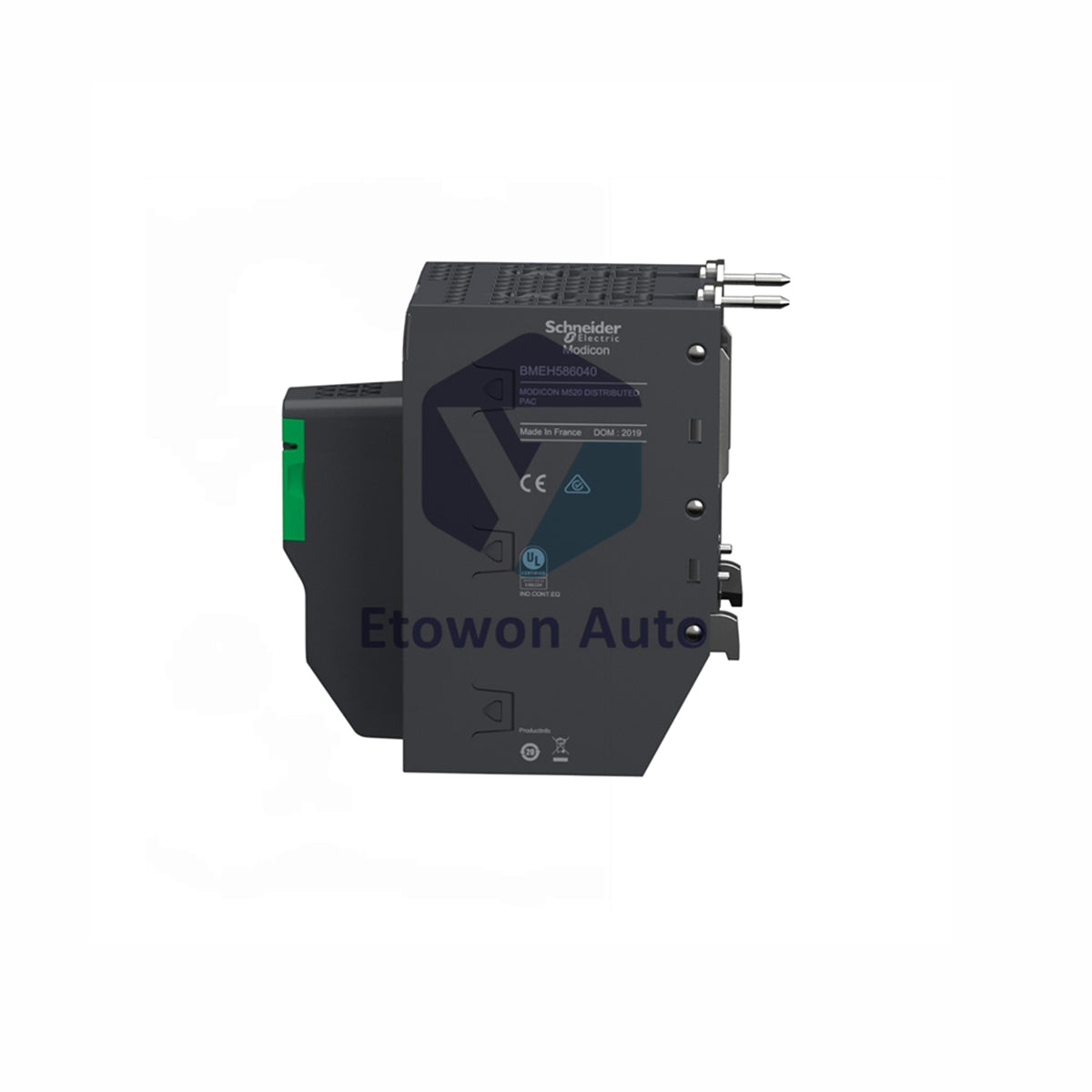

Schneider BMEH584040C Modicon M580 Redundant Processor Module

Omborda (21 dona), jo'natishga tayyor

  • Manufacturer: Schneider

  • Product No.: BMEH584040C

  • Product Type: Processor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 849g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Schneider Electric BMEH584040C Modicon M580 Redundant Processor Module

Product Overview

Schneider Electric BMEH584040C is a redundant processor module for the Modicon M580 platform. Features conformal coating for harsh environments. 16 MB program memory and 2048 kB data RAM with 4 GB expandable flash storage. 30 Kinst/ms Boolean plus fixed arithmetic performance. Operates at 24 V DC with 360 mA consumption. Module weight 0.849 kg.

Technical Specifications

Parameter Value
Brand Schneider Electric
Part Number BMEH584040C
Range Modicon M580
Product Type Redundant Processor Module
Impregnation Material Conformal coated
Number of Racks 1
Program Memory 16 MB
Data Memory 2048 kB
System Memory 10 kB
Expandable Flash 4 GB data storage
Instruction Performance 30 Kinst/ms (65% Boolean + 35% fixed arithmetic), 40 Kinst/ms (100% Boolean)
Integrated Connections 1 Ethernet TCP/IP service, 2 Ethernet TCP/IP device network, USB mini B, 1 Ethernet HSBY
Remote I O Stations 16 (2 X80 and Quantum drops)
Distributed Equipment 64
Communication Modules 8 AS-Interface, 16 Ethernet
Current Consumption 360 mA at 24 V DC
MTBF 650,000 hours
Operating Temperature -25°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% at 55°C without condensation
Protection IP20
Vibration Resistance 3 gn
Shock Resistance 30 gn
Weight 0.849 kg

Key Features

  • Redundant processor module for Modicon M580
  • Conformal coating for harsh environment protection
  • 16 MB program memory and 4 GB expandable flash
  • Hot standby Ethernet port with redundancy support
  • Supports 16 remote I O stations and 64 distributed equipment
  • ATEX zone 2/22 and IECEx zone 2/22 certified
  • MTBF 650,000 hours
  • Gas resistant class Gx ISA S71.04

FAQs

Q1: What is the program memory and instruction performance?
A1: 16 MB program memory. 30 Kinst/ms Boolean plus arithmetic, 40 Kinst/ms 100% Boolean.

Q2: What communication ports does BMEH584040C provide?
A2: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, USB mini B and 1 Ethernet HSBY port.

Q3: What is the module weight?
A3: 0.849 kg.
