DSTD132

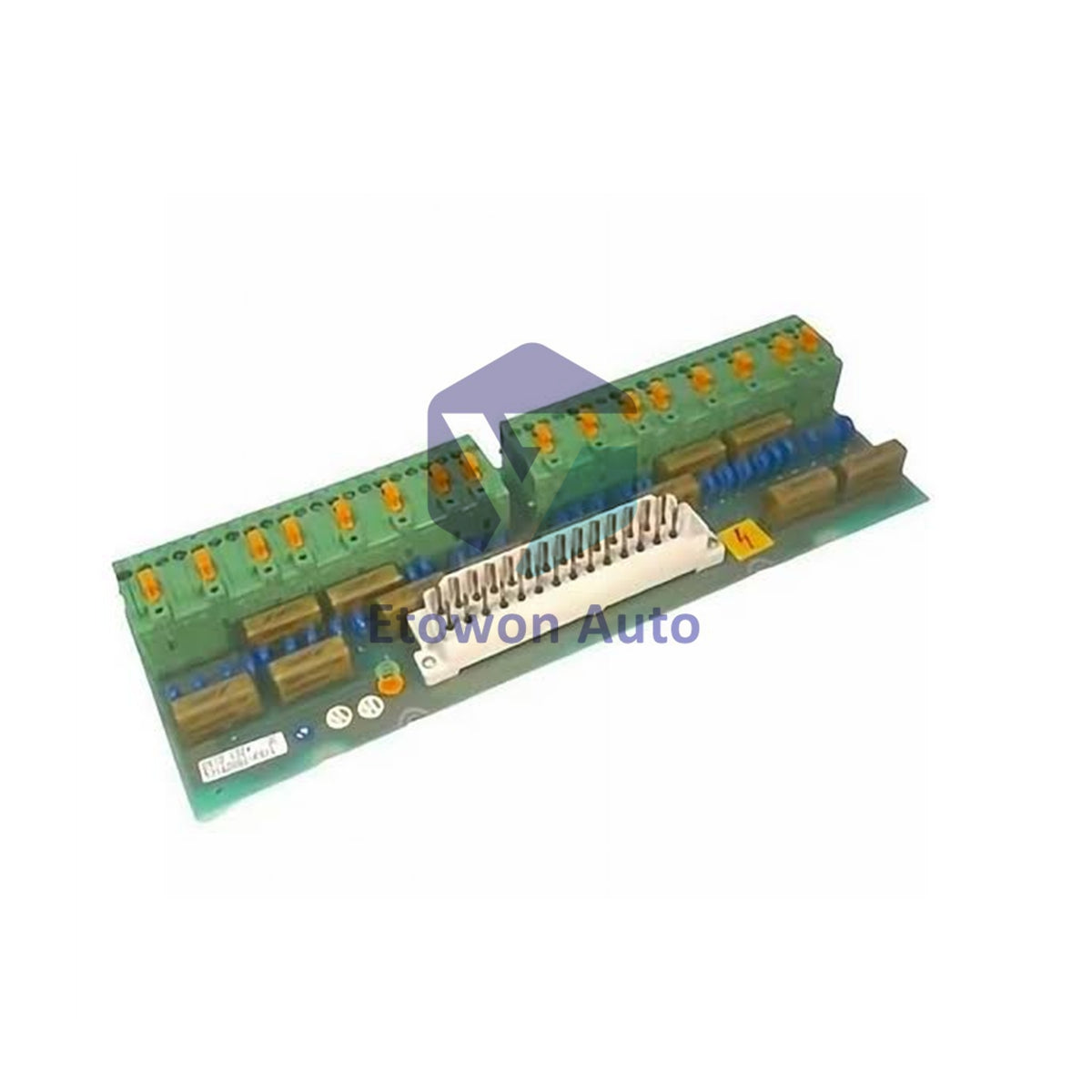

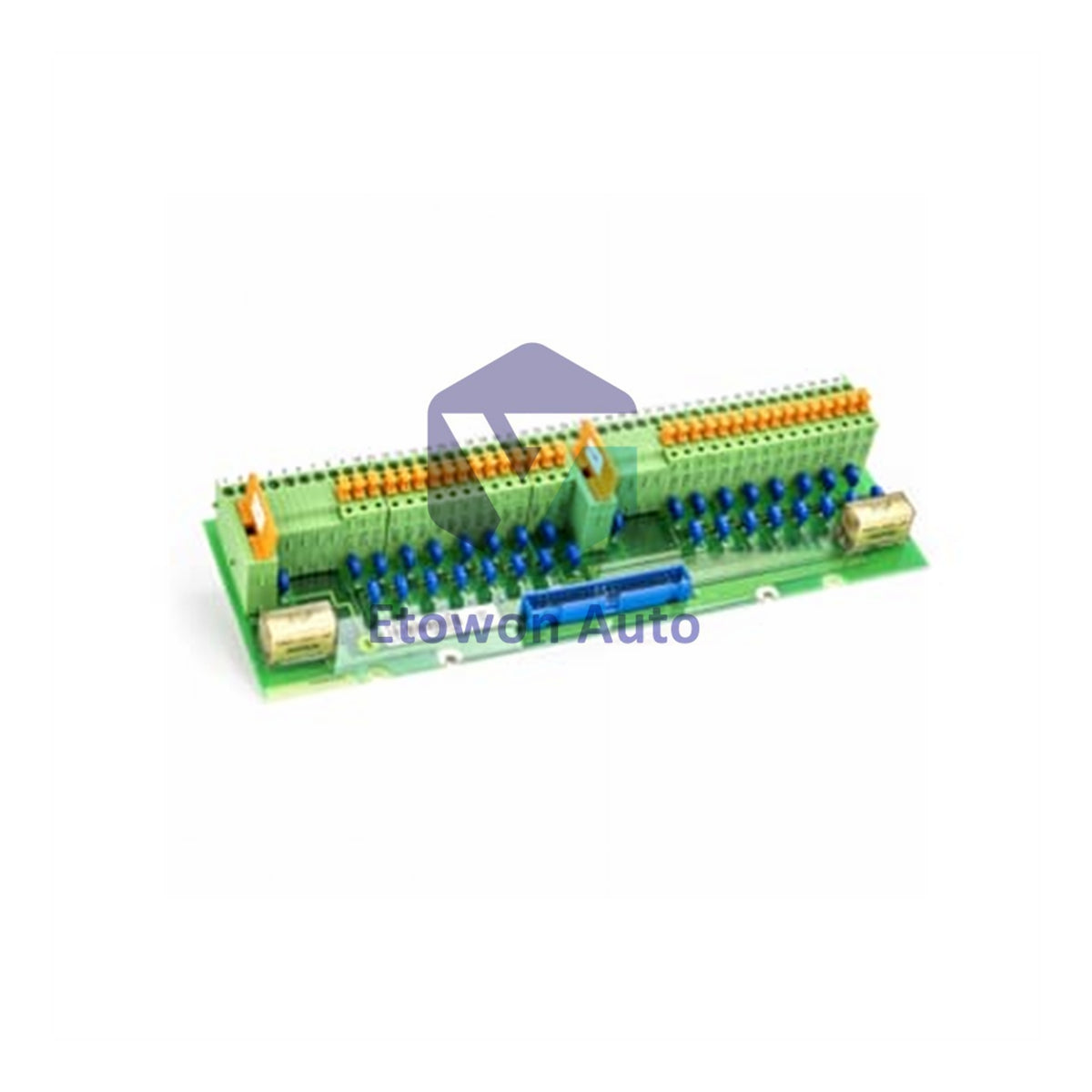

Original Stock ABB DSTD 132 Connection Unit 57160001-FX 16 Channel

Faqat 6 dona qoldi

  • Manufacturer: ABB

  • Product No.: DSTD132

  • Product Type: Connection Unit

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 410g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

ABB DSTD 132 Connection Unit

The ABB DSTD 132, also cataloged as the 57160001-FX Connection Unit, provides 16-channel field wiring termination at a maximum of 240 V within ABB Advant and Master control system platforms.

Brand and Model

Parameter Specification
Brand ABB
Model DSTD 132 (57160001-FX)
Type Connection Unit

Hardware Specifications

Parameter Specification
Catalog Description DSTD 132 Connection Unit
Channels 16 Channels, MAX 240 V
Compliance Exempt from RoHS (2011/65/EU)
Product Net Depth 324 mm
Product Net Height 38.7 mm
Product Net Width 81 mm
Product Net Weight 0.41 kg
Exchange Number EXC57160001-FX
Mounting Screw Kit 3BSE021202R1

Channel Termination and Mounting Interface

Unit weight is 0.41 kg with dimensions of 324 mm depth, 38.7 mm height, and 81 mm width. The unit terminates 16 field wiring channels at a maximum of 240 V. Mounting uses screw kit 3BSE021202R1. The exchange number EXC57160001-FX identifies the replacement reference. The product is exempt from RoHS directive 2011/65/EU. Exact terminal type, conductor cross-section, and isolation rating are not specified in the source data.

Frequently Asked Questions

Q: How many channels does the ABB DSTD 132 terminate?
A: 16 channels at a maximum of 240 V.

Q: What is the weight and physical size of the DSTD 132?
A: 0.41 kg, with dimensions of 324 mm depth, 38.7 mm height, and 81 mm width.

Q: Which mounting screw kit is used with this connection unit?
A: Mounting screw kit 3BSE021202R1.

Field Installation Guidelines

Mount the connection unit on the cabinet backplate using screw kit 3BSE021202R1. Verify field wiring voltage does not exceed 240 V per channel before termination. Route field cables away from high-current power conductors and drive output cables. Verify the exchange number EXC57160001-FX against the replacement reference before substitution. Confirm channel assignments against the system wiring diagram before energizing field circuits. Secure all terminal connections to prevent loosening under panel vibration.
