IC697PWR713

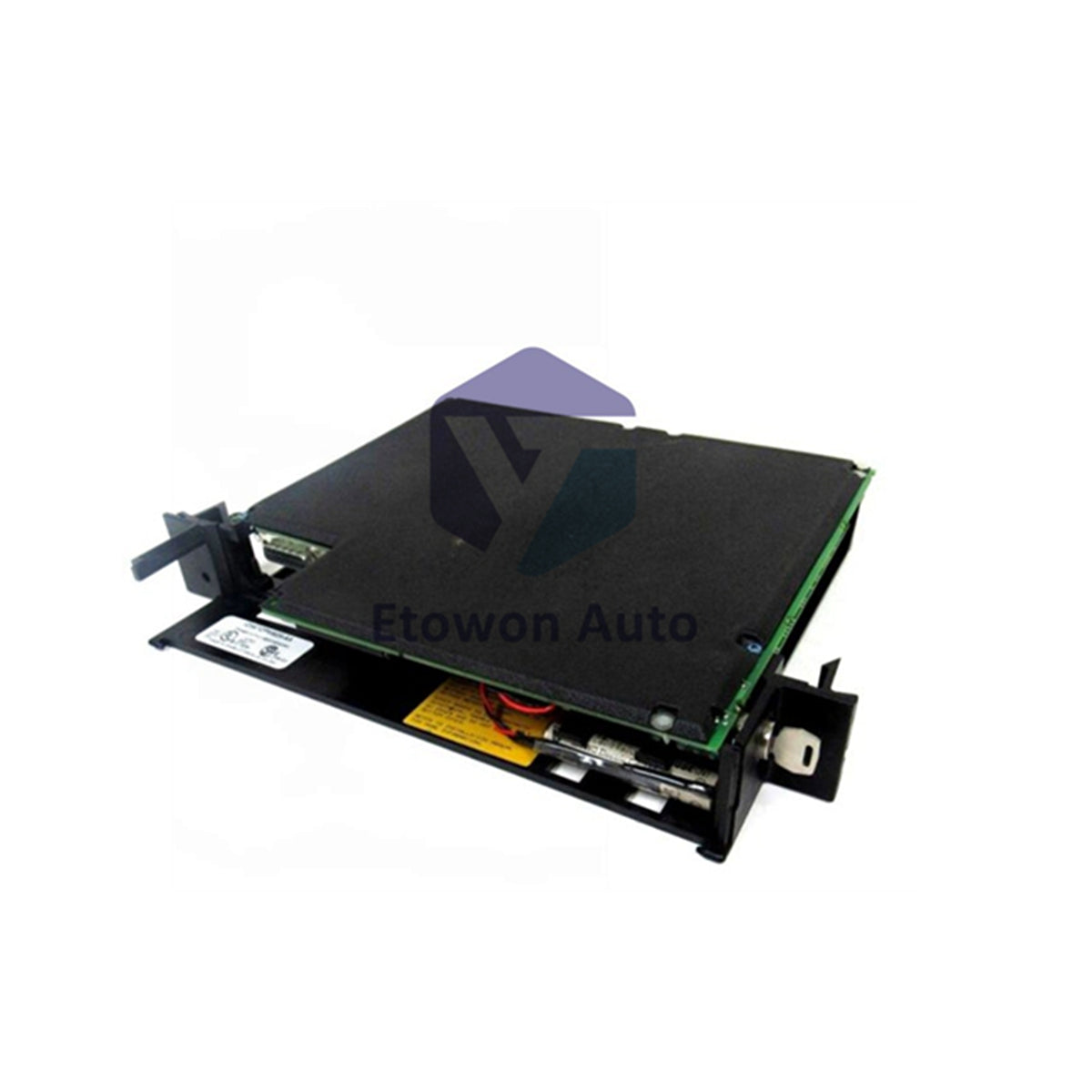

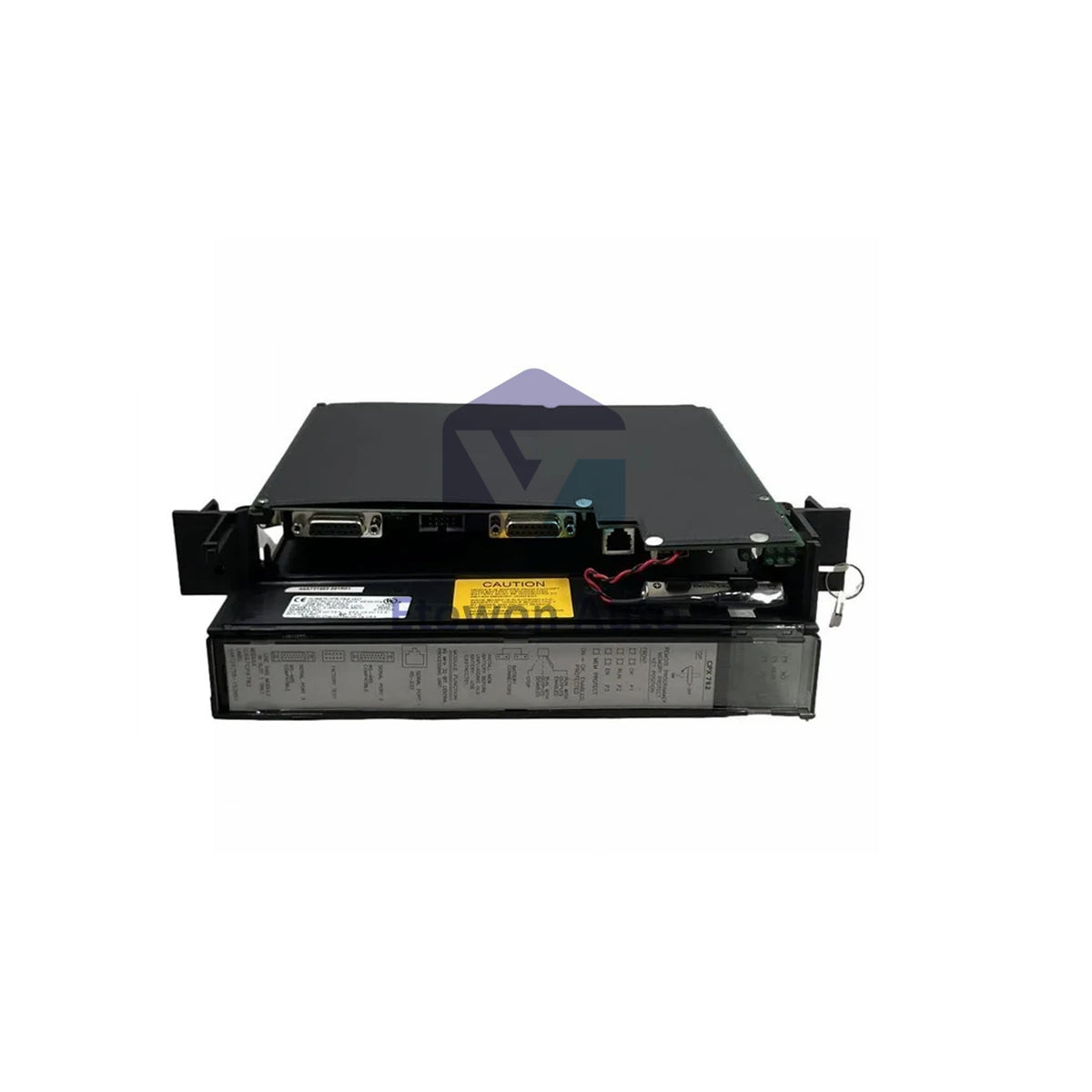

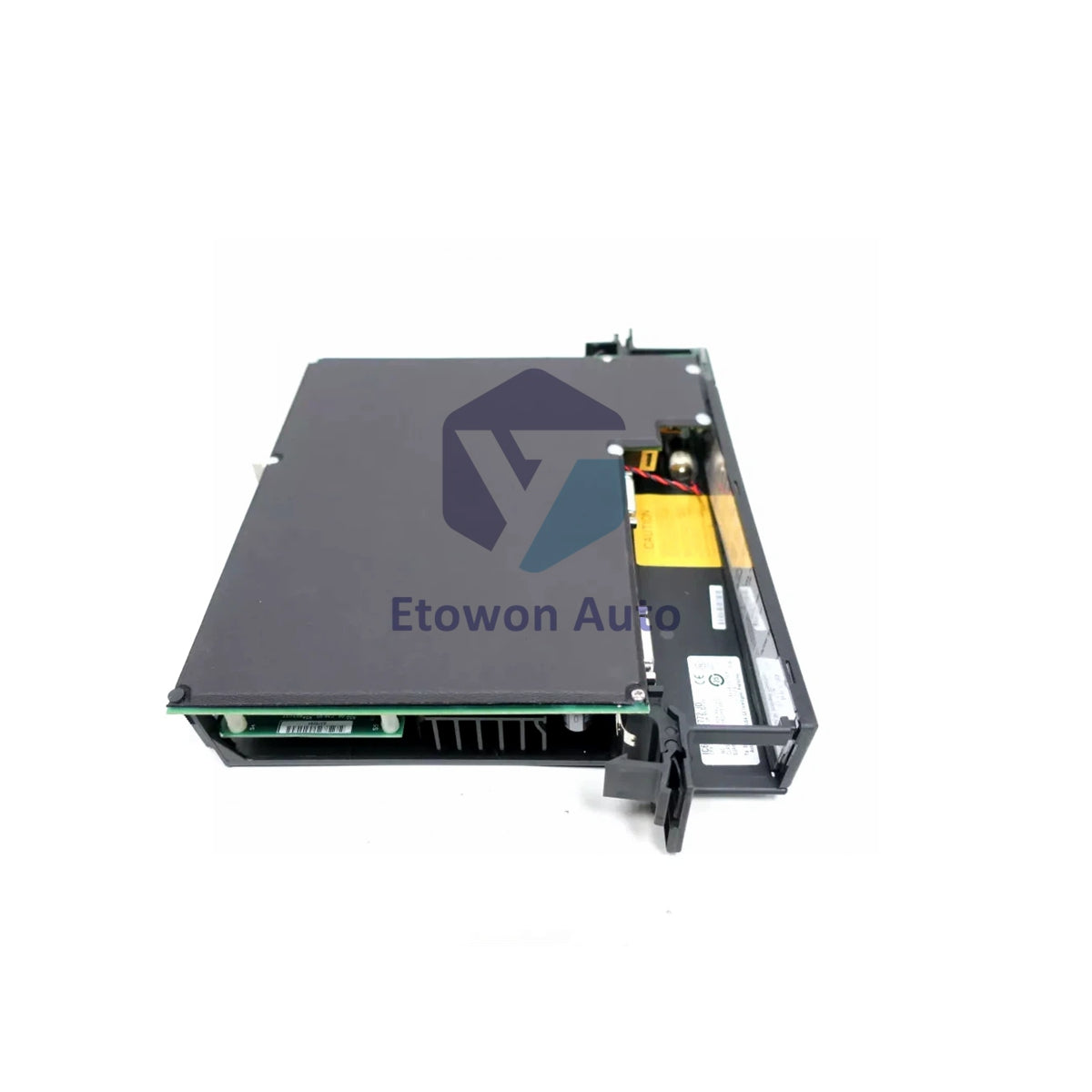

IC697PWR713 GE Fanuc 120/240VAC 100W Power Supply Unit

Faqat 10 dona qoldi

  • Manufacturer: General Electric

  • Product No.: IC697PWR713

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1810g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Product Overview

The GE Fanuc IC697PWR713 is a high-performance, 100-Watt rack-mounted power supply module engineered for the Series 90-70 programmable logic controller (PLC) system. Weighing approximately 1.81 kg (4.0 lbs), this sturdy module seamlessly converts wide-range AC or DC input voltages into regulated DC power outputs to drive critical system backplanes and connected I/O modules. Featuring a robust industrial design, it delivers stable voltage regulation and built-in power factor correction to protect automated assembly lines and heavy machinery control architectures from fluctuating power line conditions.

Core Technical Advantages

  • Flexible Dual Input Architecture: Adapts automatically to wide-ranging inputs, accepting either universal AC power line grids or high-voltage industrial DC battery banks on a single footprint.
  • High-Current Triple DC Outputs: Delivers clean, multi-rail DC distribution across the system backplane to support intensive processing applications and high-density module layouts simultaneously.
  • Active Power Quality Control: Optimizes line-side energy efficiency with an integrated power factor correction system, minimizing harmonic distortion inside busy electrical cabinets.

Technical Specifications

Parameter Specification Details
Brand / Model Part No. GE Fanuc / IC697PWR713
Gross Weight 1.81 kg (4.0 lbs)
Nominal Rating Inputs 120 to 240 VAC or 125 VDC
AC Voltage Operational Window 90 to 264 VAC (Operational frequency: 47 to 63 Hz)
DC Voltage Operational Window 100 to 150 VDC
Input Power Load 135 W Typical / 160 W Maximum
Regulated DC Outputs 5 VDC at 20 A / 12 VDC at 2 A / –12 VDC at 1 A
Total Output Wattage 100 Watts maximum combined output load
Efficiency Factor Power Factor greater than 0.93
Operating Temperature 0 to 60 °C (32 to 140 °F)
Storage Conditions 1-year standard shelf life under approved warehouse environments

Installation & Engineering Guide

  • Racking Alignment: Slide the 1.81 kg hardware assembly firmly into its dedicated leftmost slot inside the Series 90-70 chassis. Secure all mounting screws completely to guarantee proper backplane connection and system grounding.
  • Electrical Isolation: Wire incoming power feeds directly to the heavy-duty terminal block using appropriate wire gauges. Verify your voltages stay tightly inside the 90 to 264 VAC or 100 to 150 VDC boundary line to prevent triggering internal overvoltage protection circuits.
  • Thermal Management: Keep surrounding air paths clear to maintain the environmental temperature within the 0 to 60 °C window. Allow natural convection currents to move freely through the housing vents to prevent internal thermal buildup during full 100 W operations.

Technical FAQs

Q1: What are the combined power load limitations of the three DC output rails?
A1: The module provides 5 VDC at 20 A, 12 VDC at 2 A, and –12 VDC at 1 A, provided the combined simultaneous load does not exceed the absolute 100 Watts maximum ceiling.

Q2: Can the IC697PWR713 handle voltage fluctuations on the factory floor?
A2: Yes. The input tolerates wide source shifts, executing continuous system regulation across an AC input range of 90 to 264 VAC and a DC input range of 100 to 150 VDC.

Q3: How long can this module be held in warehouse stock prior to site commissioning?
A3: This power supply carries a rated shelf life of 1 year when maintained under standard, clean storage conditions prior to initial field mounting and hardware activation.
