IC200CHS015

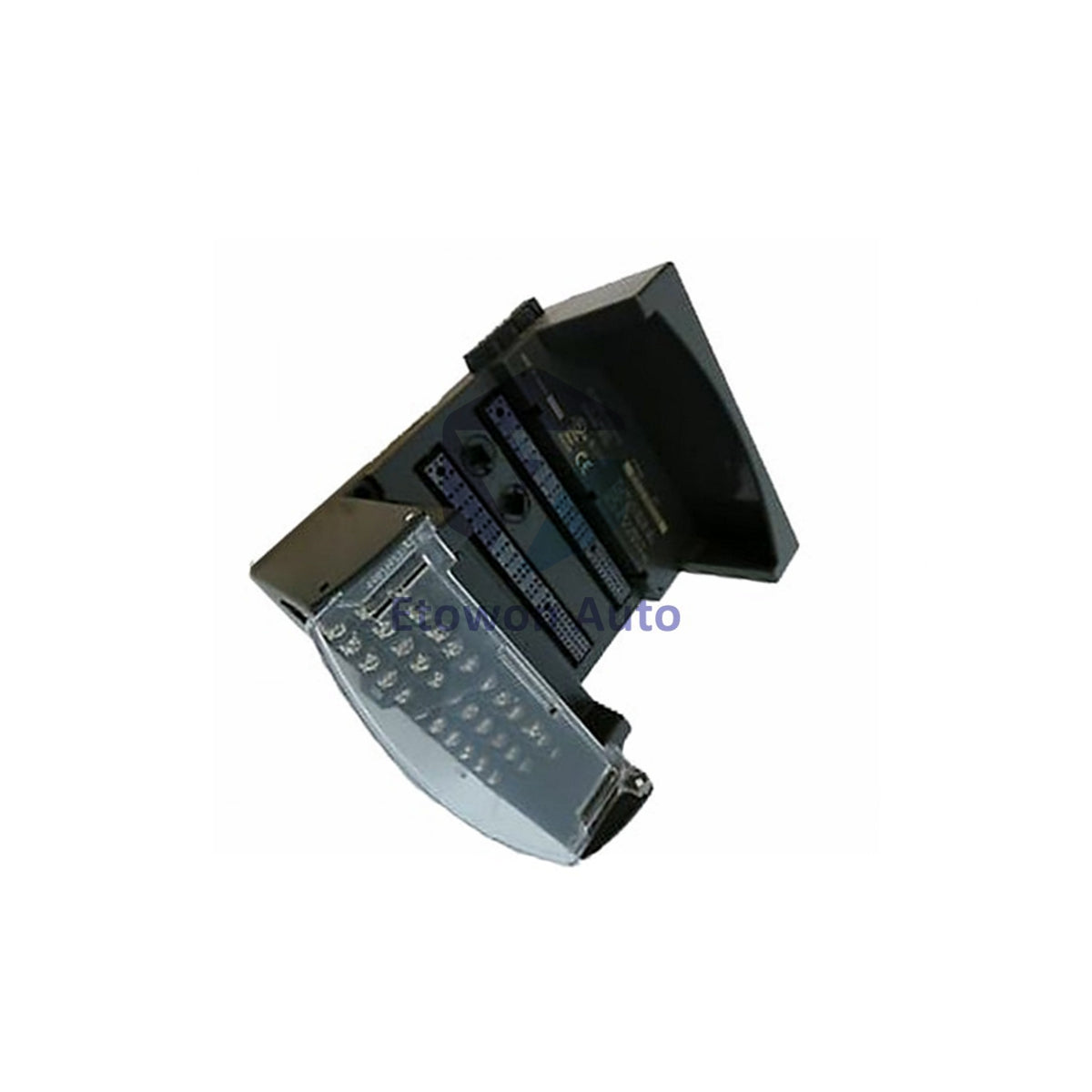

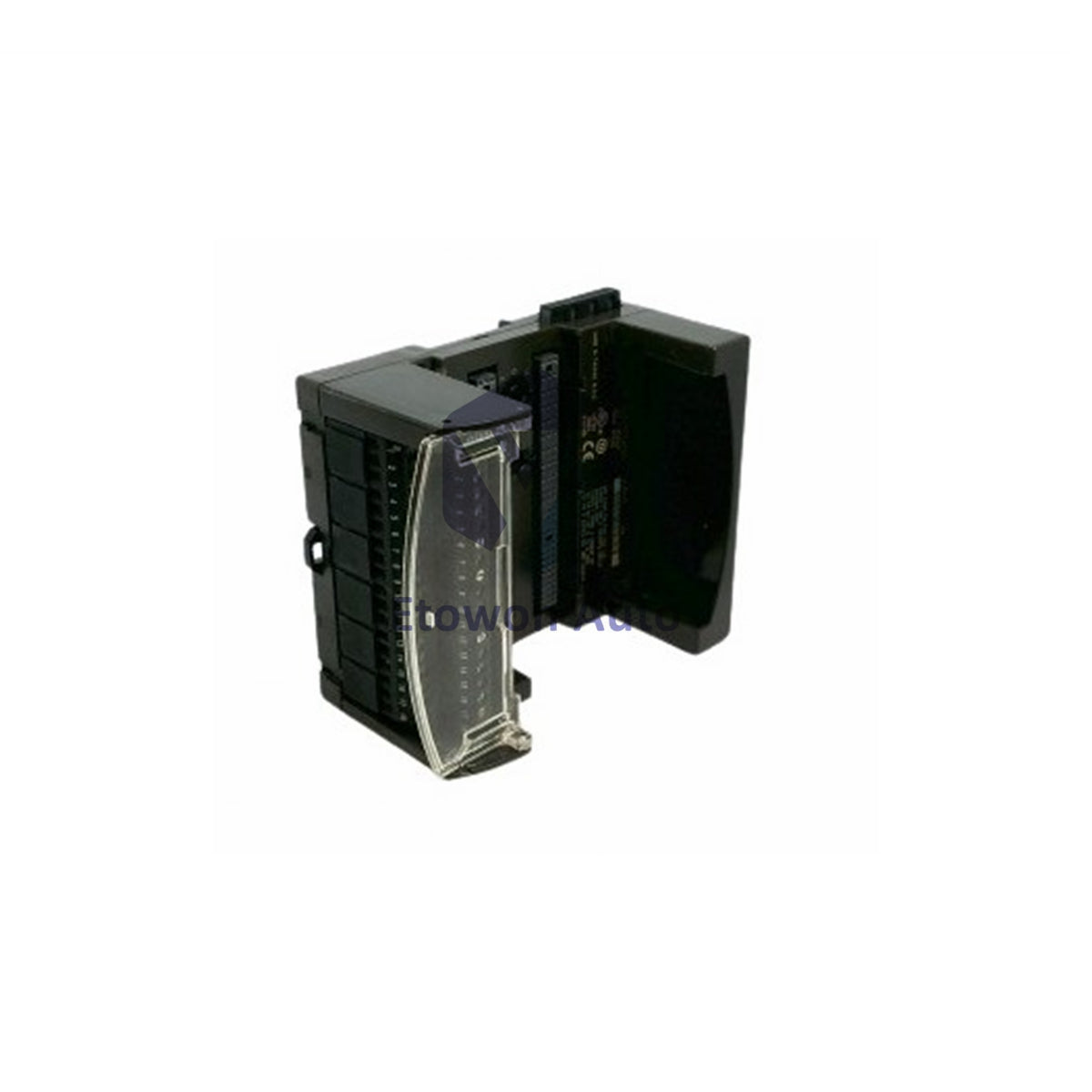

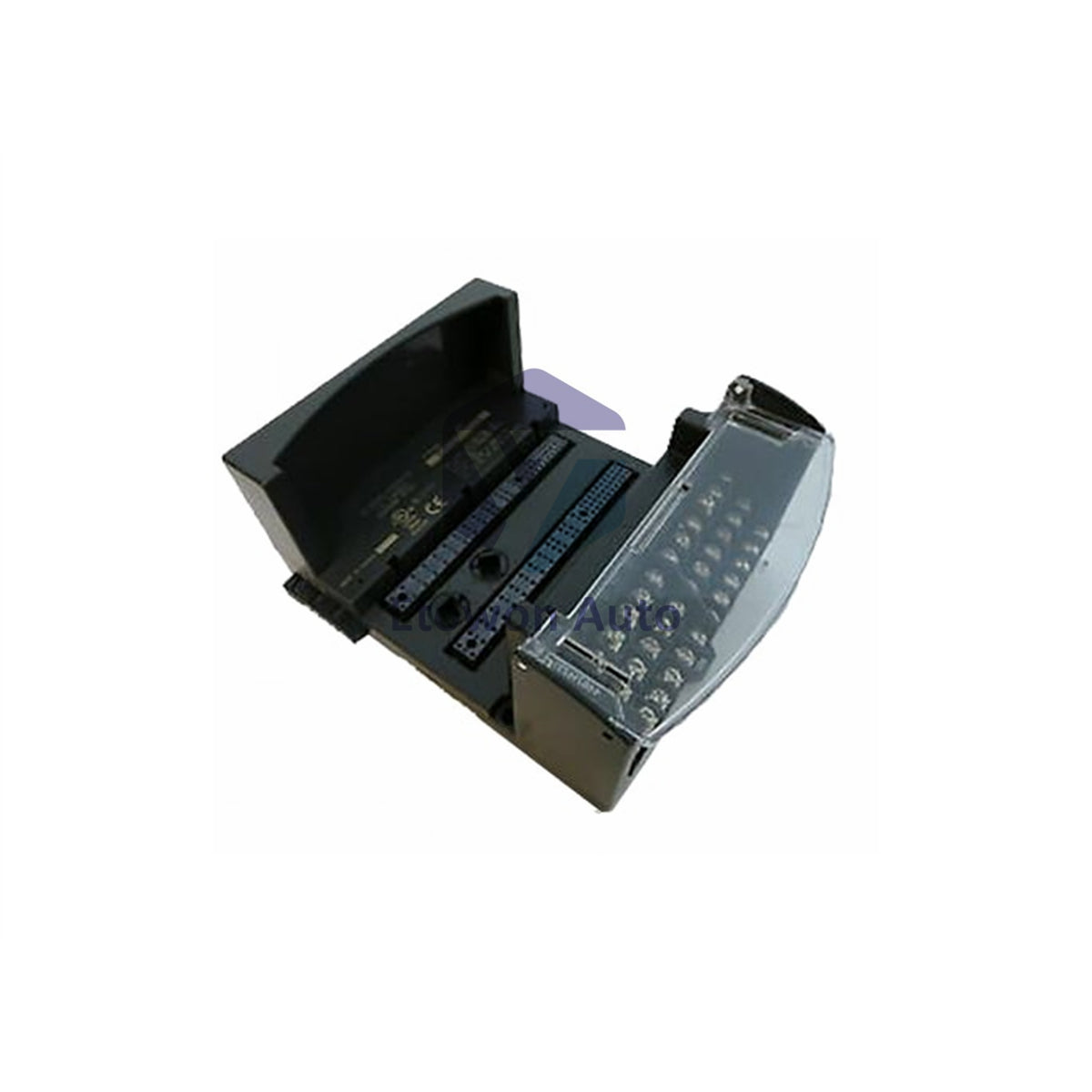

GE Fanuc IC200CHS015 Versamax Spring Terminal Interface 36 Clamps

Omborda (13 dona), jo'natishga tayyor

  • Manufacturer: General Electric

  • Product No.: IC200CHS015

  • Product Type: Terminal Interface

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

GE Fanuc IC200CHS015 Versamax Spring Terminal Interface

GE Fanuc IC200CHS015 is a spring clamp terminal block for Versamax I/O systems. Features 36 spring-style clamps for fast, tool-free wiring connections. Bridges field devices to Versamax I/O carriers with vibration-resistant design. Weight: 0.3 kg (0.66 lbs).

Technical Specifications

Parameter Specification
Manufacturer GE Fanuc
Model IC200CHS015
Product Type Spring Terminal Interface
Number of Terminals 36 spring-style clamps
Wire Gauge (Single) 22-14 AWG
Wire Gauge (Dual) 18 AWG maximum
Dimensions (W x H) 110.5 × 105.44 mm
Operating Temperature -40°C to +60°C
Vibration Rating 1G (57-150 Hz)
Weight 0.3 kg (0.66 lbs)

Key Features

  • 36 spring-style clamp terminals for fast tool-free wiring
  • Protective transparent hinged door for dust protection
  • Vibration-resistant design handles 1G at 57-150 Hz
  • Accepts solid and stranded copper wires
  • Foldable wiring diagram card included
  • Bridges field devices to Versamax I/O carriers

Installation Guidelines (Field Engineer Notes)

DIN Rail Mounting: Mount on grounded DIN rail. Secure with screws every 6 inches. Ensure rail is properly grounded to panel ground.

Clearance Requirements: Maintain 2 inches vertical and 1 inch horizontal clearance for proper cooling and access.

Wire Preparation: Strip wire 8-10mm. Insert wire into spring clamp until it stops. Pull gently to verify secure connection.

Wiring Check: Use the foldable wiring diagram card for terminal identification. Verify each connection with a pull test.

FAQs

Q1. What wire gauge does the IC200CHS015 accept?
A1. Single wire accepts 22-14 AWG. Dual wire accepts 18 AWG maximum. Use copper wire only.

Q2. Can I use solid and stranded wire in the same terminal?
A2. No. Do not mix solid and stranded wire in the same terminal. Both wires must be of the same type for reliable connection.

Q3. Is the terminal block compatible with all Versamax carriers?
A3. Yes. The IC200CHS015 is designed for all Versamax I/O carriers and interfaces directly with the carrier connector.
