BMEP582040

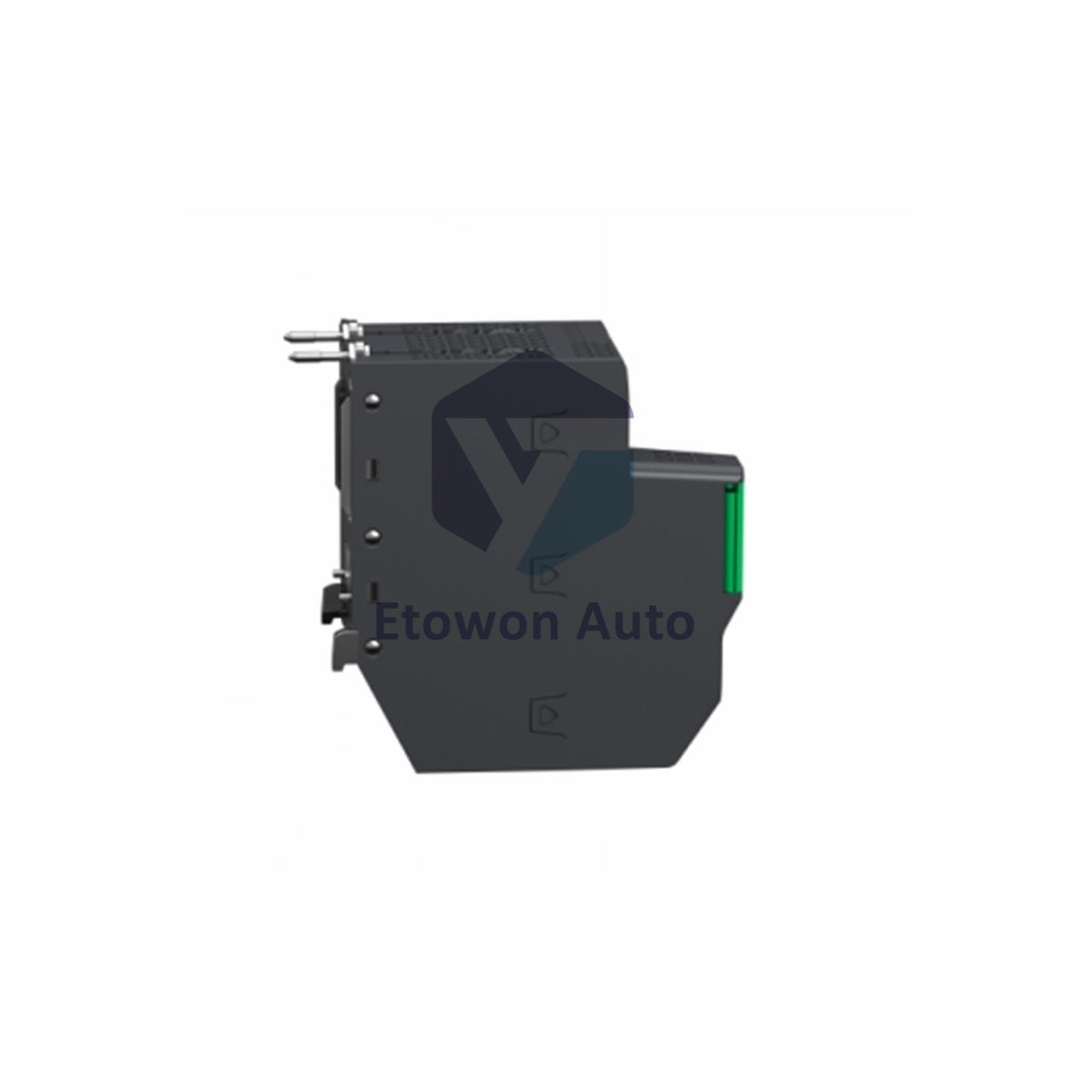

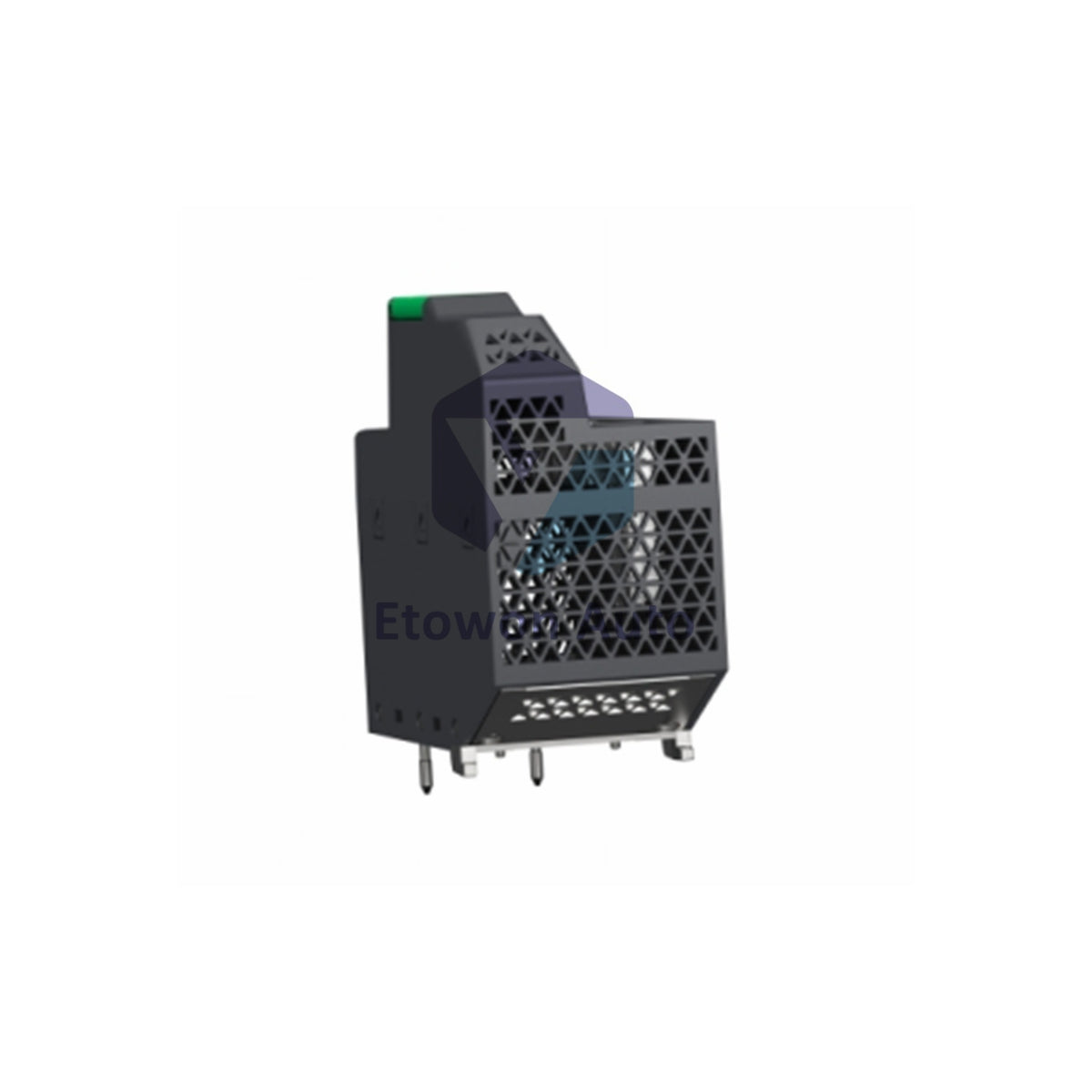

BMEP582040 Schneider Electric | 8 Remote I/O Achilles CPU

Omborda (19 dona), jo'natishga tayyor

  • Manufacturer: Schneider

  • Product No.: BMEP582040

  • Product Type: Processor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 849g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

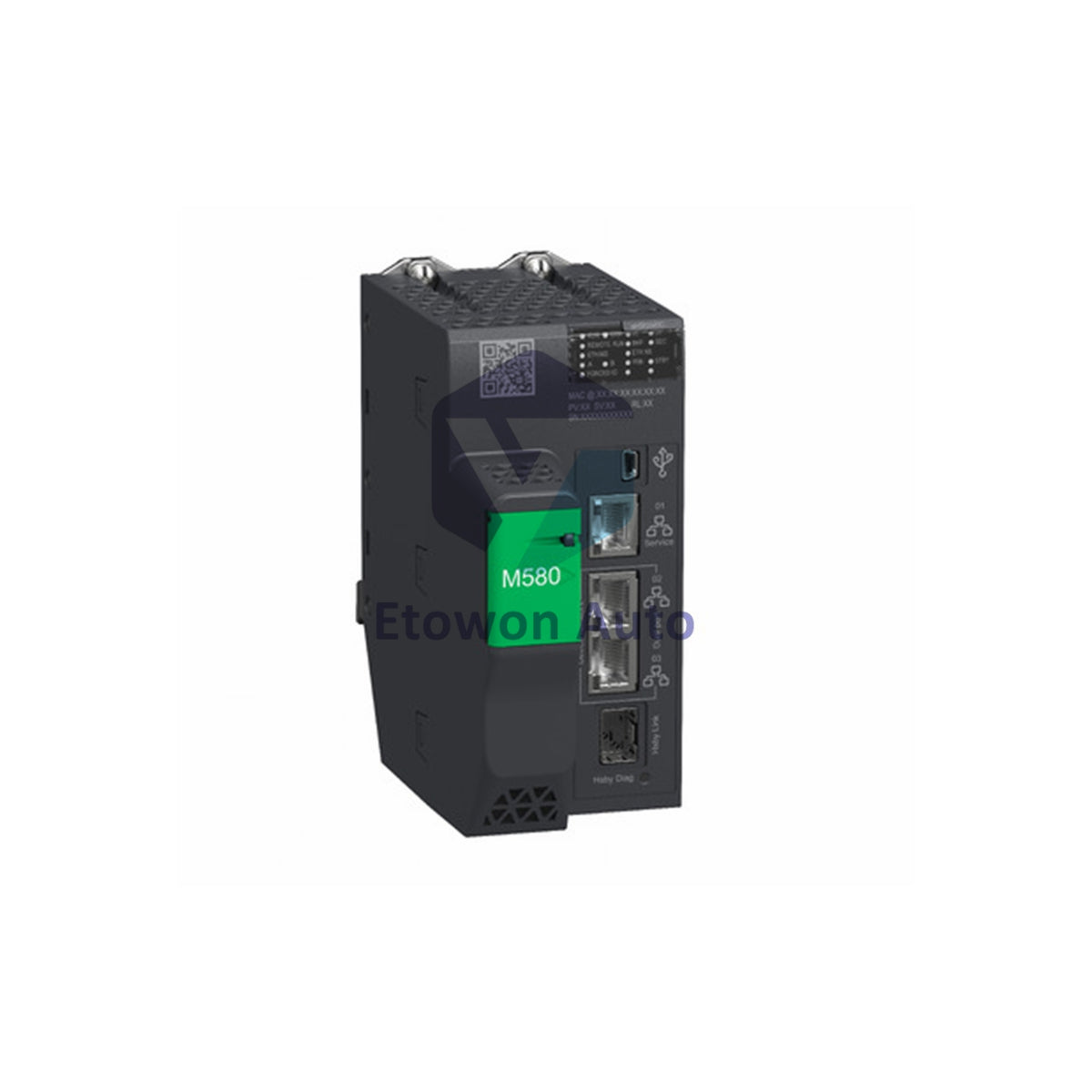

Schneider Electric BMEP582040 Modicon M580 Processor

Product Overview

The Schneider Electric BMEP582040 is a standalone processor for the Modicon M580 automation platform with safety capability. It features 8 MB program process memory, 2 MB program safety memory, and supports 61 Ethernet devices. The processor manages 4 local I/O racks with 2048 digital and 512 analog I/O capacity plus 8 remote I/O stations. Weight is 0.849 kg (1.872 lbs).

Specifications

Parameter Value
Brand Schneider Electric
Model BMEP582040
Product Line Modicon M580
Product Type Processor Module
Number of Racks 4
Discrete I/O Capacity 2048 I/O
Analog I/O Capacity 512 I/O
Application Specific Channels 72 (Local Rack)
Application Specific I/O Serial Link, Counter, Time Stamping, HART, Motion Control, SSI Encoder
Integrated Connections 1 x Ethernet TCP/IP Service, 2 x Ethernet TCP/IP Device Network, USB Mini B
Remote I/O Stations 8 (2 Remote Drop)
Distributed Equipment 64
Communication Module Capacity 2 Ethernet, 16 AS-Interface
Program Process Memory 8 MB Integrated RAM
Data Process Memory 768 kB Integrated RAM
Program Safety Memory 2 MB Integrated RAM
Data Safety Memory 512 kB Integrated RAM
System Memory 10 kB Integrated RAM
Expandable Flash 4 GB Data Storage
Application Structure 1 Periodic Fast, 2 Auxiliary, 1 Cyclic/Periodic Master, 64 Event Tasks
Instructions per ms 30 Kinst/ms (65% Boolean + 35% fixed), 40 Kinst/ms (100% Boolean)
Current Consumption 270 mA @ 24 VDC
MTBF Reliability 775,000 Hours
Protection Rating IP20
Operating Temperature 0 to 60 °C
Storage Temperature -40 to 85 °C
Relative Humidity 5-95% at 55 °C (Non-Condensing)
Operating Altitude 0-2000 m (2000-5000 m with Derating)
Vibration Resistance 3 gn
Shock Resistance 15 gn
Weight 0.849 kg (1.872 lbs)
GTIN 3595864174426
Country of Origin France (FR)

Cybersecurity and Safety Features

  • Achilles Certified with DoS Prevention
  • IPSec and Transport Layer Security
  • SNMP Logging and Syslog Protocol Support
  • Audit Trail and Security Log
  • Embedded Firewall and Firmware Signature
  • Password Protection and Port Hardening
  • Secure Communication (HTTPS)
  • Safety Mode (SRUN) and Maintenance Mode (SMOD) LEDs
  • FORCED IO status indicator

Certifications

  • CE, UL, CSA, RCM, EAC
  • Merchant Navy
  • IEC 61131-2, IEC 61010-2-201
  • UL 61010-2-201, CSA C22.2 No 61010-2-201
  • IACS E10
  • EN/IEC 61000-6-5 Interface Type 1 and 2
  • EN/IEC 61850-3 Location G
  • Hazardous Location Class I Division 2
  • Corrosion Resistance, Salt Mist, Dust Resistant

Key Features

  • 8 MB program process memory plus 2 MB program safety memory
  • Supports 61 Ethernet devices and 64 distributed equipment units
  • 4 local I/O racks with 2048 digital and 512 analog capacity
  • 8 remote I/O stations (2 remote drop)
  • 72 application-specific channels for motion, HART, SSI, and counting
  • Achilles-certified cybersecurity with embedded firewall and IPSec
  • Safety mode and maintenance mode indicators for SIL applications
  • 775,000 hours MTBF reliability rating
  • Corrosion, salt mist, and dust resistant construction
  • Class I Division 2 hazardous location approved

Installation Notes

Install the processor in a Modicon M580 rack with internal power supply. Connect Ethernet devices using the service port and two device network ports. The USB Mini B port supports local programming. Configure safety parameters for SIL-rated applications using the dedicated safety memory. Enable cybersecurity features including firewall, IPSec, and HTTPS for secure operation. Monitor SRUN and SMOD LEDs for safety mode status. The processor manages 4 local racks plus 8 remote I/O stations. For altitudes above 2000 meters, apply derating factors.

FAQs

Q1: What is the program memory capacity of the BMEP582040?

A1: 8 MB program process memory, 2 MB program safety memory, 768 kB data process, and 512 kB data safety.

Q2: How many remote I/O stations does this processor support?

A2: 8 remote I/O stations (2 remote drop).

Q3: What safety features does this processor include?

A3: Safety mode (SRUN) and maintenance mode (SMOD) LEDs, dedicated 2 MB program safety memory, and 512 kB data safety memory.
