330907-05-30-10-02-CN

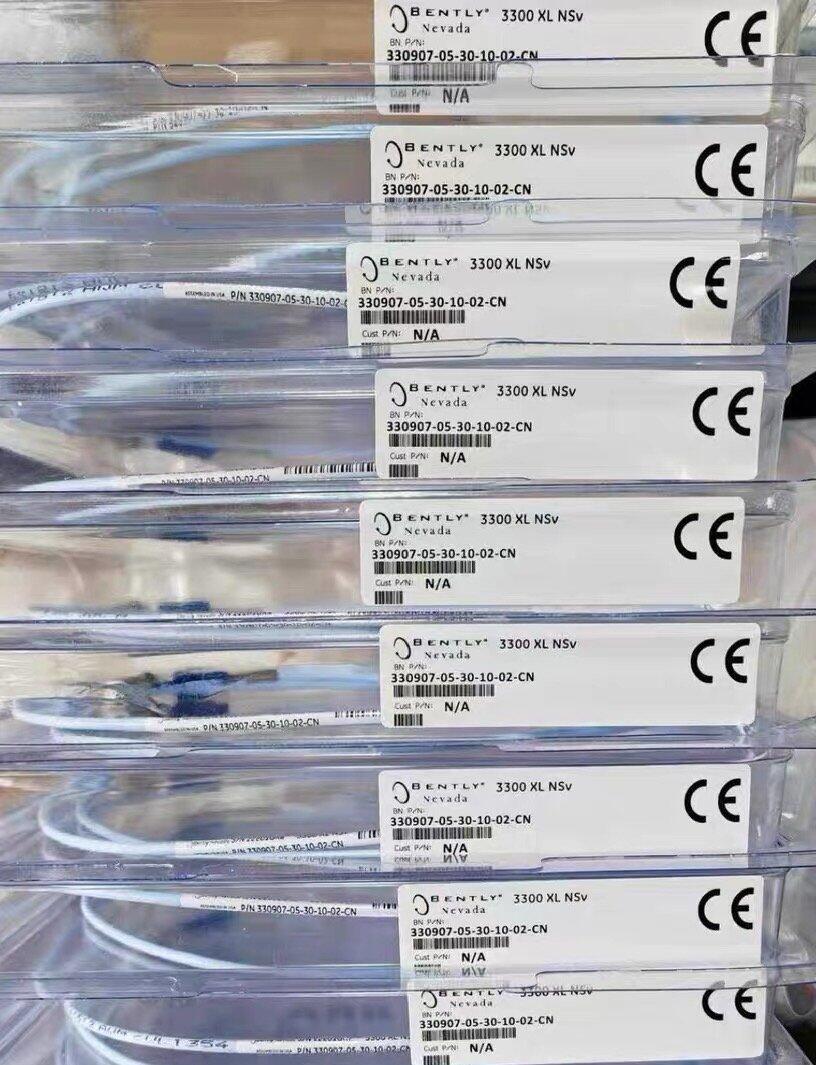

Bently Nevada 330907-05-30-10-02-CN M10X1 Proximity Probe

Faqat 10 dona qoldi

  • Manufacturer: Bently Nevada

  • Product No.: 330907-05-30-10-02-CN

  • Product Type: Proximity Probes

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Bently Nevada 330907-05-30-10-02-CN: 3300 NSv Reverse Mount Probe

The Bently Nevada 330907-05-30-10-02-CN is a 3300 NSv Reverse Mount Probe made in USA. This side-view probe features M10X1 threads with ClickLoc connector.

Ordering Configuration

  • Manufacturer: Bently Nevada
  • Part Number: 330907-05-30-10-02-CN
  • Type: 3300 NSv Reverse Mount Probe
  • Origin: Made in U.S.A
  • Thread: 05-30 = M10X1 threads
  • Length: 10 = 1.0 meter (39 inches)
  • Connector: 02 = Miniature coaxial ClickLoc
  • Approval: CN = Country Specific (China)

Electrical Specifications

  • DC Resistance (1.0m): 4.2 ± 0.5 ohms
  • Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
  • Recommended Gap: 1.0 mm (40 mils)
  • Output: -1 to -13 Vdc across linear range

Physical Specifications

  • System Weight: 14 to 150 grams (0.5 to 5.3 oz)
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 304 stainless steel
  • Case Torque Max: 22.6 N•m (200 in•lb)
  • Recommended Torque: 7.5 N•m (66 in•lb)
  • Thread Engagement Max: 15 mm (M10X1)

Environmental Ratings

  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Storage Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton O-ring
  • Note: Sustained below -34°C may affect pressure seal

Field Wiring

  • Wire Size: 0.2 to 1.5 mm² (16-24 AWG)
  • With Ferrules: 0.25 to 0.75 mm² (18-23 AWG)
  • Cable Type: Three-conductor shielded triad
  • Max Length: 305 meters (1000 feet) to Proximitor

FAQs

Q: What is the weight range for this probe?

A: The 330907-05-30-10-02-CN system weighs 14 to 150 grams (0.5 to 5.3 oz) depending on configuration. The 1.0 meter version falls within this range.

Q: What does 05-30-10-02-CN mean?

A: 05-30 = M10X1 threads, 10 = 1.0 meter length, 02 = ClickLoc connector, CN = China approval for the 330907-05-30-10-02-CN.

Q: Can this probe handle high temperatures?

A: Yes. The 330907-05-30-10-02-CN operates from -52°C to +177°C. Avoid sustained temperatures below -34°C to protect the pressure seal.
