330101-00-96-10-02-CN

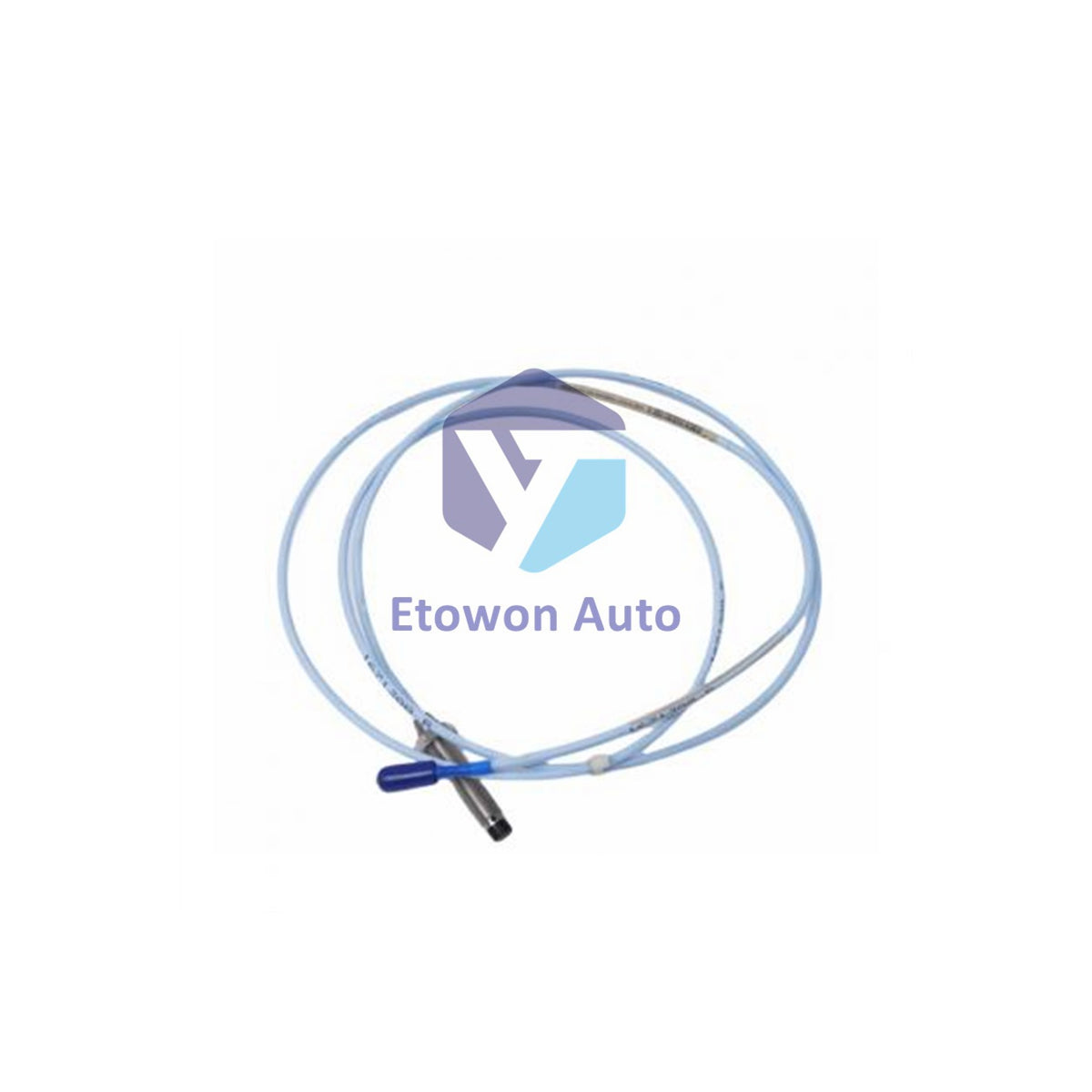

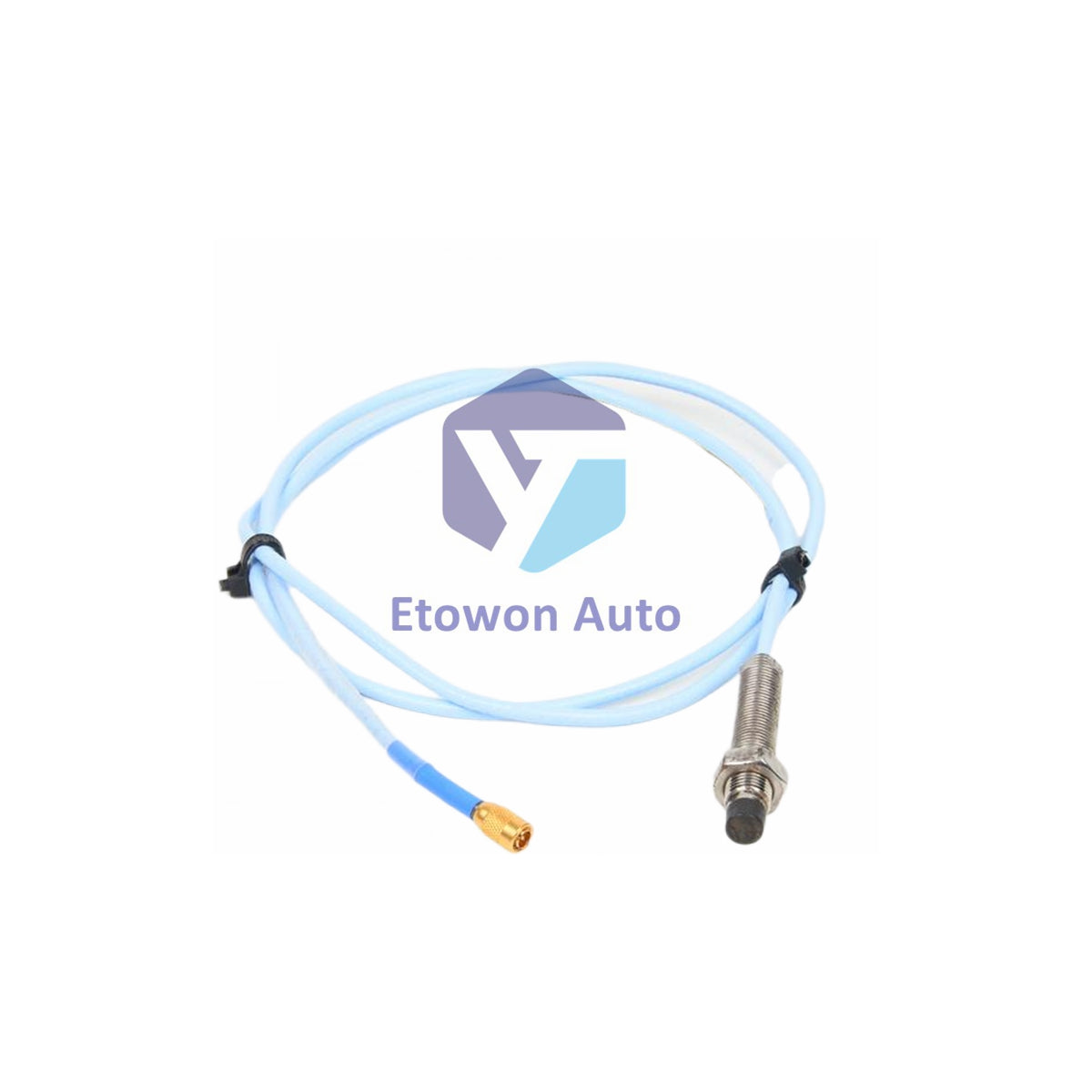

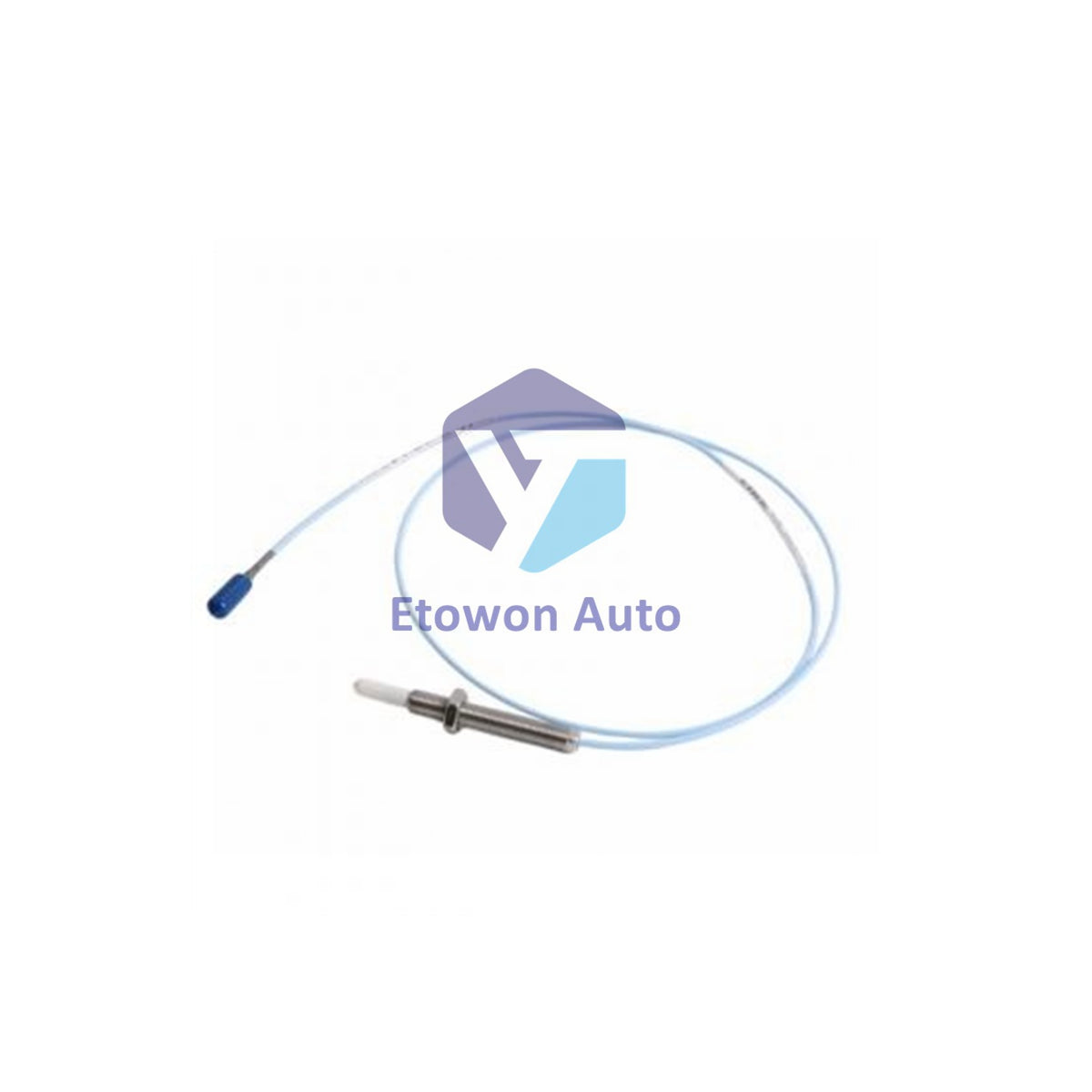

Bently Nevada 330101-00-96-10-02-CN 8mm Probe

Omborda (23 dona), jo'natishga tayyor

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-96-10-02-CN

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Bently Nevada 330101-00-96-10-02-CN 8mm Proximity Probe

Bently Nevada 330101-00-96-10-02-CN | 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor. Provides 7.87 V/mm (200 mV/mil) output over a 2 mm (80 mils) linear range. Engineered for radial vibration, axial position, and Keyphasor measurements in turbomachinery, compressors, and pumps. CN suffix denotes country-specific certifications. Weight: 0.323 kg.

Key Features

2 mm (80 mils) linear measurement range from 0.25 to 2.3 mm. 7.87 V/mm (200 mV/mil) scale factor ± 5%. Recommended gap -9 Vdc (approx. 1.27 mm / 50 mils). Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength. Miniature coaxial ClickLoc connector, standard cable (Option 02). PPS probe tip material. AISI 303/304 stainless steel case. Operating temperature -52°C to +177°C. Weight 0.323 kg (323 g/m). Country-specific CN certification.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330101-00-96-10-02-CN
Product Type 3300 XL 8mm Probe, 3/8-24 UNF, without armor
Unthreaded Length (Option 00) 0 in
Overall Case Length (Option 96) 9.6 in (243.8 mm)
Total Length (Option 10) 1.0 m (3.3 ft)
Connector Type (Option 02) Miniature coaxial ClickLoc, standard cable
Agency Approval (Option CN) Country Specific
Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm
Recommended Gap (Radial Vibration) -9 Vdc (approx. 1.27 mm / 50 mils)
Incremental Scale Factor (ISF) 7.87 V/mm (200 mV/mil) ± 5%
Deviation from DSL (1m System) Less than ±0.025 mm (±1 mil)
Probe DC Resistance (1.0m) 7.59 ± 0.50 Ω
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Field Wiring Length Max 305 m (1,000 ft), 16-24 AWG shielded triad
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel
Pull Strength 330 N (75 lbf)
Operating Temperature (Standard) -52°C to +177°C (-62°F to +350°F)
Storage Temperature (Standard) -52°C to +177°C (-62°F to +350°F)
Pressure Seal Viton O-ring
Relative Humidity 93% for 56 days (<3% ASF change)
Weight 0.323 kg (11.4 oz)
Origin Made in U.S.A.

Ordering Code Breakdown

330101-00-96-10-02-CN

330101 – 3300 XL 8mm Probe, 3/8-24 UNF, without armor.
00 – Unthreaded Length: 0 in.
96 – Overall Case Length: 9.6 in (243.8 mm).
10 – Total Length: 1.0 m (3.3 ft).
02 – Miniature coaxial ClickLoc connector, standard cable.
CN – Country Specific Approval.

Installation Notes

Mount probe using 3/8-24 UNF thread. Set initial gap to -9 Vdc (approx. 1.27 mm / 50 mils) for radial vibration monitoring. Use 3-conductor shielded triad cable for field wiring (16-24 AWG), max length 305 m (1,000 ft). Ensure temperature does not drop below -34°C (-30°F) to prevent pressure seal failure. For oil leak prevention, specify FluidLoc cable option.

Engineering Advantages

8mm probe design delivers thicker PPS encapsulation for superior durability. TipLoc and CableLoc technologies prevent common failure modes. 330 N pull strength ensures cable integrity. 2 mm linear range with 7.87 V/mm scale factor provides precise measurement. CN certification enables country-specific hazardous area installation. Compatible with 3300 XL Proximitor Sensor and monitoring systems.

FAQs

Q1: What is the linear measurement range?
A1: 2 mm (80 mils) from 0.25 to 2.3 mm gap.

Q2: What is the recommended gap setting for radial vibration?
A2: -9 Vdc, approximately 1.27 mm (50 mils).

Q3: What does the CN suffix indicate?
A3: Country Specific Approval for hazardous area installations in specific countries.
