330101-00-90-05-02-CN

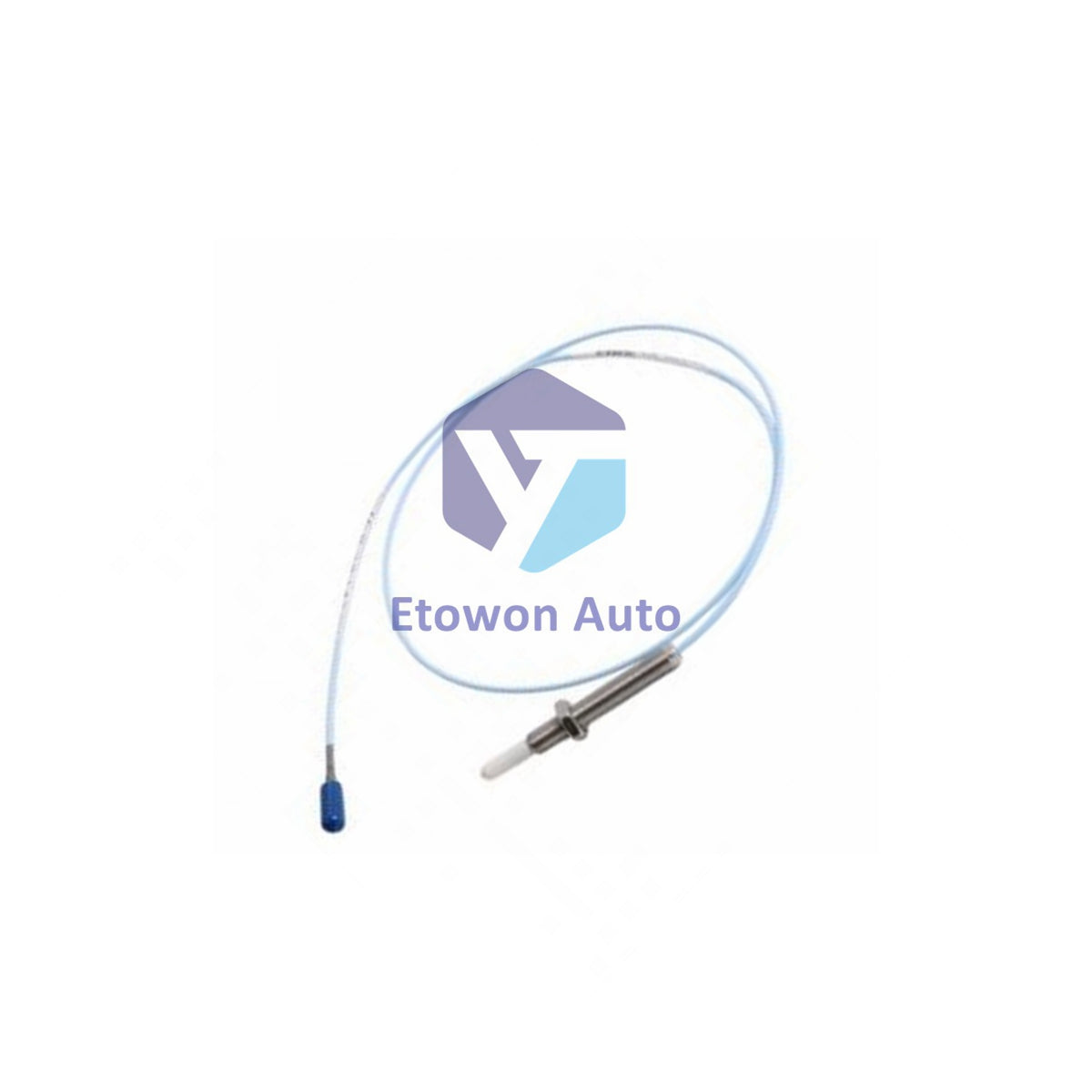

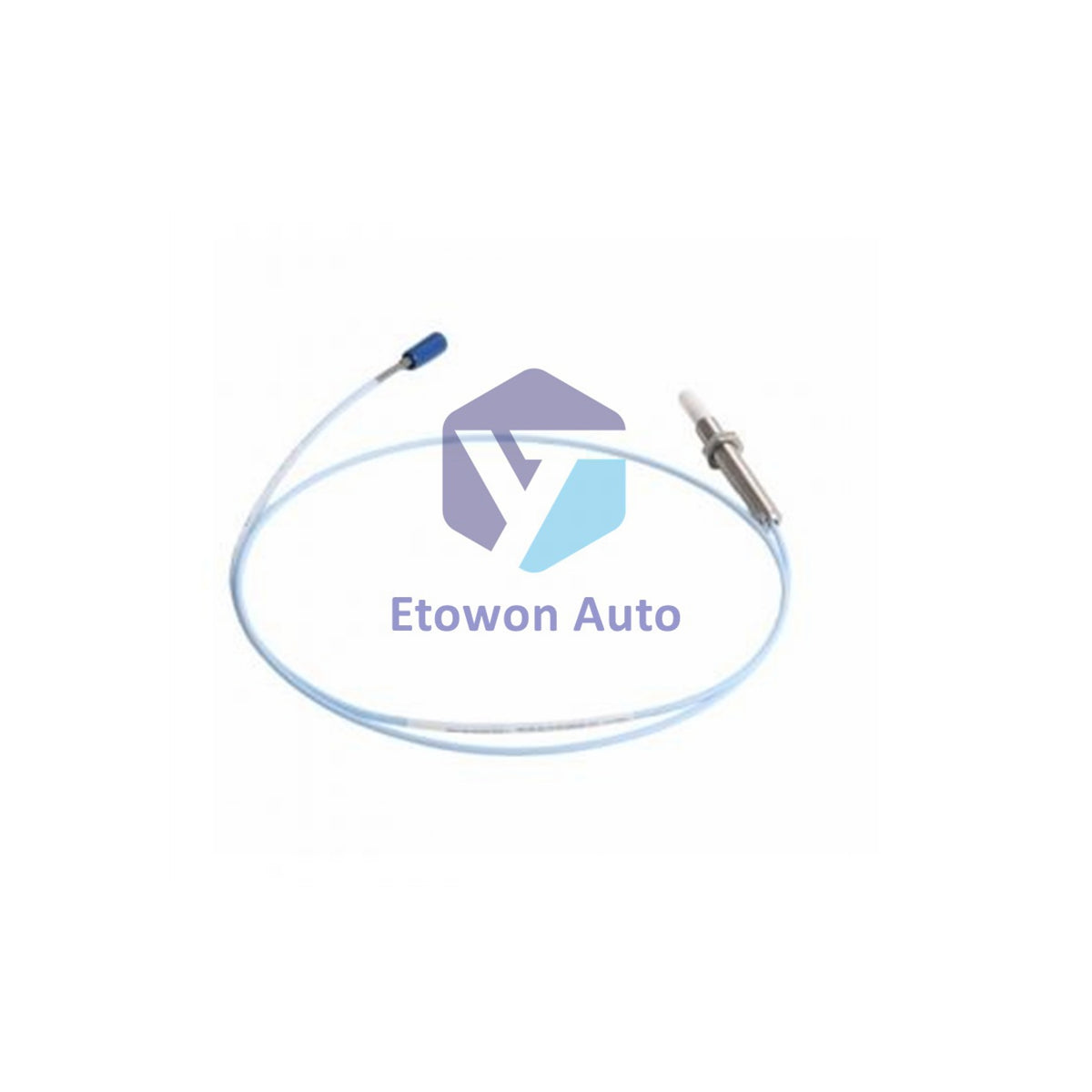

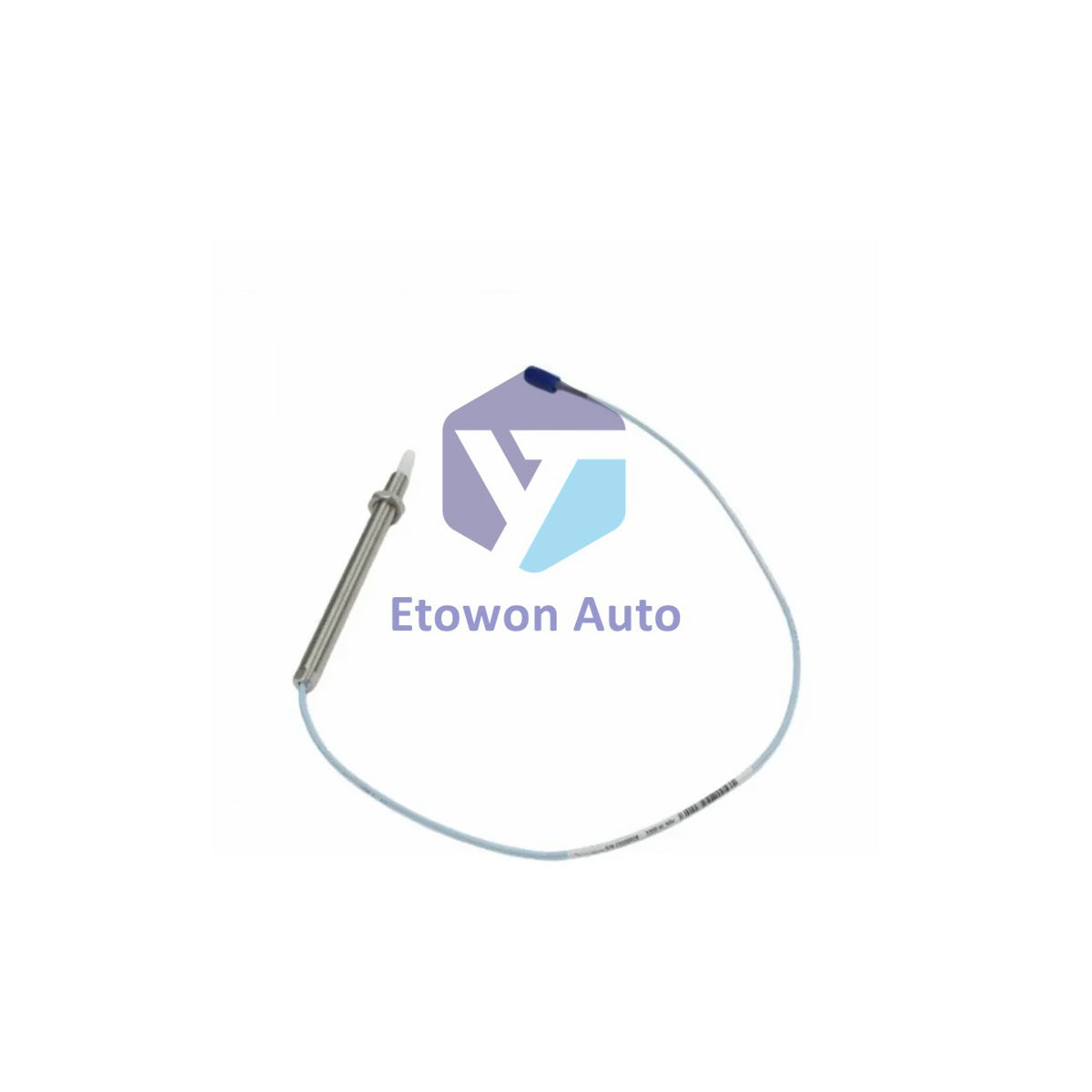

Bently Nevada 330101-00-90-05-02-CN 3300 XL 8mm Probe

Omborda (30 dona), jo'natishga tayyor

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-90-05-02-CN

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Bently Nevada 330101-00-90-05-02-CN 3300 XL 8mm Probe

The Bently Nevada 330101-00-90-05-02-CN is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, without armor. This probe delivers precise non-contact vibration and position measurements for turbomachinery. Featuring patented TipLoc and CableLoc designs, it provides 330 N (75 lbf) pull strength. Weighing 323 g/m (11.4 oz/ft), it operates from -52°C to +177°C with a linear range of 2 mm (80 mils).

Ordering Code Configuration

The 330101-00-90-05-02-CN part number follows this structure:

  • 330101 – 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
  • 00 – Unthreaded Length: 0.0 in
  • 90 – Overall Case Length: 9.0 in
  • 05 – Total Length: 0.5 meter (1.6 feet)
  • 02 – Connector: Miniature coaxial ClickLoc, standard cable
  • CN – Agency Approval: Country specific (China)

Technical Specifications

Parameter Value
Manufacturer Bently Nevada
Model Number 330101-00-90-05-02-CN
Probe Type 3300 XL 8 mm, without armor
Thread 3/8-24 UNF
Overall Case Length 9.0 in (228.6 mm)
Total Length 0.5 m (1.6 ft)
Connector Miniature coaxial ClickLoc
Agency Approval CN (China specific)
Weight 323 g/m (11.4 oz/ft)
Probe DC Resistance (0.5m) 7.45 ± 0.50 Ω
Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm
Incremental Scale Factor 7.87 V/mm (200 mV/mil) ±5%
Recommended Gap (Radial) -9 VDC [~1.27 mm (50 mils)]
DSL (0.5m System) Less than ±0.025 mm (±1 mil)
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303/304 Stainless Steel
Operating Temperature -52°C to +177°C (-62°F to +350°F)
Storage Temperature -52°C to +177°C (-62°F to +350°F)
Probe Pressure Seal Viton® O-ring

Field Wiring Specifications

Parameter Value
Wire Size 0.2 to 1.5 mm² (16 to 24 AWG)
Cable Type 3-conductor shielded triad
Max Field Wiring Length 305 m (1000 ft)
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical

Installation & Field Application Guide

  • Install the probe with the recommended gap of -9 VDC [approximately 1.27 mm (50 mils)] for radial vibration measurement.
  • Use 3-conductor shielded triad cable for field wiring. Maximum length is 305 m (1000 ft) between the Proximitor and monitor.
  • For FluidLoc option applications, ensure the cable seal prevents oil or liquid leakage through the cable interior.
  • Recommended for optimal robustness against physical abuse in turbomachinery applications.

Why Choose the 3300 XL 8mm Probe

  • Thicker encapsulation of the probe coil in molded PPS plastic for a more rugged probe.
  • Patented TipLoc molding provides robust bond between probe tip and body.
  • Patented CableLoc design delivers 330 N (75 lbf) pull strength.
  • Larger diameter probe body offers stronger, more robust case construction.

Field Engineer FAQs

Q1: What is the recommended gap voltage for this probe?

A1: The recommended gap setting for radial vibration is -9 VDC, which corresponds to approximately 1.27 mm (50 mils).

Q2: What does the CN agency approval indicate?

A2: The CN approval indicates country-specific certifications for China, typically including China RoHS and other local regulatory compliance requirements.

Q3: What is the maximum field wiring length between probe and monitor?

A3: Maximum field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.

Inquiries: sale@etowonauto.com

Product Resources

📄 Download PDF
🏷️ Tags: 3300 XL 8 mm Probe Proximity Probe
