330101-00-53-10-02-00

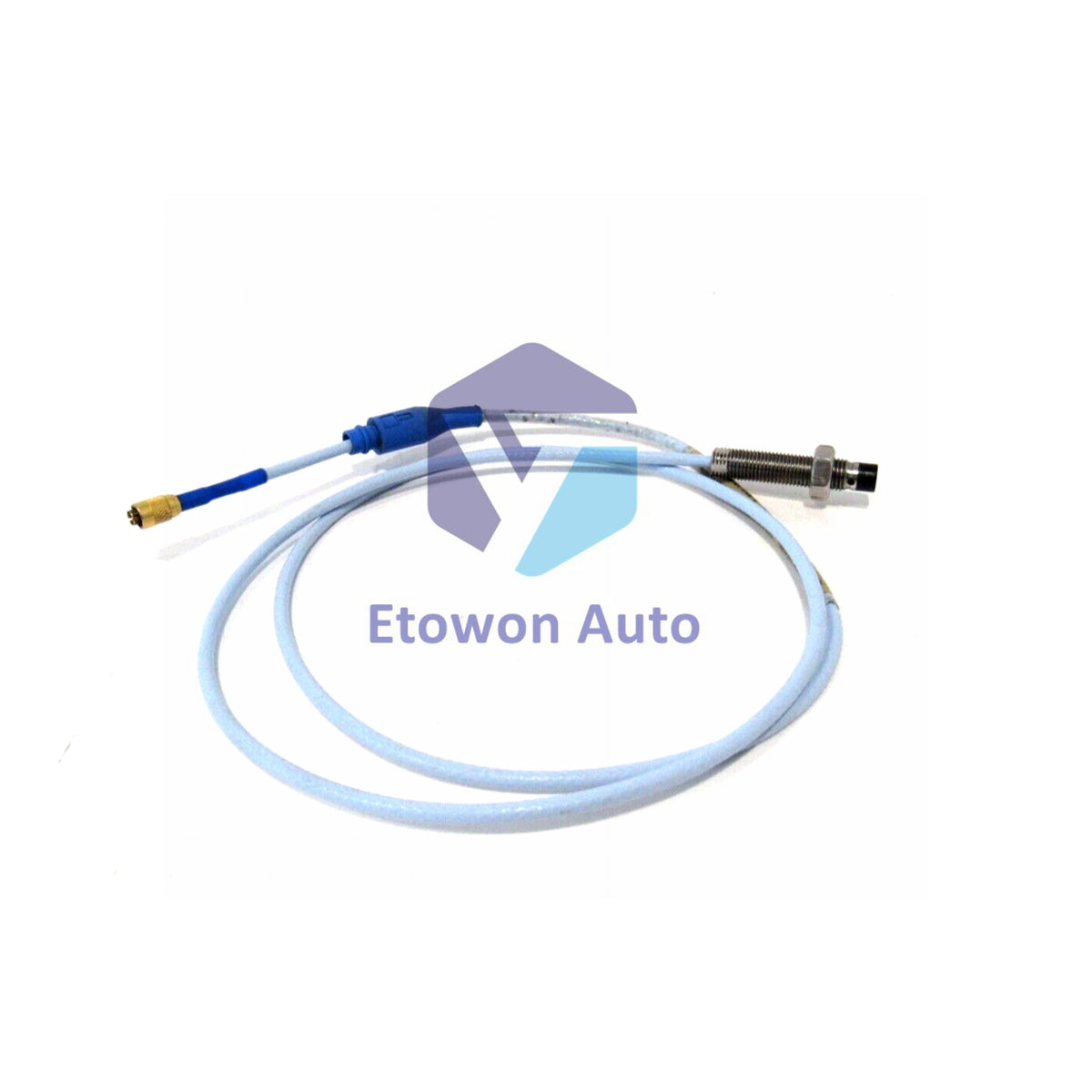

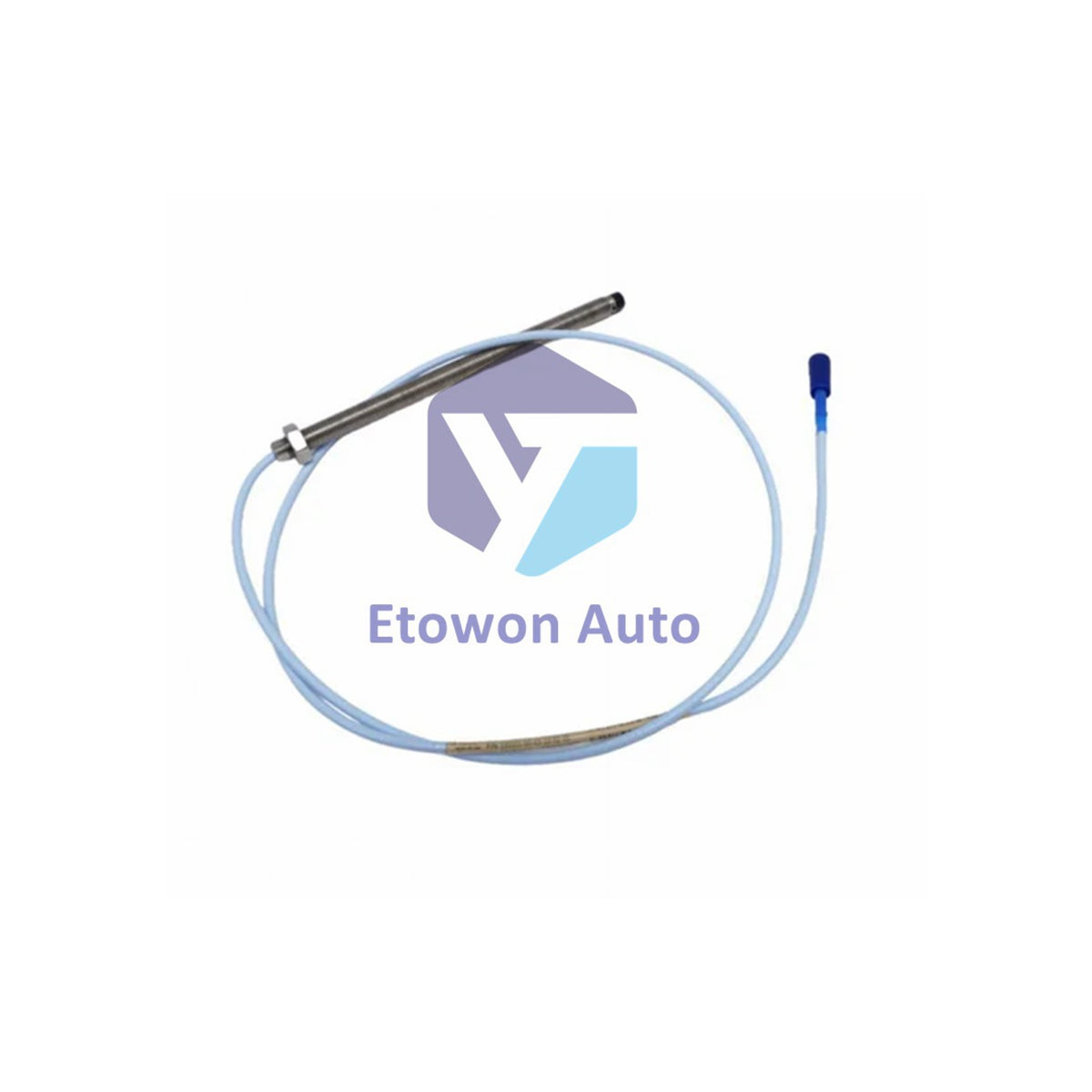

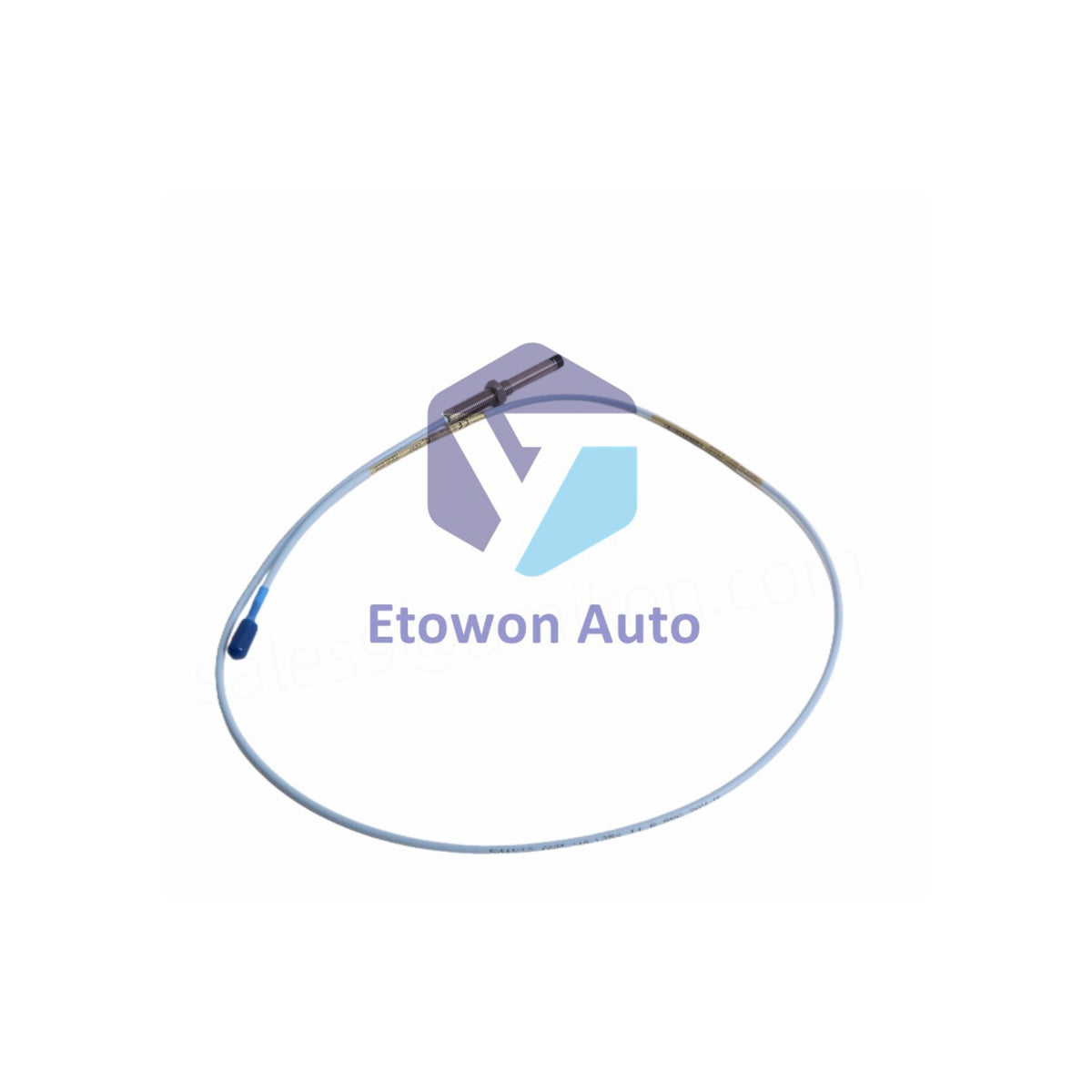

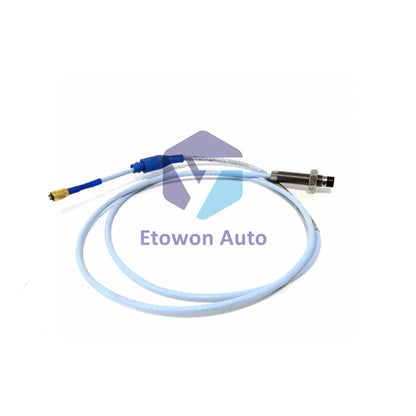

Bently Nevada 330101-00-53-10-02-00 3/8-24 Probe

Faqat 6 dona qoldi

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-53-10-02-00

  • Product Type: 3300 XL 8mm Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Bently Nevada 330101-00-53-10-02-00 3300 XL 8 mm Probe

Bently Nevada 330101-00-53-10-02-00 is a 3300 XL series 8 mm probe with 3/8-24 UNF thread. Features PPS tip, patented TipLoc and CableLoc designs, without armor.

Model Configuration

Parameter Value
Full Model 330101-00-53-10-02-00
Probe Type 3300 XL 8 mm, 3/8-24 UNF thread, no armor
Unthreaded Length 00 = 0.0 in
Overall Case Length 53 = 5.3 in
Total Length 10 = 1.0 m (3.3 ft)
Connector & Cable Type 02 = Miniature coaxial ClickLoc, standard cable
Agency Approval 00 = Not required

DC Resistance & Capacitance

Parameter Value
Probe DC Resistance (1.0m) 7.59 ± 0.50 ohms
Extension Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical

Physical Specifications

Component Material / Value
Tip Material PPS (Polyphenylene sulfide)
Case Material AISI 303 or 304 Stainless Steel
Cable Pull Strength 330 N (75 lbf) - CableLoc design
Weight 323 g/m (11.4 oz/m)

Performance Specifications

Parameter Value
Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm
Recommended Gap (Radial Vibration) -9 Vdc (approx 1.27 mm / 50 mils)
ISF (1/5m System) 7.87 V/mm (200 mV/mil) ±5%
ISF (9m System) 7.87 V/mm (200 mV/mil) ±6.5%
DSL (1/5m System) ±0.025 mm (±1 mil) @ 0°C to +45°C

Field Wiring

  • Wire size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended: 3 conductor shielded triad cable with tinned wiring
  • Maximum length: 305 m (1,000 ft) between Proximitor Sensor and monitor

Temperature Range

Condition Range
Standard Probe Operating -52°C to +177°C (-62°F to +350°F)
ETR Probe Tip -52°C to +218°C (-62°F to +425°F)
ETR Cable & Connector -51°C to +260°C (-60°F to +500°F)

Design Features

  • Patented TipLoc molding for robust tip-to-body bond
  • Patented CableLoc design with 330 N (75 lbf) pull strength
  • Optional FluidLoc cable prevents oil leakage through cable interior
  • Thicker PPS encapsulation for rugged durability
  • Viton® O-ring pressure seal

FAQs

Q1: What is the recommended gap setting for radial vibration?
A1: -9 Vdc, approximately 1.27 mm (50 mils) from target.

Q2: What is the linear range of this probe?
A2: 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils).

Q3: What is the pull strength of the CableLoc design?
A3: 330 N (75 lbf) for secure cable and tip attachment.
