22F-V2P5N103

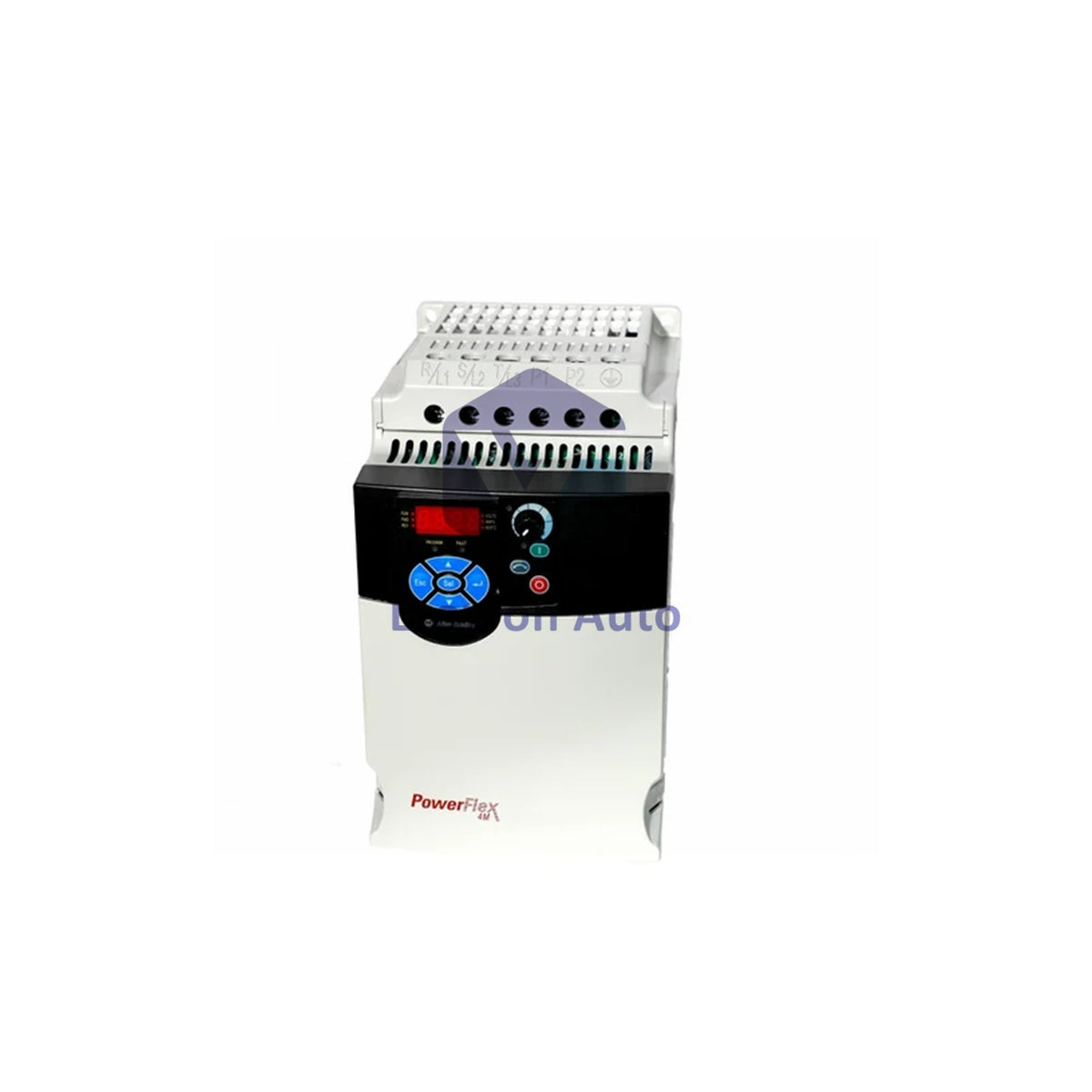

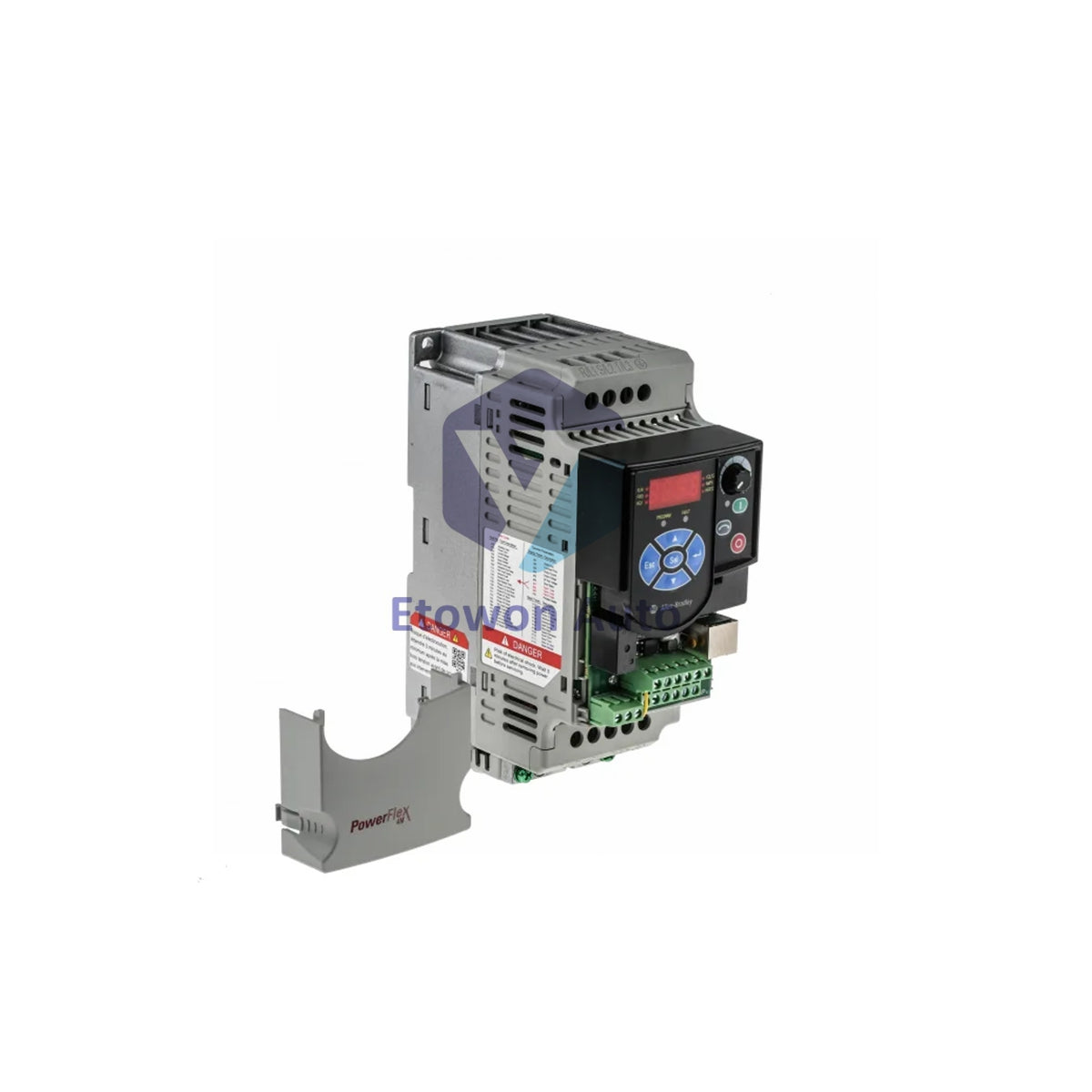

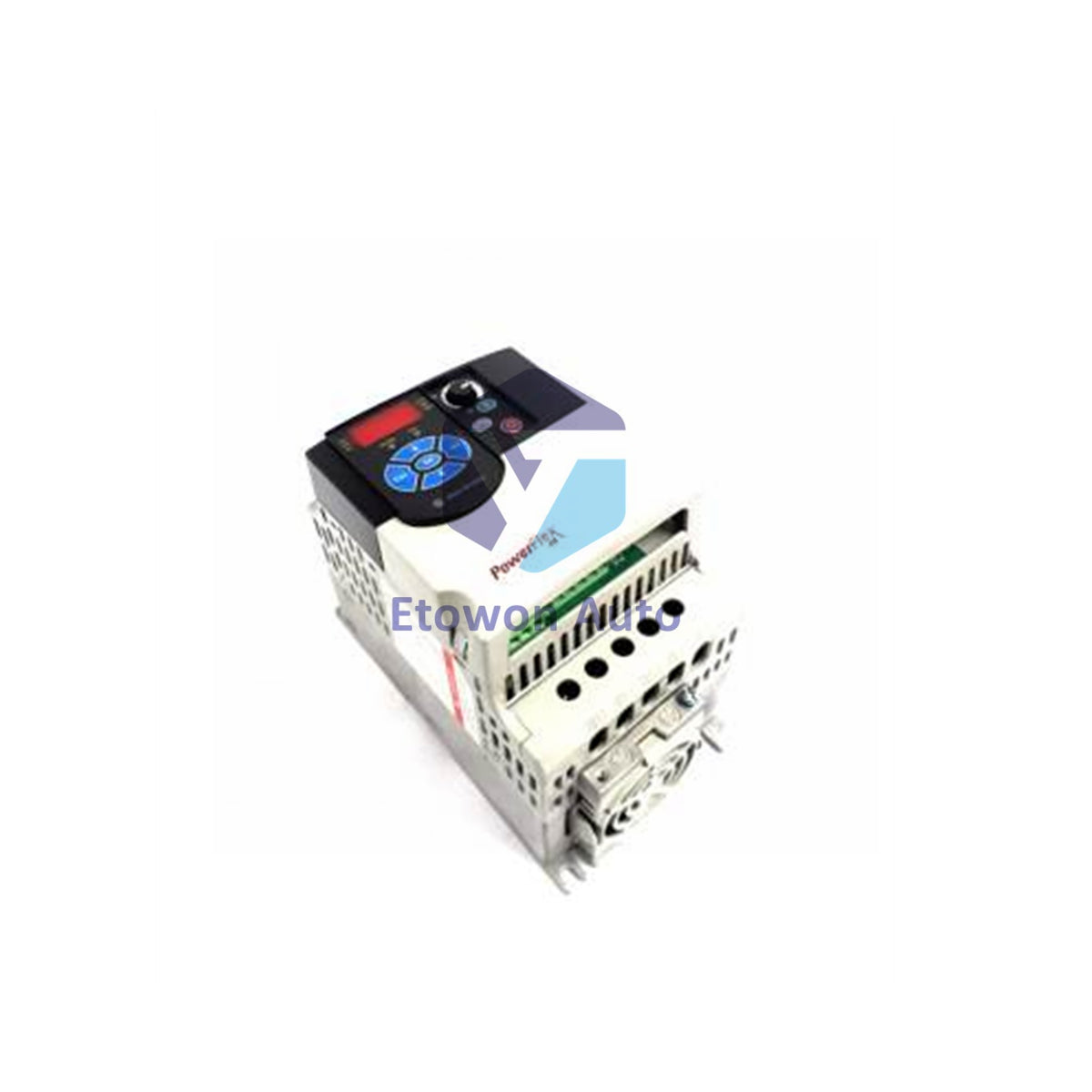

Allen-Bradley 22F-V2P5N103 PowerFlex 4M Frame A AC VFD Drive

Omborda (15 dona), jo'natishga tayyor

  • Manufacturer: Allen-Bradley

  • Product No.: 22F-V2P5N103

  • Product Type: PowerFlex 4M AC Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Product Overview

The Allen-Bradley 22F-V2P5N103 is a compact variable frequency drive (VFD) from the PowerFlex 4M family, manufactured by Rockwell Automation. Designed to convert 100–120V single-phase AC input (9.0 A) into a 3-phase output (2.5 A, 0.37 kW / 0.5 HP), this drive provides cost-effective Volts per Hertz (V/Hz) motor control in a space-saving Frame A footprint. Housed in an IP20 / NEMA Open Type enclosure measuring 142 x 90 x 132 mm and weighing approximately 1.6 kg (3.5 lbs), it features an integrated RS485 communication port, versatile digital/analog I/O, and comprehensive motor protection for pumps, fans, and small conveyor systems.

Key Advantages

  • Space-Saving Frame A Design: Ultra-compact dimensions (142 x 90 x 132 mm) and lightweight build of 1.6 kg allow easy side-by-side mounting inside crowded control panels.
  • Single to Three-Phase Conversion: Operates efficiently off standard 120V single-phase utility power while outputting 3-phase motor power.
  • Built-in RS485 Communication: Enables direct networking and remote control capability without requiring external adapters.
  • Comprehensive Drive Protection: Built-in safeguards against overload, overvoltage, undervoltage, short circuit, and over-temperature faults.
  • Flexible Control & I/O: Includes 5 discrete inputs, 1 Form C relay output, and 1 configurable analog input (0–10V / 0–20mA).

Technical Specifications

Catalog Number 22F-V2P5N103
Manufacturer & Series Allen-Bradley / PowerFlex 4M
Power Rating (HP / kW) 0.5 HP / 0.37 kW (0.4 kW max output)
Input Voltage & Phase 100-120V AC / Single-Phase (1-Phase, 9.0 A)
Output Voltage & Phase 0-460V AC / Three-Phase (3-Phase, 2.5 A)
Control Method & Comm. Volts/Hertz (V/Hz) / Integrated RS485 Port
I/O Count 5 Discrete In, 1 Form C Relay Out, 1 Analog In
Net Weight Approx. 1.6 kg (3.5 lbs)
Enclosure & Frame Size IP20 / NEMA Open Type / Frame A (Panel Mount)
Dimensions (H x W x D) 142 x 90 x 132 mm (5.59 x 3.54 x 5.2 in)
Operating Temperature -10°C to +50°C (14°F to 122°F)

Frequently Asked Questions

Q1: What is the weight of the 22F-V2P5N103 drive?

A1: It has a net weight of approximately 1.6 kg (3.5 lbs).

Q2: What input voltage power does it require?

A2: It operates on single-phase 100-120V AC input power.

Q3: Does this drive include an internal CE filter?

A3: No, the 22F-V2P5N103 model is supplied without an internal CE filter.
