2094-BC07-M05-S

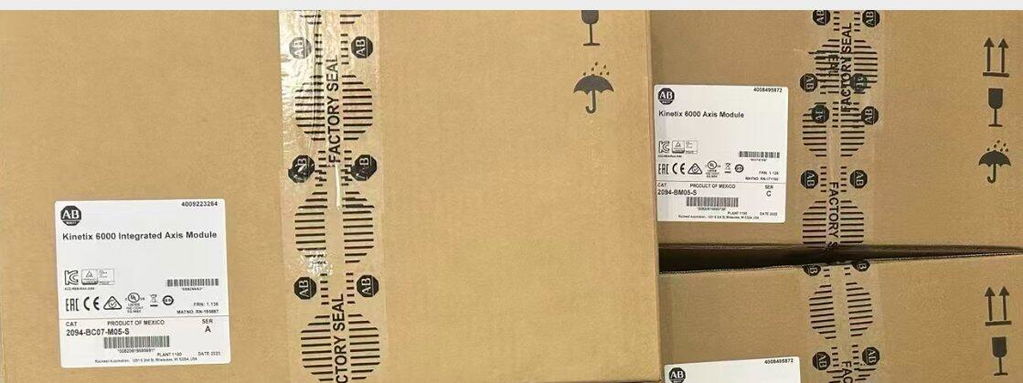

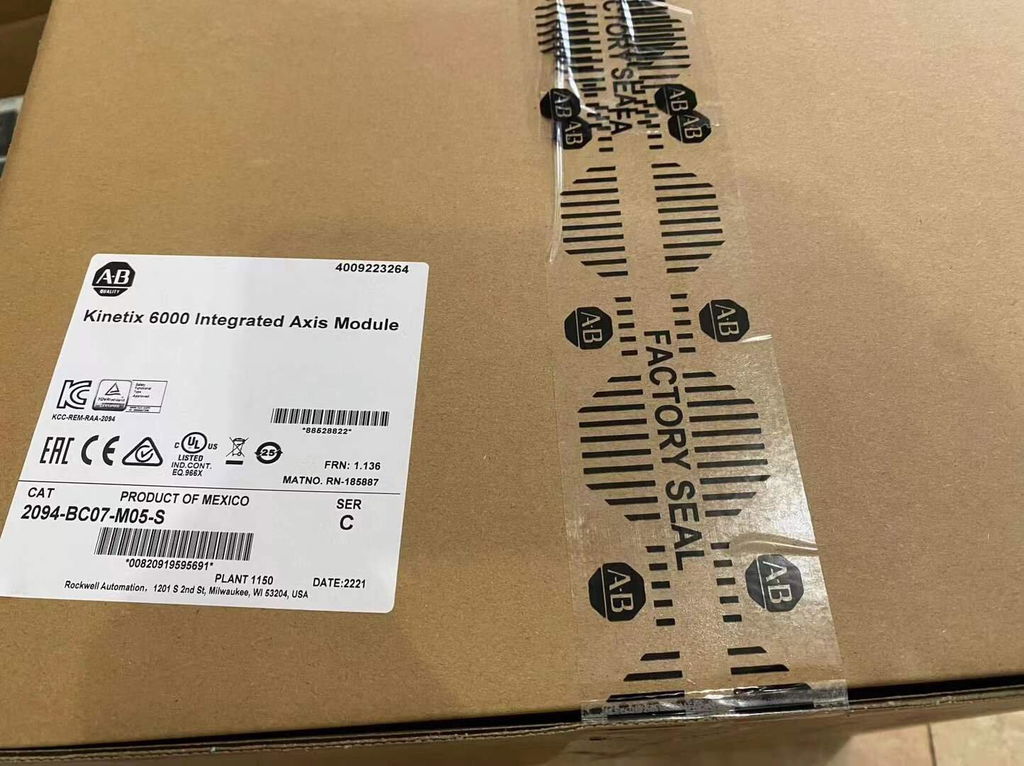

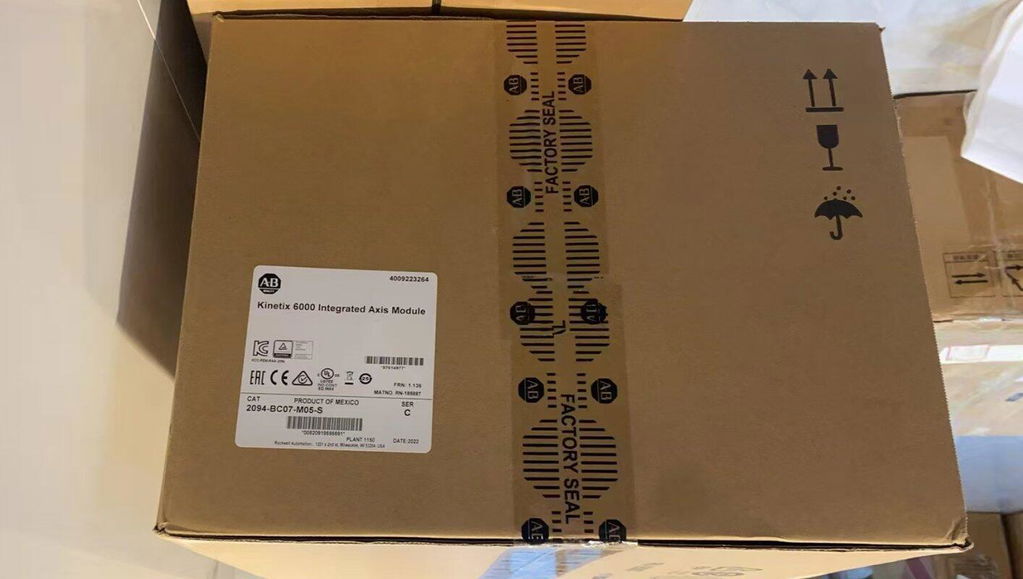

Allen-Bradley 2094-BC07-M05-S Kinetix 6000 45kW Axis Module

Omborda (24 dona), jo'natishga tayyor

  • Manufacturer: Allen-Bradley

  • Product No.: 2094-BC07-M05-S

  • Product Type: Servo Drive

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 10100g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Allen-Bradley 2094-BC07-M05-S Kinetix 6000 Integrated Axis Module

The 2094-BC07-M05-S is a high-power Allen-Bradley Kinetix 6000 integrated axis module (IAM). This unit combines a power supply/converter and an inverter in one module.

Core Technical Specifications

  • Brand & Model: Allen-Bradley 2094-BC07-M05-S
  • Product Line: Kinetix 6000 Multi-Axis Drive
  • AC Input Power: 3-Phase, 360-480V AC nominal (324-528V range), 47-63 Hz
  • DC Output to Bus: 458-747 V DC
  • Continuous Power to Bus: 45 kW
  • Continuous Current to Bus: 67.7 A DC
  • Peak Power (Series B): Up to 135 kW
  • Efficiency: 97%
  • Safety: Integrated Safe Torque-Off (STO) feature.

Physical Data & System Features

  • Weight: 10.1 kg (22.3 lbs)
  • Power Dissipation: 71 - 226 W
  • Internal Shunt: 28.75 Ohm resistor, 200W continuous, 22.5 kW peak power.
  • Key Role: Acts as the main power supply for a bank of axis modules on a Kinetix power rail.
  • Peak Enhancement: Series B/C models offer enhanced peak current (200-300%) for high-demand applications.
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Control Power: 95-264V AC single-phase for internal logic.

Frequently Asked Questions

  • Q: What is an "Integrated Axis Module" (IAM)?
    A> It is a combined rectifier/power supply and inverter module. It converts AC line power to a stable DC bus and also contains one servo drive axis, all in one unit. It typically serves as the master module on a power rail.
  • Q: How does this differ from a standard Axis Module (AM)?
    A> A standard AM (like BM01) only contains an inverter and requires a separate DC bus power source. This IAM provides both the DC bus power and an inverter channel, powering itself and downstream AMs.
  • Q: What is the "common bus follower" mode?
    A> It allows multiple IAMs to be connected to share the load on a common DC bus, enabling scalable, high-power systems.
