1756-L83ES

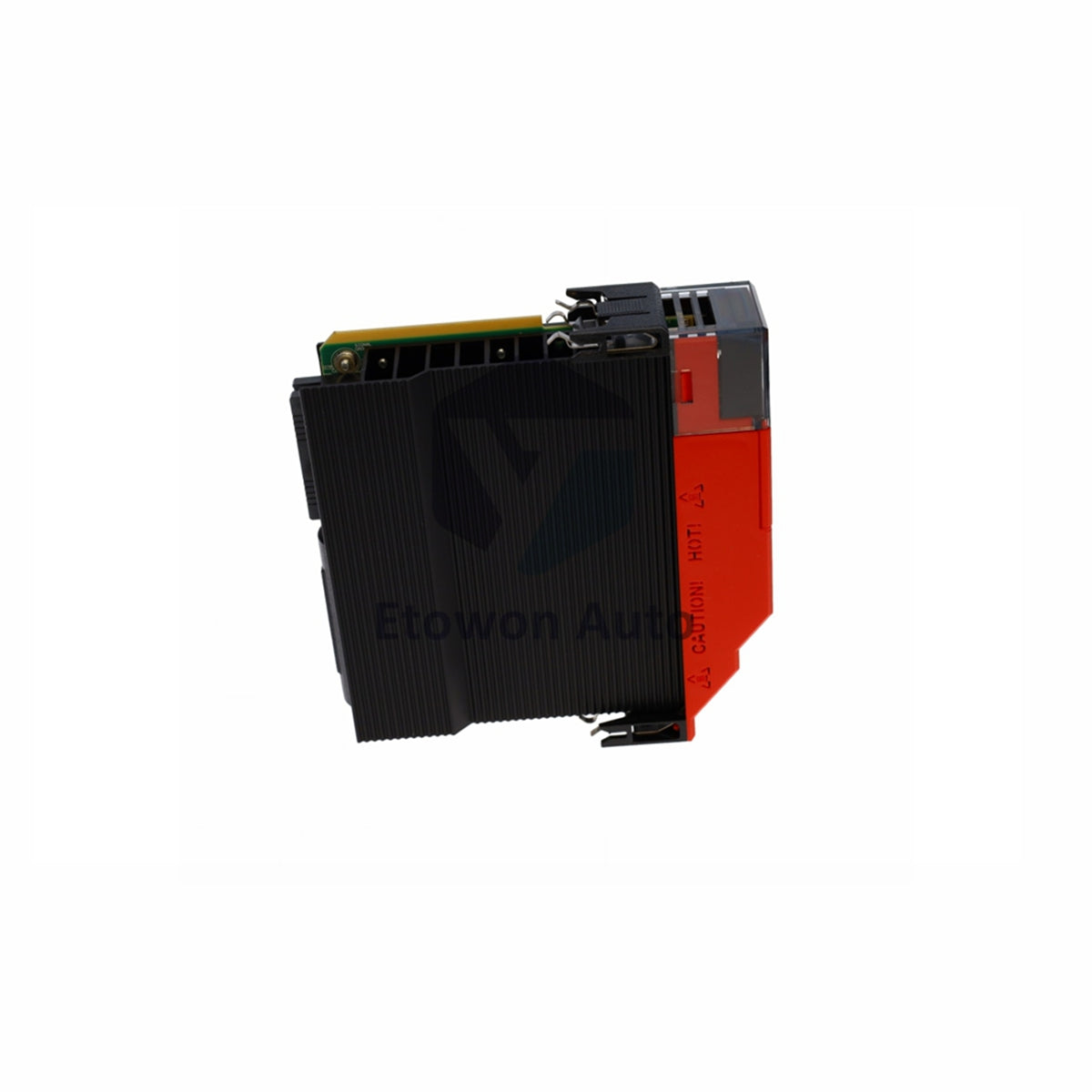

Allen-Bradley 1756-L83ES GuardLogix5580 Safety Controller 10MB

Omborda (30 dona), jo'natishga tayyor

  • Manufacturer: Allen-Bradley

  • Product No.: 1756-L83ES

  • Product Type: Safety Controller

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 390g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Allen-Bradley 1756-L83ES GuardLogix5580 Safety Controller

Allen-Bradley 1756-L83ES is a GuardLogix5580 safety controller for ControlLogix systems. Features 10MB standard memory and 5MB safety memory. Includes USB 2.0 port and 1GB Ethernet port supporting up to 250 EtherNet/IP nodes. Weight: 0.39 kg (0.86 lbs).

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Model 1756-L83ES
Series ControlLogix / GuardLogix5580
User Memory 10 MB
Safety Memory 5 MB
Supported EtherNet/IP Nodes 250 maximum
Controller Tasks 31 standard / 1 safety
Programs per Task 1000
Digital I/O Maximum 128,000
Analog I/O Maximum 4,000
Built-in Communication USB 2.0, 1GB Ethernet
Current Draw at 1.2V DC 5.0 mA
Current Draw at 5.1V DC 1.2 A
Power Dissipation 21.2 BTU/hr
Operating Temperature 0°C to +60°C (32°F to 140°F)
Storage Temperature -40°C to +85°C (-40°F to 185°F)
Weight 0.39 kg (0.86 lbs)

Key Features

  • GuardLogix5580 safety controller with 10MB user memory and 5MB safety memory
  • Supports 250 EtherNet/IP nodes with embedded 1GB Ethernet port
  • USB 2.0 port for programming and firmware updates
  • 31 standard tasks and 1 safety task for flexible control
  • 1000 programs per task for large-scale applications
  • CE, RCM, KC, CSA, and c-UL-us certified
  • 4-character alpha/numeric display for status monitoring

Installation Guidelines (Field Engineer Notes)

Slot Installation: Install controller into any slot in ControlLogix chassis. Power off chassis before insertion. Secure with locking latch.

Network Connection: Use Cat5e or better for Ethernet connections. For safety communication, use isolated network segments or managed switches with IGMP snooping.

USB Connection: Use USB 2.0 certified cable. Direct connection to PC only. Do not use extension cables longer than 3 meters.

Firmware Updates: Use ControlFLASH software via Ethernet or USB. Verify compatibility of all modules after firmware update.

FAQs

Q1. What is the difference between standard and safety memory?
A1. Standard memory (10MB) stores standard control programs. Safety memory (5MB) stores safety-validated logic isolated from standard tasks.

Q2. Can this controller be used with older ControlLogix modules?
A2. Yes. The 1756-L83ES is compatible with all ControlLogix 1756 series modules. Verify firmware compatibility with older modules.

Q3. What is the maximum number of EtherNet/IP nodes supported?
A3. The controller supports up to 250 EtherNet/IP nodes. For larger networks, consider adding additional communication modules.
