YPQ103C

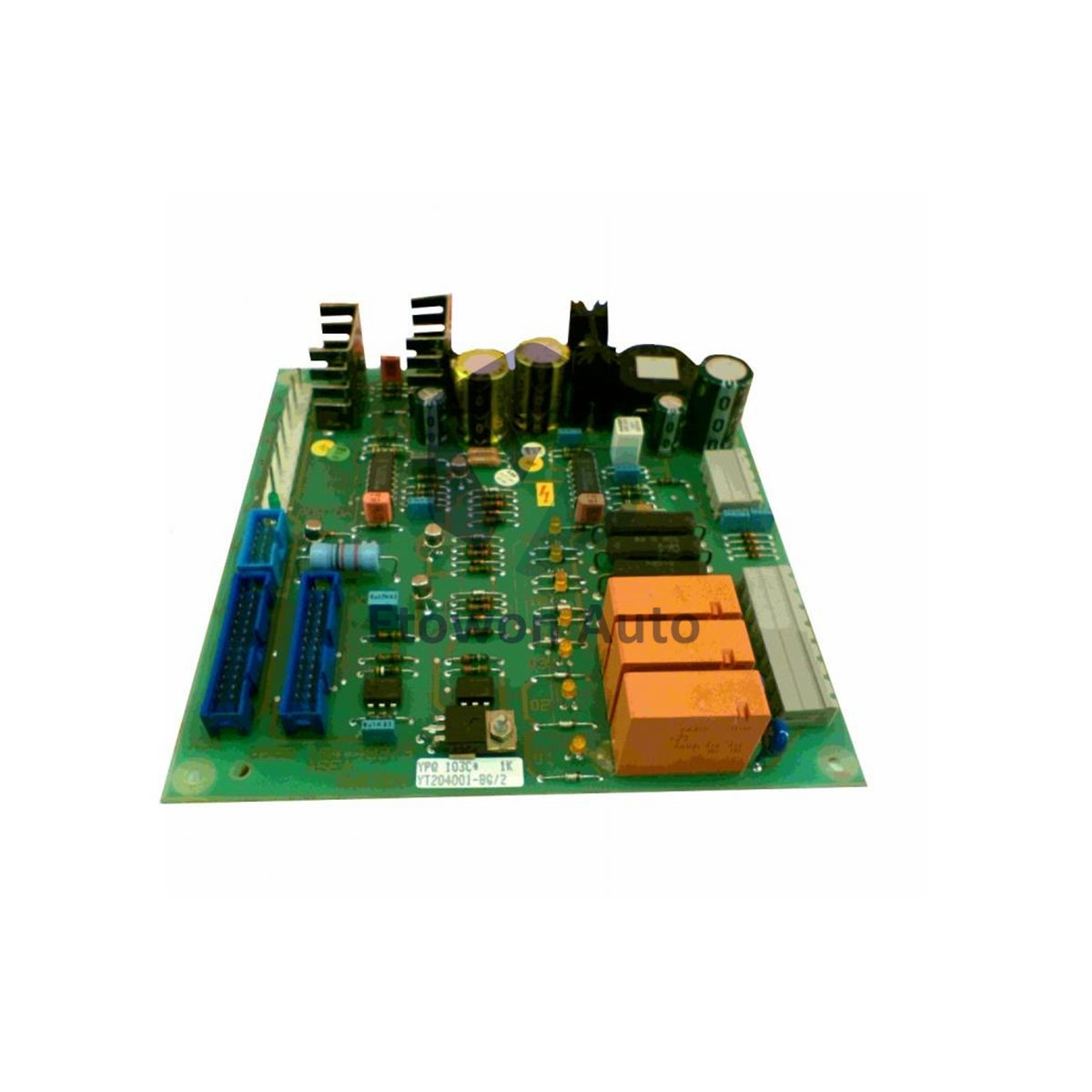

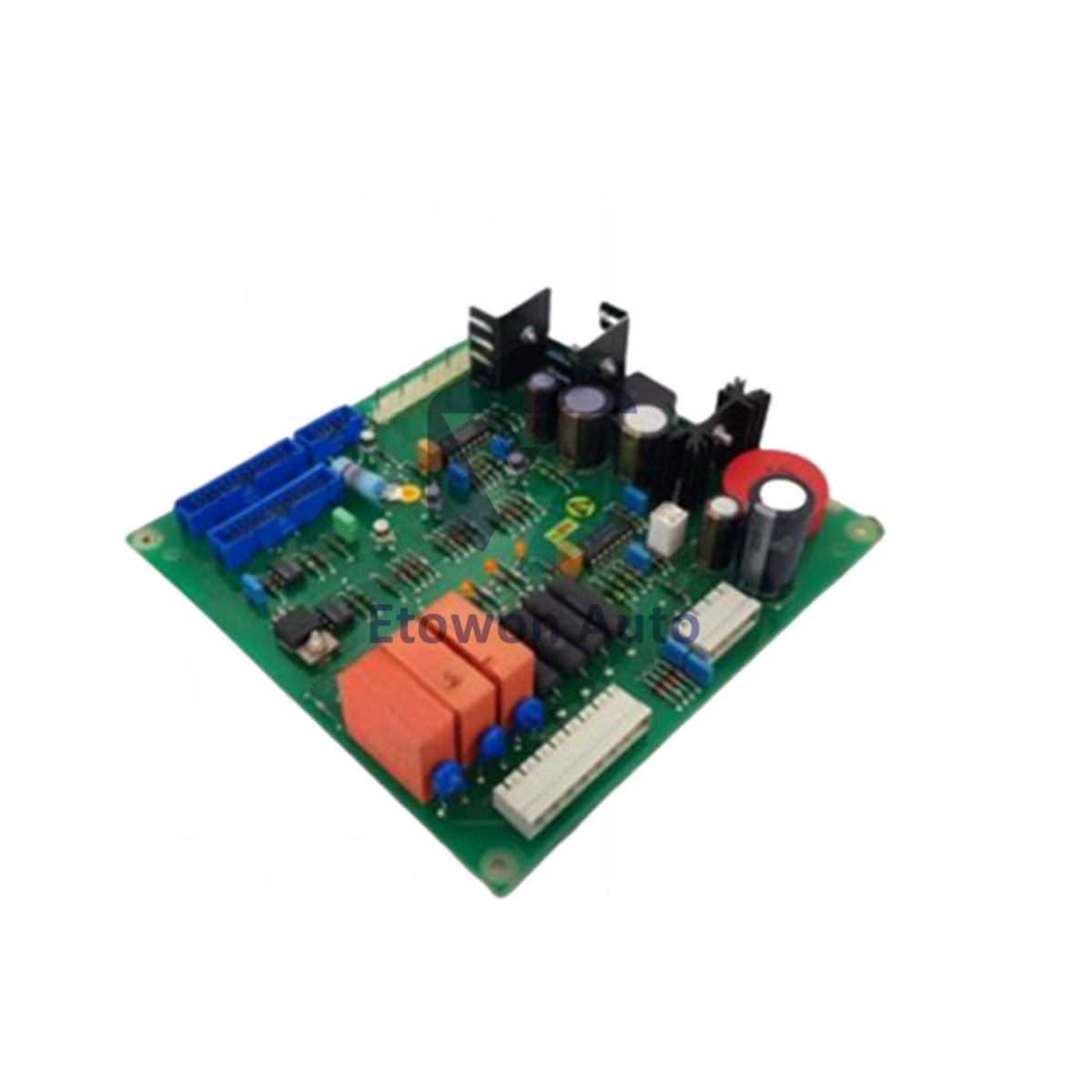

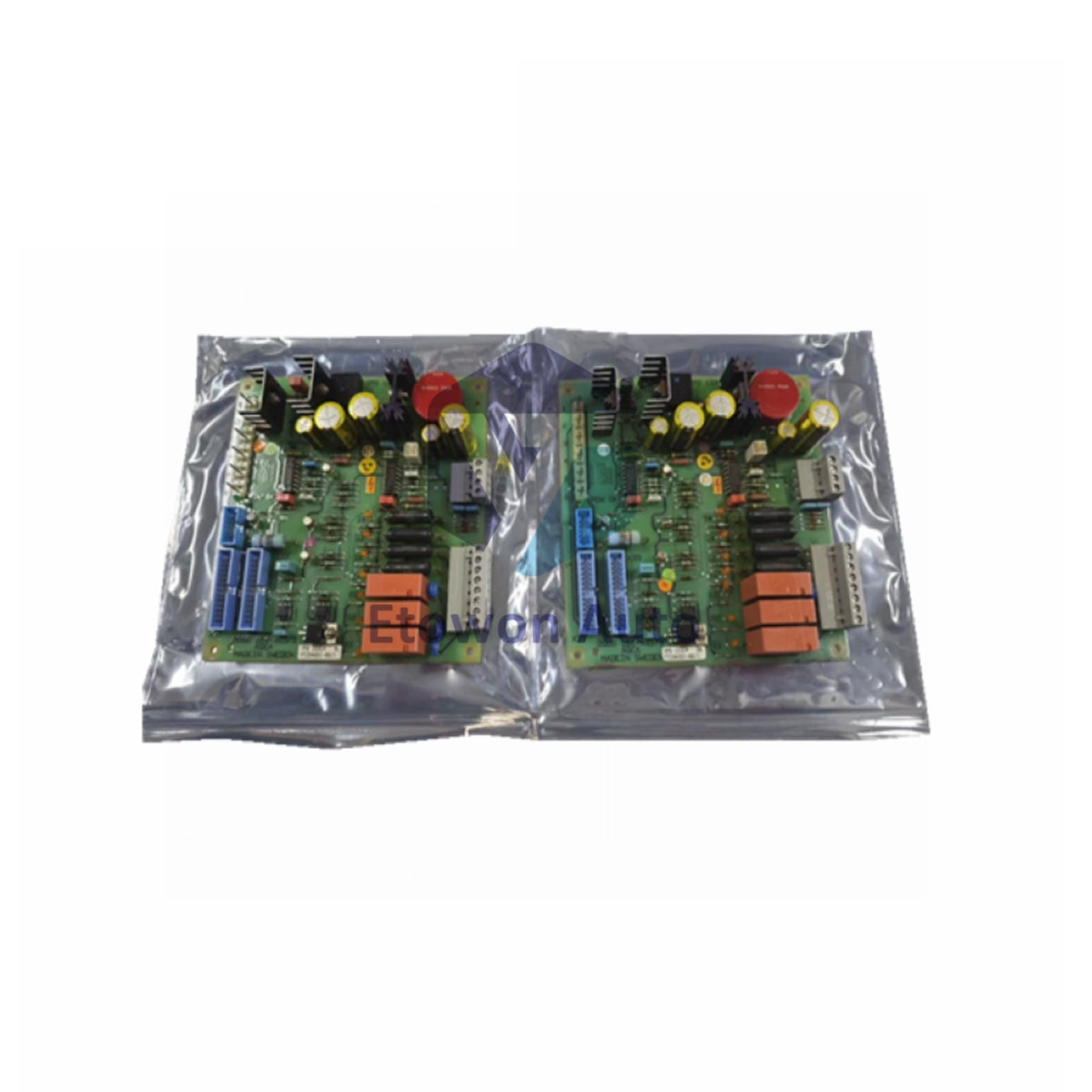

ABB YPQ103C YT204001-BG Control Circuit Board 110V AC 3A

Omborda (11 dona), jo'natishga tayyor

  • Manufacturer: ABB

  • Product No.: YPQ103C

  • Product Type: Control Circuit Board

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 600g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

ABB YPQ103C YT204001-BG Control Circuit Board

Product Overview

ABB YPQ103C (YT204001-BG) is a control circuit board for industrial automation systems. It operates on 110V AC ±10% power supply with 3A current rating. Supports analog, digital, and relay signal inputs. Features Modbus RTU communication via RS485 interface. CE, CSA, and UL certified.

Technical Specifications

Parameter Value
Brand ABB
Product ID YPQ103C YT204001-BG
Type Designation Control Circuit Board
Power Supply 110V AC ± 10%
Current Rating 3 A
Signal Inputs Analog, Digital, Relay
Operating Temperature 10°C to +70°C
Dimensions W x H x D 180 x 120 x 40 mm
Weight 0.6 kg
Communication Modbus RTU, RS485
LED Indicators Power, Status, Fault
Isolation Voltage 1500V AC
Certifications CE, CSA, UL

Installation

Mount board in control cabinet. Connect 110V AC power supply (±10%). Verify current draw does not exceed 3A. Wire analog, digital, and relay inputs per application. Configure Modbus RTU communication via RS485. LED indicators show Power, Status, and Fault conditions.

Features

Accepts analog, digital, and relay signal inputs. Modbus RTU communication via RS485. 1500V AC isolation for safety. LED status indicators for Power, Status, and Fault. CE, CSA, and UL certified. Compact 180 x 120 x 40 mm design.

FAQ

Q1: What is the power supply requirement?
A1: 110V AC ±10% with 3A current rating. Verify power supply capacity for reliable operation.

Q2: What communication protocols are supported?
A2: Modbus RTU via RS485 interface. Configure per application network requirements.

Q3: What certifications does this board have?
A3: CE, CSA, and UL certified. Isolation voltage 1500V AC. Suitable for industrial control applications.
