3500/15-03-03-02

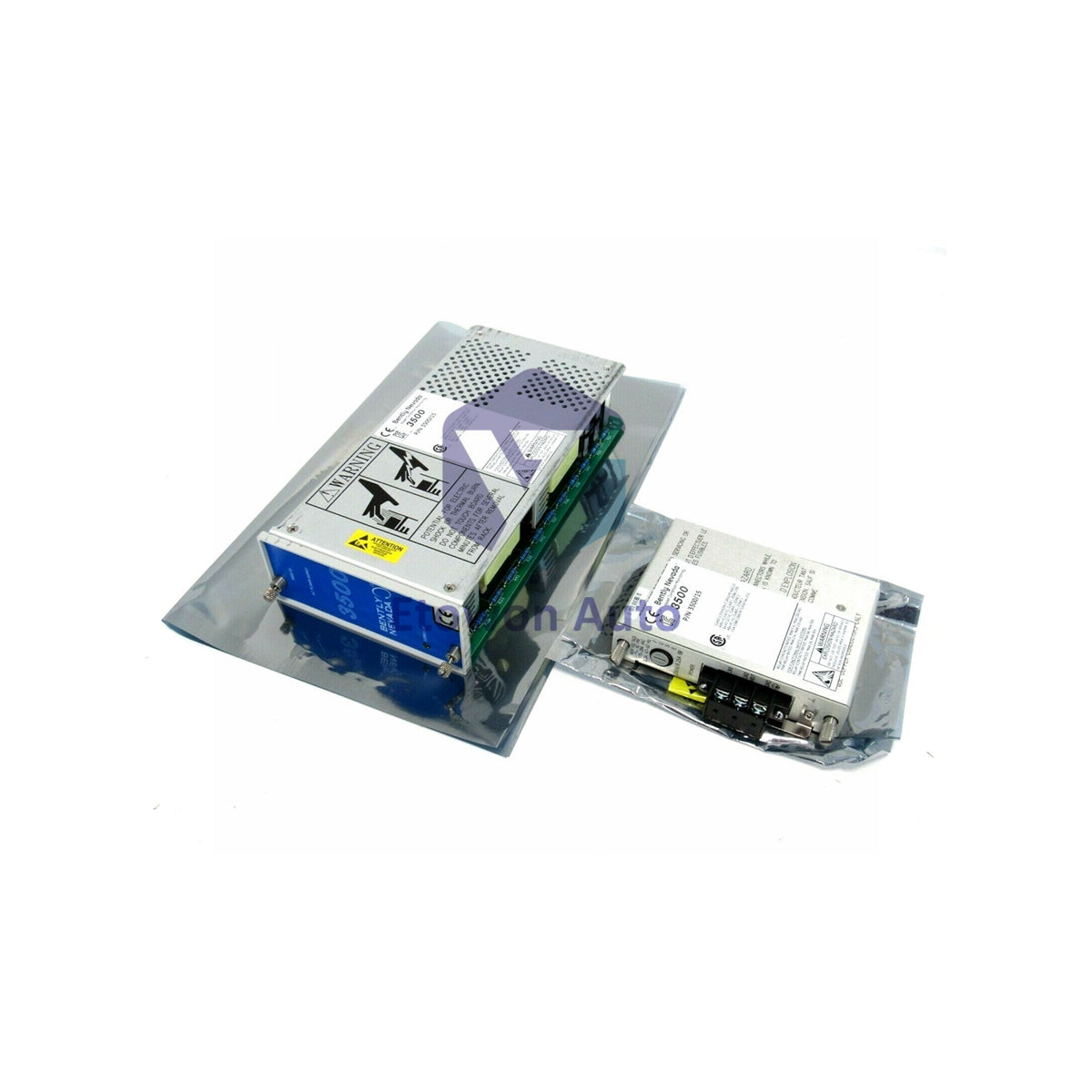

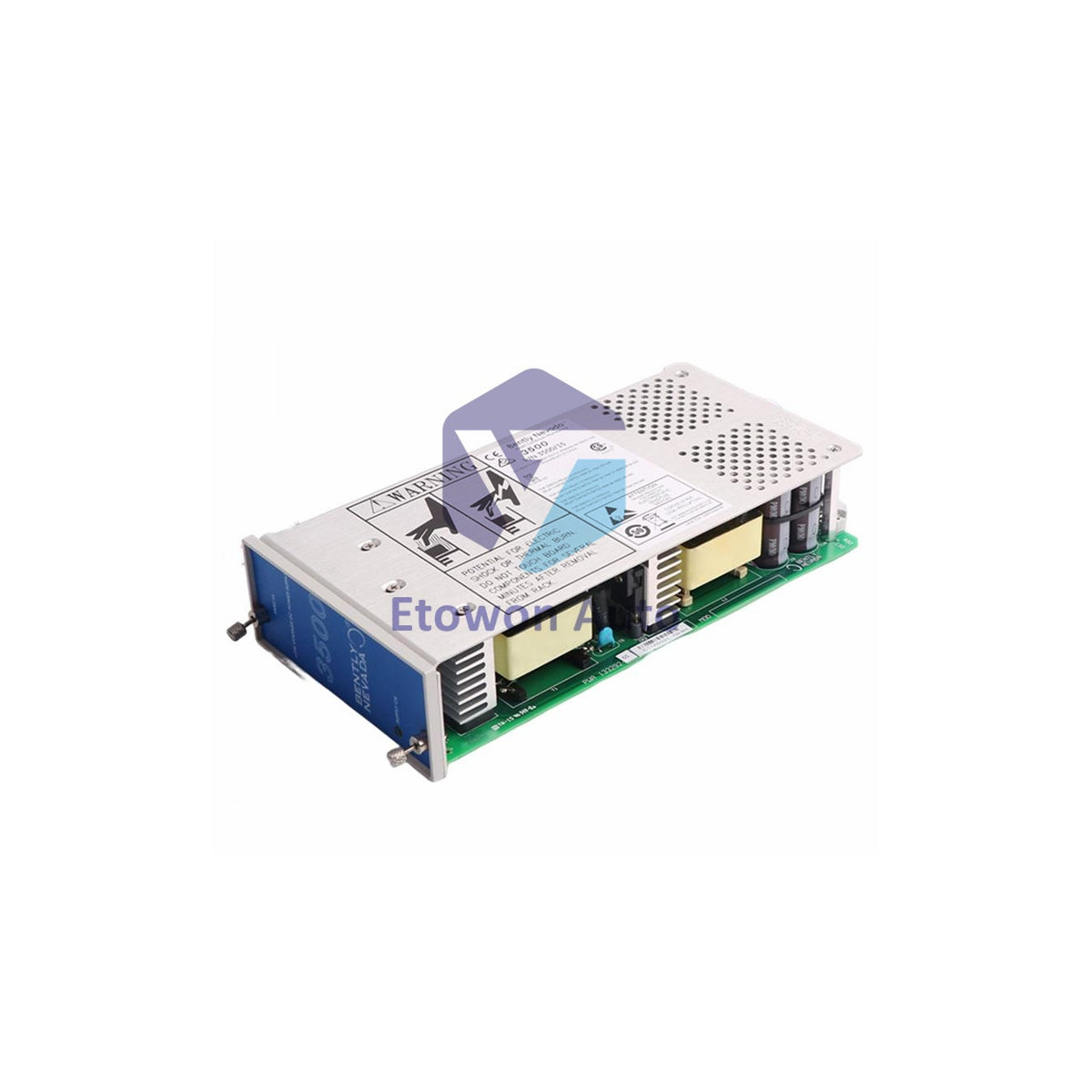

3500/15-03-03-02 Bently Nevada High Voltage DC PSU

Omborda (100 dona), jo'natishga tayyor

  • Manufacturer: Bently Nevada

  • Product No.: 3500/15-03-03-02

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1390g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Bently Nevada 3500/15-03-03-02 Power Supply Module

Product Overview

Bently Nevada 3500/15-03-03-02 is a high voltage DC power supply module for 3500 rack systems. Both top and bottom slots use Legacy High Voltage DC (88 to 140 V DC). ATEX IECEx CSA Zone 2 certified. Module weight 1.39 kg.

Model Number Breakdown

Option Code Description
03 (Top Slot) Legacy High Voltage DC (88 to 140 V DC)
03 (Bottom Slot) Legacy High Voltage DC (88 to 140 V DC)
02 (Agency Approval) ATEX / IECEx / CSA (Class 1, Zone 2)

Technical Specifications

Parameter Value
Manufacturer Bently Nevada
Part Number 3500/15-03-03-02
Power Supply Type High Voltage DC (88 to 140 V DC)
Input Voltage Range 20 to 30 V DC
Agency Approval ATEX, IECEx, CSA Class 1 Zone 2
Operating Temperature -20°C to 60°C
Dimensions (H x W x D) 120.7 x 50.8 x 251.5 mm
Weight 1.39 kg

Key Features

  • Dual high voltage DC supplies in top and bottom slots
  • 88 to 140 V DC input range
  • ATEX IECEx CSA Class 1 Zone 2 certified for hazardous areas
  • Redundant configuration for continuous operation
  • Half-height module for 3500 rack left side slots

Installation & Wiring Guide

DC Wiring: Connect DC positive to + terminal, negative to - terminal. Use 14-16 AWG copper wire. Torque terminals to 0.5 Nm. Verify voltage between 88-140 V DC before energizing. Under-voltage does not damage module; over-voltage opens internal PIM fuse.

Hazardous Area Installation: For Class 1 Zone 2 installations, use appropriately rated cable glands and seals. Ensure rack ground connection to plant earth. Follow ATEX IECEx installation requirements for area classification.

Redundancy Test: Both supplies operate in parallel. Remove one supply to verify other powers full rack load. Supply OK LED indicates proper operation.

FAQs

Q1: What DC voltage range does 3500/15-03-03-02 accept?
A1: 20 to 30 V DC input. Module converts to high voltage DC for rack operation.

Q2: What certifications does this module hold?
A2: ATEX, IECEx and CSA Class 1 Zone 2 certified for hazardous area installation.

Q3: Can both supplies run simultaneously?
A4: Yes. Both top and bottom slots can hold supplies for redundant parallel operation.
