171CCC98030

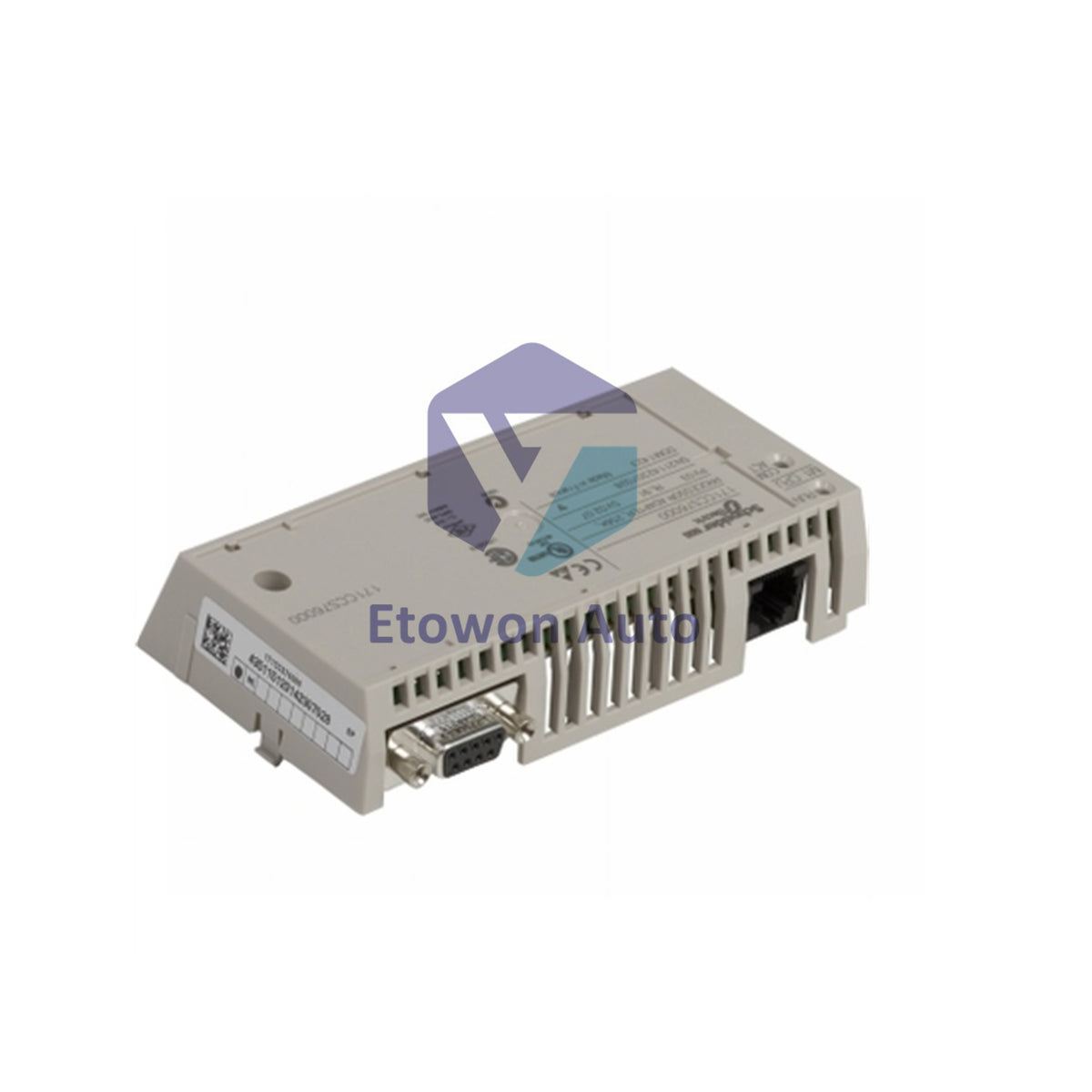

171CCC98030 Schneider Electric Ethernet Modbus Processor Module

Omborda (15 dona), jo'natishga tayyor

  • Manufacturer: Schneider

  • Product No.: 171CCC98030

  • Product Type: Processor Module

  • Product Origin: FR

  • Payment:T/T, Western Union

  • Weight: 202g

  • Shipping port: Xiamen

  • Warranty: 12 months

30 kunlik qaytarish siyosati · 12 oylik kafolat
  • Tez yetkazib berish
  • 24/7 Qo'llab-quvvatlash
  • Sifat nazorati

Tavsif

Schneider Electric 171CCC98030 Modicon Momentum M1/M1E Processor Adapter Module

The Schneider Electric 171CCC98030 is a high-performance M1/M1E processor adapter module engineered for the Modicon Momentum automation platform. Driven by a 50 MHz x86 processor running an IEC executive, this Transparent Ready (Class B10) CPU delivers fast execution speeds with a scan time of 0.3 ms per kilobyte. Equipped with dual onboard communication ports (one RJ45 Ethernet port supporting I/O Scanning and Modbus TCP, plus one RS-485 Modbus port), 1 MB Flash memory, and 544 KB RAM, it provides scalable, reliable control in a lightweight 0.20 kg package powered directly by the Momentum I/O base.

Technical Specifications

Brand / Manufacturer Schneider Electric
Complete Part Number 171CCC98030
Product Line / Concept Modicon Momentum Automation Platform | Transparent Ready (Class B10)
Processor Type & Frequency x86-Based (Intel/AMD) IEC Executive | 50 MHz Clock Frequency
Memory Architecture 1 MB Flash Storage | 544 KB RAM (200 KB IEC Program, 18 KB LL984, 24 KB Data)
Onboard Communication Ports 1 × Ethernet (Modbus TCP Messaging, I/O Scanning) | 1 × RS-485 (Modbus)
I/O Processing Capacities Discrete: 8,192 In / 8,192 Out | Registers: 26,048 In / 26,048 Out
Scan Speed & Word Length 0.3 ms / kB (1 ms per Kinstruction) | 16-Bit Word Length
Rated Supply Voltage 5.0 V DC (±5%) supplied by Momentum I/O Base
Compatible Software Concept V2.6, ProWORX 32, ProWORX NxT V2.0, Modsoft ≥ V2.5
Estimated Package / Net Weight Net: 0.042 kg (0.093 lbs) | Gross Package: 0.202 kg (0.45 lbs)
Operating & Storage Temperature 0°C to 60°C (32°F to 140°F) | Storage: -40°C to 85°C (-40°F to 185°F)
Certifications & Ratings CE, UL, cUL, FM Class 1 Division 2, NEMA Type 250

Quick Installation Guide

  • Snap the 171CCC98030 processor adapter directly onto the selected Modicon Momentum I/O base to establish 5V DC power and internal bus connections.
  • Connect network cabling to the Ethernet port (RJ45) for Modbus TCP messaging or I/O Scanning, and wire the RS-485 port for standard Modbus serial networks.
  • Utilize Web Page Loader software or embedded web services (Data Editor, Rack Viewer) for initial network configuration and diagnosis.
  • Download logic configuration files using Concept, ProWORX 32, or compatible programming software.

Technical FAQs

Q1: How is power supplied to the 171CCC98030 processor module?
A1: Power is supplied directly by the underlying Modicon Momentum I/O base unit at 5.0 V DC (±5%).

Q2: What Ethernet services are natively supported by this M1E processor?
A2: It supports I/O Scanning, Modbus TCP messaging, web server diagnostic pages (Rack Viewer, Data Editor), and Web Page Loader functionality.

Q3: Which programming packages can configure the 171CCC98030?
A3: It is compatible with Concept V2.6, ProWORX 32, ProWORX NxT V2.0, and Modsoft (V2.5 or higher).
