IC693MCM001

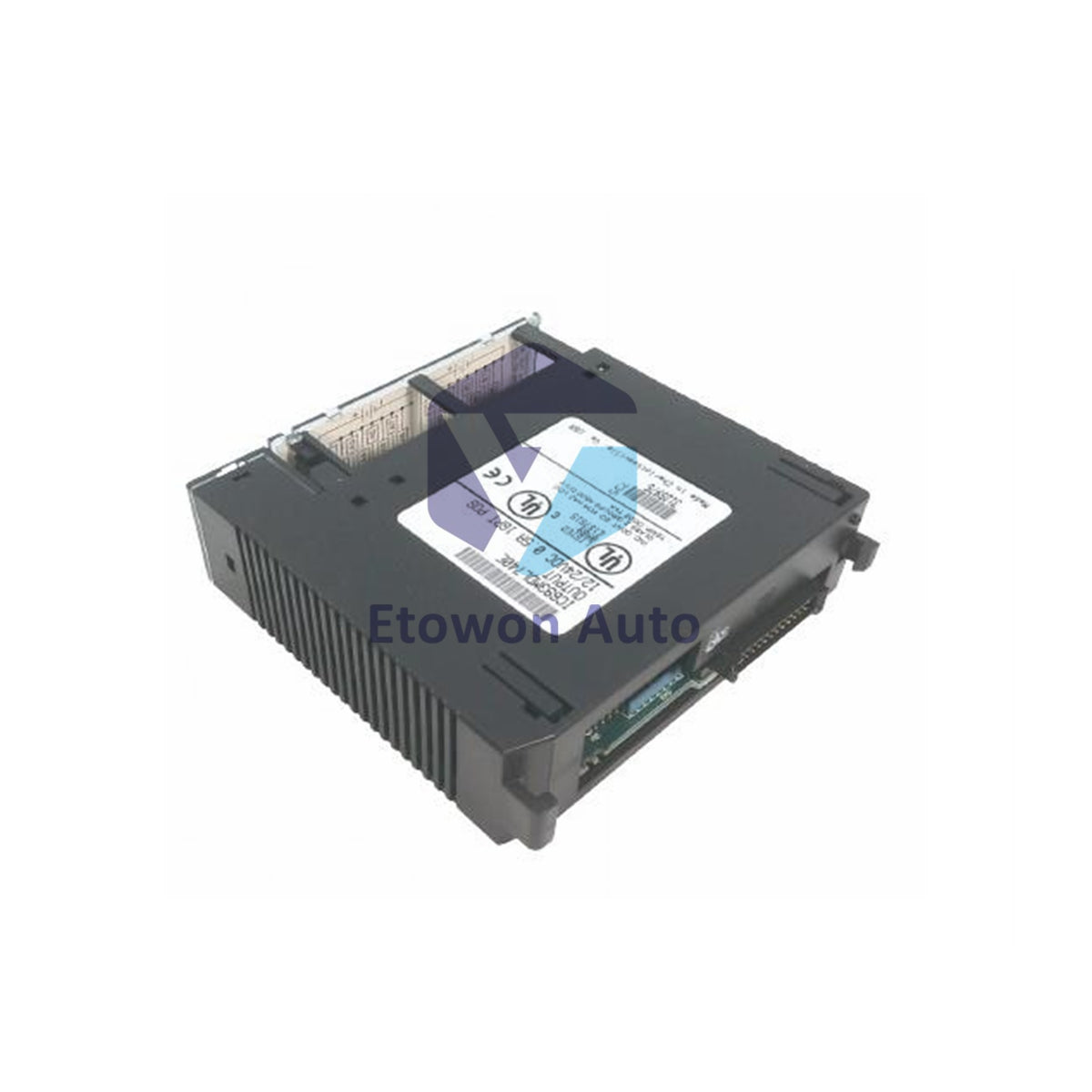

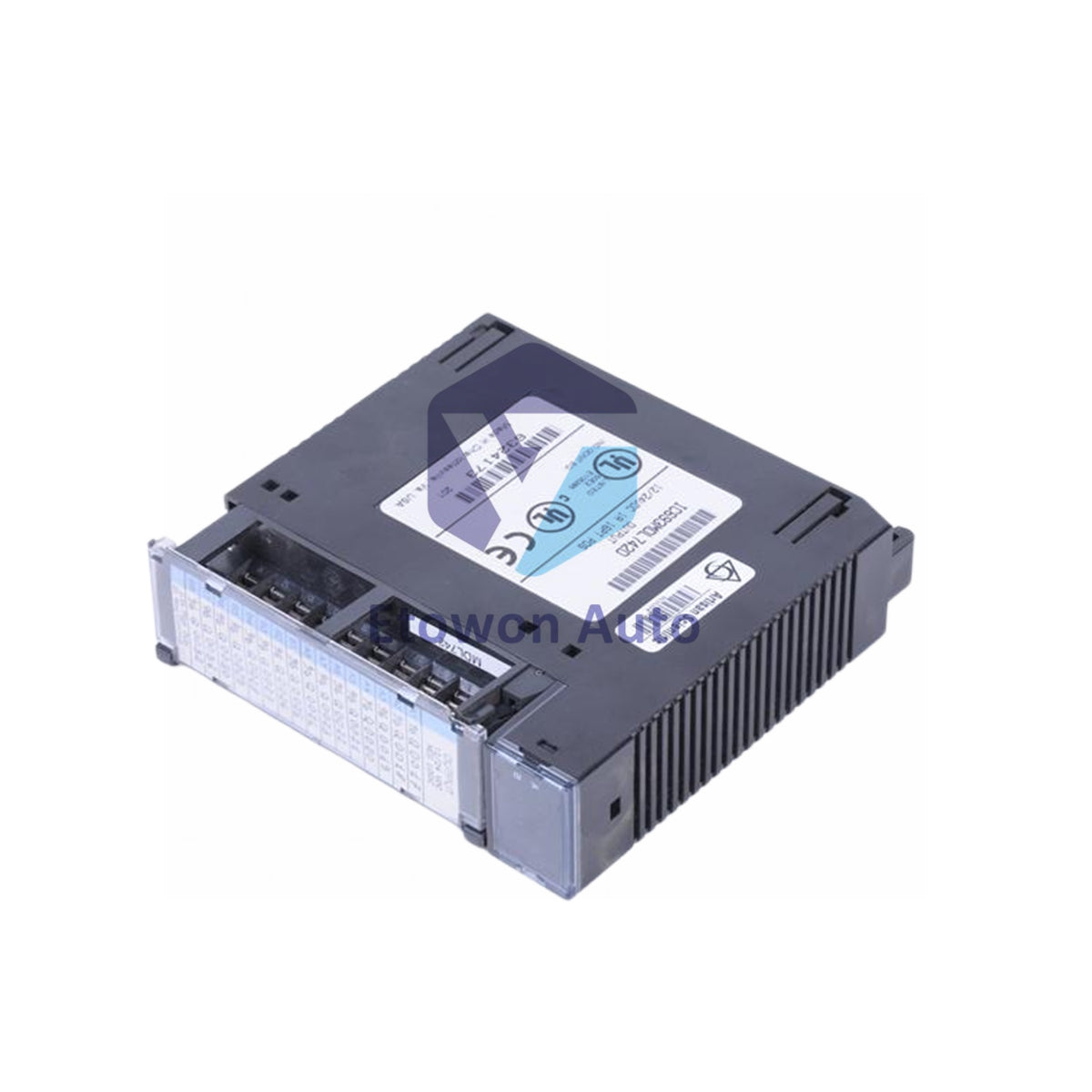

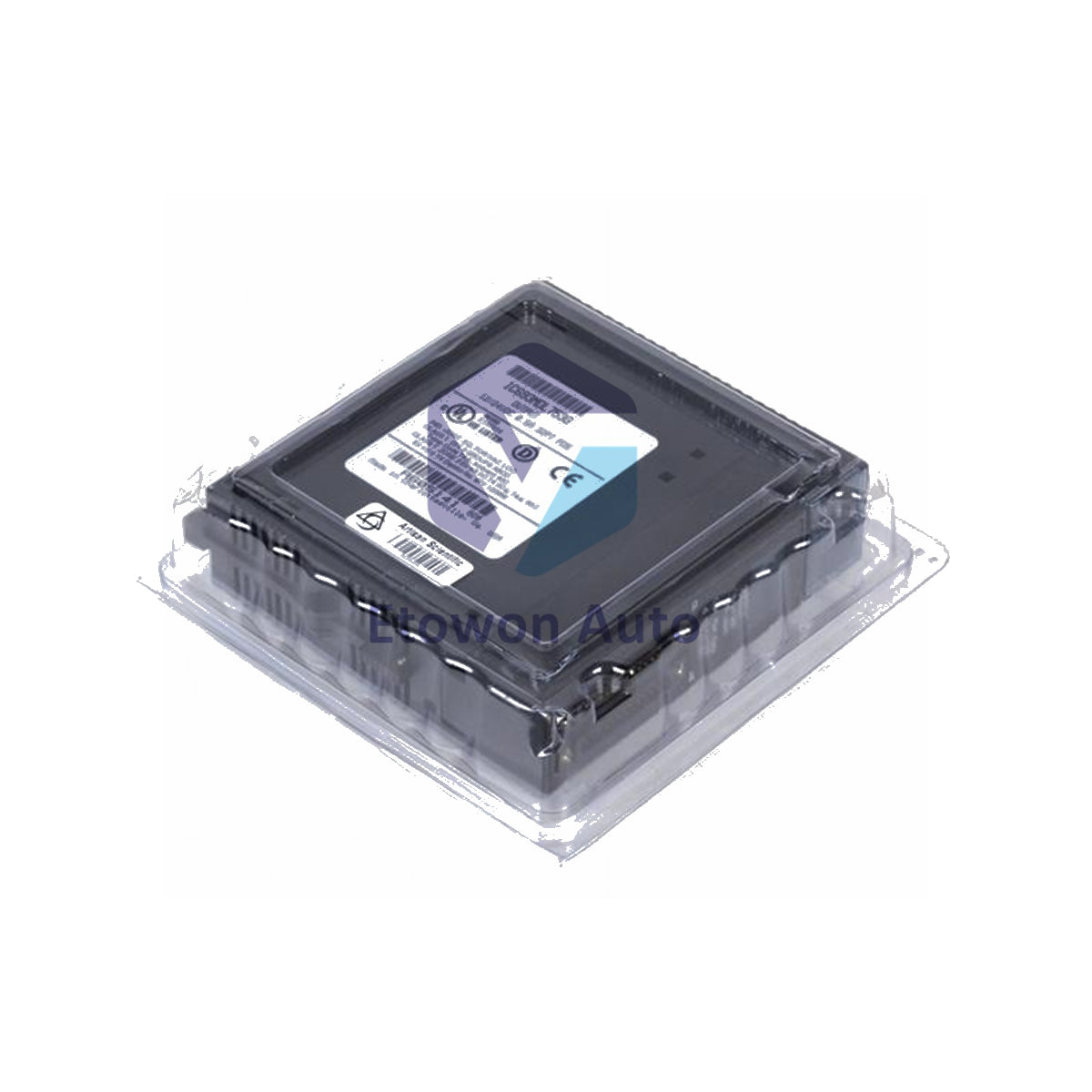

IC693MCM001 GE Fanuc Series 90-30 Motion Control Module

Only 10 units left

  • Manufacturer: General Electric

  • Product No.: IC693MCM001

  • Product Type: Control Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1360g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

Technical Specifications

Manufacturer / Brand GE Fanuc / GE Intelligent Platforms
Product Series Series 90-30 PLC
Part Number IC693MCM001
Product Type Motion Control Module
Digital Inputs 16-point digital inputs
Servo Performance Servo Loop Update Time: 2 milliseconds | Block Processing: < 5 seconds
Memory Storage Non-Volatile Flash Storage (Supports 40 subroutines, 10 programs)
Control Signal Output Digital torque and velocity control
System Compatibility Power Mate J (v3.52+), IC693 CPU & IC641 Software (v6.01+)
Operating Temperature 0 to 60°C (Storage: -40 to 85°C) | Compliance: EN 61000-4-2
Weight 3.00 lbs (1.36 kg)

Product Overview

The GE IC693MCM001 is a high-performance Motion Control Module weighing 3.00 lbs (1.36 kg) designed for GE Series 90-30 PLC systems. Featuring 16-point digital inputs and non-volatile flash storage capable of holding up to 40 subroutines and 10 motion programs, this module delivers digital torque and velocity control. With a fast 2 ms servo loop update time and compliance with EN 61000-4-2 standards, it ensures precise multi-axis positioning for complex industrial automation setup.

Key Features

  • Rapid Servo Performance: Achieves a fast 2 ms servo loop update time for precise digital torque and velocity motion control.
  • Non-Volatile Flash Storage: Internal memory supports up to 10 independent programs and 40 subroutines without battery dependency.
  • Integrated Digital I/O: Built-in 16-point digital inputs allow direct integration of limit switches, home sensors, and external motion triggers.
  • Broad System Interoperability: Interfaces with Power Mate J software (v3.52+) and Series 90-30 CPUs running software version 6.01 or higher.

Installation Essentials

Insert the IC693MCM001 module into a designated slot on a Series 90-30 baseplate while system power is off. Verify that the IC693 CPU firmware and IC641 programming software are updated to version 6.01 or higher prior to configuration. Ensure the operating ambient environment remains within 0 to 60°C to maintain system reliability.

Technical FAQs

Q1: What is the main application of the GE IC693MCM001 module?
A1: It is a motion control module providing digital torque and velocity control in Series 90-30 PLCs.

Q2: What are the memory and loop update specifications?
A2: It features non-volatile flash memory for 10 programs/40 subroutines and a 2 ms loop update time.

Q3: What software and firmware versions are required?
A3: It requires Power Mate J (v3.52+) and IC693 CPU/IC641 software version 6.01 or higher.
