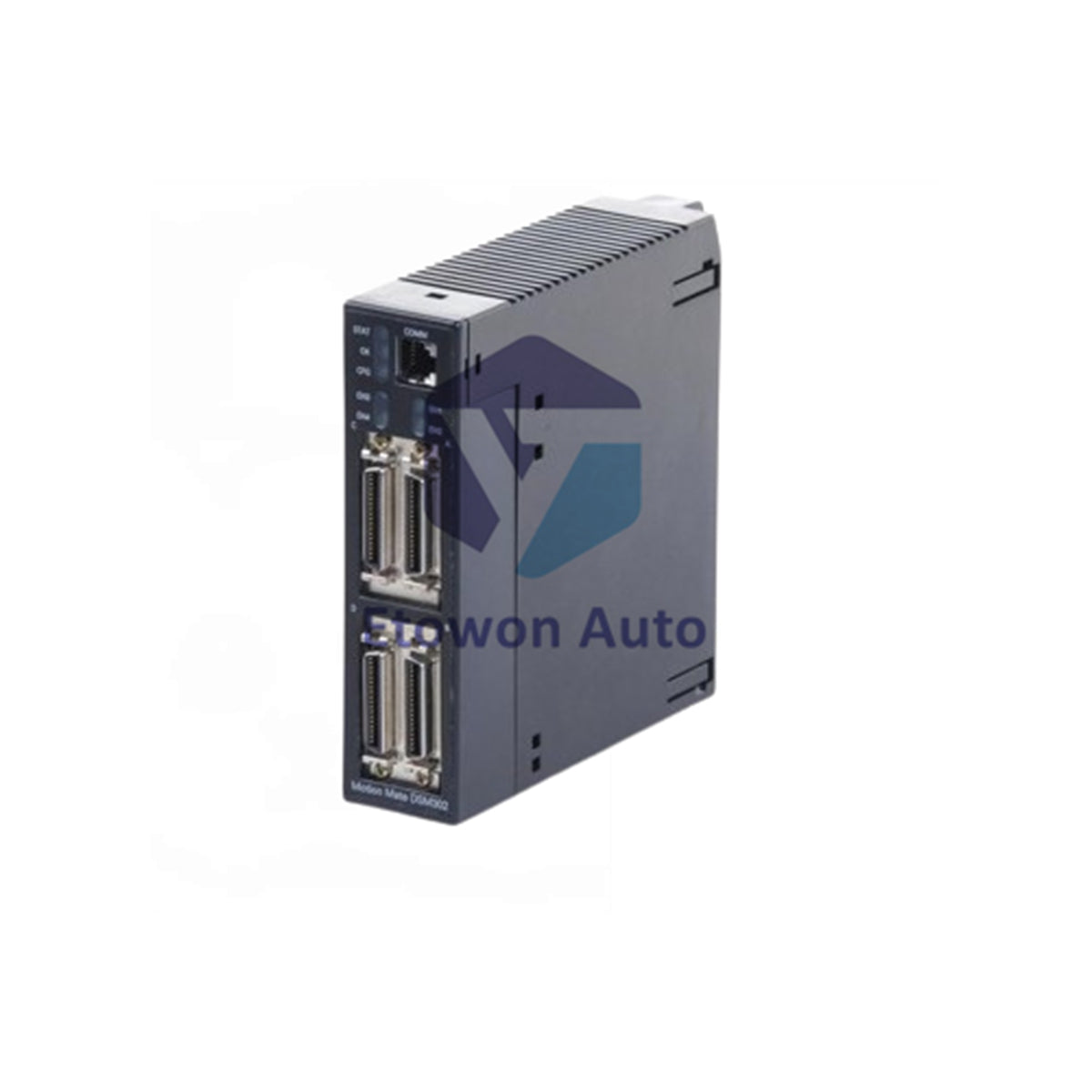

GE Fanuc IC693DSM302 Motion Mate Digital Servo Module

In stock (13 units), ready to be shipped

  • Manufacturer: General Electric

  • Product No.: IC693DSM302

  • Product Type: Servo Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

30-Day Return Policy · 12-Month Warranty
  • Fast Delivery
  • 24/7 Support
  • Quality Assurance

Description

GE Fanuc IC693DSM302 Motion Mate Digital Servo Module

The GE Fanuc IC693DSM302 is a Motion Mate digital servo module designed for the Series 90-30 PLC system. This module provides precise motion control for servo axes in automation applications. Featuring non-volatile memory that supports 10 programs and 40 subroutines, it ensures robust data retention. Weighing 0.45 kg (0.99 lbs), it consumes 450 mA from the 5 V DC backplane.

Technical Specifications

Parameter Value
Manufacturer GE Fanuc
Model Number IC693DSM302
Product Type Motion Mate Digital Servo Module
Weight 0.45 kg (0.99 lbs)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Backplane Current Consumption 450 mA @ 5 V DC
Non-Volatile Storage 10 Programs, 40 Subroutines

Model Number Breakdown

  • IC693 – GE Fanuc Series 90-30 PLC Compatible
  • DSM – Digital Servo Module
  • 302 – Motion Mate Variant

Installation & Field Application Guide

  • Install the DSM302 module in any available slot of the Series 90-30 rack. Ensure the backplane power supply can handle the 450 mA draw.
  • Connect servo feedback cables (encoder and resolver) to the front connector. Use shielded cables for noise immunity.
  • Configure the module using Motion Mate programming software. Define axis parameters, motion profiles, and program logic.
  • Load up to 10 motion programs and 40 subroutines into the non-volatile memory for autonomous operation.

Why Choose the IC693DSM302

  • Precise servo control for multi-axis motion applications.
  • Non-volatile memory retains 10 programs and 40 subroutines without battery backup.
  • Compatible with GE Fanuc Series 90-30 PLC systems.
  • Robust architecture designed for demanding industrial environments.

Field Engineer FAQs

Q1: How many axes does the IC693DSM302 control?

A1: The DSM302 supports up to 4 axes of servo control, depending on the configuration and firmware version.

Q2: Can I use this module with a non-GE Fanuc servo drive?

A2: The DSM302 outputs ±10V analog command signals, making it compatible with most third-party servo drives that accept analog velocity/torque commands.

Q3: What is the maximum program capacity for motion sequences?

A3: The non-volatile memory stores up to 10 motion programs and 40 subroutines, with a total of 1000 motion blocks across all programs.
