Delta MS300 VFD1A6MS11ENSAA | IP40 Rated Mini Drive

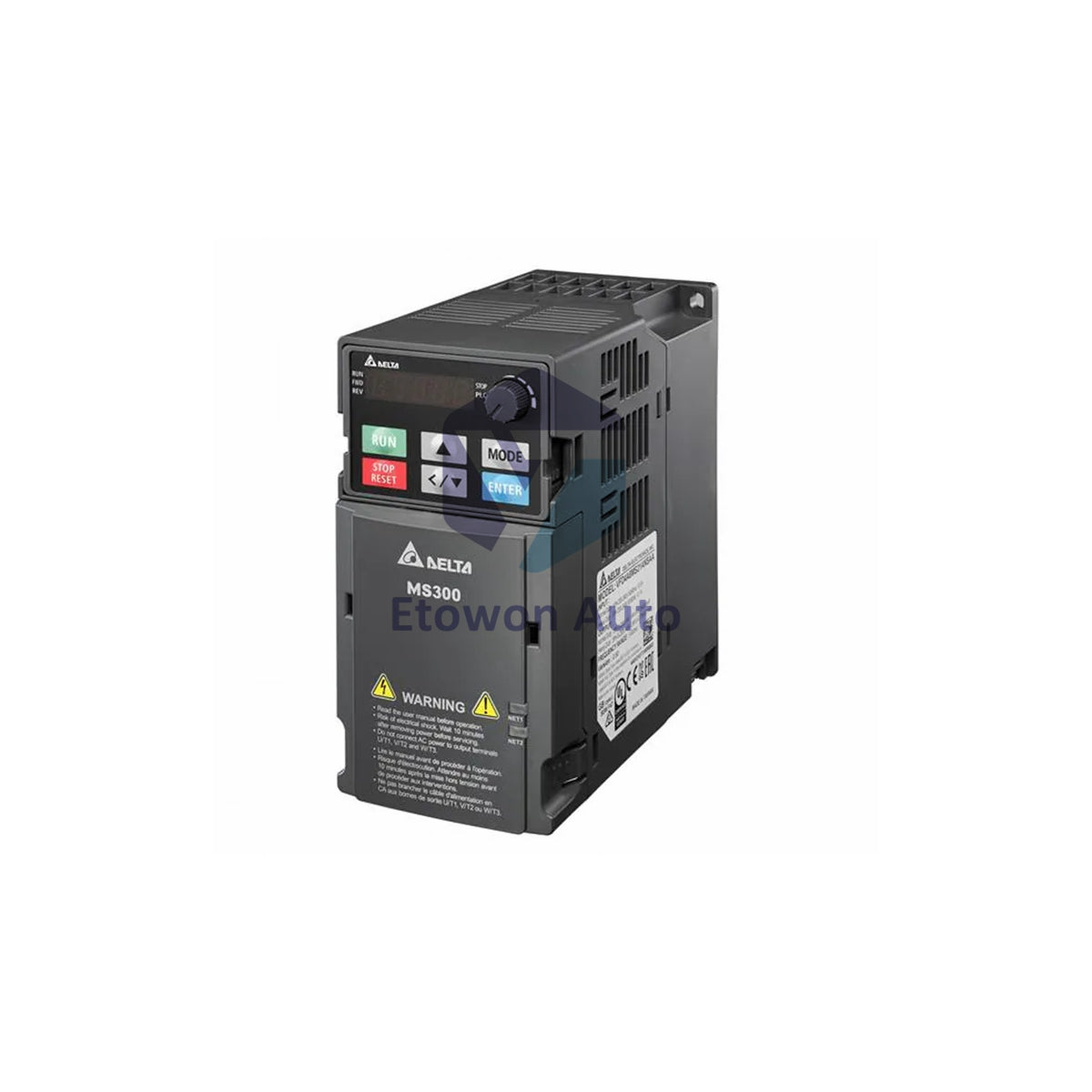

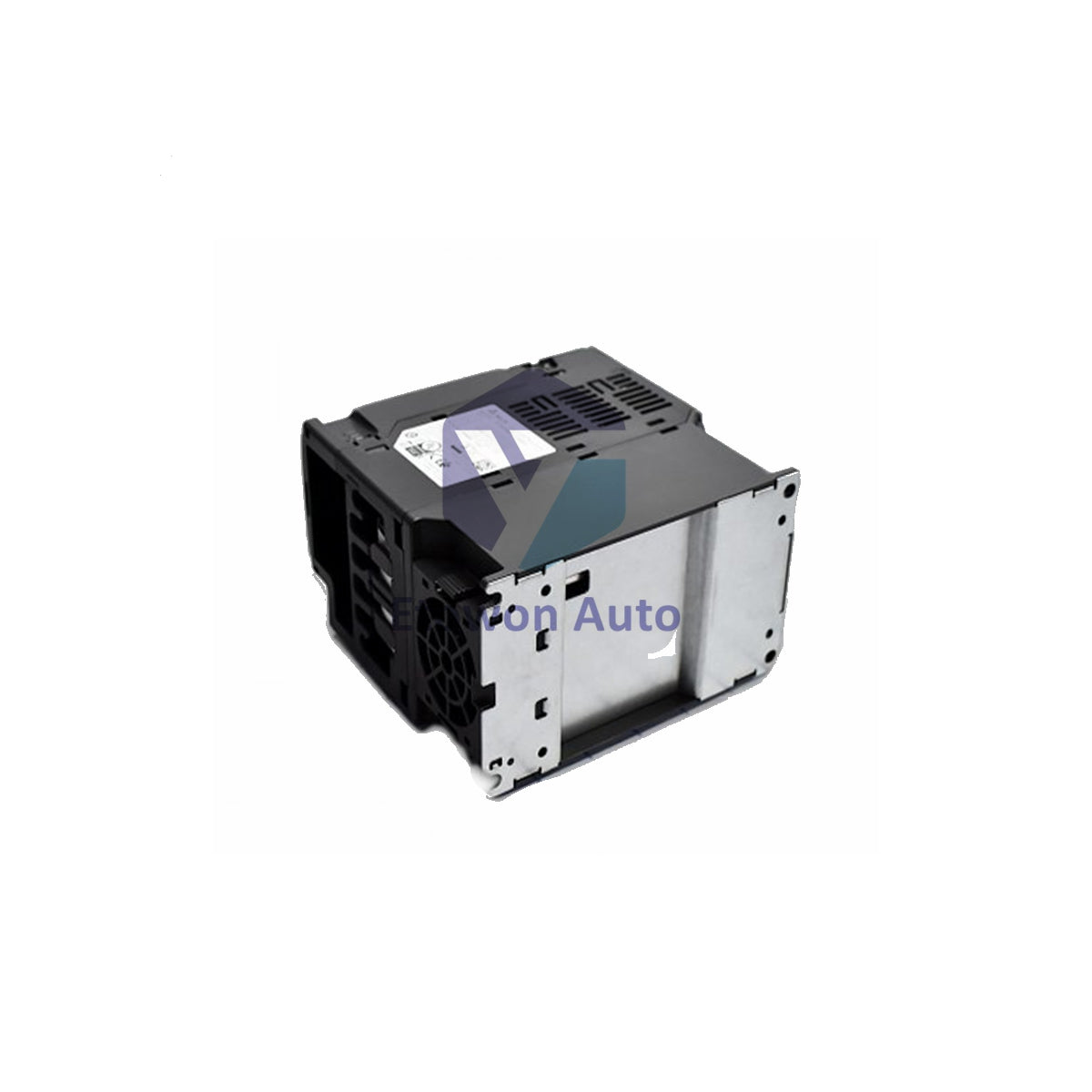

Delta VFD1A6MS11ENSAA MS300 Series Variable Frequency Drive

The VFD1A6MS11ENSAA from Delta Electronics provides compact motor control with enhanced protection. This MS-300 series drive works with 115V single-phase power and supports motors up to 0.25 horsepower. It features improved IP40 rating for better environmental protection in demanding conditions.

Technical Specifications

• Brand: Delta Electronics
• Model: VFD1A6MS11ENSAA
• Series: MS-300
• Input Power: 115V - 1 Phase
• Motor Power: 0.25 HP (0.2 KW)
• Frequency Range: 0 - 599 Hz
• Heavy Duty Output: 1.6 Amps
• Normal Duty Output: 1.8 Amps
• Protection Rating: IP40
• EMC Filter: Optional
• Frame Size: A1
• Weight: 1.5 lbs (0.68 kg)
• Dimensions: 2.68" x 5.04" x 3.8"

Performance Features

• 0-599 Hz frequency range for precise speed control
• IP40 protection against dust and water splashes
• Compact A1 frame design for space-saving installation
• Dual current ratings: 1.6A heavy duty and 1.8A normal duty
• Optional EMC filter for reduced electromagnetic interference

Installation & Packaging

• Install in areas with proper air circulation
• Connect to 115V single-phase power source
• Package includes complete drive unit and manual
• Shipping options include FedEx, UPS, and DHL

Frequently Asked Questions

• What is the protection rating? Features IP40 rating for dust and moisture protection.
• What motors work with this drive? Controls single-phase motors up to 0.25HP.
• Does this include an EMC filter? EMC filter is available as an optional accessory.
