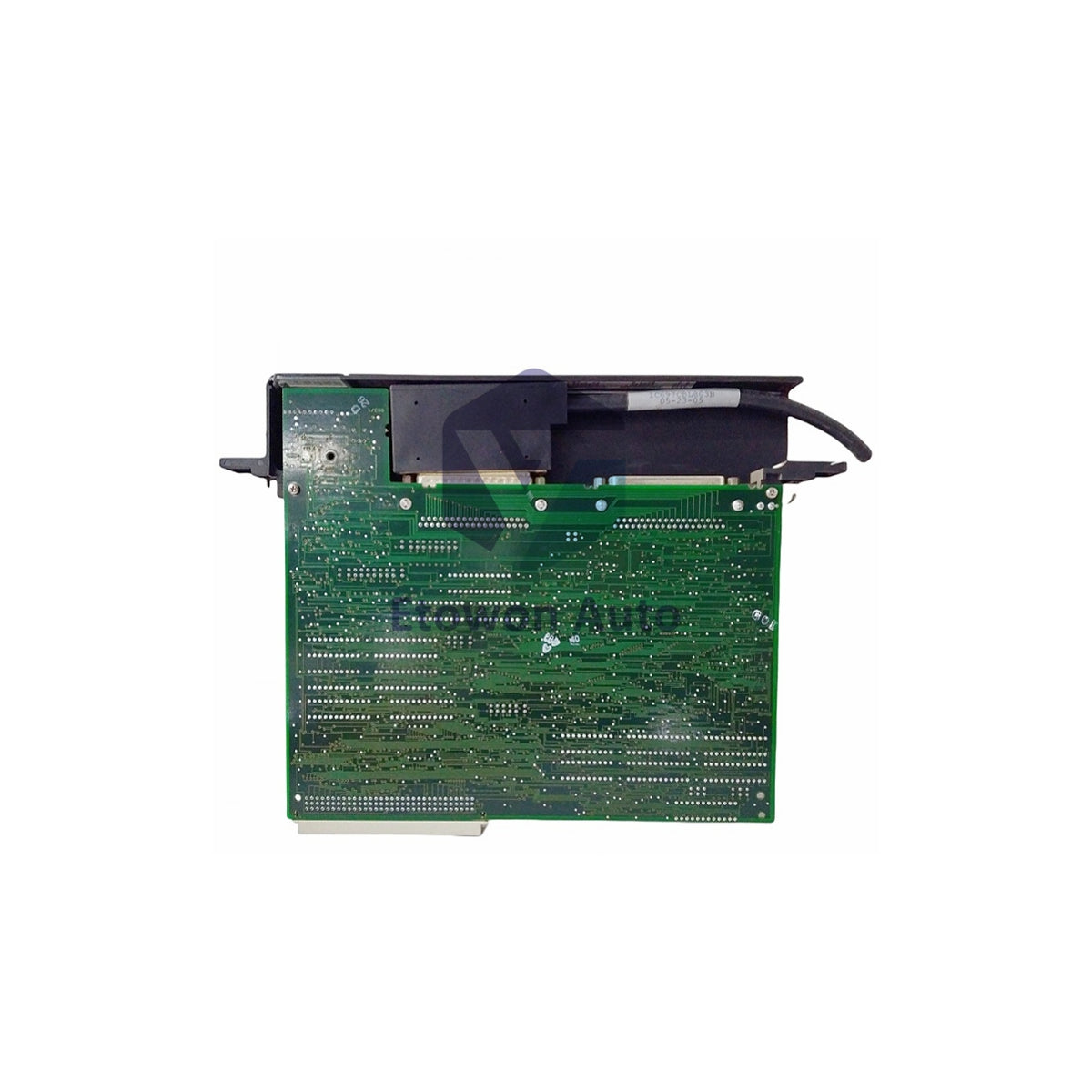

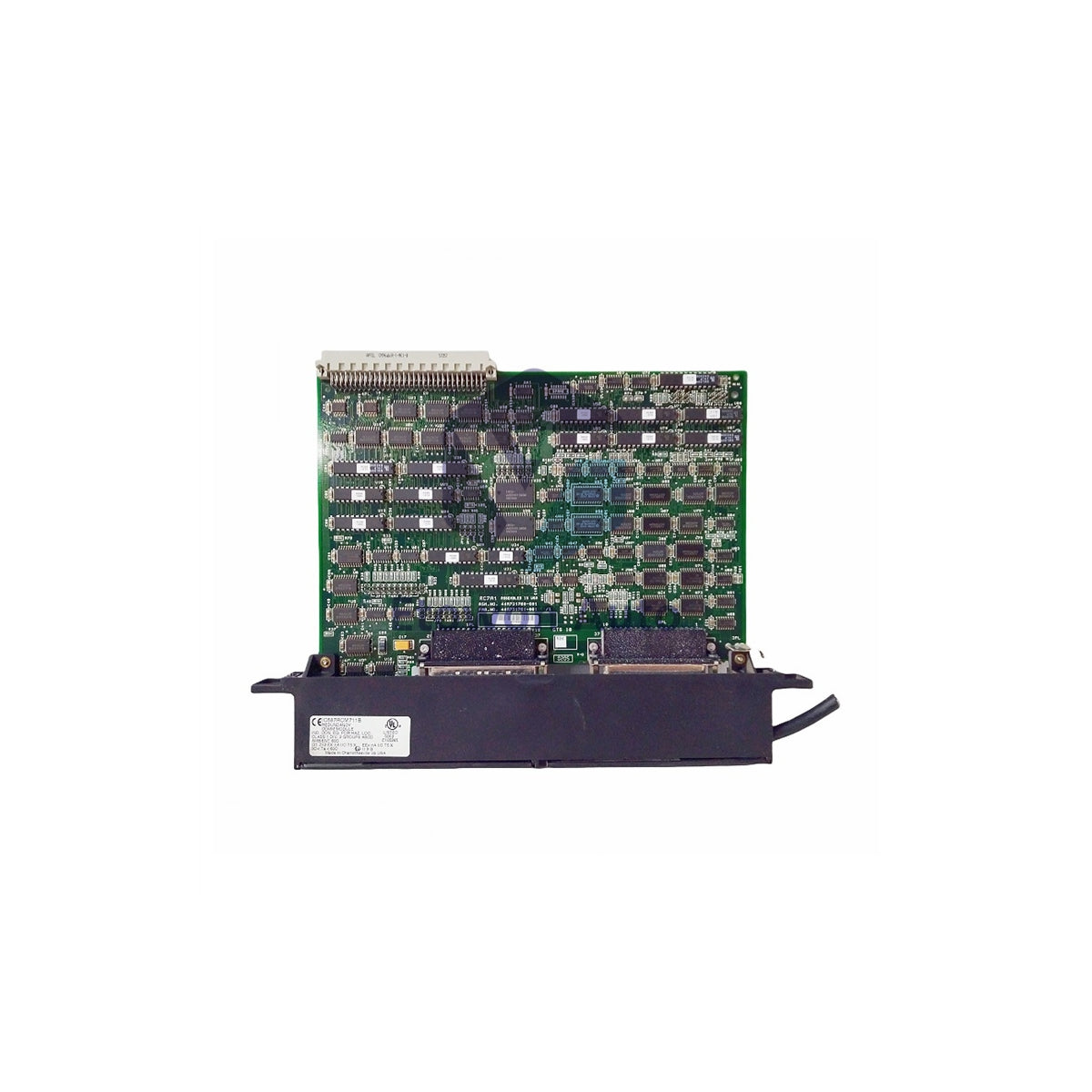

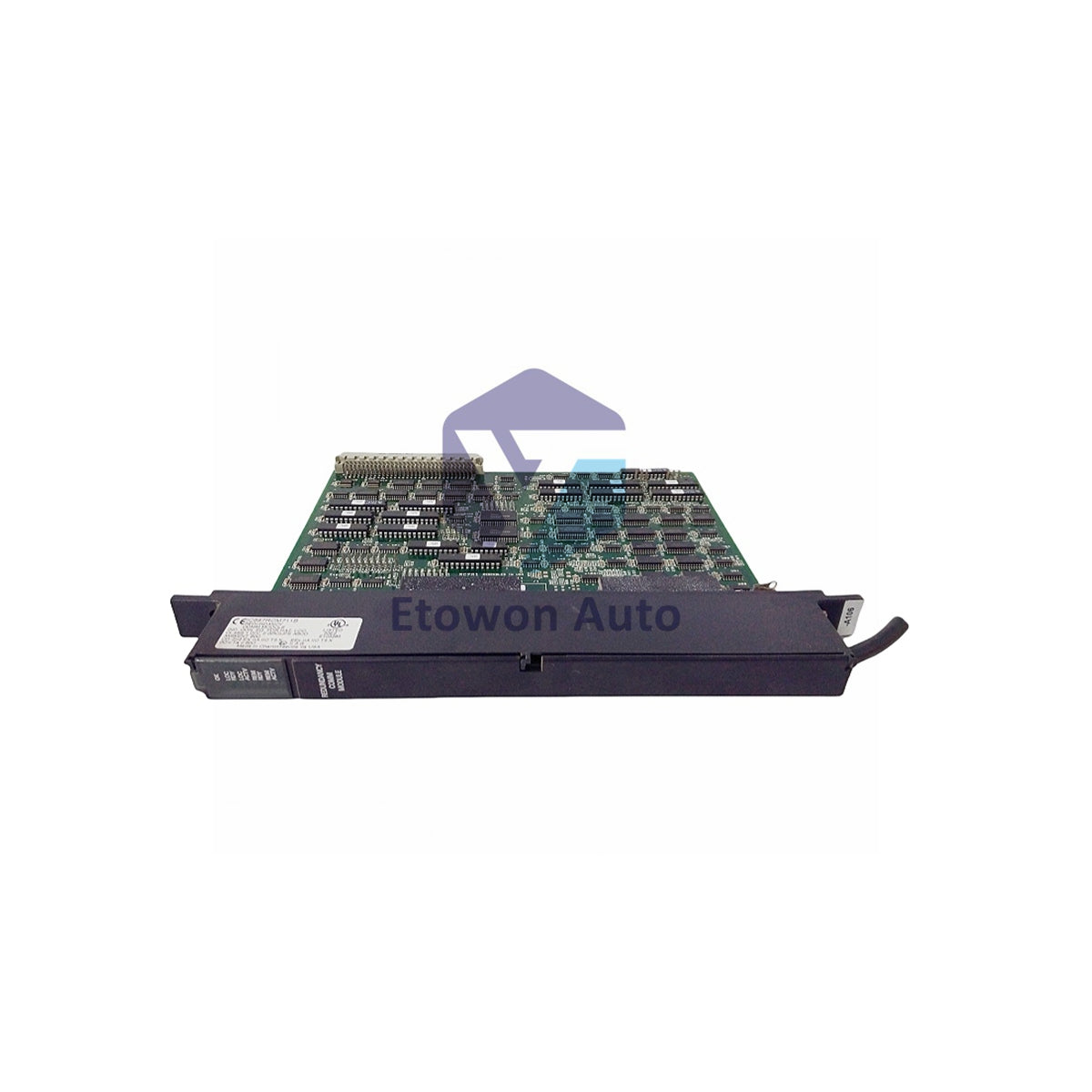

IC687RCM711 GE Fanuc Series 90-70 na'urar daidaitawa ta nesa

Takaitaccen Bayanin Samfuri

GE Fanuc IC687RCM711 na'ura ce ta musamman ta Remote Configuration Module (RCM) da aka kera musamman don dandamalin sarrafa masana'antu na Series 90-70. An tsara ta don sauƙaƙa musayar bayanai da sauri a cikin tsarin gine-ginen da ya yi daidai da VME, kuma na'ura ce mai matuƙar muhimmanci ga tsarin sarrafa da aka rarraba waɗanda ke buƙatar daidaitaccen daidaito na lokaci da saitawa.

Ƙayyadaddun Bayanai na Fasaha

Jagorar Shigarwa & Injiniyanci

IC687RCM711 tana da masu haɗa igiyoyi masu ɗaukar wayoyi da yawa guda biyu a saman da ƙasan fuskar na'urar don sauƙaƙe hanyar kebul. Lokacin shigarwa, tabbatar cewa wutar bas ɗin 5V na iya bayar da 1.2 Amps da ake buƙata don guje wa rashin kwanciyar sadarwa. Don kula da ƙimar bayanai ta 500 KB/sec, ana ba da shawarar amfani da kebul mai inganci, mai ƙwaya guda na AWG 24 ko 22 nau'in twisted-pair. Ya kamata a ɗora na'urar a cikin madaidaicin rack na Series 90-70 inda zafin danshi na iska yake tsakanin 5% zuwa 95% ba tare da yin ƙura ba, domin hana lalacewar ƙwayar ƙarfe ga kewayan sadarwa ta bambanci mara keɓewa.

Tambayoyin Fasaha (FAQs)

Q1: Wane irin kebul ne ya fi dacewa da IC687RCM711?
A1: Domin samun ƙwarin aiki mafi girma da cikakken tazarar 15m, GE Fanuc na ba da shawarar amfani da kebul mai ƙwaya guda (solid-core) da kaurin AWG 24 ko AWG 22 domin kiyaye ingancin sigina na sadarwar bambanci.

Q2: Shin wannan na'urar tana buƙatar keɓewa daga waje?
A2: Tunda IC687RCM711 yana amfani da sadarwa ta bambanci mara keɓewa, injiniyoyi ya kamata su tabbatar da ingantacciyar ƙasa (grounding) kuma su guji wuce kebloli kusa da manyan hanyoyin ƙarfin lantarki waɗanda za su iya haifar da cunkoson wutar lantarki (EMI).

Q3: Nawa ne alamomin matsayi da ke kan na'urar?
A3: Ana sanye da wannan na'urar da fitilu 5 kore na nuna matsayi waɗanda ke nuna yanayin aiki na yanzu, zirga-zirgar bayanai, da lafiyar tsarin na kayan aikin saiti daga nesa.
