21000-28-10-00-066-04-02

Housing Assembly Bently Nevada 21000-28-10-00-066-04-02

Ragowar raka'a 4 kaɗai

  • Manufacturer: Bently Nevada

  • Product No.: 21000-28-10-00-066-04-02

  • Product Type: Housing Assembly

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1100g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

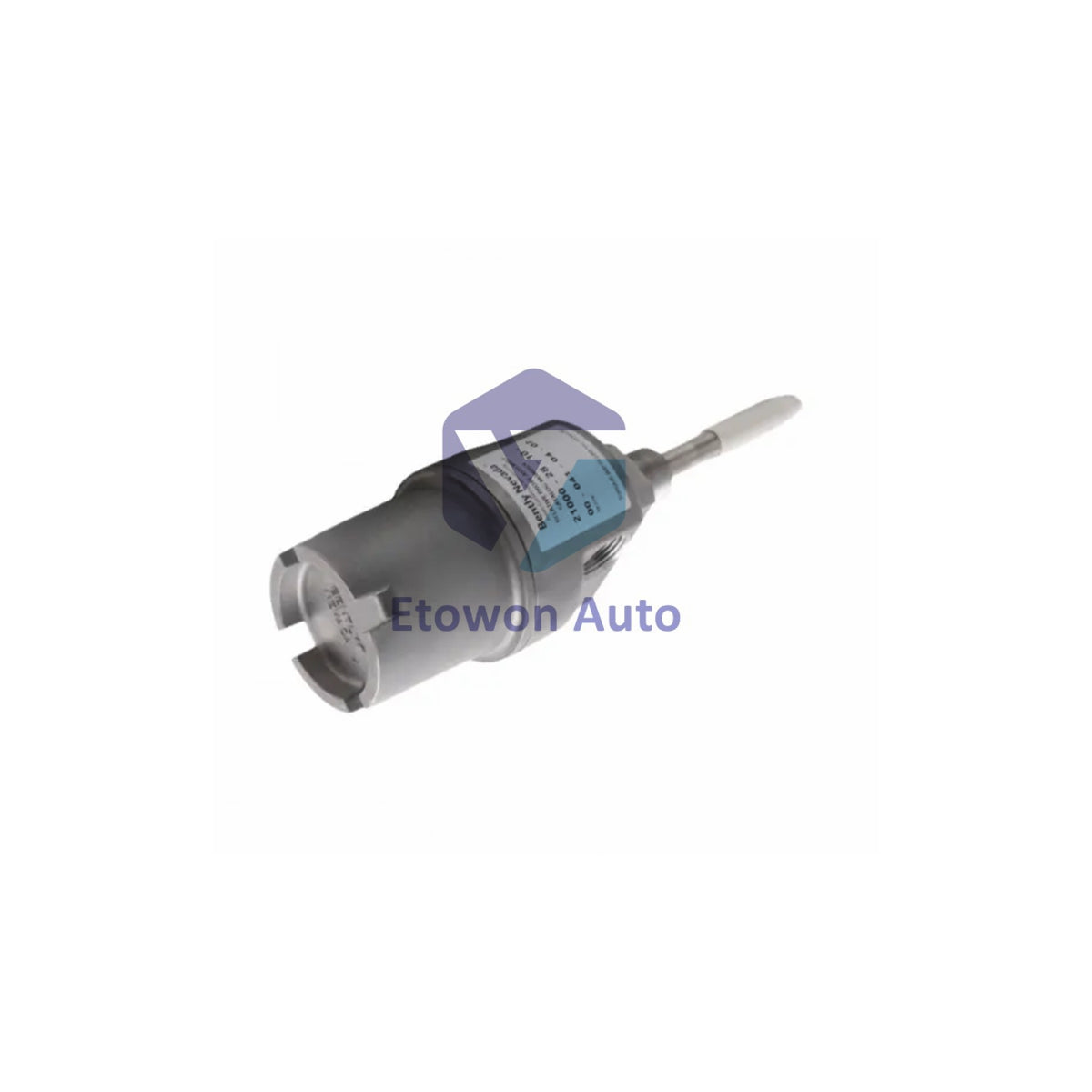

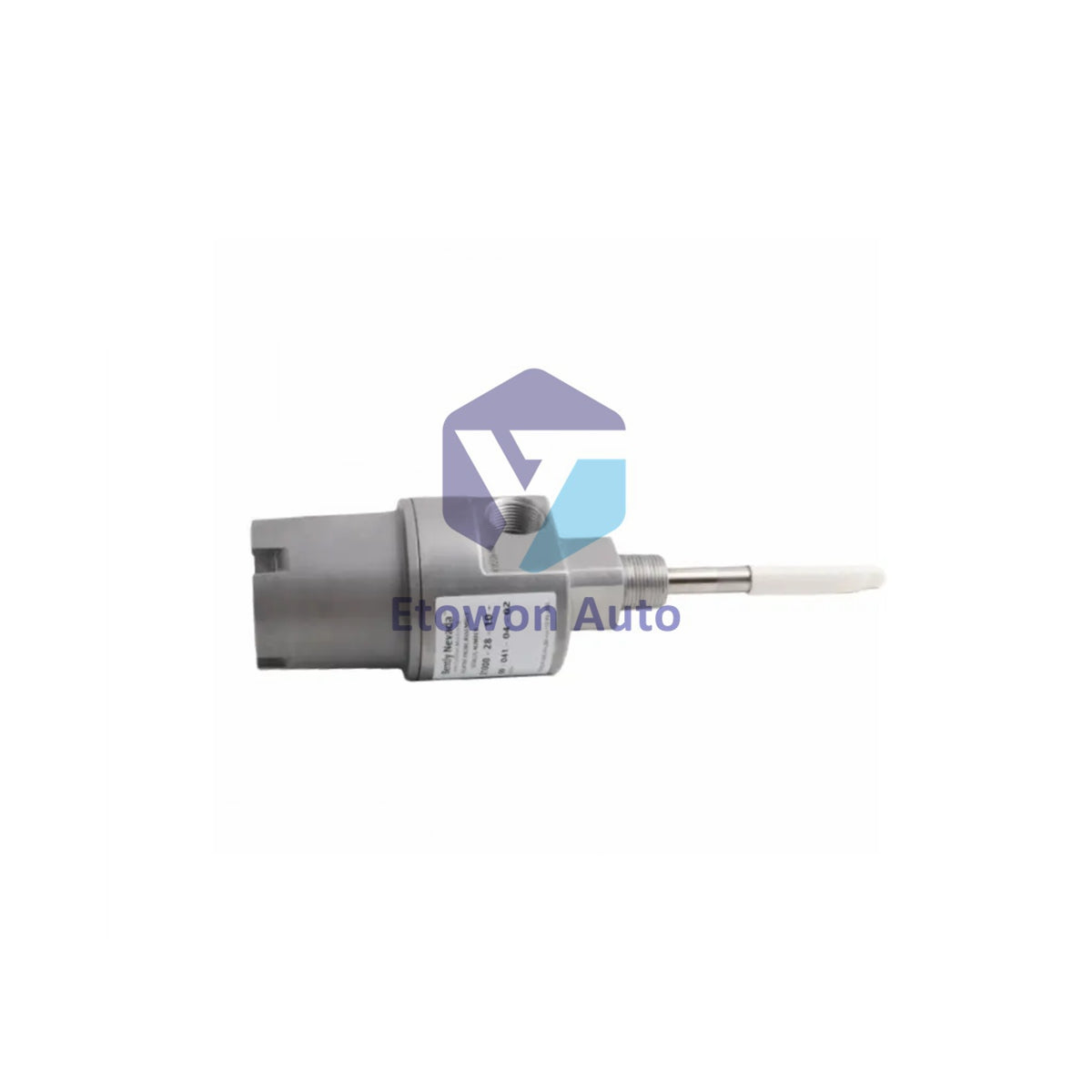

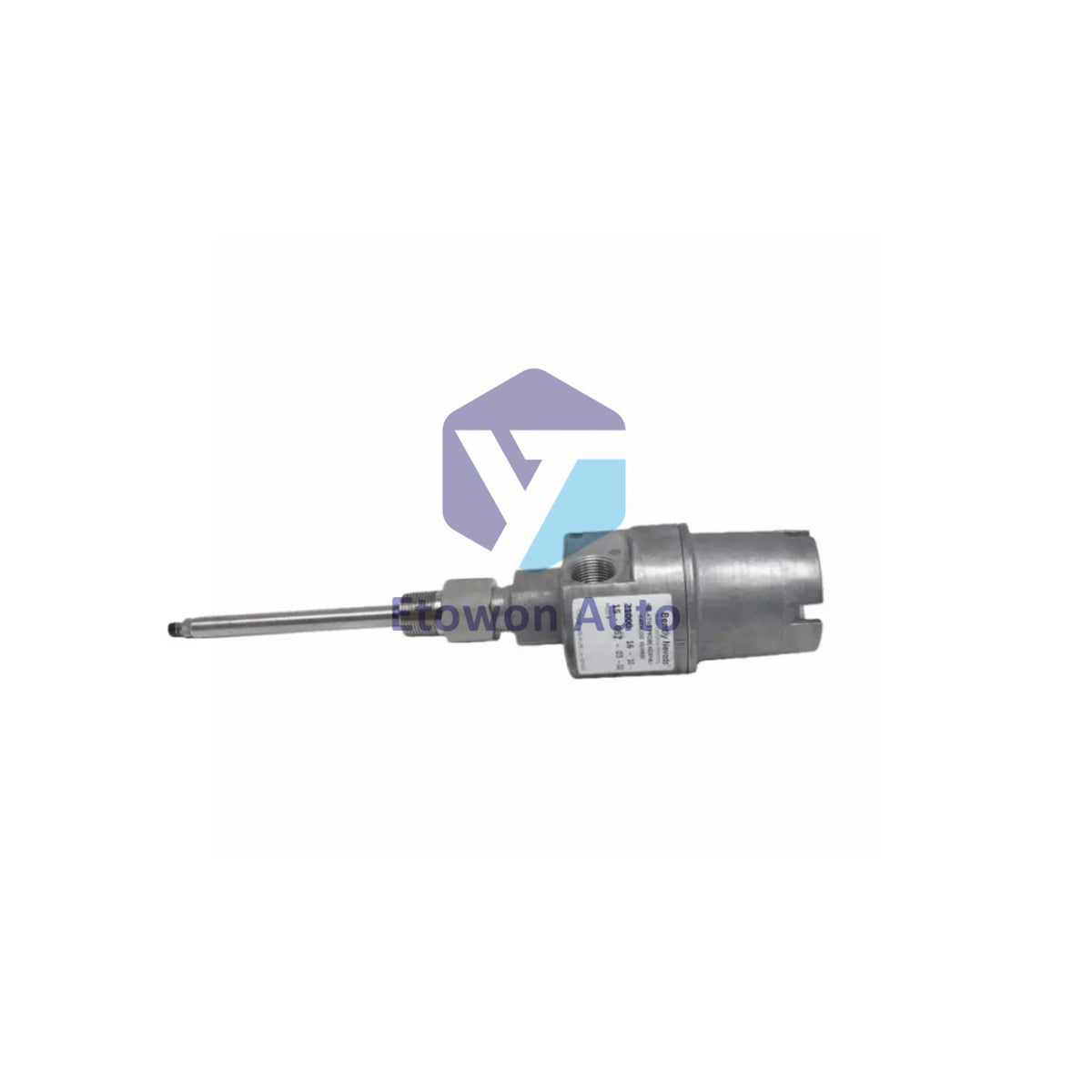

Bently Nevada 21000-28-10-00-066-04-02 Probe Housing Assembly

Aluminum proximity probe housing with 8mm XL probe. CSA certified explosion-proof for hazardous areas. API 670 compliant.

Product Identity

  • Part Number: 21000-28-10-00-066-04-02
  • Brand: Bently Nevada
  • Condition: New in factory seals
  • Material: Aluminum body with 304 stainless steel sleeve
  • Weight: 1.1 kg (2.4 lb) bare unit

Configuration Breakdown

  • 28 - 3300 XL 8mm probe with selectable hazardous area approvals
  • 10 - 1.0 meter (39 inches) probe cable length
  • 00 - No standoff adapter
  • 066 - 6.6 inches probe penetration
  • 04 - One 3/4-14 NPT plug only (fittings)
  • 02 - 3/4-14 NPT mounting thread

Technical Specifications

  • Temperature Range (Probe): -51°C to +177°C (-60°F to +351°F)
  • Housing Operating Temp: -40°C to +120°C
  • Output Signal: 200 mV/mil linear
  • Accuracy: ±1% full scale
  • Enclosure Rating: CSA Type 4

FAQ

Q: What probe is included?

A: 3300 XL 8mm probe with selectable hazardous area approvals.

Q: What is the temperature rating?

A: Housing operates from -40°C to +120°C. Probe operates from -51°C to +177°C.

Q: Do I need sleeve support for 6.6 inch penetration?

A: No. Support required only when penetration exceeds 12 inches (305 mm).

Download
