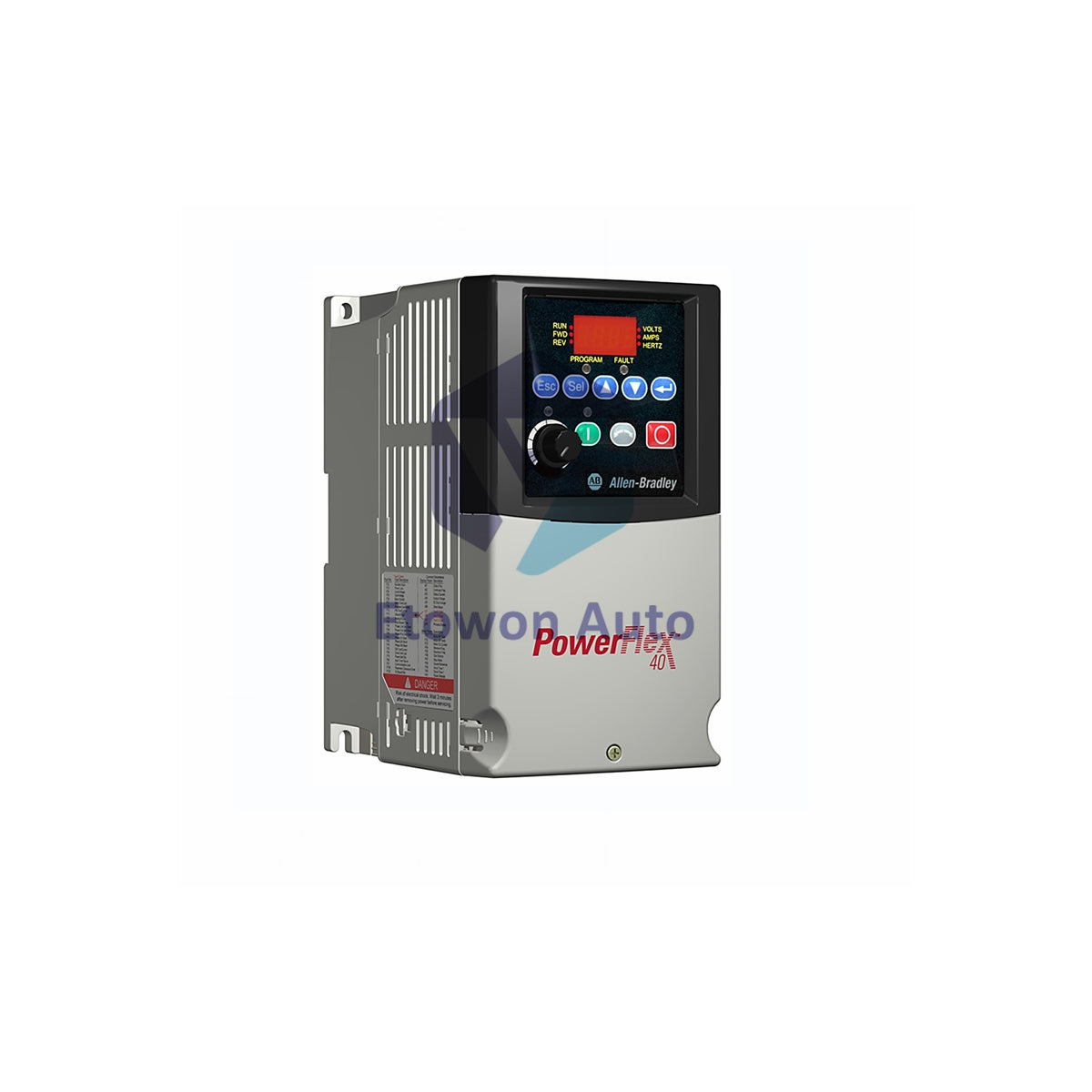

Allen-Bradley 22B-D2P3C104 PowerFlex 40 AC Drive

Product Overview

The ALLEN-BRADLEY 22B-D2P3C104 is a robust PowerFlex 40 Adjustable Frequency AC Drive designed for high-performance motor control in demanding environments. This 1 HP (0.75 kW) drive features an IP66, NEMA/UL Type 4X enclosure, making it ideal for panel mounting in areas requiring protection against dust and high-pressure water. With its integrated RS-485 communication and user-friendly LCD interface, the 22B-D2P3C104 provides versatile control for industrial automation. The unit has a net weight of 5.71 kg (12.59 lbs), reflecting its solid, industrial-grade construction.

Technical Configuration

Superior Load Handling & Braking

The PowerFlex 40 series is engineered for efficiency, boasting a 0.98 power factor across its entire speed range. The 22B-D2P3C104 includes a built-in Brake IGBT, enabling dynamic braking for applications requiring quick deceleration. It also supports 150% load acceleration for up to 60 seconds, providing the extra torque needed for heavy-duty startup cycles.

Enhanced System Protection

Safety and longevity are prioritized with integrated Class 10 motor overload protection and a massive 100,000 Amp symmetrical short circuit rating. The drive monitors critical thresholds, with overvoltage trips set at 810V DC and undervoltage protection at 390V DC, safeguarding both the drive and the connected motor from electrical transients.

Technical Specifications

Installation & Operations

Designed for panel mounting, the 22B-D2P3C104 requires adequate clearance for airflow to maintain its 48 to 63 Hz operational frequency range. The drive can be configured directly via the integrated keypad or through a PC using RS-485 serial communication. For optimum reliability, ensure the power consumption remains within the 2.3 kVA rating. This drive is a direct replacement for various legacy PowerFlex models, offering improved energy efficiency and diagnostic feedback.

Engineering Advantages

• Harsh Environment Ready: IP66/NEMA 4X rating allows installation in wash-down areas and corrosive environments.
• Integrated Dynamic Braking: Built-in Brake IGBT simplifies the addition of external braking resistors for high-inertia loads.
• Precise Diagnostics: The LCD HMI provides real-time fault codes and operational data, reducing downtime during troubleshooting.
• Compact Footprint: Efficient internal design maximizes power density, saving valuable cabinet space.

Technical FAQs

Q1: Does this drive support Modbus communication?
A1: Yes. The 22B-D2P3C104 features a built-in RS-485 port supporting the Modbus RTU protocol for seamless SCADA integration.

Q2: Can I use this drive for a 1 HP motor?
A2: Absolutely. It is rated for 0.5 to 1 HP with a continuous output current of 2.3 Amps.

Q3: What is the benefit of the NEMA 4X rating?
A3: NEMA 4X indicates the enclosure is watertight and corrosion-resistant, providing superior protection compared to standard IP20 or NEMA 1 drives.
