81001-450-51-R Allen-Bradley | 800A 6500V Medium Voltage Board

Product Overview

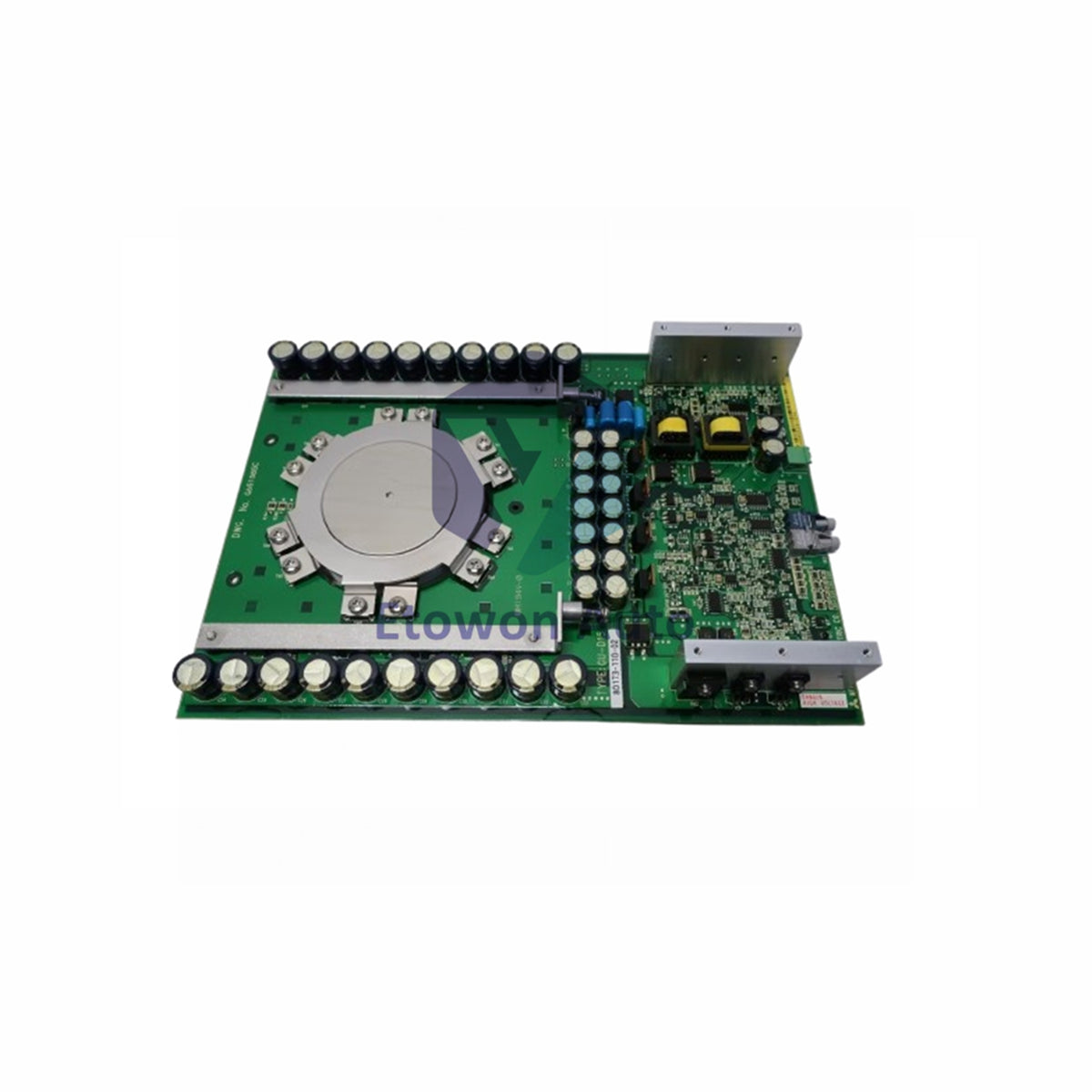

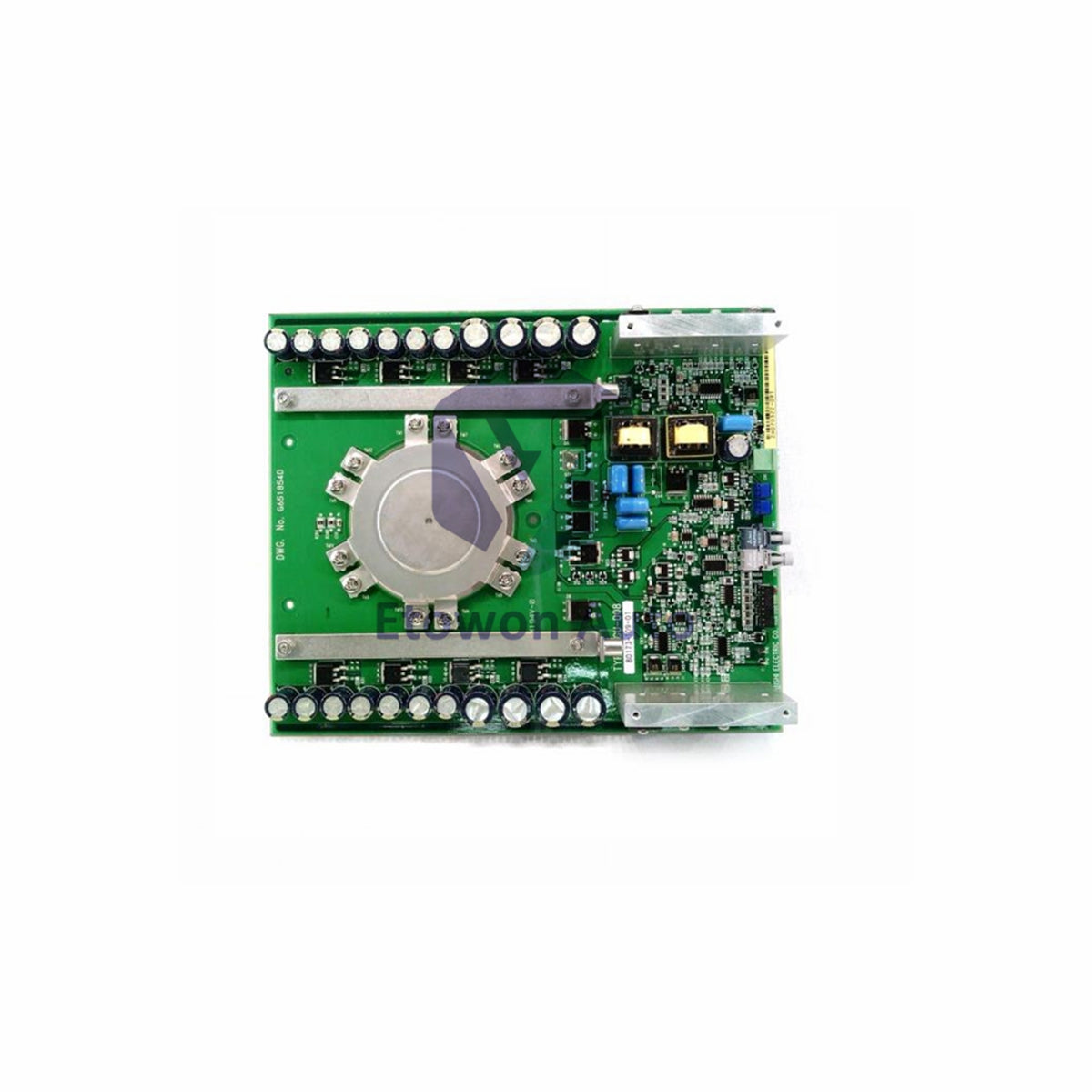

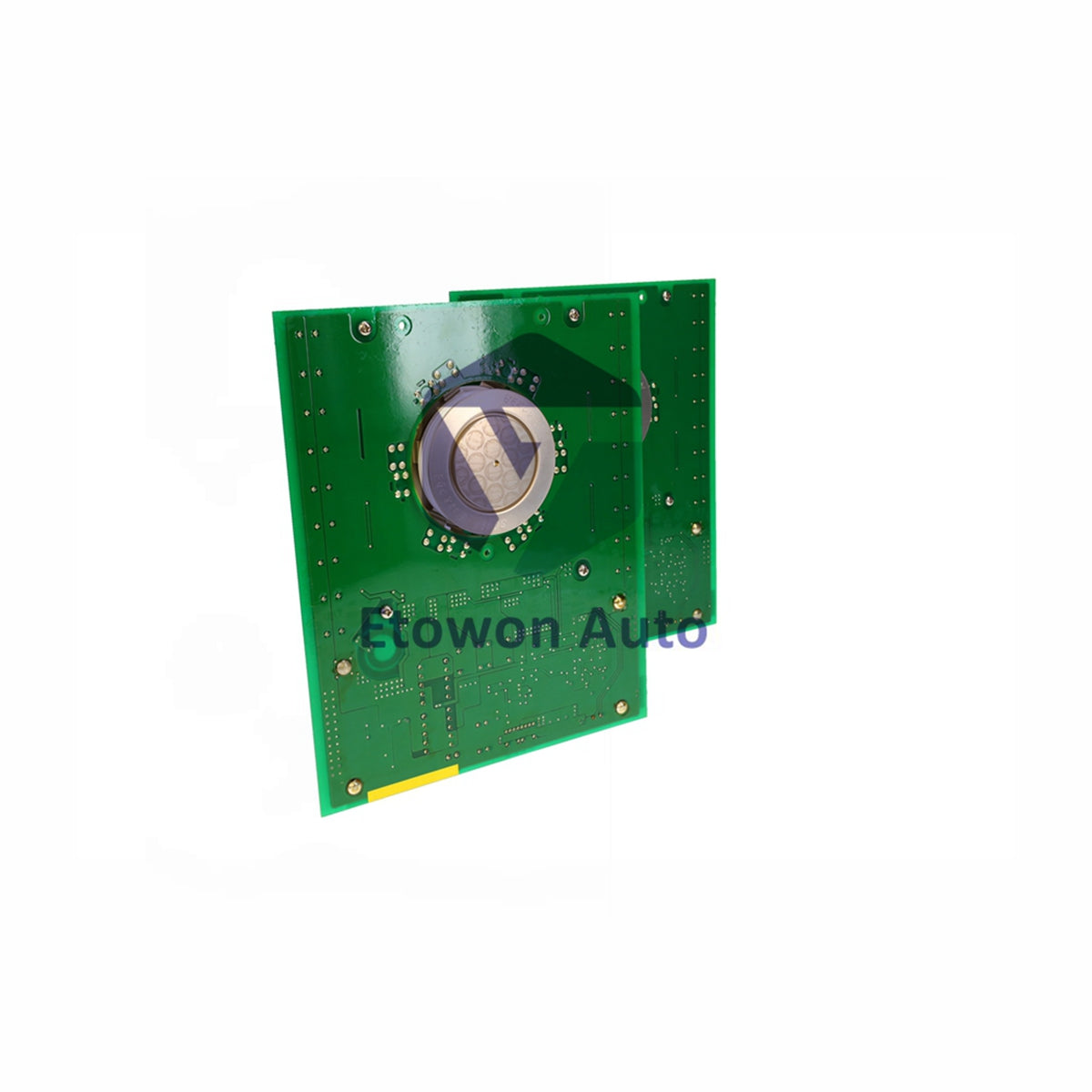

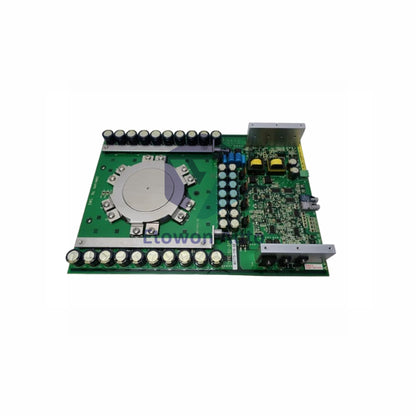

The Allen-Bradley 81001-450-51-R is a critical high-power Drive Board engineered specifically for the PowerFlex 7000 Medium Voltage Drive series. This board serves as a core power management component, utilizing advanced Single SGCT (Silicon Gate Controlled Thyristor) technology to handle demanding industrial loads. Rated for 800 Amps and 6500V, the 81001-450-51-R is built to ensure high-performance switching and system reliability in heavy-duty applications such as mining, oil and gas, and large-scale manufacturing. Weighing 1.81 kg (4.0 lbs), its robust construction is designed to withstand the thermal and electrical stresses typical of medium voltage environments.

Technical Specifications

Engineering Advantages

SGCT High-Efficiency Switching

The 81001-450-51-R leverages Silicon Gate Controlled Thyristor (SGCT) technology, which combines the high-voltage capability of a thyristor with the fast-switching speed of an IGBT. This allows the PowerFlex 7000 to maintain low switching losses and high efficiency even at 6500V. The board is designed to provide precise gate signals required to trigger these high-capacity power semiconductors reliably.

Robust Medium Voltage Protection

Operating at 6.5kV requires superior insulation and circuit protection. This drive board is engineered with high-creepage distances and specialized component layout to prevent electrical arcing and ensure long-term durability. Its design integrates seamlessly with the PowerFlex 7000's diagnostic systems, allowing for real-time monitoring of power stage health.

Industrial-Grade Reliability

Specifically designed for "Mission Critical" applications, the 81001-450-51-R contributes to the drive's overall Mean Time Between Failures (MTBF). By managing high inrush currents up to 800A, the board helps stabilize the motor control performance, reducing mechanical stress on connected assets like large pumps, fans, or compressors.

Installation & Maintenance Guide

• Safety Warning: This component operates in a 6500V environment. Ensure the drive is completely de-energized, locked out, and all capacitors are fully discharged according to manufacturer safety protocols before attempting installation.
• Handling: Use appropriate ESD (Electrostatic Discharge) protection when handling the board. Despite its 1.81 kg weight and robust appearance, the control logic components are sensitive to static electricity.
• Thermal Management: Ensure that the board is correctly seated within the drive's cooling airflow path. Proper heat dissipation is essential for maintaining the 800A current rating without thermal degradation.
• Connection Integrity: Inspect all power and control connectors for signs of oxidation or wear. Secure all mounting hardware to prevent vibration-induced loosening, which can lead to catastrophic failure in high-voltage circuits.

Technical FAQs

Q1: Can this board be used in any PowerFlex model?

A1: No, the 81001-450-51-R is specifically designed for the PowerFlex 7000 Medium Voltage Drive. It is not compatible with PowerFlex 750 series or other low-voltage drive models.

Q2: What is the significance of the "R" suffix in the model number?

A2: In Allen-Bradley nomenclature, the "R" often refers to a revised or renewed version of a board, ensuring compatibility with the latest firmware and hardware standards of the 7000-series drives.

Q3: Does this board require external power?

A3: The board draws its necessary control power from the drive’s internal backplane/control power supply, but it is responsible for managing the massive 6500V/800A power through the SGCT semiconductor.
