330905-00-16-05-02-CN

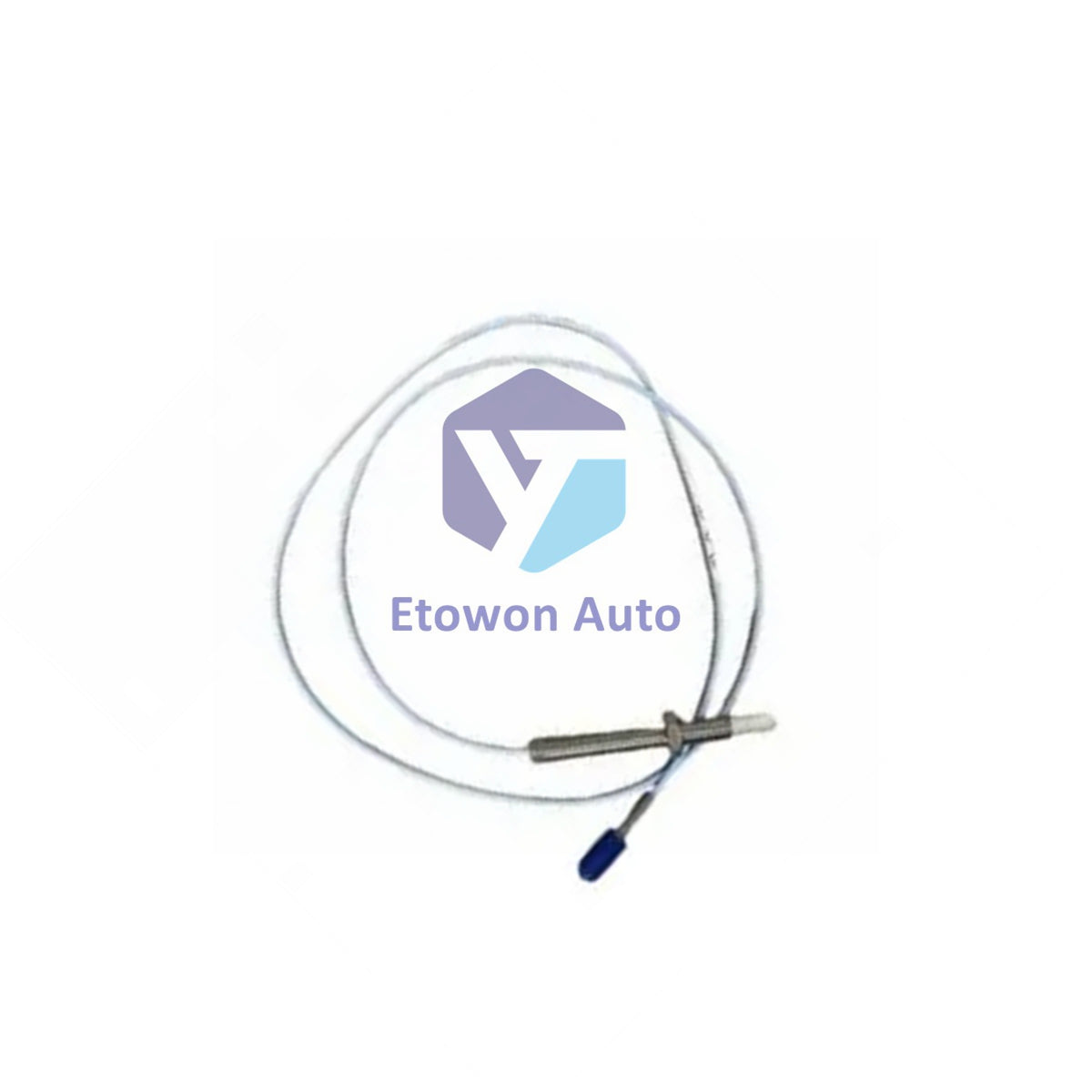

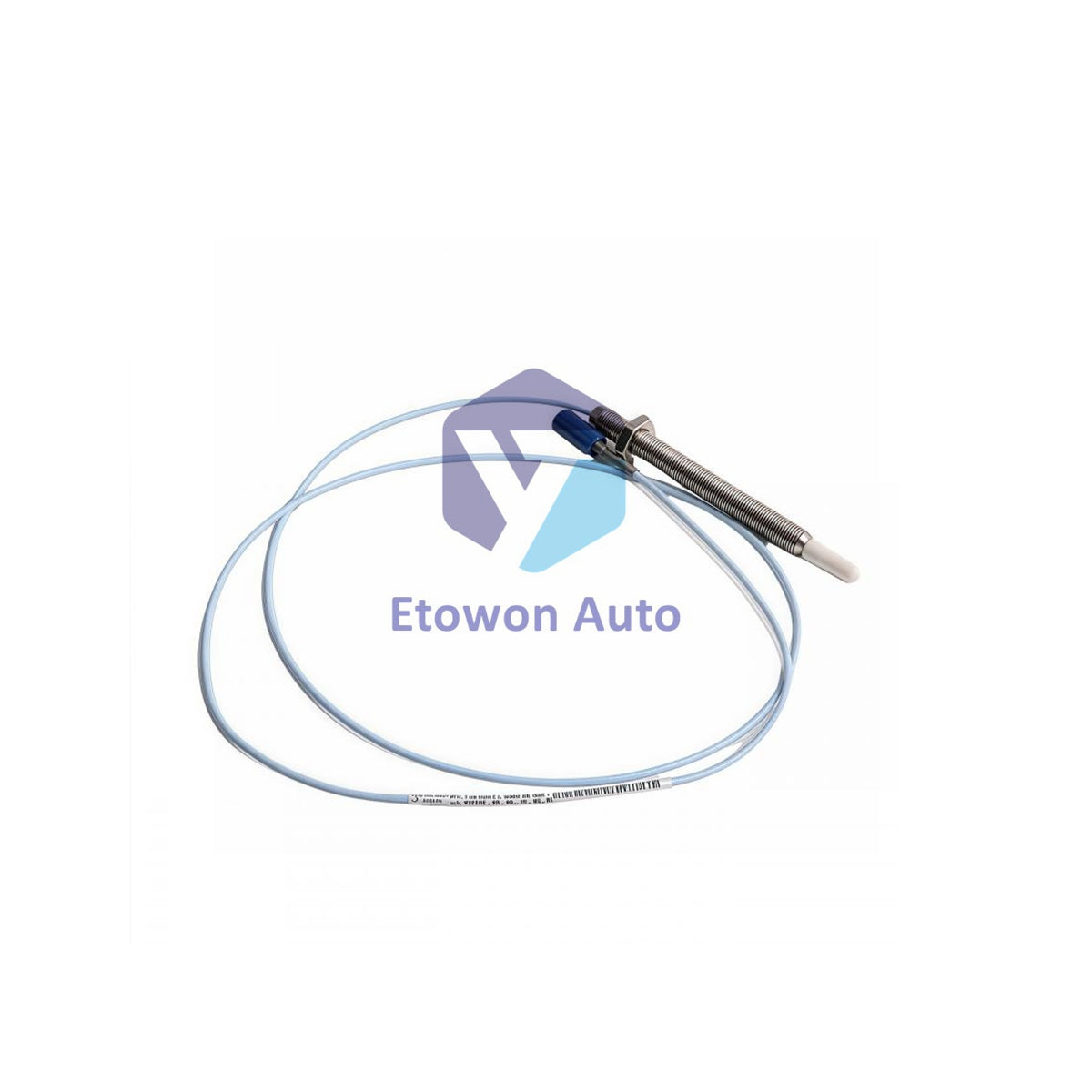

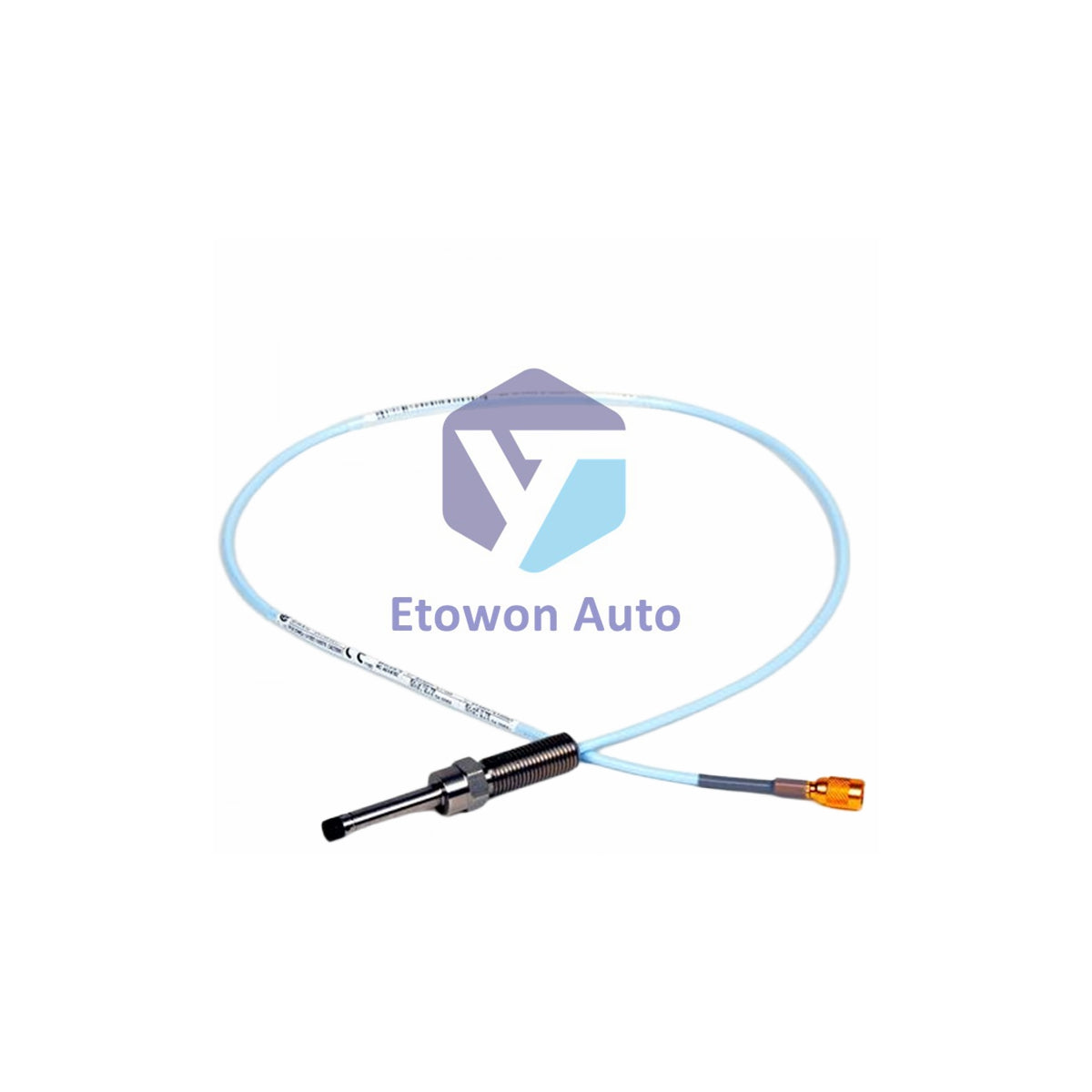

330905-00-16-05-02-CN Bently Nevada | NSv Proximity Probe

A kan haja (11 guda), a shirye don aikawa

  • Manufacturer: Bently Nevada

  • Product No.: 330905-00-16-05-02-CN

  • Product Type: Proximity Probe

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 150g

  • Shipping port: Xiamen

  • Warranty: 12 months

Dokar Mayar da Kaya na Kwanaki 30 · Garantin Watanni 12
  • Isarwa Cikin Gaggawa
  • Tallafi na awa 24 a rana, kwana 7 a mako
  • Tabbacin Inganci

Bayani

The Bently Nevada 330905-00-16-05-02-CN is a 3300 NSv Proximity Probe for industrial vibration monitoring. It features M10X1 threads with 0.5m standard cable and Country Specific approval. This probe weighs 14-150g and delivers accurate measurements for critical machinery protection.

Product Details

  • Part Number: 330905-00-16-05-02-CN
  • Model: 3300 NSv Proximity Probe
  • Manufacturer: Bently Nevada
  • Condition: New Original, Factory Sealed
  • Warranty: 12 Months
  • Weight: 14-150 g (0.5-5.3 oz)

Configuration

  • Thread Type: M10X1, without armor
  • Unthreaded Length: 00 mm
  • Case Length: 160 mm
  • Cable Length: 0.5 meter (20 in)
  • Connector: Miniature coaxial ClickLoc, standard cable
  • Approval: Country Specific (CN)

Electrical Specifications

  • DC Resistance: 4.0 ± 0.5 ohms at 0.5m
  • Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
  • Recommended Gap: 1.0 mm (40 mils)
  • Scale Factor: 7.87 V/mm (200 mV/mil) +12.5%/-20%
  • Deviation: Less than ±0.06 mm (±2.3 mils)
  • Output: -1 to -13 Vdc
  • Frequency Response: 0-10 kHz: +0, -3 dB typical

Extension Cable

  • DC Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
  • Capacitance: 69.9 pF/m typical

Torque Specifications

  • Recommended Torque: Finger tight
  • Maximum Torque: 0.56 N•m (5 in•lb)
  • Case Max Rated: 33.9 N•m (300 in•lb)
  • Case Recommended: 11.3 N•m (100 in•lb)
  • First Threads Max: 22.6 N•m (200 in•lb)
  • First Threads Rec: 7.5 N•m (66 in•lb)

Environmental

  • Operating Temperature: -52°C to +177°C (-62°F to +351°F)
  • Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Target Requirements

  • Minimum Flat Target: 8.9 mm (0.35 in) diameter
  • Recommended Target: 13 mm (0.5 in) diameter

Field Wiring

  • Wire Size: 0.2-1.5 mm² (16-24 AWG)
  • With Ferrules: 0.25-0.75 mm² (18-23 AWG)
  • Max Cable Length: 305 m (1000 ft)

FAQs

  • What is the linear range of this probe?
    The 330905-00-16-05-02-CN provides 1.5 mm linear range from 0.25 to 1.75 mm from target.
  • What is the recommended gap setting?
    Bently Nevada recommends a 1.0 mm (40 mils) gap setting for optimal performance.
  • What approvals does this probe have?
    This probe includes Country Specific (CN) approval for regional compliance.

Product Resources

📄 Download PDF
🏷️ Tags: 3300 NSv Proximity Probes 330905 NSv Proximity Probes Proximity Probe
