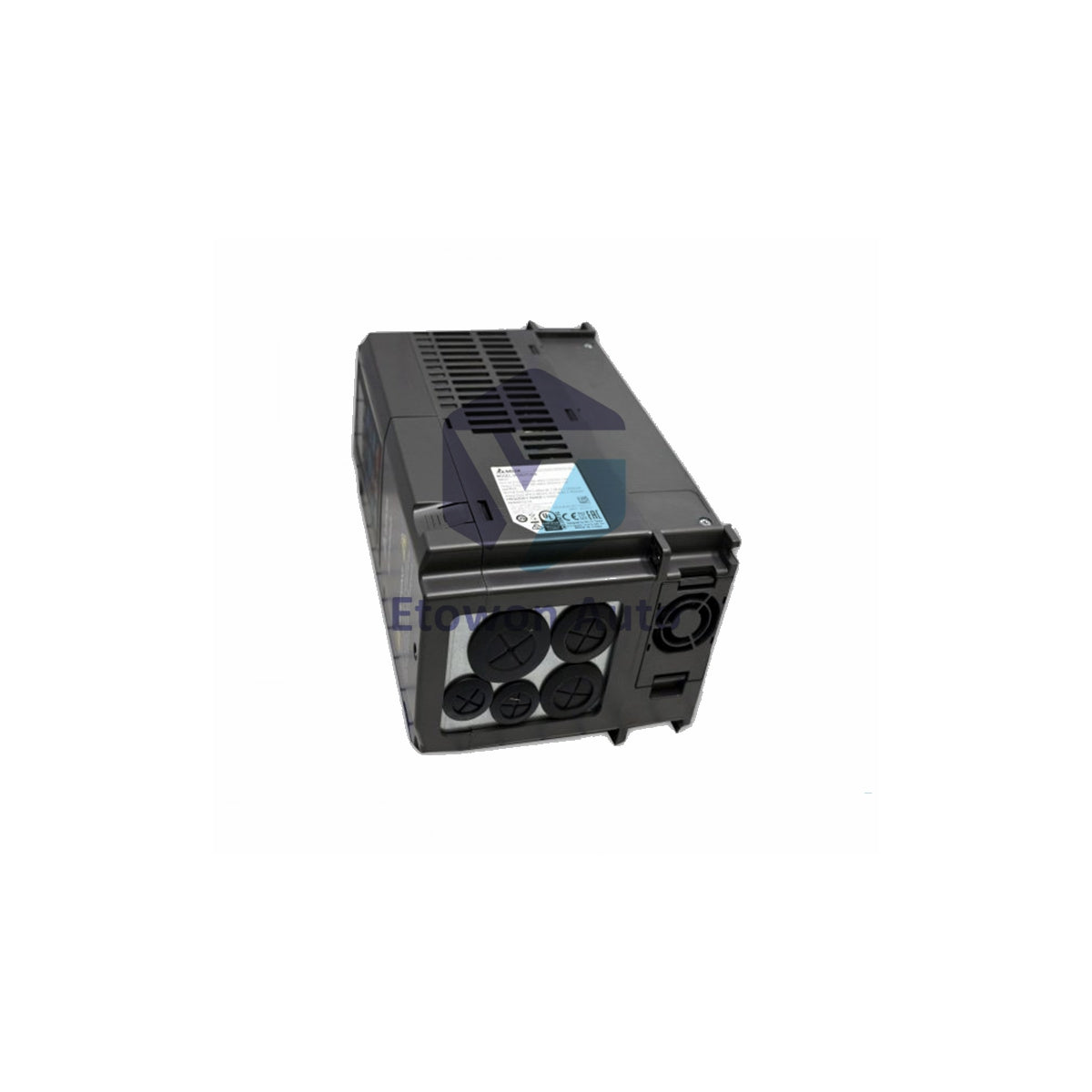

VFD7A5MS23ENSAA 230V 3-Phase Drive Delta MS300 Series

Delta VFD7A5MS23ENSAA MS300 Series AC Drive

Delta VFD7A5MS23ENSAA MS300 Series AC drive. 2 HP, 1.5 kW, 230V 3-phase input. Heavy duty 7.5A, normal duty 8A, 0-599Hz output, IP40 enclosure.

Key Specifications

• Model: VFD7A5MS23ENSAA
• Series: MS300
• Input Voltage: 230V AC, 3-phase
• Horsepower: 2 HP
• Power Rating: 1.5 kW
• Frequency Range: 0-599 Hz
• Heavy Duty Amps: 7.5 A
• Normal Duty Amps: 8 A
• Frame Size: B1
• IP Level: IP40
• EMC Filter: Optional
• Weight: 2.4 lbs (1.09 kg)

Dimensions

• Width: 2.83 inches (72 mm)
• Height: 5.6 inches (142 mm)
• Depth: 5.7 inches (145 mm)

Additional Specifications

• Output Frequency Resolution: 0.01 Hz
• Carrier Frequency: 2-15 kHz adjustable
• Overload Capacity (HD): 150% for 60 seconds
• Overload Capacity (ND): 120% for 60 seconds
• Control Method: V/Hz, Sensorless Vector, PM Motor Control
• Built-in Communication: RS-485 Modbus
• Protection Features: Overvoltage, undervoltage, overload, overheat, short circuit
• Cooling Method: Built-in fan
• Mounting: Panel mount / DIN rail mountable

Features

• Compact B1 frame size for space-saving installation
• IP40 enclosure for indoor applications
• Wide frequency range 0-599 Hz
• Multiple control modes: V/Hz, Sensorless Vector, PM motor
• Built-in RS-485 Modbus communication
• Optional EMC filter for EMI suppression
• Suitable for both normal and heavy duty applications

FAQ

Q: Power and voltage rating?
A: 2 HP, 1.5 kW, 230V 3-phase input. Heavy duty 7.5A, normal duty 8A, 0-599Hz output.

Q: Control methods?
A: V/Hz, Sensorless Vector, and PM Motor Control with built-in RS-485 Modbus.

Q: Weight and dimensions?
A: 2.4 lbs, 2.83 x 5.6 x 5.7 inches. IP40 enclosure, B1 frame size.
