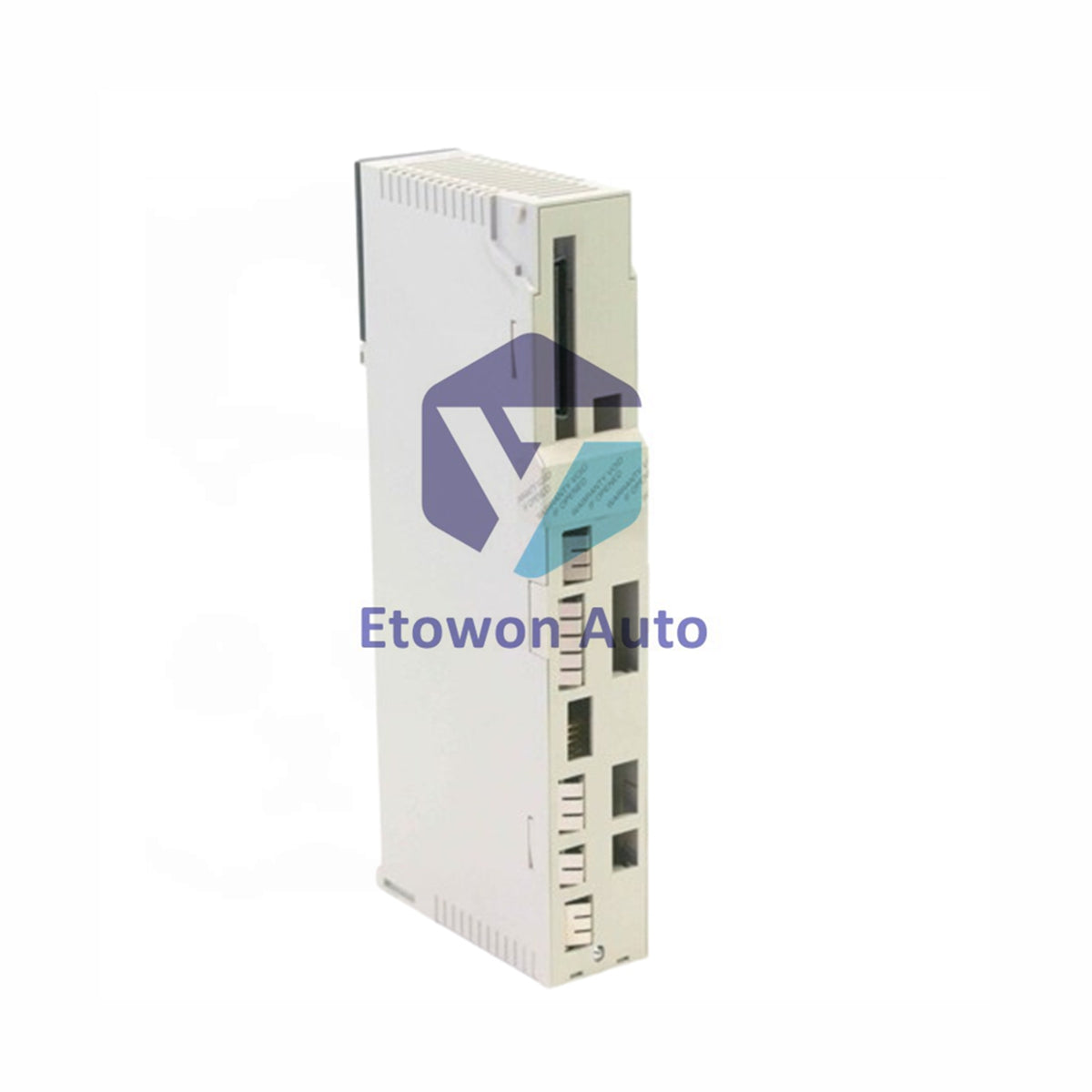

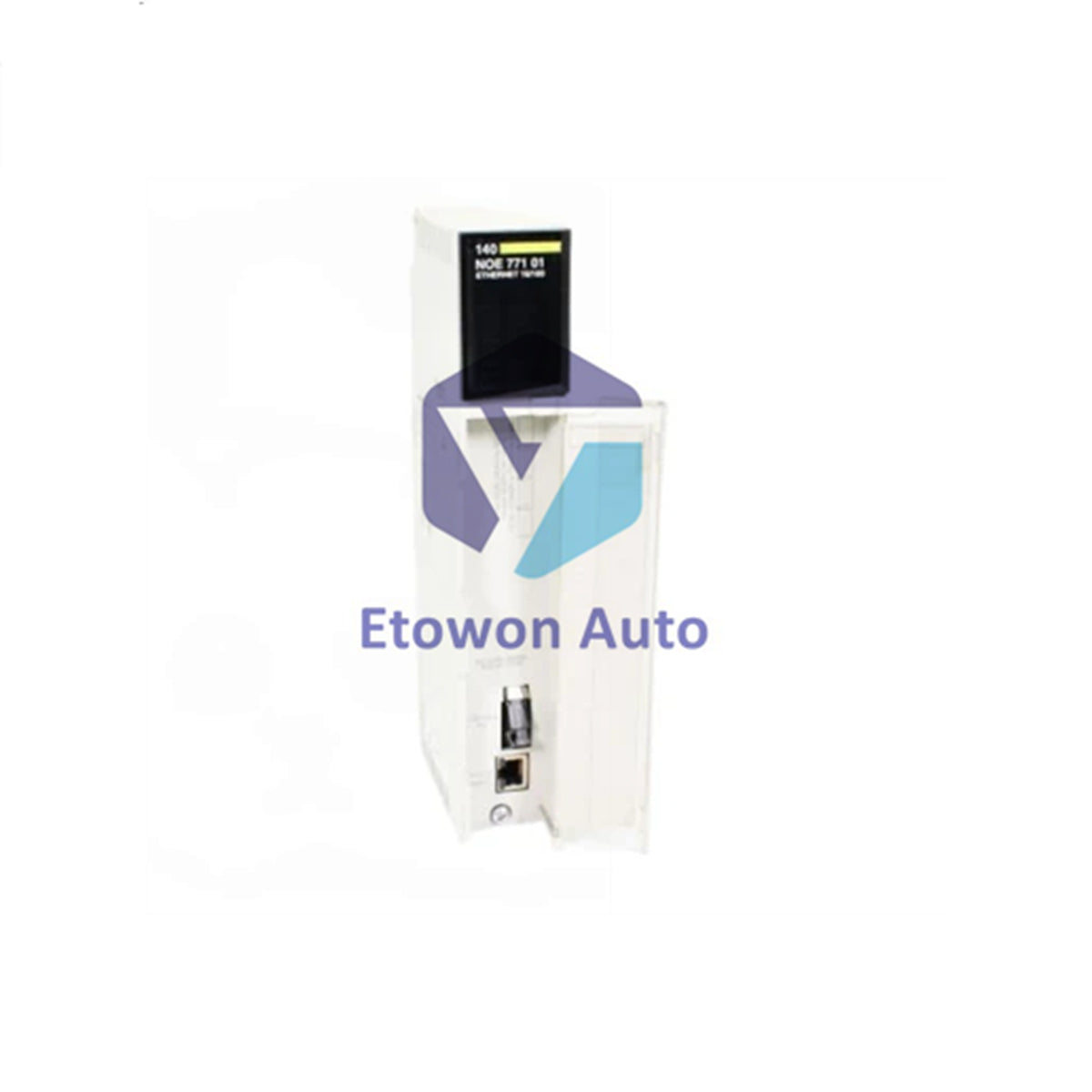

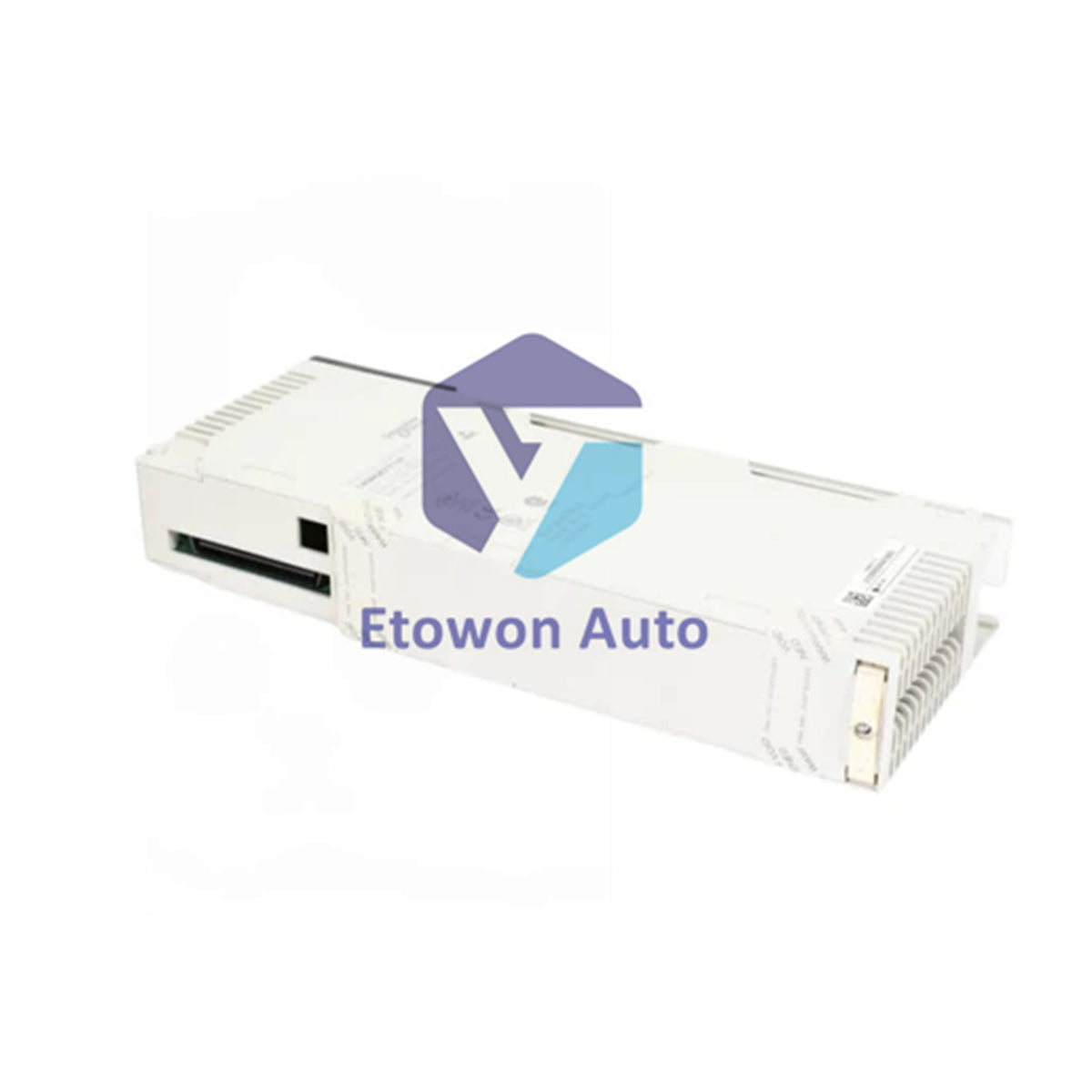

Schneider Quantum 140NOE77101 Ethernet Module

Schneider Electric Modicon Quantum 140NOE77101 Ethernet TCP/IP Module Class B30

The 140NOE77101 is an Ethernet TCP/IP module from the Schneider Electric Modicon Quantum automation platform. This Class B30 Transparent Ready module features advanced web services including SNMP network management, bandwidth management, Global Data, and FDR server. It supports both fiber optic (100BASE-FX) and twisted pair (10/100BASE-TX) connections with hot standby redundancy.

Key Features

• Class B30 Transparent Ready Ethernet TCP/IP module
• Advanced web services: SNMP network management, bandwidth management, Global Data, FDR server
• Built-in web server with rack viewer and data editor via PC terminal
• Dual physical interfaces: MT/RJ fiber optic (100BASE-FX) and RJ45 twisted pair (10/100BASE-TX)
• Hot standby redundant architecture support
• Communication services: Modbus TCP messaging, I/O scanning
• Diagnostics via predefined web pages
• 10 LED indicators for comprehensive status monitoring
• Transmission rate: 10/100 Mbit/s
• Current consumption: 750 mA @ 5V DC
• IP20 protection rating

Technical Specifications

• Brand: Schneider Electric
• Series: Modicon Quantum
• Model: 140NOE77101
• Product Type: Ethernet TCP/IP Module Class B30
• Concept: Transparent Ready with web server
• Web Services: Rack viewer, Data Editor via PC terminal, Diagnostics via web pages
• Communication Services:
• SNMP network management
• Bandwidth management
• Global Data
• I/O scanning
• Modbus TCP messaging
• FDR server
• Communication Protocol: Ethernet Modbus TCP/IP
• Physical Interfaces:
• MT/RJ - 100BASE-FX fiber optic
• RJ45 - 10BASE-T/100BASE-TX twisted pair
• Transmission Rate: 10/100 Mbit/s
• Redundancy: Hot standby redundant architecture
• Supply: Via rack power supply
• Current Consumption: 750 mA @ 5V DC
• Module Format: Standard
• Net Weight: 0.345 kg (0.761 lb)
• IP Protection: IP20
• CE Marking: Yes

Environmental Specifications

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 95% without condensation
• Operating Altitude: ≤ 4500 m (14763 ft)
• Resistance to Electrostatic Discharge: 4 kV contact, 8 kV air (IEC 801-2)
• Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) 80-1000 MHz (IEC 801-3)

Package Details

• Package Dimensions:
• Height: 5.0 cm (1.97 in)
• Width: 17.0 cm (6.69 in)
• Length: 31.5 cm (12.40 in)
• Package Weight: 560.0 g (19.8 oz)
• Package Volume: 2,677.5 cm³ (5.0 × 17.0 × 31.5 cm)
• Unit Type: PCE (Piece)
• Units per Package: 1

Package Includes

• 1x Schneider Electric 140NOE77101 Ethernet TCP/IP module
• 1x installation documentation

GTIN

3595862052887

FAQ

1. What is the part number for this Class B30 Ethernet module?

The part number is 140NOE77101.

2. What advanced communication services does the 140NOE77101 offer?

It offers SNMP network management, bandwidth management, Global Data, FDR server, Modbus TCP messaging, and I/O scanning.

3. What are the package dimensions and weight?

The package measures 5.0 × 17.0 × 31.5 cm (H×W×L) and weighs 560 grams.
