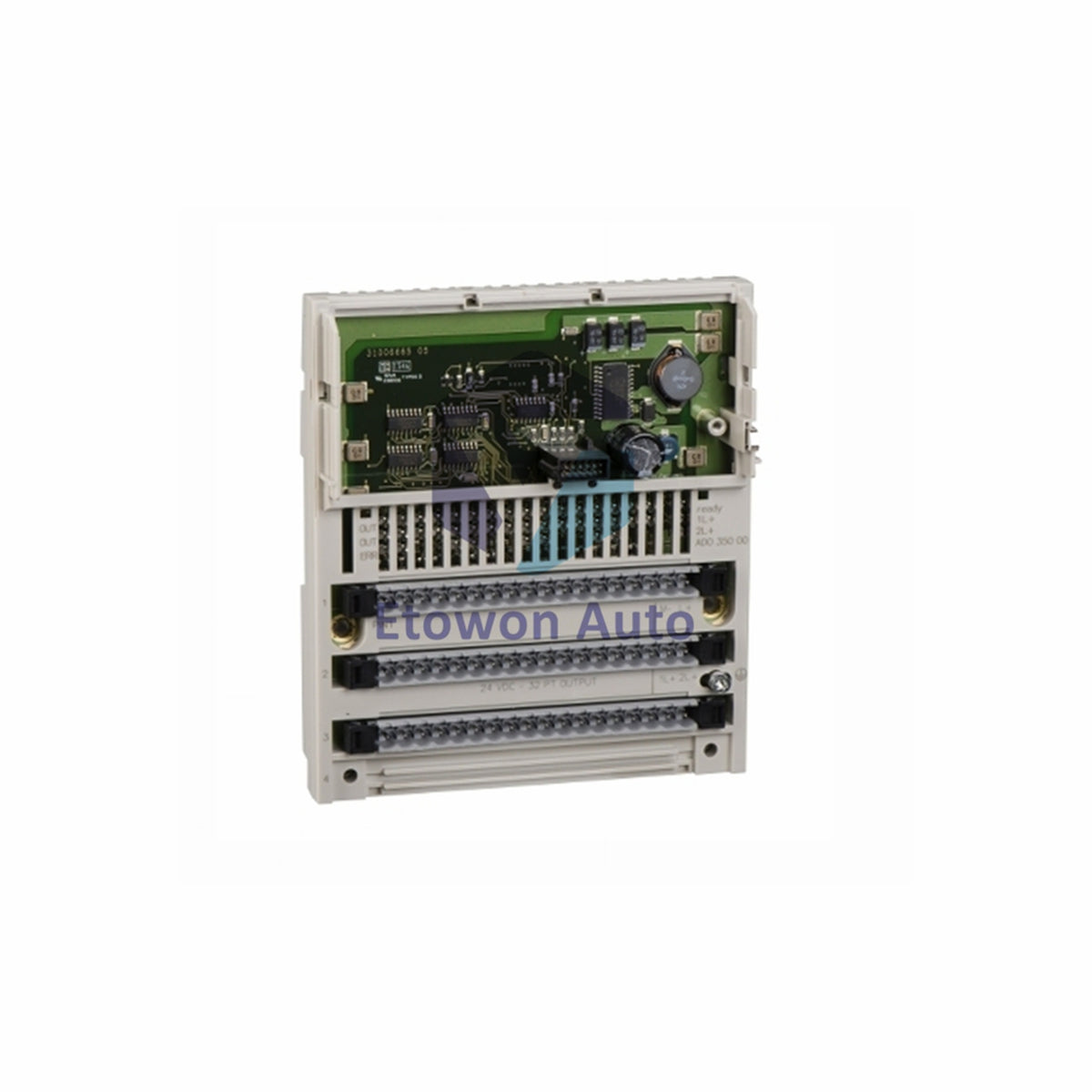

Schneider 170ANR12091 Modicon Momentum I/O Base Unit

The Schneider Electric 170ANR12091 expands your Modicon Momentum system. This I/O base unit combines discrete and analog control in one module. We design it for reliable performance in industrial environments.

Key Specifications

• Part Number: 170ANR12091
• Brand: Schneider Electric
• Series: Modicon Momentum
• Module Type: I/O Base Unit
• Weight: 0.45 kg (1.00 lbs)
• EAN: 3595862053402

I/O Configuration

• Discrete Inputs: 8
• Discrete Outputs: 8
• Analog Inputs: 6
• Analog Outputs: 4

Environmental Ratings

• Operating Temperature: 0 to 60 °C
• Storage Temperature: -40 to 85 °C
• Operating Humidity: 95% max, non-condensing
• Storage Humidity: 95% max, non-condensing
• Operating Altitude: Up to 5000 m
• Storage Altitude: Up to 5000 m
• Environment: Clean indoor, no corrosive chemicals

FAQs

• What is the I/O count on the 170ANR12091?
  This module provides 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs.
• What temperature range can this module handle?
  The 170ANR12091 operates from 0 to 60 °C and stores from -40 to 85 °C.
• Can I use this module outdoors?
  No, this unit requires a clean indoor environment without corrosive chemicals.
