GE Series 90-30 IC693MDL260 120V AC 32-Pt Grouped Input Module

Technical Specifications

Product Overview

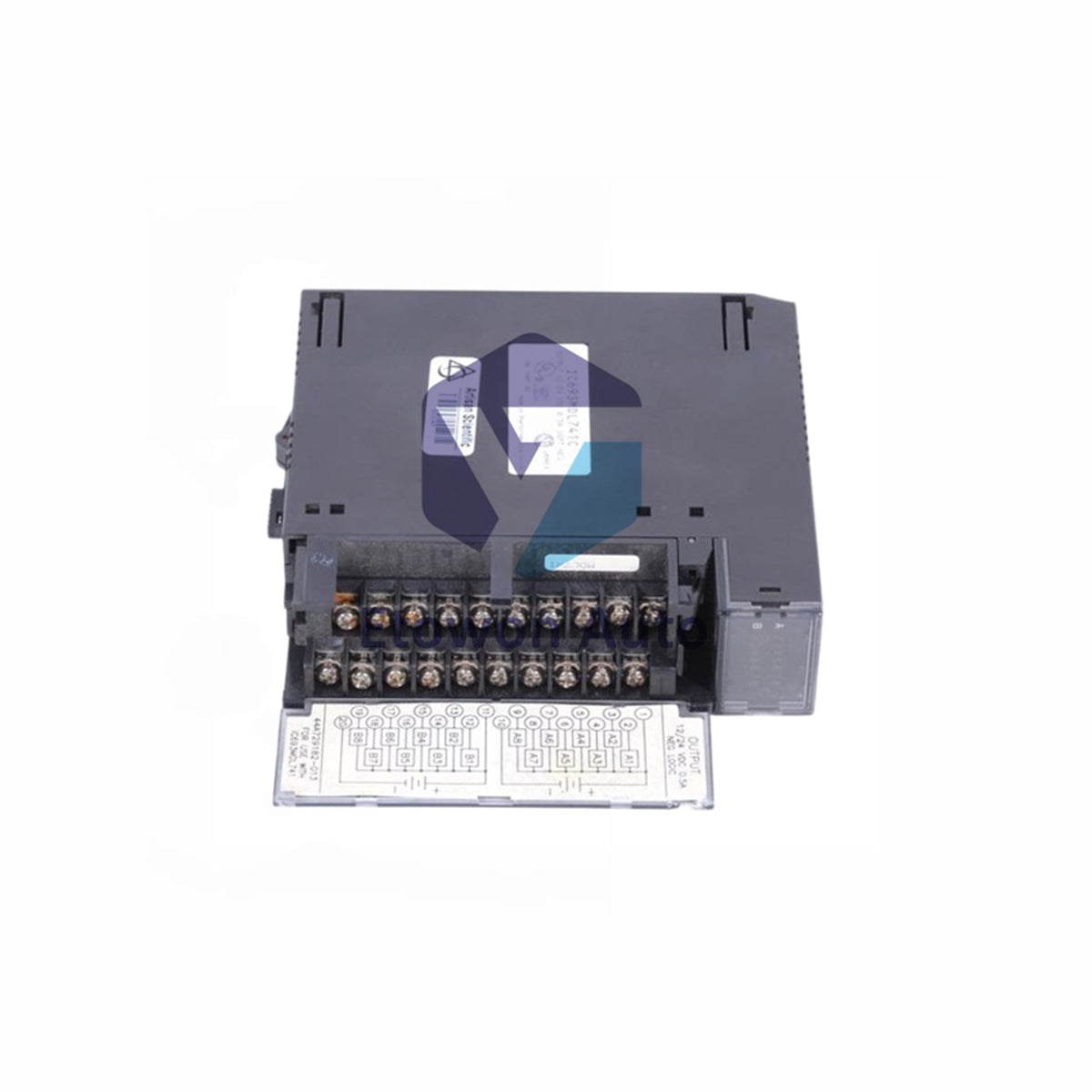

The GE Fanuc IC693MDL260 is a high-density 120V AC discrete input module (approx. 0.38 kg) for GE Series 90-30 PLC racks. It provides 32 input channels organized into 4 isolated groups of 8 inputs each. Drawing 12 mA per channel at 120V AC (50/60 Hz), it features 32 channel status LEDs, a terminal block LED, and a rear DIP switch for adjustable input filter times to filter out industrial signal noise.

Key Features

• High Channel Density: Offers 32 discrete 120V AC input channels in a single compact PLC slot.
• Group Isolation: Divided into 4 isolated groups of 8 inputs with shared commons for flexible field wiring.
• Adjustable Input Filter: Configurable rear DIP switch allows fine-tuning of input response time against noise.
• Clear Visual Diagnostics: Includes 32 individual channel status LEDs and 1 terminal block status indicator.

Installation Essentials

Insert the IC693MDL260 module into any available I/O slot in a Series 90-30 baseplate. Configure the DIP switches on the back of the module for your desired input filter speed before installation. Ensure field wiring to the terminal block strictly respects the 120V AC voltage limits and group isolation boundaries.

Technical FAQs

Q1: What is the input voltage range for the GE IC693MDL260 module?
A1: The module operates at a nominal 120V AC input with a functional range of 0 to 132V AC (50/60 Hz).

Q2: How are the 32 input channels grouped?
A2: The 32 inputs are divided into 4 isolated groups of 8 channels, with each group sharing a common power connection.

Q3: How do you adjust the input response filter time?
A3: Input filter response times are set using the DIP switches located on the rear panel of the module before mounting into the rack.
