GE Fanuc IC693CPU313 Embedded CPU Baseplate 5 Slots 12KB

GE Fanuc IC693CPU313 Embedded CPU Baseplate Series 90-30

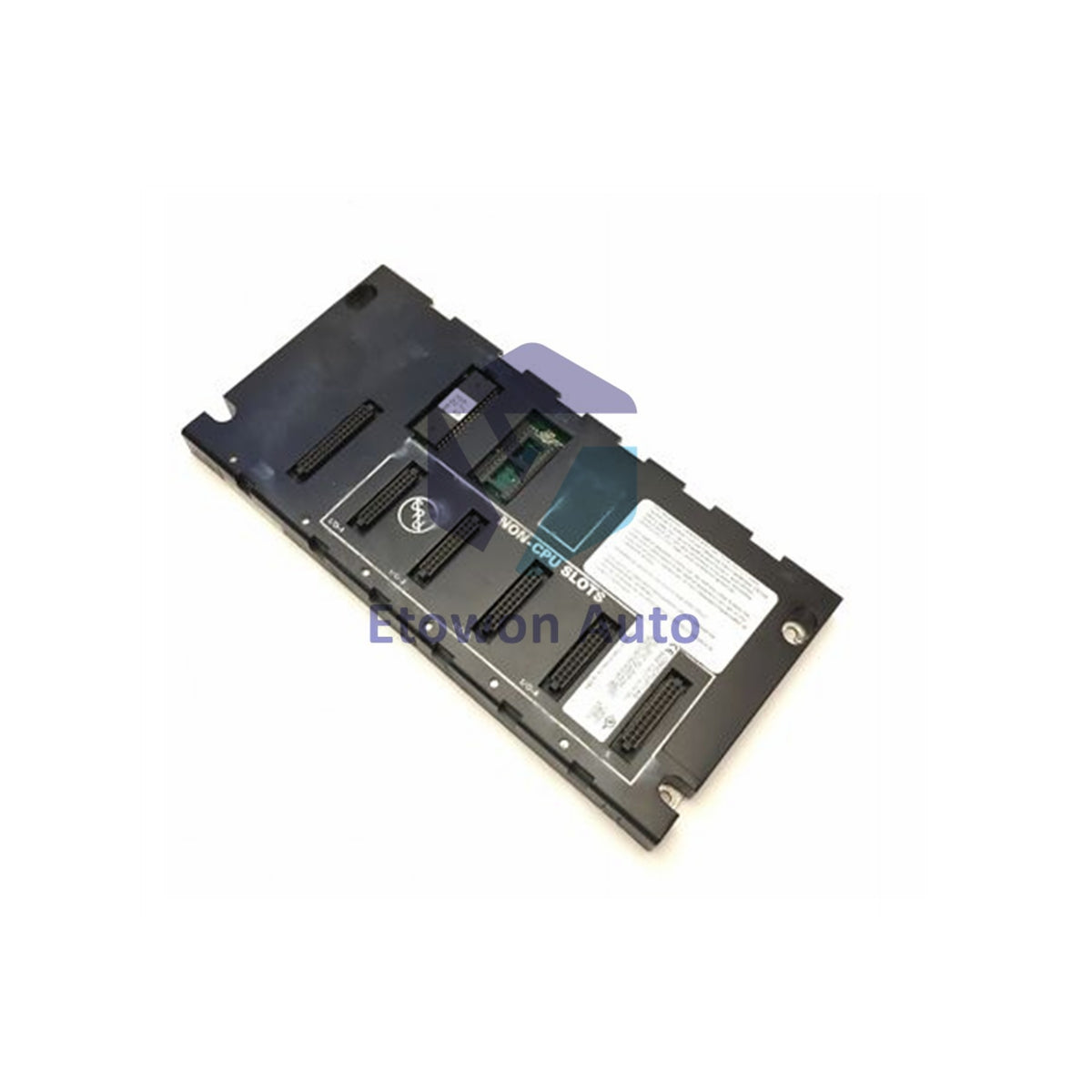

GE Fanuc IC693CPU313 is an embedded CPU baseplate for Series 90-30 systems. Features 5 slots for module integration with 12 KB user memory. 10 MHz processor with 410 mA current draw at +5V DC. Weight: 0.57 kg (1.26 lbs).

Technical Specifications

Key Features

• 5 slots for versatile module integration
• 12 KB user memory for application storage
• 10 MHz processor for efficient processing
• Compact design ideal for space-limited installations
• Built for durability in industrial environments
• Supports compatible modules for enhanced functionality

Installation Guidelines (Field Engineer Notes)

Mounting: Secure baseplate to DIN rail or panel using all mounting holes. Torque screws to 1.0 N·m. Ensure proper grounding to panel ground.

Power Connection: Connect +5V DC supply to bus terminals. Verify voltage between +5V and GND before installing modules. Tolerance is ±5%.

Module Installation: Insert modules into slots starting from left. Push firmly until seated. Secure with captive screws to 0.6 N·m.

Memory Backup: The baseplate has no battery backup. Save programs externally. Consider IC693ACC302 battery module for power-loss retention.

FAQs

Q1. How many slots does the IC693CPU313 have?
A1. The baseplate provides 5 slots for I/O and communication module integration.

Q2. What is the maximum memory capacity?
A2. The module has 12 KB user memory for program and data storage.

Q3. Does this baseplate include a battery backup?
A3. No. The IC693CPU313 does not have onboard battery backup. Use IC693ACC302 battery module for program retention during power loss.
