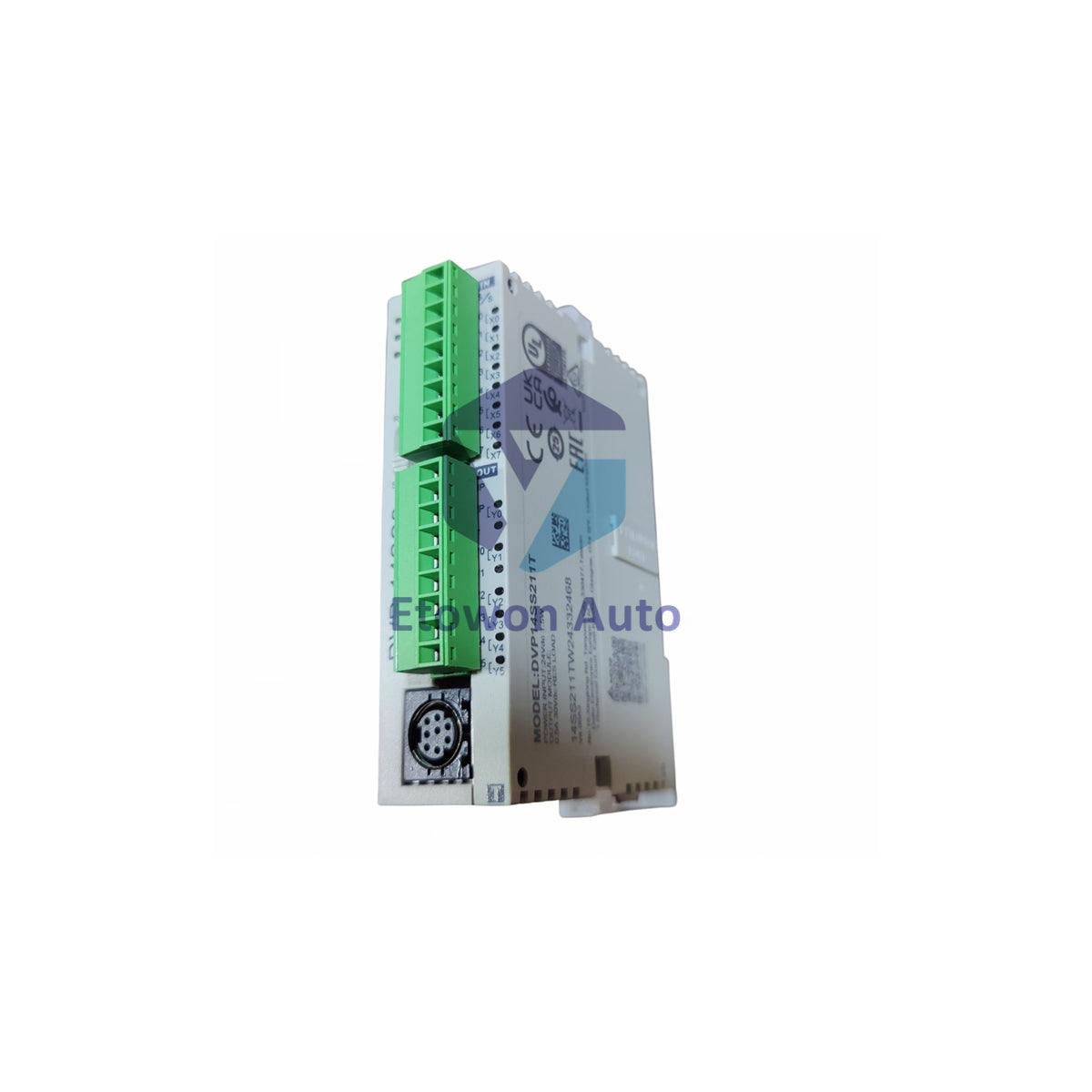

Delta DVP28SS211R 20kHz High-Speed Controller

Delta DVP-SS2 Series DVP28SS211R Programmable Logic Controller

The DVP28SS211R is a high-performance programmable logic controller from Delta's DVP-SS2 Series featuring 16 DC inputs and 12 relay outputs. This PLC offers 8k steps program capacity with ultrafast 0.35μs execution speed. It supports expansion up to 480 I/O points and includes built-in RS-232 and RS-485 communication ports.

Product Overview

• Brand: Delta
• Series: DVP-SS2 Series
• Model: DVP28SS211R
• Output Method: Relay

Technical Specifications

• Program Capacity: 8k Steps
• Execution Speed: 0.35μs
• Inputs: 16 (DC, SINK or SOURCE selectable)
• Outputs: 12 (relay)
• Total Built-in I/O: 28 points
• Max. I/O Expansion: 480 points

High-Speed Counter Specifications

• High-speed counters:
• 20 kHz / 4 points
• 10 kHz / 4 points

Communication Ports

• Built-in RS-232 port
• Built-in RS-485 port

Package Includes

• 1x Delta DVP28SS211R DVP-SS2 Series PLC
• 1x installation documentation

Shipping Options

• FedEx Priority Overnight
• UPS 2-Day Air
• DHL Express Worldwide
• Ground shipping available

FAQ

Q1: What is the model number of this Delta PLC?

The model number is DVP28SS211R from the DVP-SS2 Series.

Q2: What are the I/O specifications and program capacity of the DVP28SS211R?

It features 16 DC inputs (sink/source), 12 relay outputs, 8k steps program capacity, and 0.35μs execution speed. It expands to 480 I/O points.

Q3: What communication ports and high-speed counter features are included?

It includes built-in RS-232 and RS-485 ports. High-speed counters feature 20 kHz (4 points) and 10 kHz (4 points).
