Bently Nevada 330104-00-09-10-11-00 8mm Probe

Product Overview

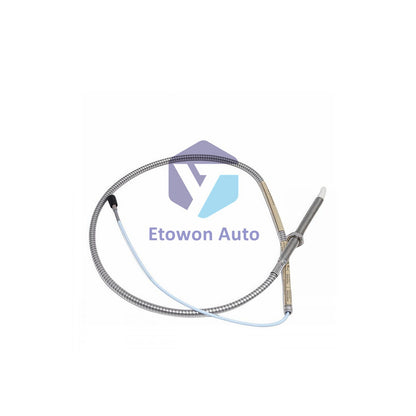

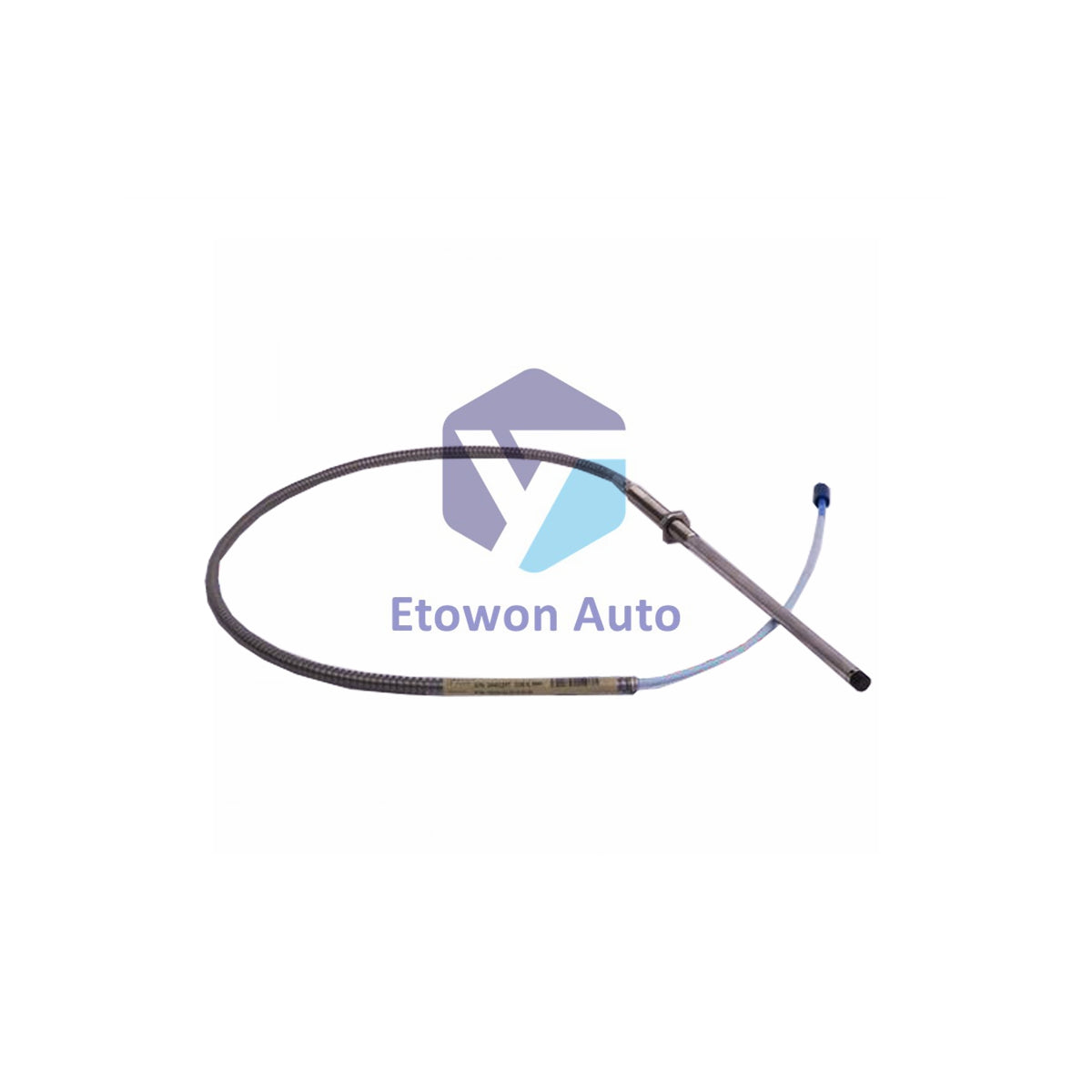

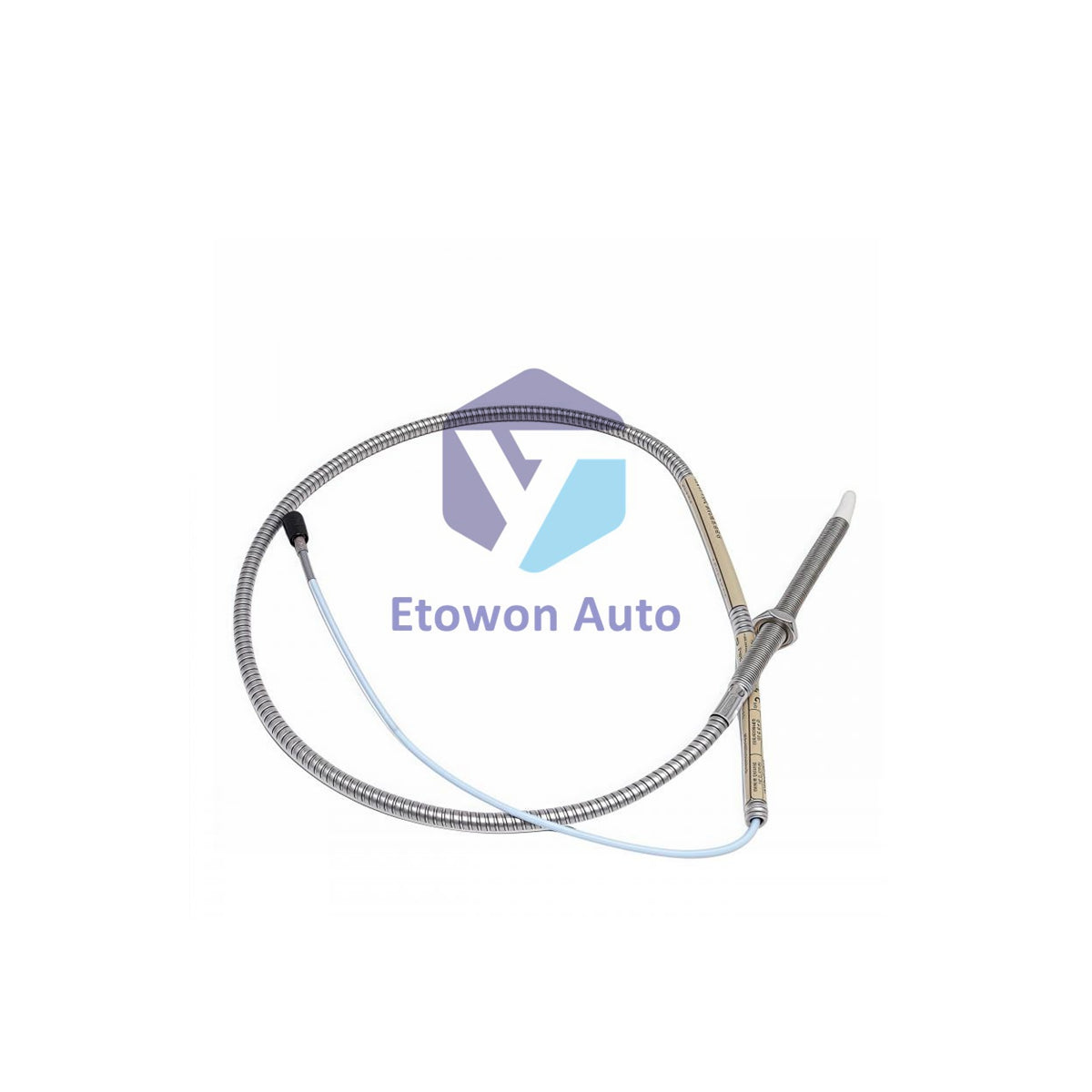

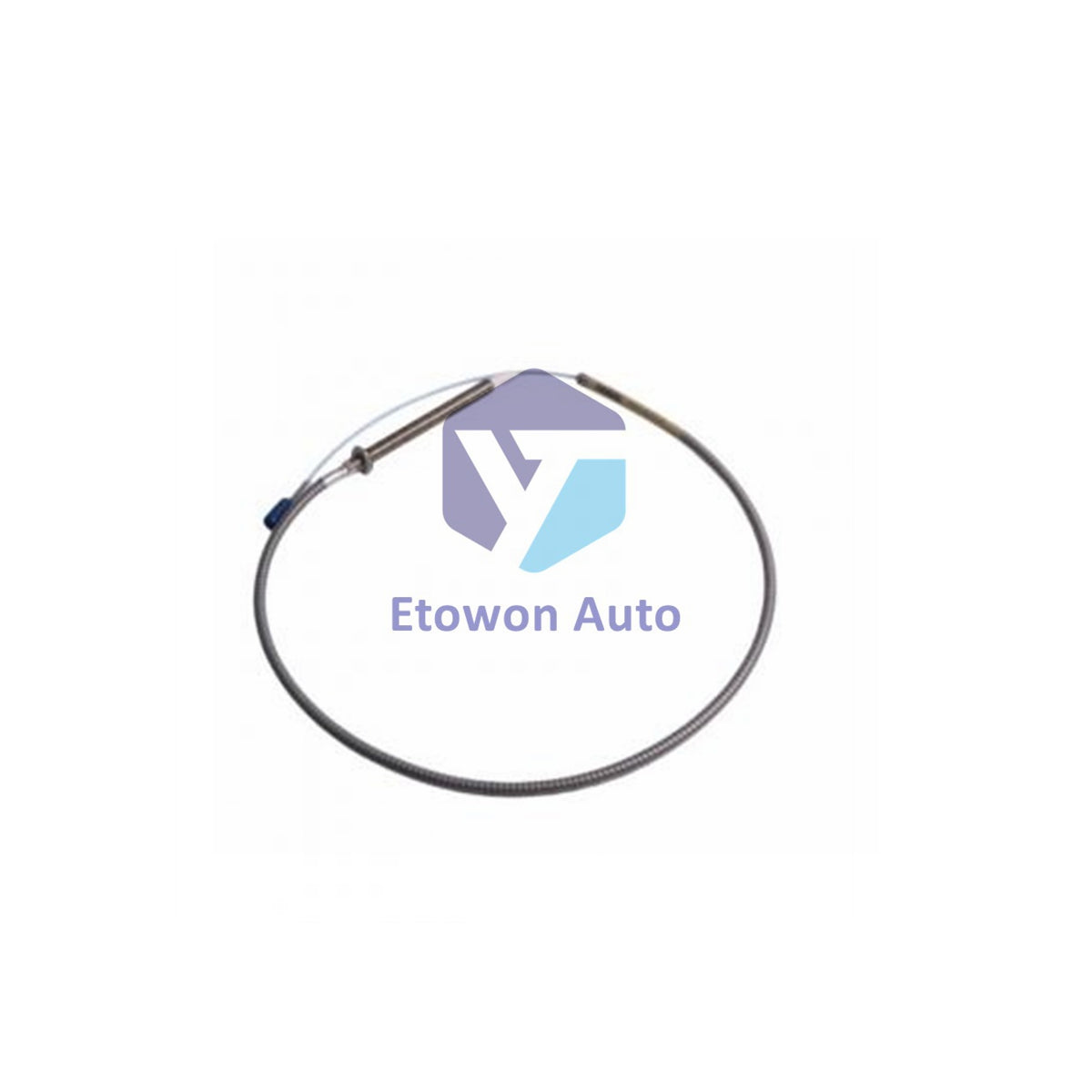

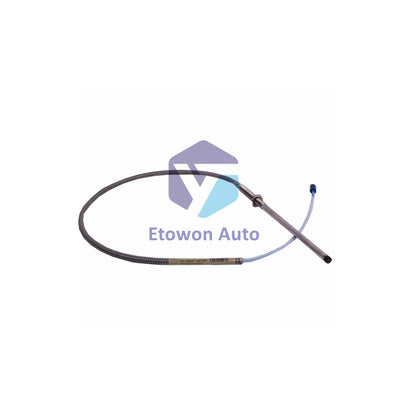

The Bently Nevada 330104-00-09-10-11-00 is a 3300 XL 8 mm proximity probe with M10×1 thread and armor protection. Its FluidLoc cable jacket prevents oil leakage, while the 1.0-metre cable and 9 mm case suit tight turbine and compressor installations. The probe weighs approximately 0.16 kg (0.35 lb).

Ordering Code Breakdown

330104 – 3300 XL 8 mm Probe, M10 x 1 thread, with armor
00 – Unthreaded Length: 0 mm
09 – Overall Case Length: 9 mm
10 – Total Cable Length: 1.0 metre (3.3 ft)
11 – Connector: Miniature coaxial ClickLoc, FluidLoc cable
00 – Agency Approval: Not required

Technical Specifications

Engineering Advantages

The FluidLoc jacket blocks oil and liquid migration through the cable interior, protecting machine and probe integrity. Armored M10×1 housing resists abrasion in high-vibration areas. ClickLoc connectors provide secure, tool-free cable attachment with 50 Ω output resistance. The PPS tip handles continuous temperatures up to 180°C. At roughly 0.16 kg, the probe adds minimal mass to the mounting point.

Technical FAQs

Q1: What does FluidLoc provide on this probe?
A1: FluidLoc prevents oil and liquids from leaking through the cable interior.

Q2: What is the recommended gap setting?
A2: 1.27 mm (50 mils) using an AISI 4140 steel target.

Q3: What is the pressure seal rating?
A3: Viton O-ring sealing differential pressure up to 3 bar.
